Structured Signal Connectivity for Series C Systems

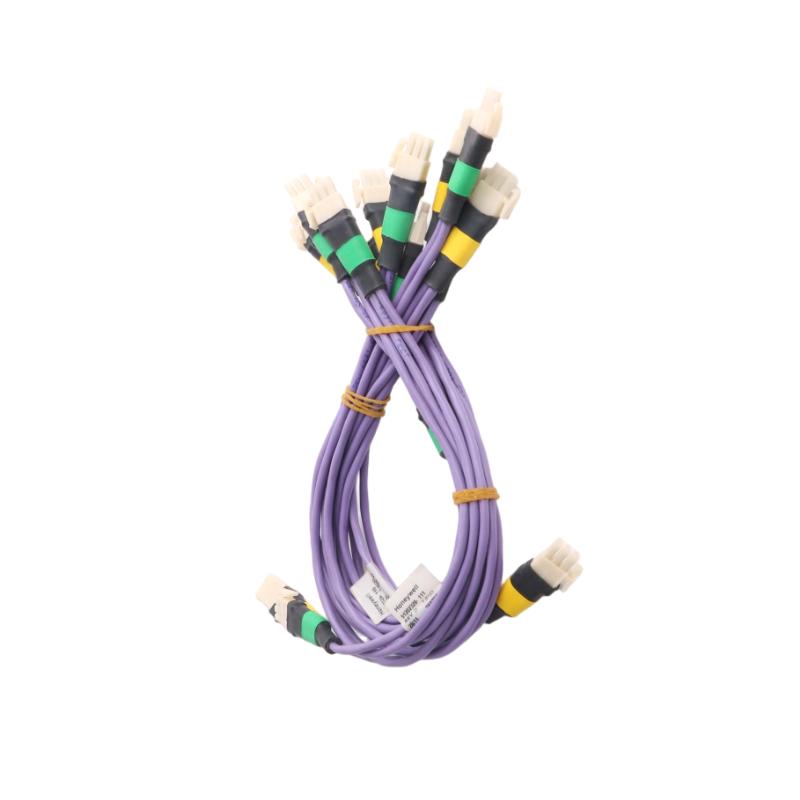

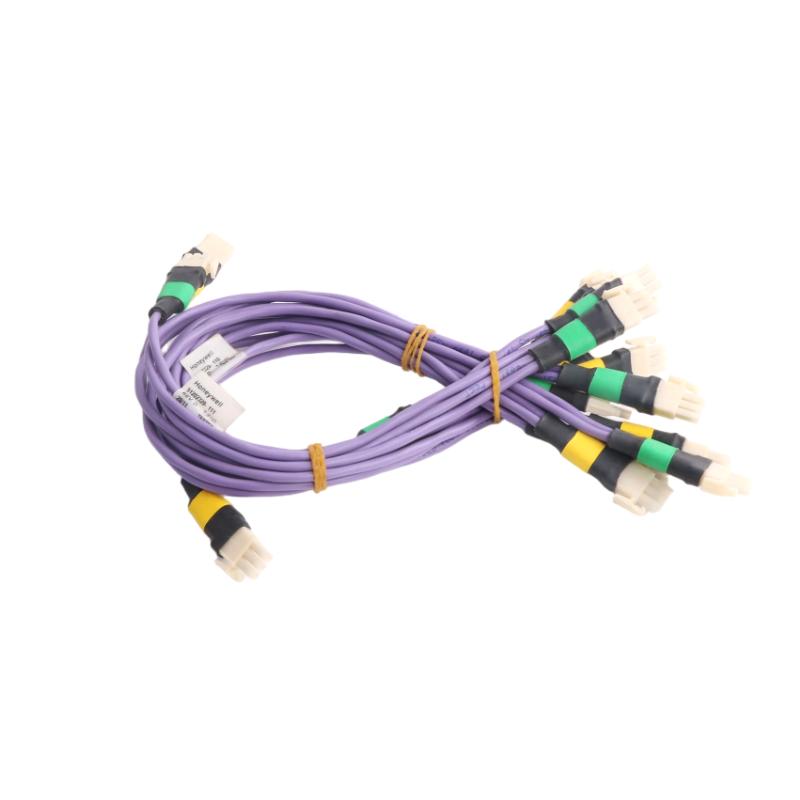

The Honeywell 51202329-111 Violet Drop Cable is an industrial interconnect component designed for Honeywell Series C I/O Link architectures. It provides structured signal distribution between controllers and I/O modules, ensuring stable, low-noise communication in distributed automation systems.
Its violet-coded insulation improves visual traceability inside complex control cabinets, helping engineers reduce wiring errors and speed up installation and maintenance workflows. Built for modular scalability, it supports multi-drop configurations that simplify system expansion in large industrial control environments.
Technical Specifications
| Parameter | Specification |
|---|
| Part Number | 51202329-111 |
| Product Type | Violet Drop Cable |
| System Compatibility | Honeywell Series C I/O Link |
| Number of Drops | 6 |
| Pitch | 6 inches (152 mm) |
| Label Color | Green (Cable B) |
| Function | Signal/data interconnection |
| Voltage Support | +24 VDC control environments |
| Conductor Type | Industrial copper wiring |
| Insulation | High-durability PVC jacket |
| Operating Temperature | -20°C to +70°C |
| Weight | ~0.06–2 kg (varies by packaging) |
Application in Industrial Automation
This cable is widely deployed in structured control systems where reliable I/O communication is essential. Typical environments include:
-
Distributed control system (DCS) cabinets
-
Industrial process automation panels
-
Power generation control systems
-
Oil & gas instrumentation networks
-
Chemical and manufacturing control infrastructure
Its multi-drop structure allows multiple I/O connections through a single organized cable assembly, improving system clarity and reducing cabinet clutter.
Engineering Benefits and Design Value
The 51202329-111 cable is designed to simplify system architecture while maintaining robust signal integrity. Its fixed 6-inch (152 mm) pitch ensures consistent spacing between connection points, which standardizes cabinet layout design and improves scalability.
Key advantages include:
-
Clear visual identification through violet color coding
-
Simplified wiring topology using standardized drop spacing
-
Improved maintenance efficiency in dense control cabinets
-
Stable signal transmission for I/O link communication
-
Modular expansion capability for large-scale automation systems
Compared with ad-hoc wiring methods, this structured drop-cable approach significantly reduces installation time and long-term troubleshooting complexity.
Technical FAQs
1. What system is this cable used in?
It is designed for Honeywell Series C I/O Link systems.
2. What is its primary function?
It connects I/O modules and supports structured signal transmission.
3. How many drops does it include?
It features 6 connection drops per cable assembly.
4. What is the spacing between drops?
Standard pitch is 6 inches (152 mm).
5. Is it a power cable?
No, it is primarily used for signal and communication purposes.
6. Can it be used outdoors?
It is intended for indoor control cabinet environments.
7. Does it require configuration?
No configuration is needed; it is a passive wiring component.
8. What makes it “violet”?
The color is used for quick identification within Honeywell wiring systems.
9. Is it compatible with other Honeywell systems?
It is primarily designed for Series C architectures.
10. Why is it important in automation systems?
It ensures structured, reliable, and scalable I/O communication.
