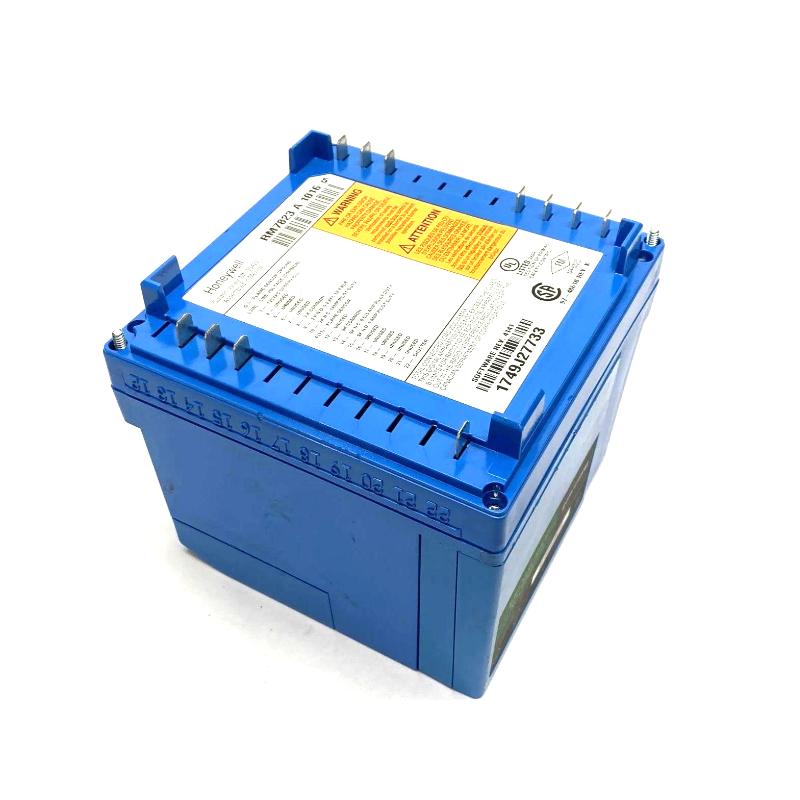

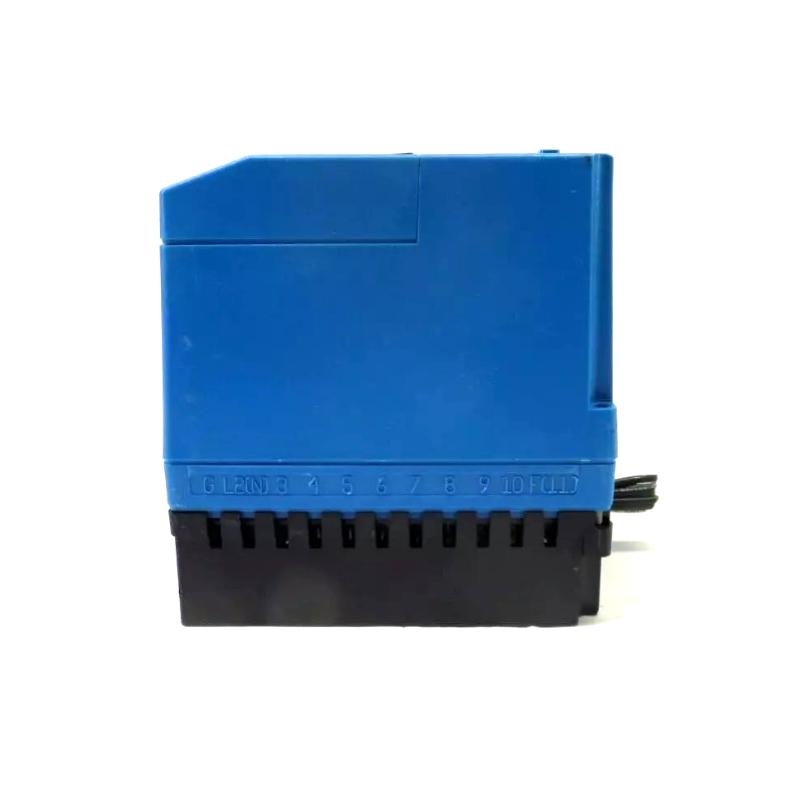

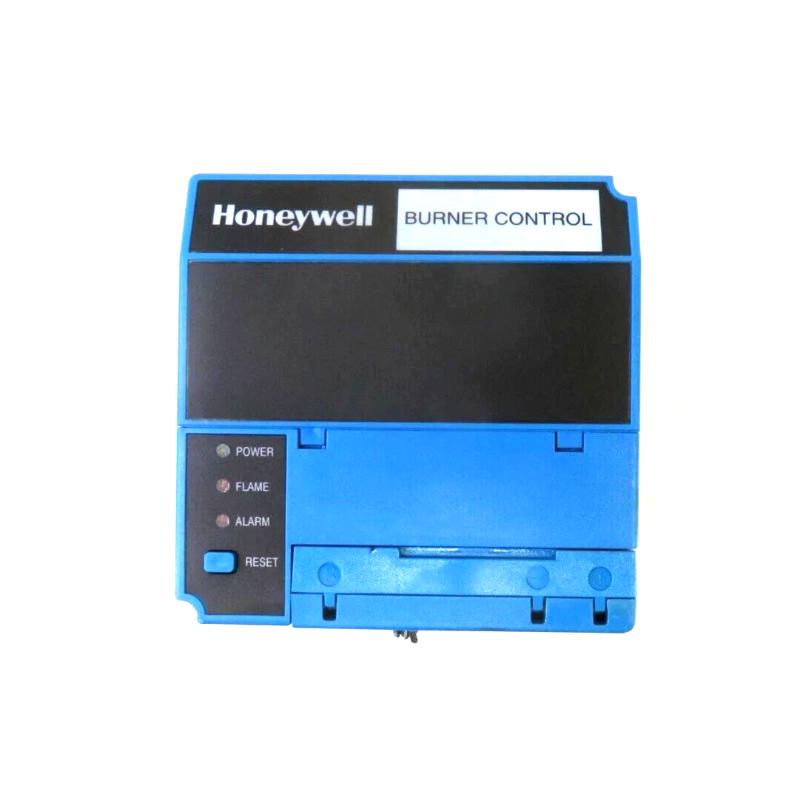

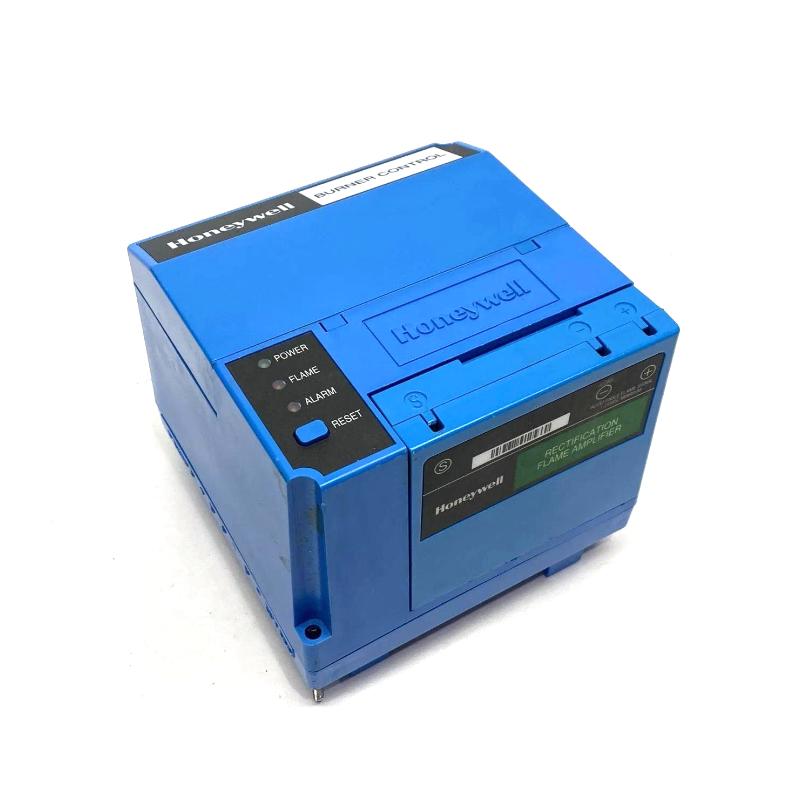

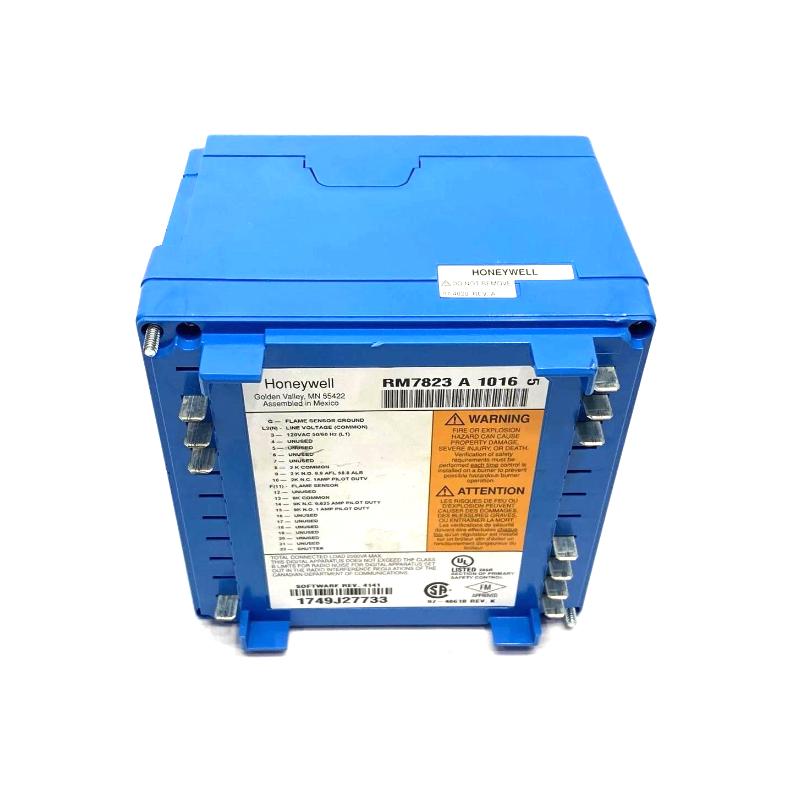

Honeywell RM7823A1016 7800 SERIES Burner Control

Name: Honeywell RM7823A1016 7800 SERIES Burner Control
Brand: Honeywell DCS
SKU: 7861
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Honeywell DCS
Item No.:RM7823A1016
Product Origin:USA
Product Dimensions:127 x 114 x 76 mm
Product Weight:0.45kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Precision Flame Monitoring for Safer Combustion

The Honeywell RM7823A1016 is a specialized module within the 7800 SERIES burner control platform, engineered to provide reliable flame detection feedback in industrial combustion systems. Unlike full burner management controllers, this unit functions as a flame relay module, delivering fast and accurate switching signals based on flame presence.

Built on Honeywell’s microprocessor-based 7800 architecture, it integrates seamlessly with other system components such as flame amplifiers and detectors. This modular approach enhances system flexibility, allowing engineers to design highly customized burner management solutions for complex applications.

Technical Specifications Snapshot

Parameter	Specification
Model	RM7823A1016
Series	Honeywell 7800 SERIES
Module Type	Flame Relay / Burner Control Module
Function	Flame signal detection and relay switching
Relay Output	Dual SPDT relays
Compatible Systems	Gas, oil, or dual-fuel burners
Operating Temperature	-40°C to 60°C
Mounting Type	Panel or cabinet mount
Protection Rating	NEMA 1 / IP00 (depending on region)
Dimensions (HxWxD)	Approx. 127 x 114 x 76 mm
Weight	Approx. 0.45 kg

Application Scenarios

The RM7823A1016 is commonly deployed as part of a larger burner management system in industries where combustion safety is critical:

Industrial boilers and steam generation systems
Process furnaces in chemical plants
Oil & gas combustion equipment
Power generation burner systems
Thermal processing and drying operations

Its role is essential in verifying flame presence, ensuring that burners operate only under safe conditions.

Functional Advantages and Engineering Value

One of the most important distinctions of the RM7823A1016 is its focused functionality. It does not perform full burner sequencing but instead provides precise relay outputs triggered by flame detection signals. This allows it to act as a highly responsive safety interface within a broader control system.

The module benefits from the 7800 SERIES platform’s modular design, enabling quick replacement, easy maintenance, and system scalability. Engineers can pair it with various flame amplifiers and sensors to suit different combustion technologies.

Additionally, the system supports diagnostic capabilities through compatible display modules, helping operators quickly identify issues such as flame loss or signal instability.

Technical FAQs

1. Is RM7823A1016 a complete burner controller?
No, it is a flame relay module, not a full burner management controller.

2. What is its primary function?
It provides relay switching based on flame detection signals.

3. Can it operate independently?
No, it must be integrated with other 7800 SERIES components.

4. What type of burners is it compatible with?
Gas, oil, and combination fuel burners.

5. Does it include flame detection hardware?
No, it requires a separate flame amplifier and sensor.

6. How many relay outputs are available?
It includes two SPDT relay outputs.

7. What happens if the flame is lost?
The relay state changes, triggering safety responses in the system.

8. Is it suitable for harsh environments?
Yes, within industrial temperature and installation specifications.

9. Can it be used in safety-critical systems?
Yes, as part of a certified burner management system.

10. Is maintenance complex?
No, its plug-in modular design simplifies replacement and servicing.
