Technical FAQs

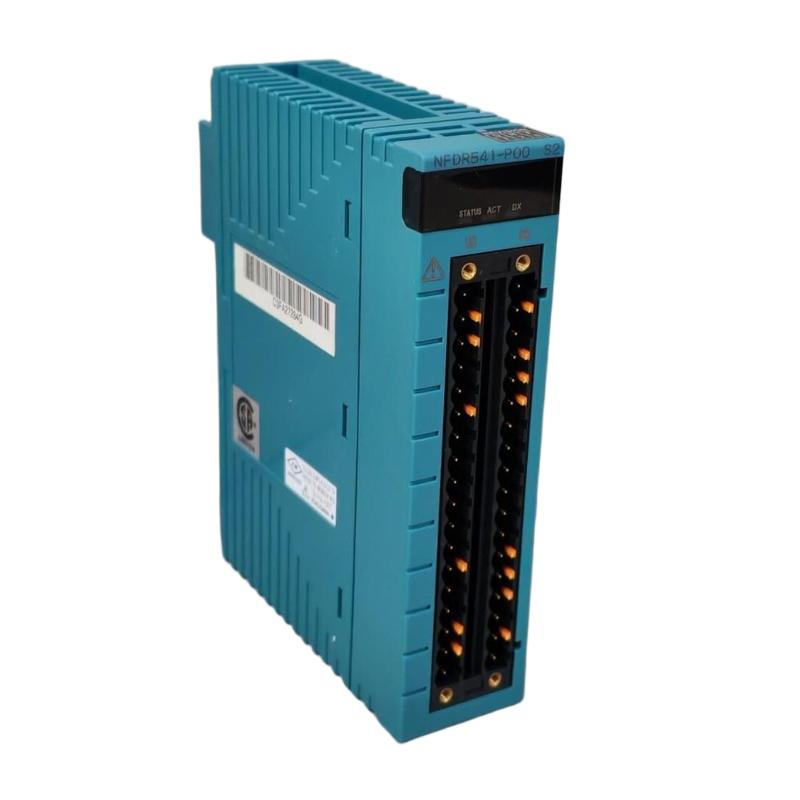

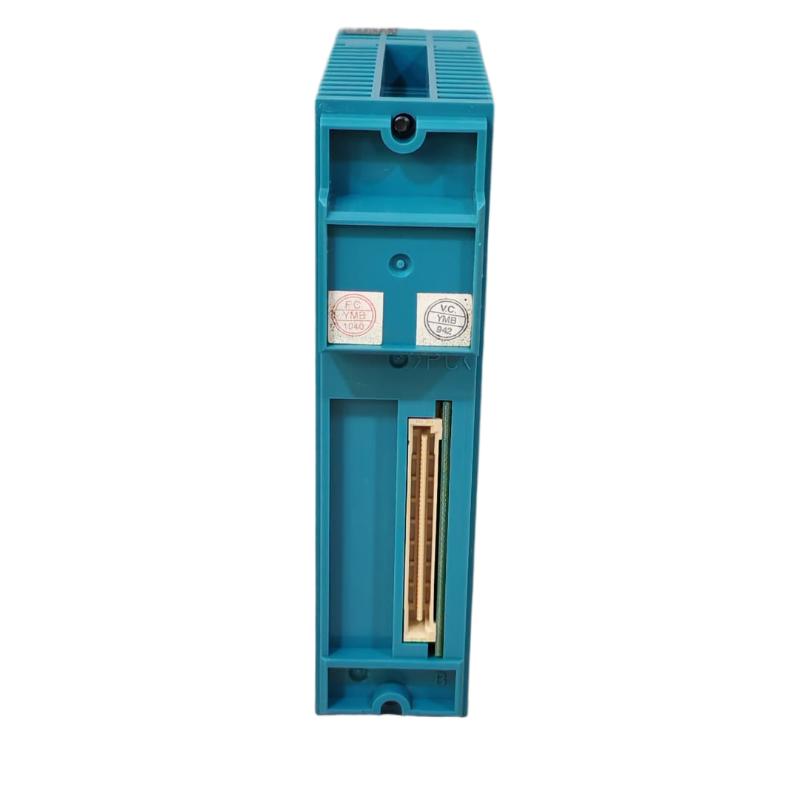

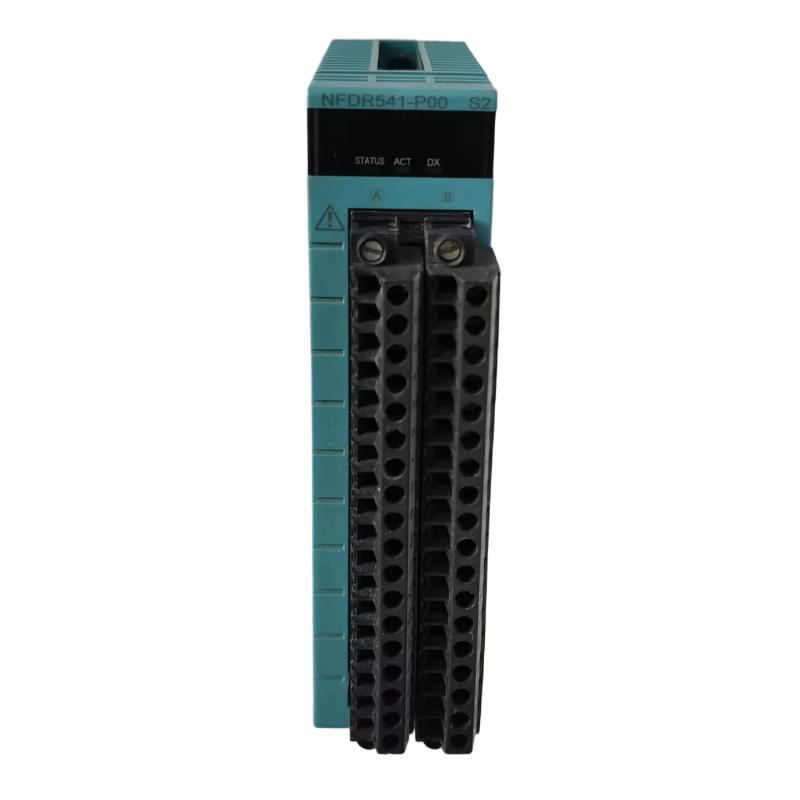

1. How many relay outputs does the NFDR541 provide?
It provides 4 individual relay output channels.

2. What type of relay contacts are used?
Form‑A (normally open) relay contacts are typically used.

3. What contact rating does it support?
It is typically rated for 3 A at 250 VAC or 30 VDC, suitable for general automation devices.

4. Is the module isolated from system logic?
Yes — relay circuits are galvanically isolated to protect controller logic and reduce noise.

5. What operating temperatures does the module support?
It typically operates in the range –10 °C to +55 °C.

6. Where is this module mounted?
It is installed in a compatible base rack or controller chassis.

7. What devices can be driven by these outputs?
Indicator lamps, relays, solenoid valves, contactors, and other discrete actuators.

8. Can it be used in high‑humidity environments?
Yes — it is rated for 5 % to 95 % non‑condensing humidity.

9. How fast do the relay outputs respond?
Switching occurs on a millisecond scale suitable for discrete control.

10. Is it suitable for safety systems?
It can be used in general control logic; safety system design should follow appropriate standards.
