Yokogawa NFDA4S‑00 Analog Input Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

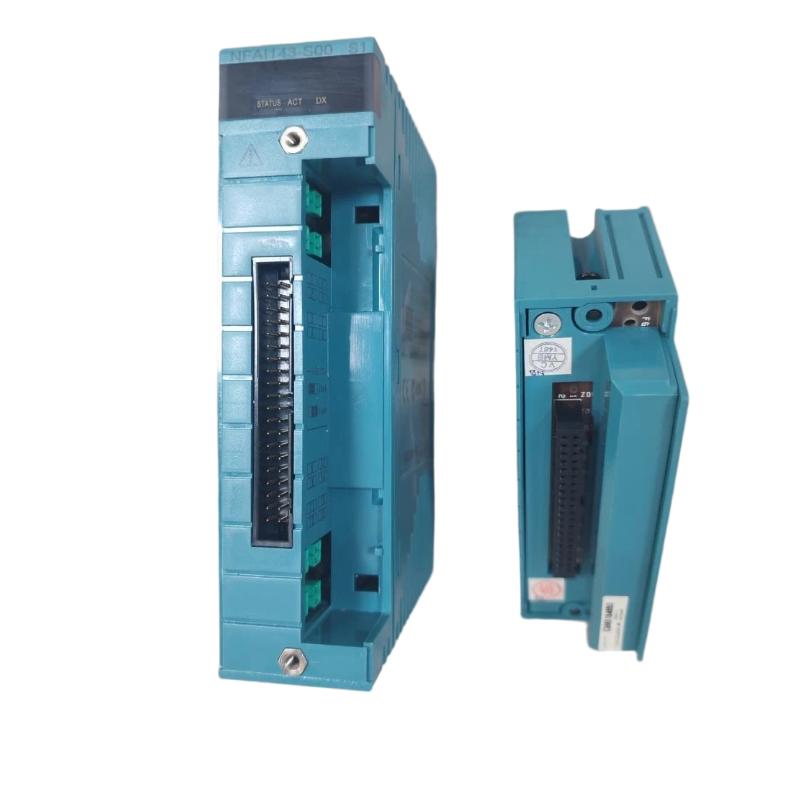

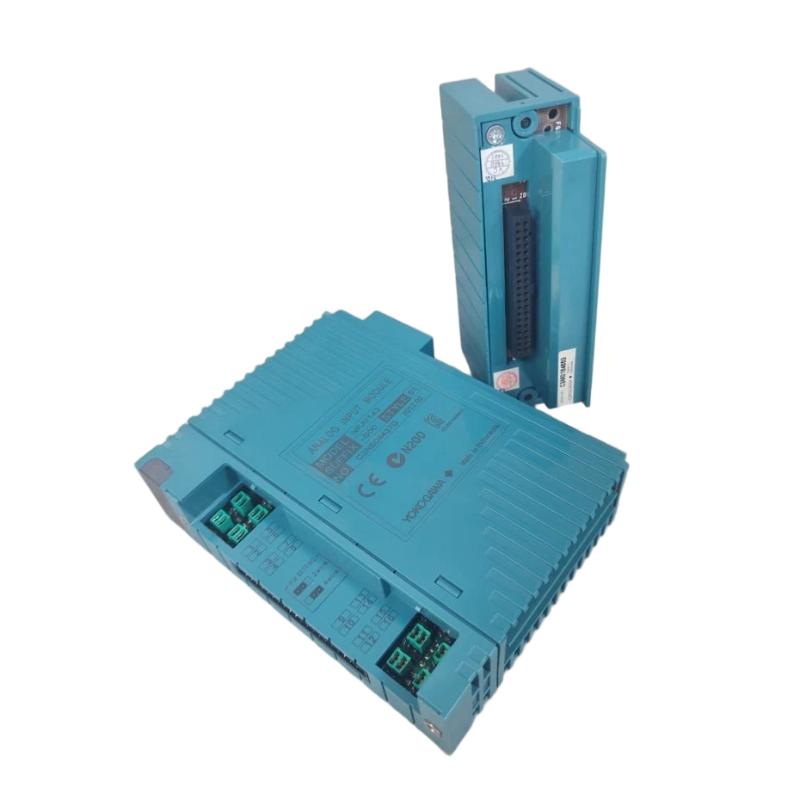

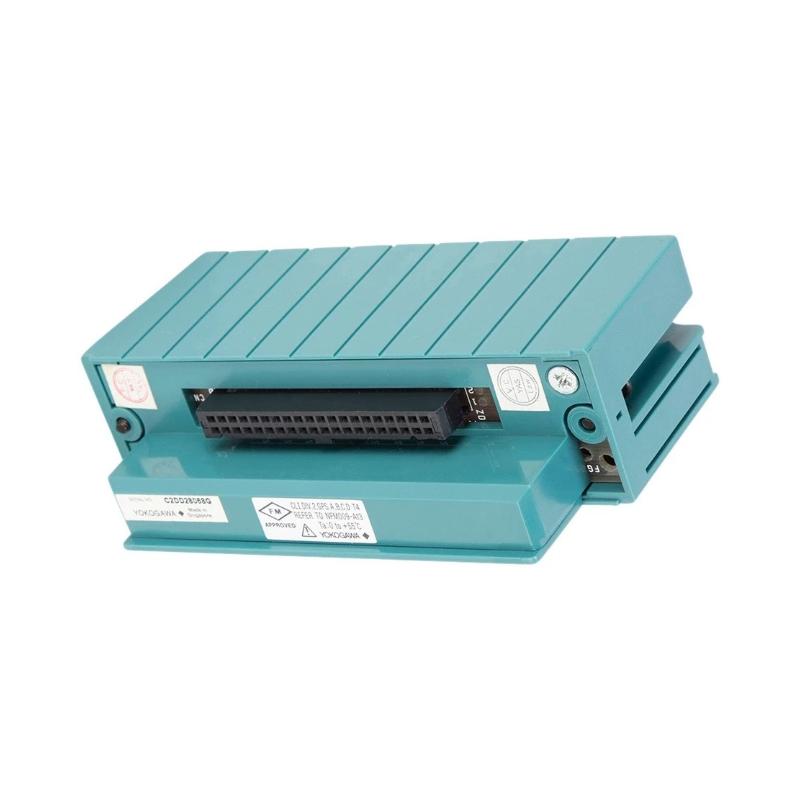

Yokogawa NFDA4S‑00 Analog Input Module

Name: Yokogawa NFDA4S‑00 Analog Input Module
Brand: Yokogawa Electric
SKU: 7182
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:NFDA4S‑00
Product Origin:Japan
Product Dimensions:32.8 × 107.5 × 130 mm
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa NFDA4S‑00 Analog Input Module is a precision measurement interface designed for modular automation platforms such as Yokogawa STARDOM and FCN/FCJ autonomous controllers. This module acquires and digitizes analog signals from field sensors—including current, voltage, and process instrumentation outputs—while providing stability, accuracy, and electrical isolation. Its flexible design and industrial robustness make it suitable for a wide range of automated process monitoring and control applications.

Technical Specifications

Specification	Details
Manufacturer	Yokogawa Electric Corporation
Model Number	NFDA4S‑00
Module Type	Analog Input Module
System Compatibility	Yokogawa STARDOM, FCN/FCJ controllers
Input Channels	4 isolated analog inputs
Supported Signal Types	Current (4–20 mA), Voltage (±1 V / ±10 V)
Input Accuracy	±0.1 % FS typical
Resolution	16‑bit or better
Input Impedance	High‑impedance channel design
Isolation	Channel‑to‑system galvanic isolation
Response Time	<100 ms per channel
Operating Temperature	–10 °C to +55 °C
Storage Temperature	–40 °C to +85 °C
Humidity	5 % – 95 % RH non‑condensing
Power Consumption	Low‑power design
Mounting	Base module rack installation
Weight	Approx. 0.2–0.5 kg

Applications

Process Control Systems – Captures feedback from sensors in chemical, petrochemical, and energy facilities
Instrumentation Integration – Connects pressure, flow, and temperature sensors to control logic
Factory Automation & SCADA – Provides analog data for monitoring and control
Water & Wastewater Treatment – Monitors pH, conductivity, and level sensors
Machine Automation – Feeds analog values into automated machine control systems

Applications

Process Control Systems – Captures feedback from sensors in chemical, petrochemical, and energy facilities
Instrumentation Integration – Connects pressure, flow, and temperature sensors to control logic
Factory Automation & SCADA – Provides analog data for monitoring and control
Water & Wastewater Treatment – Monitors pH, conductivity, and level sensors
Machine Automation – Feeds analog values into automated machine control systems

Technical FAQs

How many analog inputs are available?
4 isolated analog channels.
Which signal types are supported?
Current (4–20 mA) and voltage (±1 V / ±10 V).
Are channels isolated?
Yes, each channel is galvanically isolated.
What is the accuracy?
±0.1 % full-scale typical.
What is the resolution?
16-bit or better.
Operating temperature range?
–10 °C to +55 °C.
Can it be used in industrial control systems?
Yes, compatible with STARDOM and FCN/FCJ controllers.
How is the module protected against noise?
Galvanic isolation minimizes interference.
Suitable for high-humidity environments?
Yes, operates in 5 %–95 % RH non-condensing.
How is it mounted?
Installs in a compatible base module rack.
