Product Overview

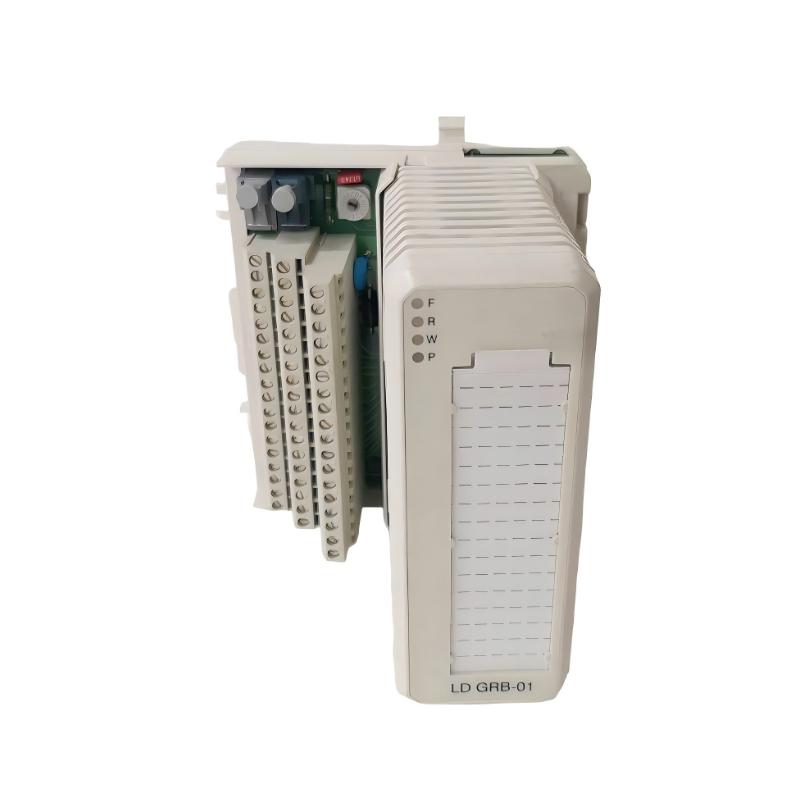

The ABB LD GRB-01 3AFE61320954 Grayscale Encoding Board is a high-precision module designed for industrial control and motion feedback systems. By converting positional signals into reliable grayscale data, it enables accurate servo and drive control while maintaining signal integrity under challenging industrial conditions.
Its compact design and lightweight construction make it easy to integrate into control cabinets or drive assemblies, supporting both system reliability and precision in automated operations.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | ABB |
| Model Number | 3AFE61320954 |
| Module Type | Grayscale Encoding Board |
| Function | Converts Positional Signals into Accurate Grayscale Data |
| System Compatibility | ABB Servo Drives, Motion Controllers, Automation Systems |
| Installation | Control Cabinet or Drive Module Mount |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 150 mm × 50 mm × 100 mm |
| Weight | 0.2 kg (0.44 lb) |
Applications in Precision Control Systems
The ABB LD GRB-01 Grayscale Encoding Board is engineered to convert analog or digital positional signals into precise grayscale data for high-accuracy motion control and robotics applications. It ensures reliable signal encoding, supporting accurate feedback loops for IGBT drives, servo motors, and industrial automation systems.
Typical application scenarios include:
-
Robotics: Provides precise motion feedback for robotic arms and automated machinery.
-
Industrial Automation: Supports position and speed control of conveyor systems and assembly lines.
-
Servo Drive Systems: Enables accurate position sensing for high-speed servos.
-
Precision Manufacturing: Assists in fine positional adjustments and quality control.
-
Motion Feedback and Control Integration: Converts analog/digital signals for real-time system monitoring.
By maintaining signal integrity, the board ensures accurate feedback, reducing control errors and improving operational reliability.
Advantages in Control Precision and Signal Integrity
-
High-Accuracy Encoding: Converts position signals into precise grayscale data for reliable feedback.
-
Compact and Lightweight: Dimensions of 150 mm × 50 mm × 100 mm and weight 0.2 kg (0.44 lb) support flexible installation.
-
Enhanced Signal Stability: Minimizes noise and distortion for accurate control loop operation.
-
Seamless System Integration: Works with ABB drives, servo modules, and motion controllers.
-
Durable Industrial Performance: Operates reliably under vibration, temperature variations, and electrical interference.
