Yokogawa NFAT141‑S01 TC/mV Input Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Yokogawa NFAT141‑S01 TC/mV Input Module

Name: Yokogawa NFAT141‑S01 TC/mV Input Module
Brand: Yokogawa Electric
SKU: 7161
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:NFAT141‑S01
Product Origin:Japan
Product Dimensions:12.7 × 2.5 × 12.7 cm
Product Weight:0.2kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

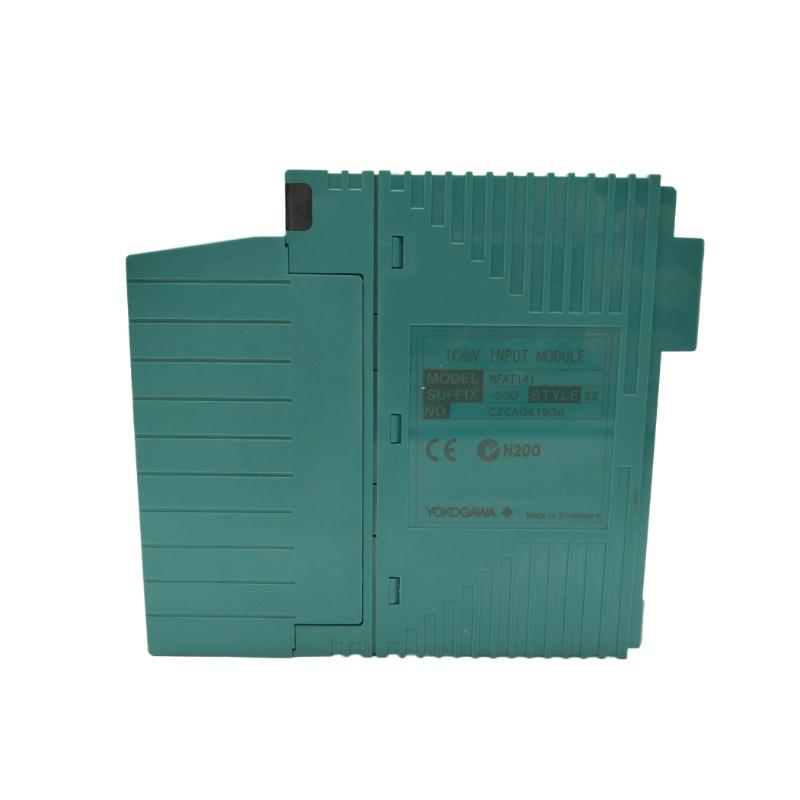

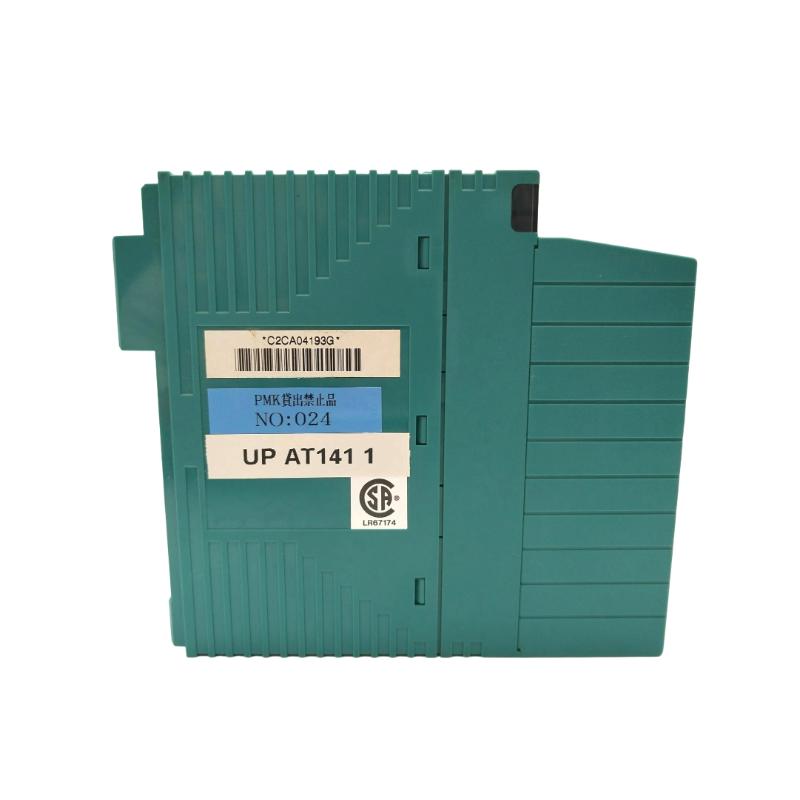

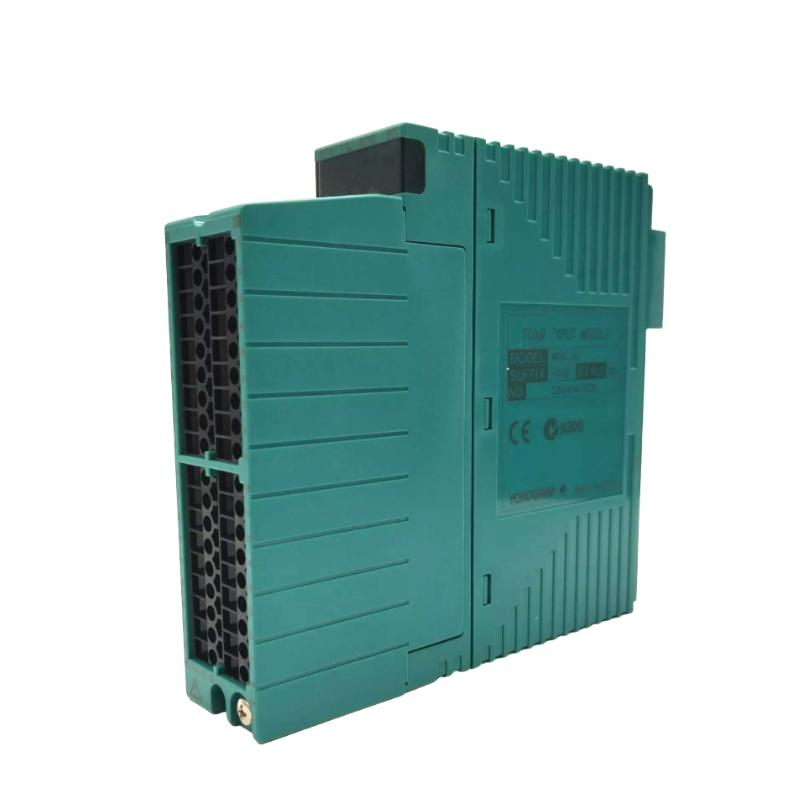

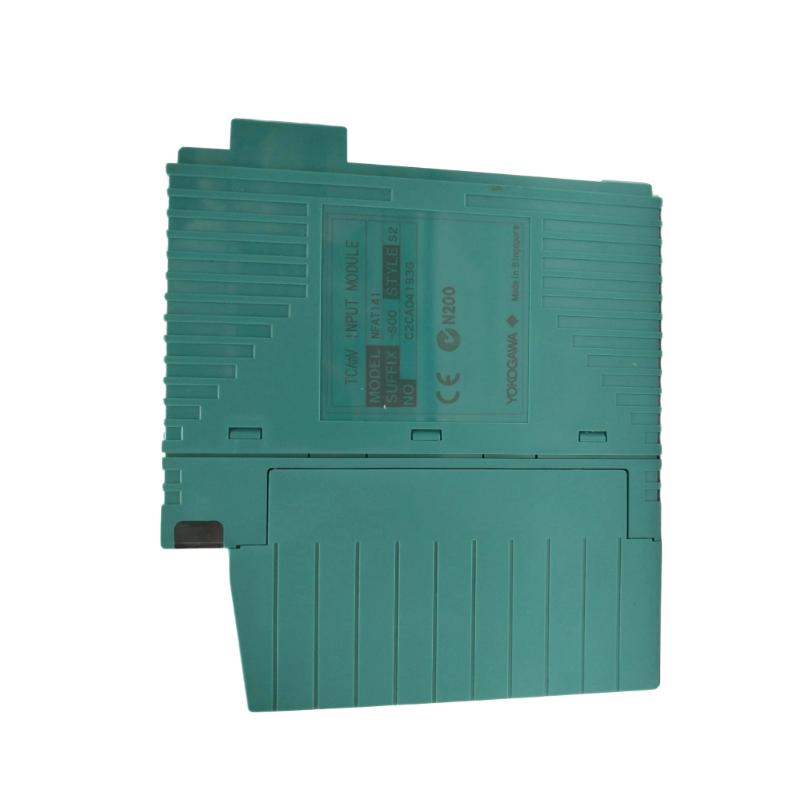

The Yokogawa NFAT141‑S01 TC/mV Input Module is a precision analog input card designed to interface thermocouple and low-level millivolt signals with process control systems such as Yokogawa STARDOM and similar modular controller environments. This module supports up to 16 isolated channels, enabling simultaneous temperature and voltage measurement across multiple field devices while maintaining excellent signal integrity and isolation performance. With flexible channel configuration and robust industrial design, it is ideal for demanding automation and process control applications.

Technical Specifications

Specification	Details
Manufacturer	Yokogawa Electric Corporation
Model Number	NFAT141‑S01
Module Type	TC/mV Input Module
System Compatibility	Yokogawa STARDOM, Centum, FCN/FCJ control platforms
Number of Input Channels	16 isolated channels
Supported Signal Types	Thermocouple: J, K, E, B, R, S, T, N; Millivolt: –100 mV to 150 mV, –20 mV to 80 mV
Allowable Input Voltage	±5 V
Channel Isolation	Full channel-to-system isolation
Input Resistance	≥2 MΩ (ON/OFF)
Accuracy	TC: ±0.03 % FS (for –20 to 80 mV); mV: ±0.032 % FS
Reference Junction Compensation	Yes, accuracy within ±1 °C
Temperature Drift	TC: ±30 ppm/°C; mV: ±32 ppm/°C
Data Refresh Cycle	1 second
Burn-out Detection	Configurable, group detection (UP/DOWN)
Maximum Current Consumption	~450 mA @ 5 V DC
Connection	Pressure clamp terminal or standard connector cable
Operating Temperature	Industrial range
Weight	Approx. 0.2 kg
Typical Dimensions	~12.7 × 2.5 × 12.7 cm (L×W×H)

Applications

Temperature monitoring using various thermocouple types in refining, chemical, energy, and water/wastewater systems
Millivolt signal acquisition from low-level sensors, transducers, and bridge circuits
Distributed data collection in modular control architectures
Centralized process diagnostics for thermal and voltage parameters
Industrial environments requiring robust isolation and stable measurement performance

Its broad signal support and isolated channel design help ensure accurate process measurement and control across multiple field devices.

Advantages

Multi-Signal Flexibility: Handles both thermocouple and millivolt signals in one module
High Channel Count: 16 isolated input channels reduce module count and save rack space
Accurate Measurement: Tight accuracy and low temperature drift support precise monitoring
Reference Junction Compensation: Built-in cold junction compensation improves TC measurement accuracy
Robust Industrial Design: High input resistance and electrical isolation enhance noise immunity and reliability
Configurable Burn-out Detection: Helps identify sensor failures or disconnections quickly

Technical FAQs

How many input channels does this module support?
16 isolated TC/mV input channels.
What types of signals can it measure?
Thermocouple types J, K, E, B, R, S, T, N and millivolt inputs within specified ranges.
Does this module provide thermocouple cold junction compensation?
Yes, reference junction compensation is included with ±1 °C accuracy.
Is the module electrically isolated?
Yes, all 16 channels are isolated from the system backplane.
What is the allowable input voltage range?
±5 V.
How frequently does the module update data?
Approximately once per second.
Can it detect sensor circuit failures?
Yes, configurable burn-out detection can signal open or shorted sensors.
What is its typical power consumption?
Maximum current ~450 mA @ 5 V DC.
What connection types does it support?
Pressure clamp terminals or standard connector cables.
Is this module suitable for high-noise industrial environments?
Yes, high input resistance and channel isolation ensure accurate measurements.
