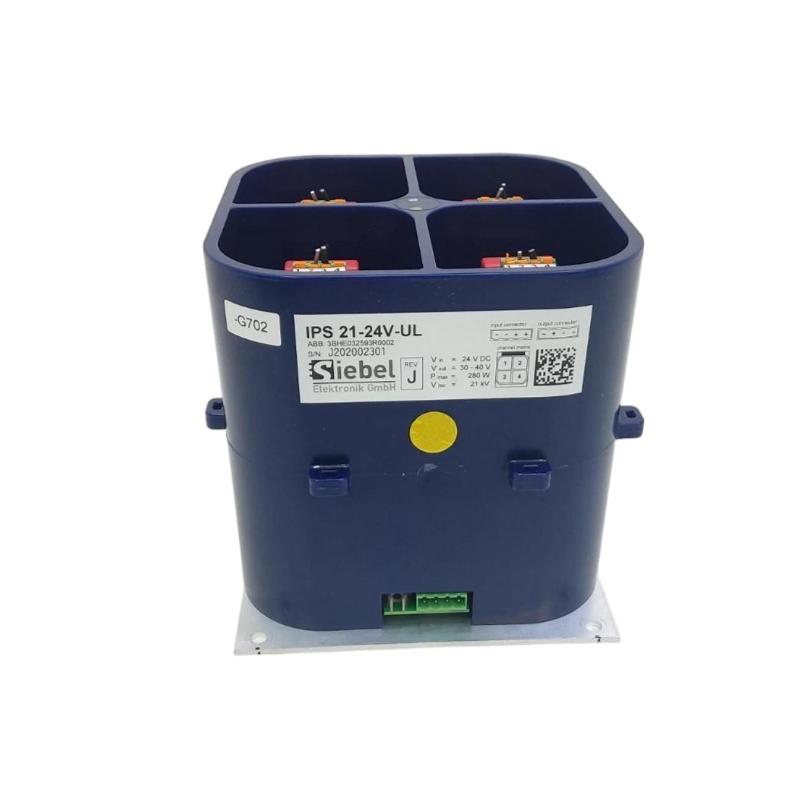

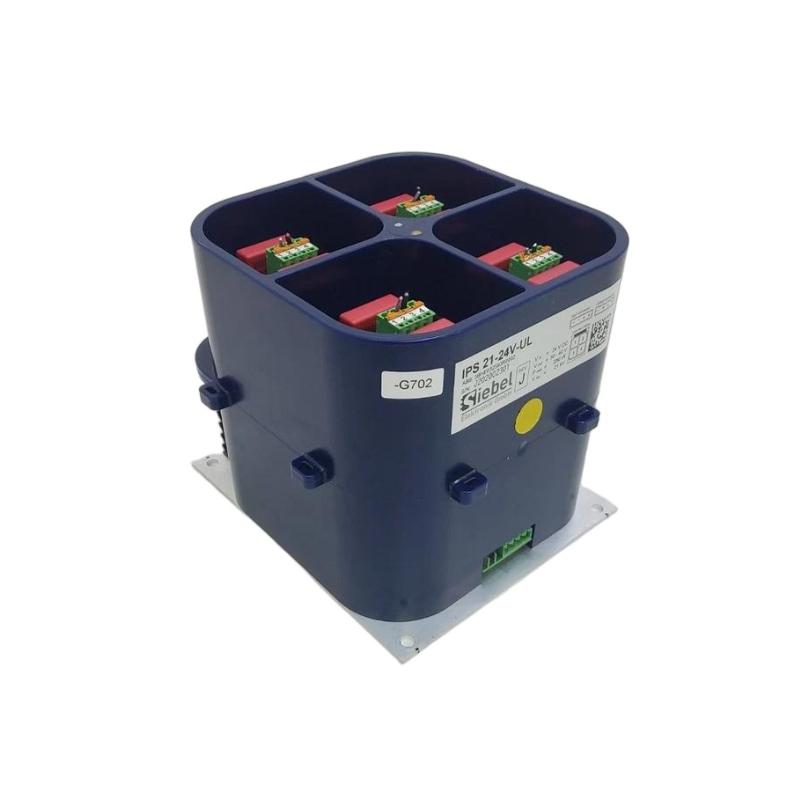

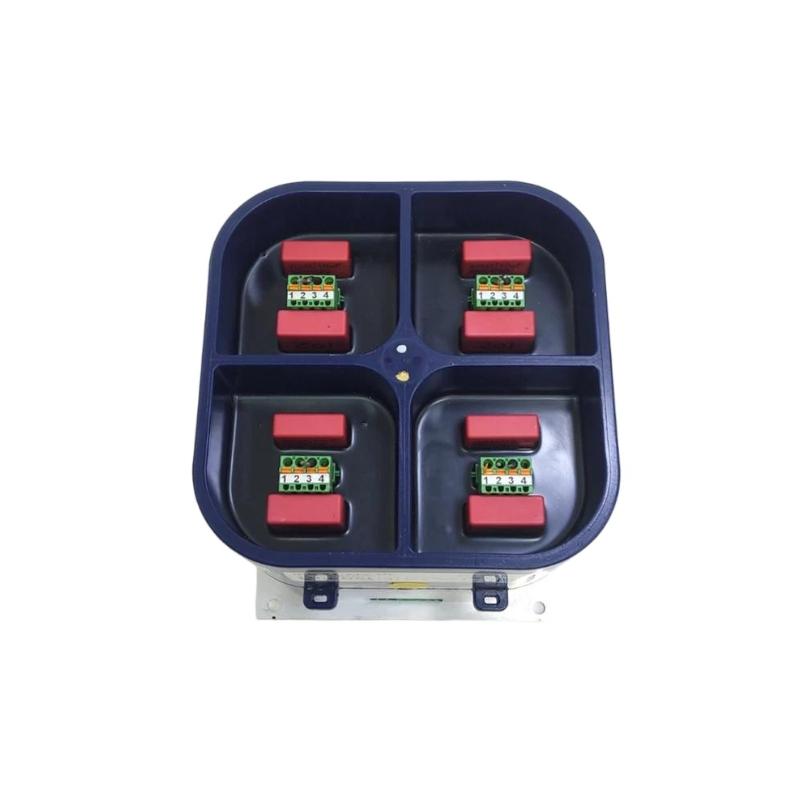

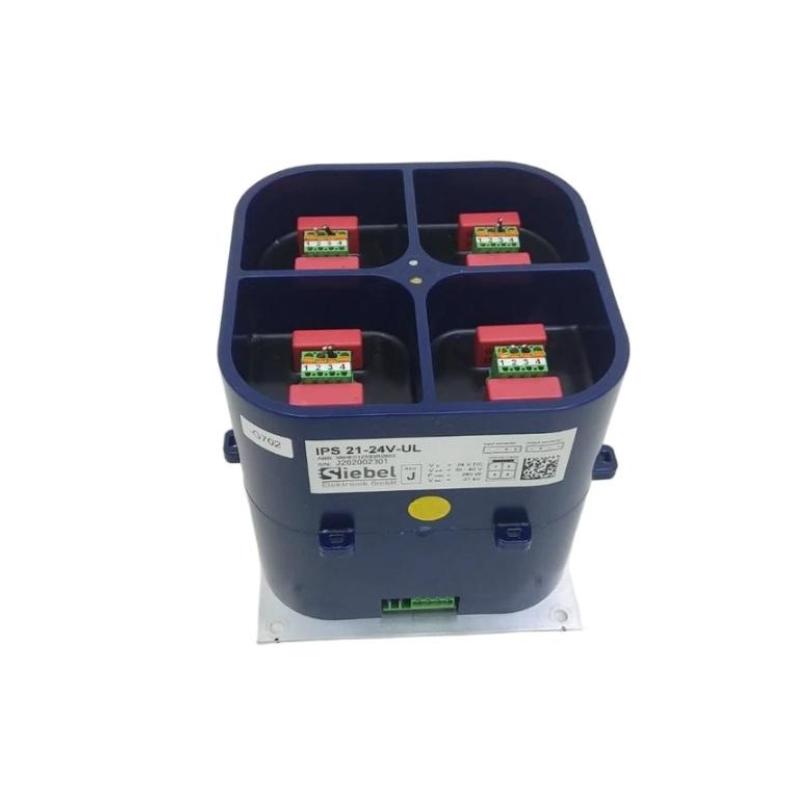

ABB IPS 21-24V-UL 3BHE032593R0002 IGBT Power Supply

Brand:ABB PLC
Item No.:IPS 21-24V-UL
Product Origin:Sweden (SE)
Product Dimensions:300 x 120 x 150 mm
Product Weight:2.5 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact


Product Overview

The ABB IPS 21-24V-UL 3BHE032593R0002 IGBT Power Supply is a high-reliability DC power module designed to support IGBT switching circuits in industrial power systems. By providing a stable 21–24 V output, it ensures consistent gate control, which is critical for efficient operation and reduced switching losses.

Its robust design allows integration into drive systems and control cabinets, maintaining performance under industrial environmental stresses. For engineers and maintenance teams, this module delivers dependable power, improves system stability, and supports efficient industrial energy conversion.

Technical Specifications

SpecificationDetails
ManufacturerABB
Model Number3BHE032593R0002
Module TypeIGBT Power Supply
FunctionProvides Regulated DC Voltage to IGBT Circuits
System CompatibilityABB Drive and Inverter Systems
InstallationControl Cabinet / Drive Module Mount
Operating Temperature-20°C to 60°C
Storage Temperature-40°C to 85°C
Dimensions300 mm × 120 mm × 150 mm
Weight2.5 kg (5.51 lb)


Applications in IGBT-Based Power Systems

The ABB IPS 21-24V-UL IGBT Power Supply is designed to deliver stable and reliable DC voltage to IGBT modules within industrial drives, inverters, and power conversion systems. It ensures that the gate drivers receive consistent power, which is critical for precise switching and high-efficiency operation.

Typical application scenarios include:

  • Industrial Variable Frequency Drives (VFDs): Powers IGBT gate circuits to control motor speed and torque.
  • Power Inverters: Supplies excitation voltage for IGBTs in DC-to-AC conversion systems.
  • Renewable Energy Systems: Provides stable DC voltage for solar and wind inverters.
  • Traction Systems: Supports IGBT modules in electric trains and industrial transportation.
  • Automation & Manufacturing: Ensures reliable power for drive modules in heavy-duty equipment.

By maintaining consistent voltage levels, this power supply minimizes switching errors and improves system efficiency.


Operational Advantages

  • Stable DC Output: Delivers a regulated 21–24 V supply, critical for precise IGBT control.
  • Compact Design: Dimensions of 300 mm × 120 mm × 150 mm enable integration into control cabinets or drive assemblies.
  • Manageable Weight: Weighs 2.5 kg (5.51 lb), simplifying installation and handling.
  • High Reliability: Designed for continuous operation under industrial conditions.
  • Protective Features: Typically includes short-circuit, overcurrent, and overvoltage protection to safeguard downstream IGBT modules.


Technical FAQs

  1. What is the main function of the IPS 21-24V-UL?
    Provides a stable DC supply voltage to IGBT gate driver circuits.
  2. Why is a dedicated power supply needed for IGBTs?
    Stable voltage is essential for precise switching, avoiding misfiring and energy losses.
  3. Can it handle continuous operation?
    Yes, it is designed for long-term industrial use.
  4. How is the module installed?
    Mounted inside control cabinets or drive modules, connected to the IGBT gate circuits.
  5. Does it provide protection features?
    Yes, it typically includes safeguards against overcurrent, overvoltage, and short circuits.
  6. Is it suitable for high-temperature environments?
    Yes, it operates reliably in industrial ambient temperatures.
  7. Can it be used in renewable energy systems?
    Yes, it is compatible with inverter systems in solar and wind energy applications.
  8. Which industries benefit most from this power supply?
    Manufacturing, power generation, transportation, and industrial automation.
  9. Can multiple supplies be paralleled?
    It can be configured as part of a modular DC supply system with careful design considerations.
  10. What is the key operational benefit?
    Ensures precise IGBT switching and reliable power conversion across industrial applications.


Sales and Business Development

Phone: +8617350837383
E-mail: [email protected]
Skype: +8617350837383
WhatsApp: +8617350837383
Business hours: We Provide Online Support 24/7
Address: Room 1001, Jiuzhou Commercial Building, Xiamen, Fujian Province, China
