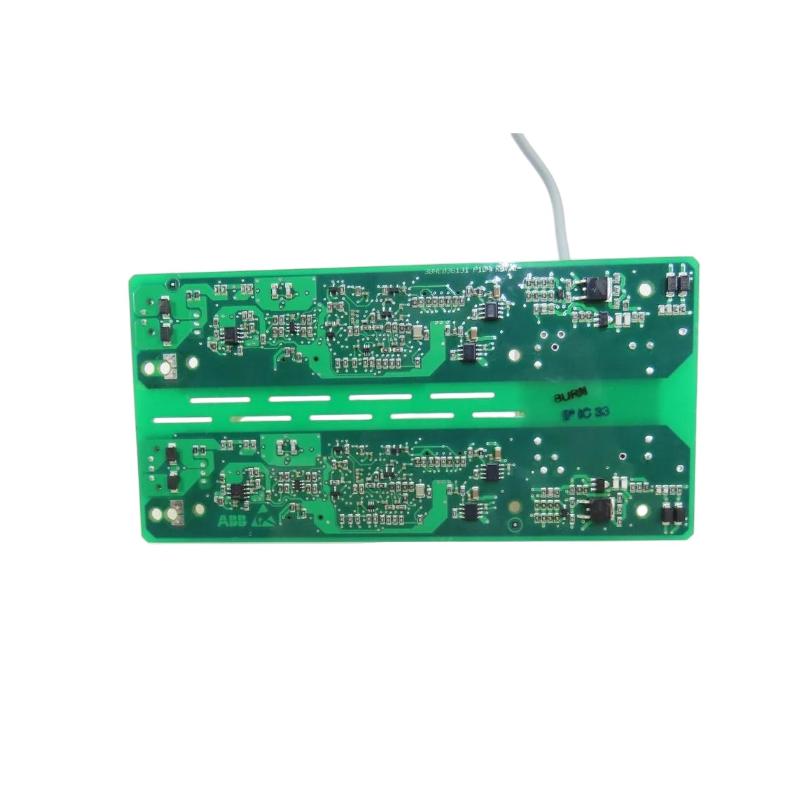

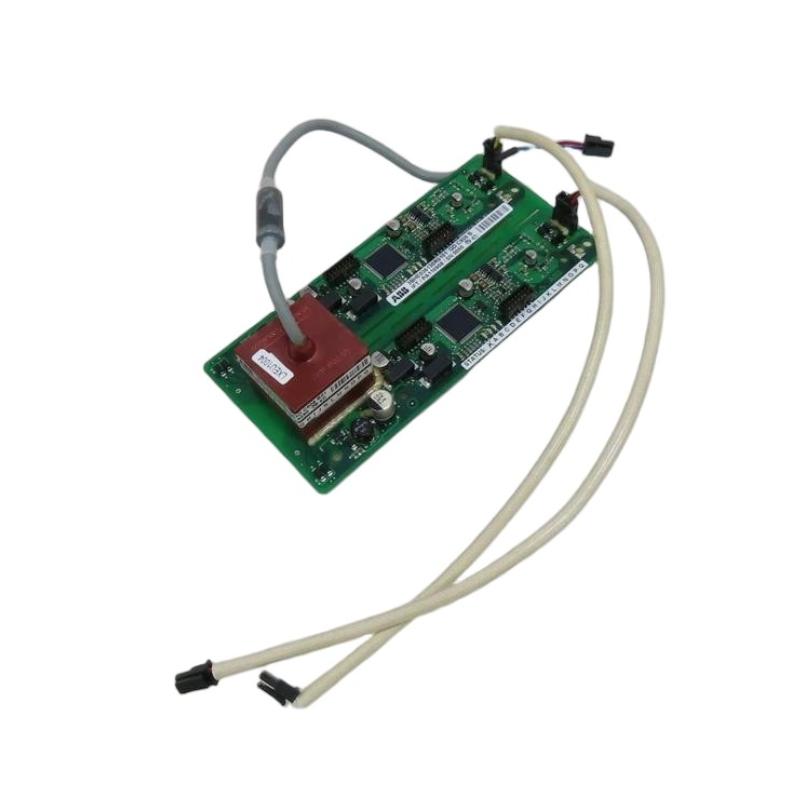

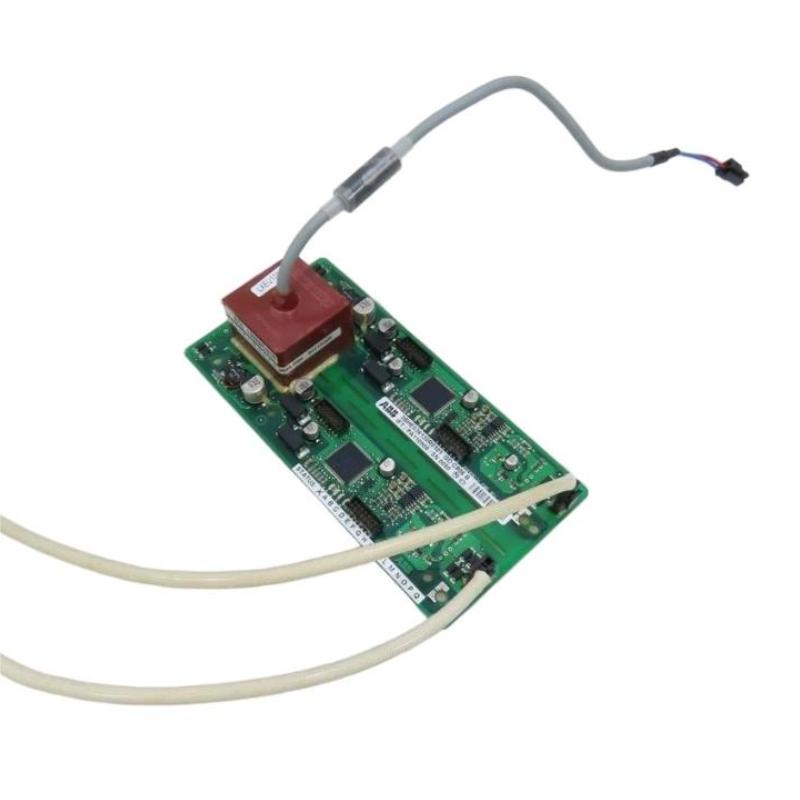

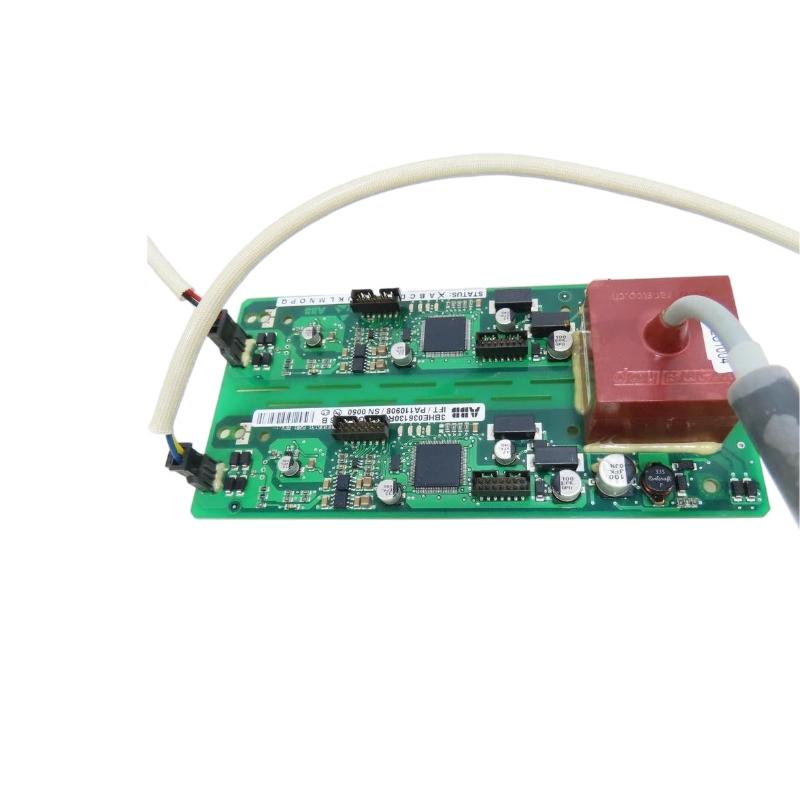

ABB GD C806 B01 3BHE036290R0001 Gate Drive Unit

Name: ABB GD C806 B01 3BHE036290R0001 Gate Drive Unit
Brand: ABB PLC
SKU: 7147
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:GD C806 B01
Product Origin:Sweden (SE)
Product Dimensions:120 × 100 × 25 mm
Product Weight:0.25 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The ABB GD C806 B01 3BHE036290R0001 Gate Drive Unit is a compact and high-performance module designed for controlling power semiconductor switching in ABB drive and inverter systems. It plays a key role in ensuring efficient energy conversion, stable motor control, and safe operation of power electronics.

With its robust design and compact footprint, the unit integrates easily into modern drive architectures while maintaining reliable performance under demanding industrial conditions. It supports high-speed switching applications and contributes to improved system efficiency and longevity.

For power electronics engineers and system integrators, the GD C806 B01 offers a dependable solution for precise gate control and enhanced system stability.

Technical Specifications

Specification	Details
Manufacturer	ABB
Model Number	3BHE036290R0001
Module Type	Gate Drive Unit
Function	Power Semiconductor Switching Control
System Compatibility	ABB Drive and Inverter Systems
Installation	Internal Mount within Drive/Inverter Assembly
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 85°C
Dimensions	120 mm × 100 mm × 25 mm
Weight	0.25 kg (0.55 lb)

Applications in Power Electronics and Drive Control

The ABB GD C806 B01 Gate Drive Unit is a critical component in power electronic systems, responsible for controlling the switching behavior of semiconductor devices such as IGBTs and power transistors. It ensures precise timing, safe operation, and efficient energy conversion within ABB drive and inverter systems.

Typical application areas include:

Variable Frequency Drives (VFDs): Controls switching of power semiconductors for motor speed regulation.
Inverter Systems: Provides gate control signals for DC-to-AC power conversion.
Industrial Motor Control: Ensures stable and efficient operation of motors in manufacturing and processing plants.
Renewable Energy Systems: Used in solar and wind inverters requiring precise switching control.
High-Power Automation Systems: Supports power modules in heavy industrial environments such as mining and metallurgy.

Its function is essential for achieving efficient switching performance, minimizing losses, and ensuring safe operation of power devices.

Engineering Advantages

Precise Switching Control: Delivers accurate gate signals for optimal performance of power semiconductors.
Improved System Efficiency: Reduces switching losses and enhances overall energy conversion efficiency.
Compact Mechanical Design: Dimensions of 120 mm × 100 mm × 25 mm allow integration into compact drive assemblies.
Lightweight Construction: Weighs 0.25 kg (0.55 lb), enabling easy installation and maintenance.
High Noise Immunity: Designed to operate reliably in electrically noisy industrial environments.

Technical FAQs

What is the main function of the GD C806 B01 gate drive unit?
It controls the switching of power semiconductor devices such as IGBTs in drive and inverter systems.
Why is a gate drive unit important in power electronics?
It ensures proper switching timing, protecting devices and improving efficiency.
Can it handle high-frequency switching applications?
Yes, it is designed for high-speed switching required in modern inverter systems.
How is the unit installed?
It is mounted within the drive or inverter assembly and connected to power modules via dedicated interfaces.
Does it provide protection features?
Yes, it typically includes protection against overcurrent, short circuits, and abnormal switching conditions.
Is it suitable for harsh industrial environments?
Yes, it is engineered to withstand electrical noise, vibration, and temperature variations.
Can it be used in renewable energy systems?
Yes, it is applicable in inverter systems for solar and wind energy applications.
How does it improve system reliability?
By ensuring accurate switching and protecting power devices, it reduces failure risks.
Is it compatible with all ABB drive systems?
It is designed for specific ABB drive and inverter platforms.
What is the primary operational benefit?
Provides precise, reliable control of power switching, ensuring efficient and stable system operation.
