Introduction

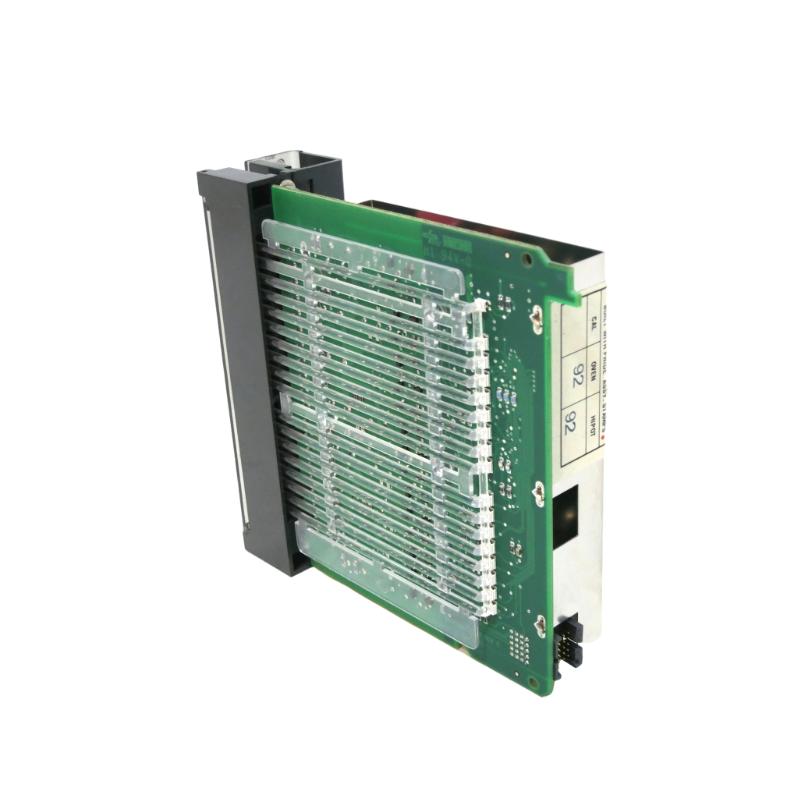

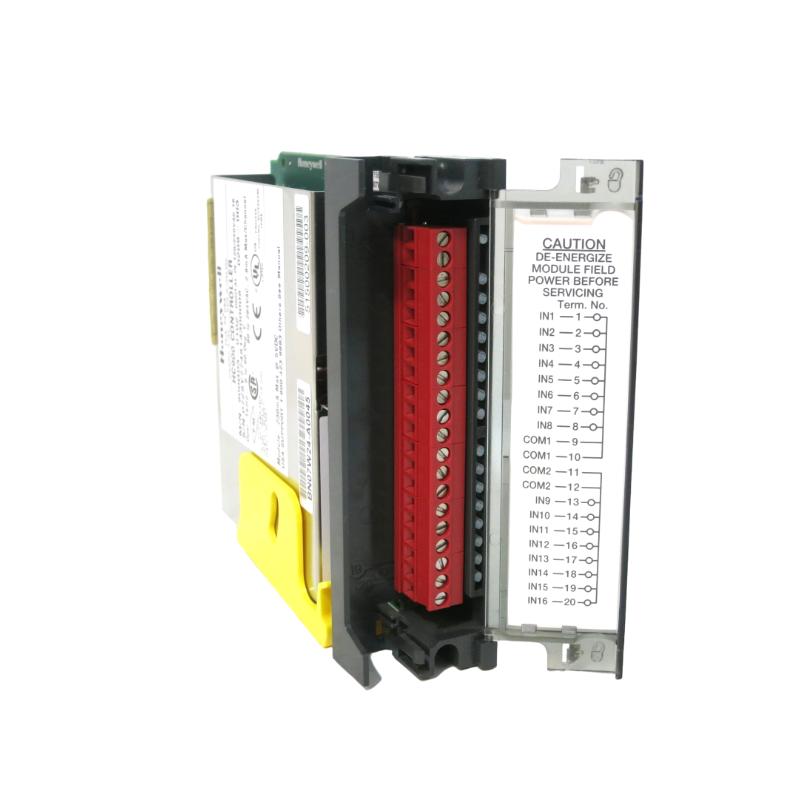

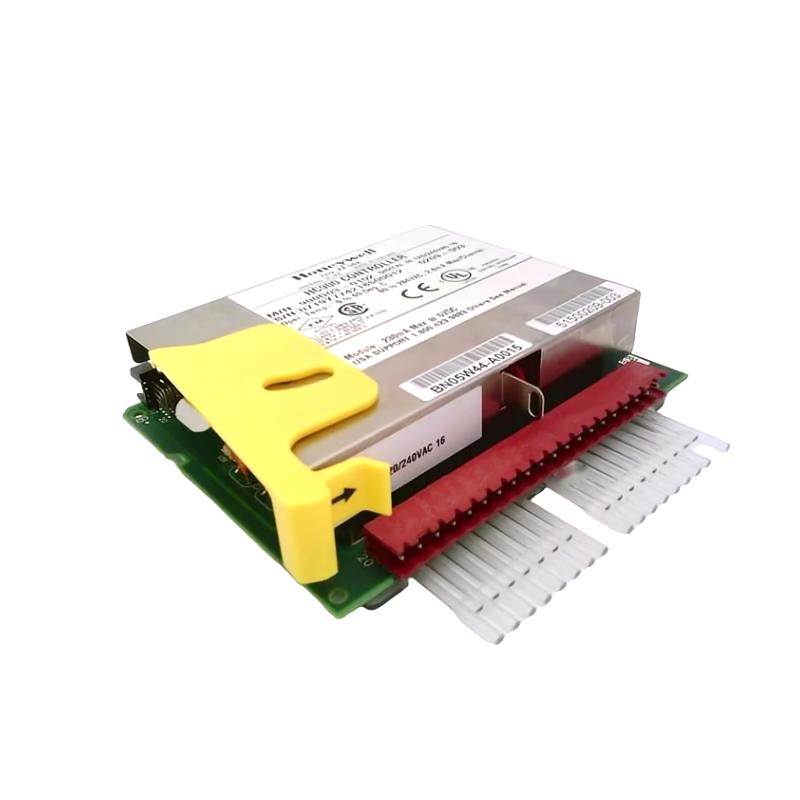

The Honeywell 900G03‑0102 digital input module (part number 51500209‑003) is a rugged industrial I/O card engineered to collect discrete AC signals and deliver them reliably to process controllers within the Honeywell ControlEdge HC900 automation platform. With support for high‑voltage field inputs and built‑in galvanic isolation, this module simplifies discrete input management while maintaining peak operational performance in demanding industrial environments.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Honeywell |
| Model Number | 900G03‑0102 |
| Alternate Part Number | 51500209‑003 |
| Module Type | Digital Input Module |
| Platform | ControlEdge HC900 |
| Input Channels | 16 discrete inputs |
| Input Voltage Range | 80–264 VAC (AC input) |
| Input Current (typ.) | ~1–2 mA depending on voltage |
| Isolation | Galvanic isolation (two 8‑input groups) |
| Response Time | ~4 ms + line cycles (typ AC) |
| Logic Supply | 5 VDC supply load ~130 mA |
| Operating Temperature | ‑20°C to +60°C |
| Storage Temperature | ‑40°C to +85°C |
| Humidity | 5%–95% non‑condensing |
| Dimensions (H×W×D) | Approx. 100 × 120 × 40 mm |
| Weight | Approx. 0.25 kg |
Applications
The 900G03‑0102 module is widely used wherever reliable measurement of discrete AC signals is required:
-
Industrial process monitoring and control
-
Machine automation and conveyor systems
-
Water/wastewater treatment facilities
-
Building automation and safety logic
-
Energy and utilities control systems
By supporting 16 AC input channels and accommodating up to 264 VAC field signals, it enables efficient and scalable discrete I/O handling within modular automation systems.
Advantages
This digital input module brings several performance‑oriented benefits:
-
Wide Voltage Compatibility: Accepts standard 120/240 VAC signals from field devices.
-
Galvanic Isolation: Protects controller logic from electrical noise and field transients.
-
Scalable I/O Capacity: Supports up to 16 discrete inputs in a compact module.
-
Status Indicators: LED status indicators simplify diagnostics and field monitoring.
-
Industrial Reliability: Designed for continuous operation with a broad environmental tolerance.
These strengths make the 900G03‑0102 a dependable choice for engineers aiming to optimize automation performance with minimal footprint and maximum uptime.
Technical FAQs
1. How many discrete inputs does this module support?
It provides 16 AC discrete input channels.
2. What voltage range is supported?
It accepts 80 VAC to 264 VAC signals from field devices.
3. Does it include isolation between field and controller logic?
Yes, the module uses galvanic isolation in two 8‑input groups.
4. What is the typical response time?
Response is in the low millisecond range with AC inputs.
5. What mounting options are available?
It mounts directly into the ControlEdge HC900 rack or compatible backplane.
6. Are there status LEDs on this module?
Yes, it has LED indicators for individual channel status and module diagnostics.
7. What environmental conditions can it tolerate?
Rated for ‑20°C to +60°C operation and wide humidity range.
8. Is this module hot‑swappable?
Depending on rack design, many HC900 I/O modules can be serviced without power down.
9. What is the logic supply requirement?
A 5 VDC logic supply is used with typical current loading.
10. Can it detect both 120 and 240 VAC inputs?
Yes, the AC input type module supports dual voltage ranges.
