Introduction

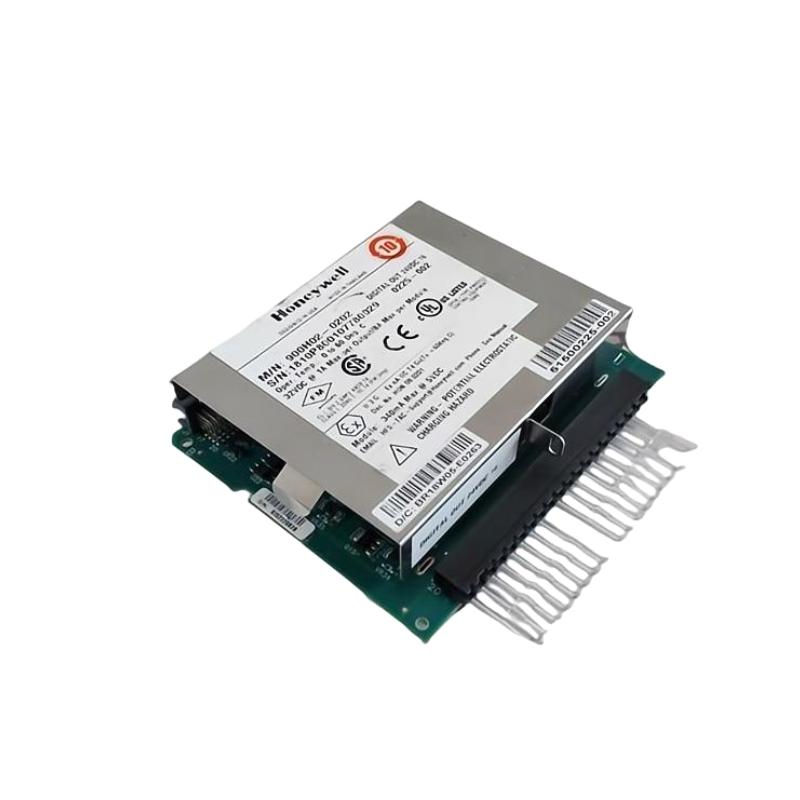

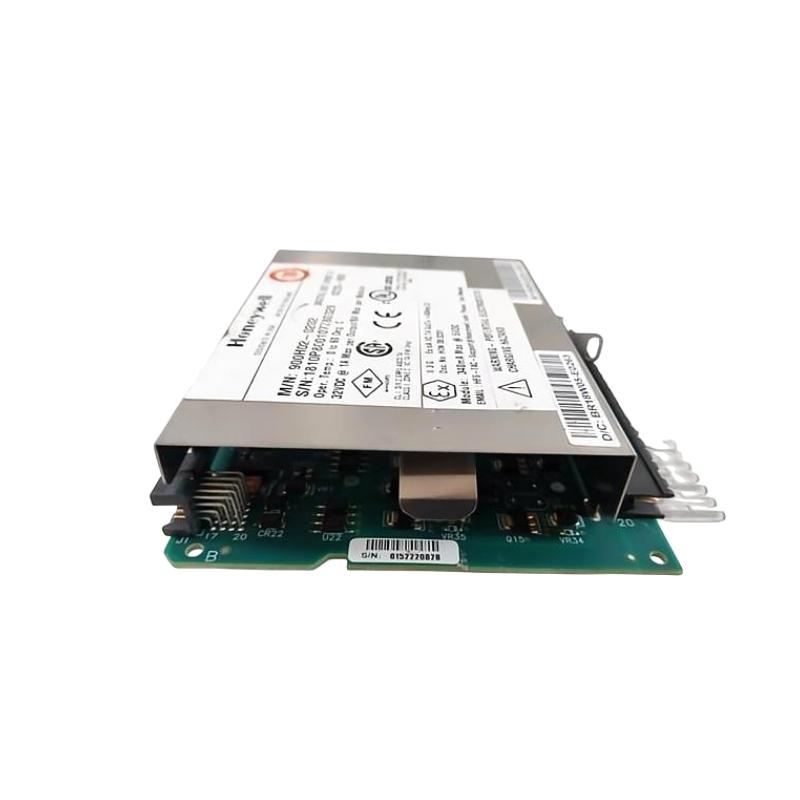

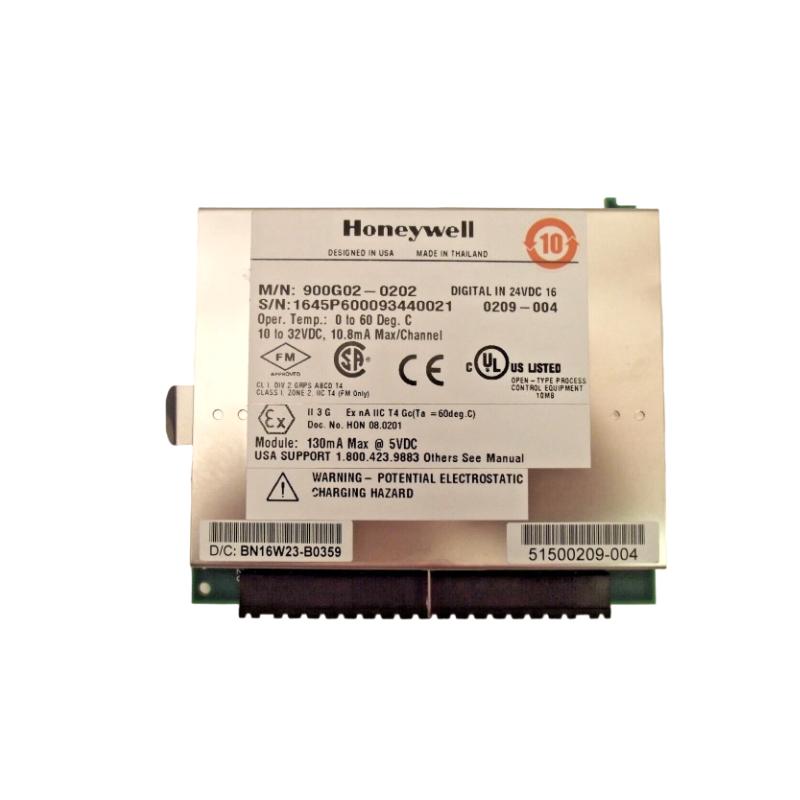

The Honeywell 900G02‑0202 digital input module is a precision‑engineered field signal interface unit designed for industrial automation systems, particularly within the ControlEdge HC900 architecture. It excels at capturing discrete DC signals from field devices such as switches, sensors, and contact closures, delivering dependable data to the control system with fast response times and robust noise immunity. Ideal for both OEM installations and process control upgrades, this module provides reliable performance in demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model Number | 900G02‑0202 |
| Module Type | Digital Input Module |
| Platform | ControlEdge HC900 |
| Input Channels | 8 Discrete Inputs |
| Input Type | DC Logic Level |
| Input Voltage Range | 24 VDC Nominal |
| Typical Input Current | ~4 mA per channel |
| Isolation | Optical isolation on each channel |
| Response Time | ≤ 5 ms |
| Operating Temperature | ‑20°C to +60°C |
| Storage Temperature | ‑40°C to +85°C |
| Humidity Rating | Up to 95% non‑condensing |
| Dimensions (H × W × D) | Approx. 137 × 35.6 × 110 mm |
| Weight | Approx. 0.36 kg |
Applications
Whether installed in new automation builds or integrated into existing control systems, the 900G02‑0202 module fits a wide range of industrial scenarios:
-
Manufacturing line discrete input capture
-
Material handling system monitoring
-
Packaging and assembly control
-
Water/wastewater plant automation
-
Building control and safety interlocks
By reliably detecting ON/OFF input states, this module enhances machine logic accuracy and helps maintain stable system behavior in real‑time control environments.
Advantages
The Honeywell 900G02‑0202 digital input module stands out with several performance and design benefits:
-
Reliable Signal Capture: Optical isolation reduces electrical noise interference
-
Fast Response: Millisecond‑level switching time improves control loop responsiveness
-
Compact Form Factor: Efficient use of control cabinet space
-
Industrial Durability: Built for wide temperature and humidity ranges
-
Seamless Platform Integration: Works smoothly with HC900 backplanes and controllers
These strengths contribute to improved system reliability, reduced false inputs, and better overall automation performance.
Technical FAQs
1. How many input channels are available?
This module provides 8 discrete input channels.
2. What is the nominal input voltage?
Inputs are designed for 24 VDC logic signals.
3. Does the module provide electrical isolation?
Yes, each channel includes optical isolation to protect against electrical noise.
4. What is the typical response time?
The response time is ≤ 5 milliseconds.
5. Can it operate in humid environments?
Yes, it supports up to 95% non‑condensing humidity.
6. What industrial applications is it suited for?
Ideal for discrete signal monitoring in manufacturing, utilities, and building control.
7. How is it installed?
It mounts on the HC900 rack or compatible backplane.
8. What type of devices can be connected?
Switches, sensors, relays, and other 24 VDC dry contact devices.
9. What is the expected lifespan?
Built for long‑term industrial use with high durability.
10. Does it support hot swapping?
Installation should follow system guidelines; typical HC900 modules are serviced during planned maintenance.
