Product Insight

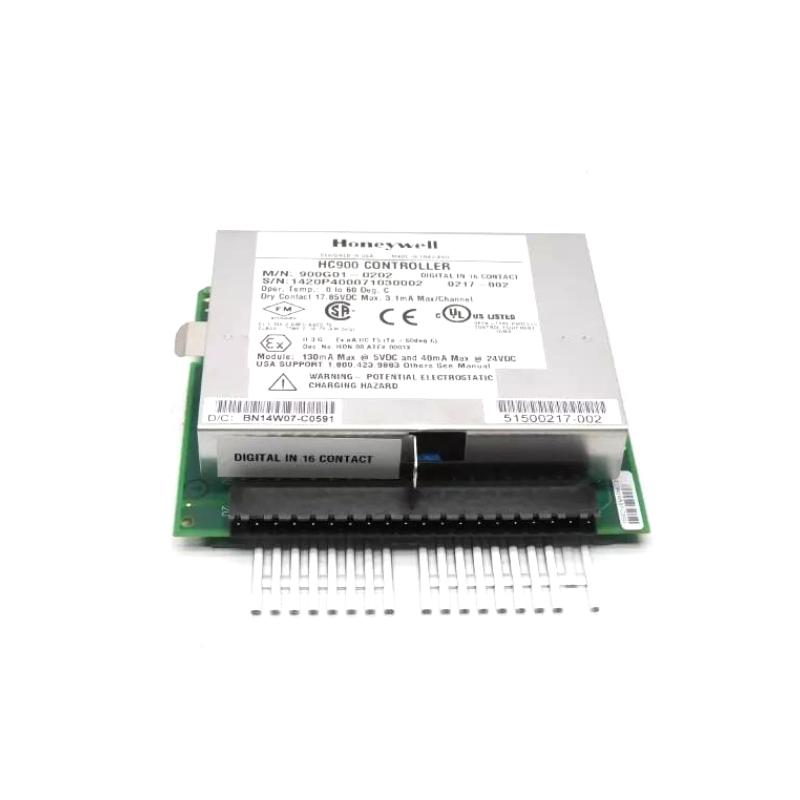

In modern automation systems, reliable signal acquisition is the foundation of precise control. The Honeywell 900G01-0202 digital input module is purpose-built for the ControlEdge HC900 platform, offering dependable monitoring of discrete field signals such as switches, sensors, and contact closures.
Its compact design, fast response time, and strong noise immunity make it a trusted component for engineers who prioritize stability and long-term system performance. Whether deployed in new installations or system upgrades, this module ensures consistent data capture in demanding industrial environments.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Honeywell |
| Model | 900G01-0202 |
| Module Type | Digital Input Module |
| Platform | ControlEdge HC900 |
| Input Channels | 16 (single-ended) |
| Input Type | Contact / Digital |
| Supply Voltage (from controller) | 15 VDC nominal |
| Switching Current | 2.6 mA nominal |
| Max Contact Resistance | 1000 ohms |
| Response Time | OFF→ON ≤ 4 ms / ON→OFF ≤ 6 ms |
| Isolation | Galvanic isolation (field to backplane) |
| Power Consumption | 5V: 130 mA max / 24V: 40 mA max |
| Operating Temperature | -20°C to +60°C |
| Dimensions (H×W) | 137 mm × 35.6 mm |
| Weight | Approx. 0.354 kg |
Application Scenarios
The 900G01-0202 module is widely implemented in industries where accurate digital signal monitoring is critical:
-
Process industries (chemical, oil & gas, energy)
-
Water and wastewater treatment systems
-
Manufacturing automation lines
-
Packaging and material handling systems
-
Building automation and safety monitoring
Its ability to reliably capture ON/OFF states from field devices ensures precise control logic execution across distributed systems.
Core Advantages
-
High Signal Reliability: Designed for stable acquisition of discrete inputs with minimal noise interference
-
Fast Response Performance: Millisecond-level switching ensures real-time system feedback
-
Robust Isolation: Built-in galvanic isolation protects control systems from electrical disturbances
-
Compact Footprint: Slim module width maximizes cabinet space efficiency
-
Seamless Integration: Fully compatible with HC900 architecture for easy expansion
These features make it an excellent choice for both retrofit projects and new automation deployments.
Technical FAQs
1. How many input channels does this module provide?
It supports 16 single-ended digital input channels.
2. What type of signals can it detect?
Primarily contact closure signals such as push buttons, relays, and limit switches.
3. What is the response time?
OFF to ON is up to 4 ms, and ON to OFF is up to 6 ms.
4. Does it include electrical isolation?
Yes, it features galvanic isolation between field wiring and the control system.
5. What voltage is used for input detection?
The module provides 15 VDC from the controller.
6. Is it suitable for harsh environments?
Yes, it operates reliably within industrial temperature ranges.
7. How is it mounted?
It is installed on the HC900 rack system.
8. What is the typical power consumption?
Maximum 130 mA at 5V and 40 mA at 24V.
9. Can it be used in safety-critical systems?
Yes, especially when combined with redundant HC900 architectures.
10. What types of devices can be connected?
Switches, sensors, relays, and other dry-contact input devices.
