Overview

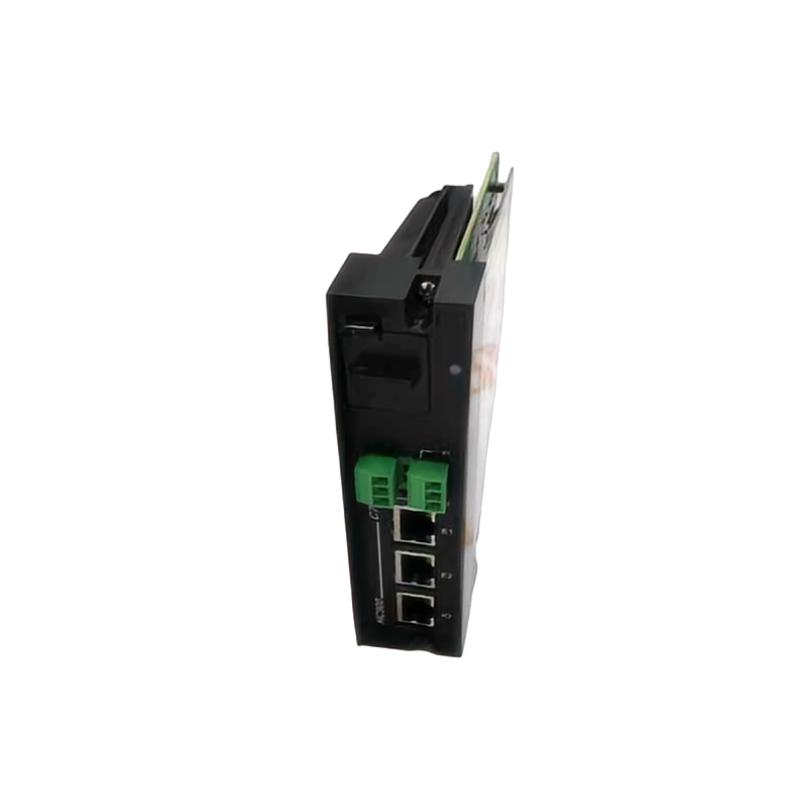

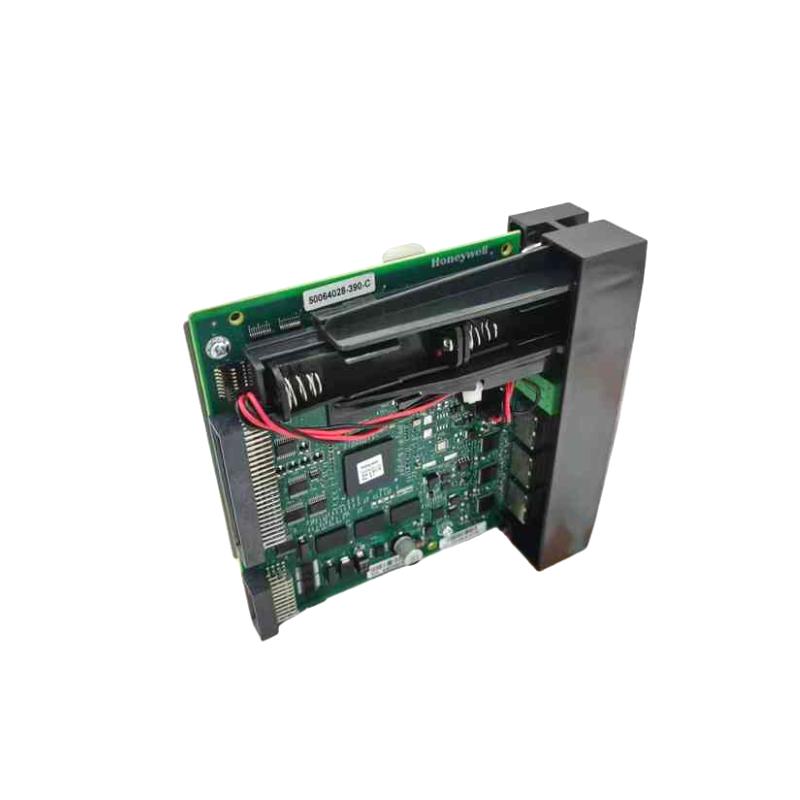

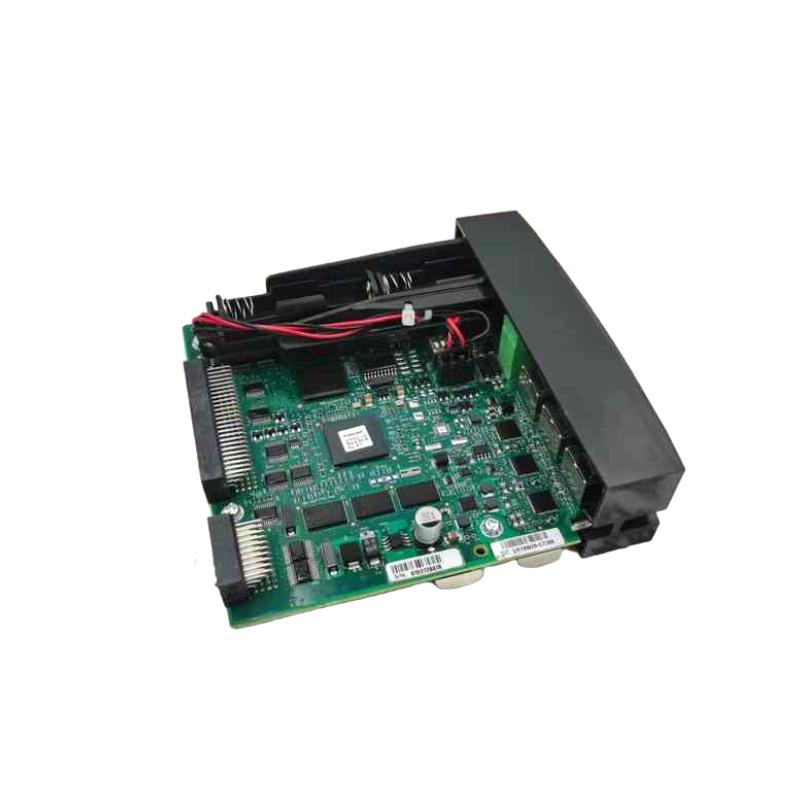

Built for critical process environments where downtime is unacceptable, the Honeywell 900C75-0560 redundant controller CPU module is a core component of the ControlEdge HC900 platform. It combines advanced control capability with dual-CPU redundancy, ensuring uninterrupted operation even in the event of hardware failure.
This module is engineered for industries that demand both precision and resilience—delivering stable performance, flexible integration, and long-term operational security across complex automation systems.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Honeywell |
| Model | 900C75-0560 |
| Module Type | Redundant Controller CPU Module |
| Series | ControlEdge HC900 |
| CPU Type | C75 High-performance Processor |
| User Memory | Up to 10 MB |
| Function Block Capacity | Up to 15,000 blocks |
| Scan Time | ~25 ms typical |
| Max I/O Capacity | Up to 4,000–4,608 I/O points |
| Communication Interfaces | 2× Ethernet, 1× RS-485 |
| Supported Protocols | Modbus RTU, Modbus TCP/IP, Ethernet/IP, OPC |
| Redundancy | Dual CPU hot standby |
| Power Consumption | Approx. 10 W |
| Operating Temperature | -40°C to +60°C |
| Dimensions (W×H×D) | Approx. 137 × 38 × 137 mm |
| Weight | Approx. 0.4 kg |
Industrial Use Cases
This CPU module is widely adopted in process-heavy industries where system continuity is essential:
-
Chemical and petrochemical processing
-
Power generation and energy systems
-
Pharmaceutical manufacturing
-
Food & beverage process automation
-
Thermal and batch processing plants
Its redundancy architecture ensures seamless failover, making it especially suitable for safety-critical and continuous production environments.
Key Benefits
This model is not just a controller—it is a reliability engine for modern automation systems:
-
Dual CPU Redundancy: Ensures zero-interruption switching during failures
-
High Processing Capability: Handles complex logic and large-scale control strategies
-
Scalable I/O Architecture: Supports thousands of I/O points for expanding systems
-
Flexible Connectivity: Integrates easily with legacy and modern protocols
-
Robust Industrial Design: Operates reliably in harsh environmental conditions
These advantages make it a strategic investment for facilities aiming to maximize uptime and efficiency.
Technical FAQs
1. What is the main function of the 900C75-0560 module?
It performs process and logic control within the HC900 system while managing system-wide automation tasks.
2. How does redundancy work in this CPU?
Two CPUs operate simultaneously; one acts as primary while the other remains synchronized as backup for instant failover.
3. What is the maximum I/O capacity?
It supports up to approximately 4,000–4,608 I/O points depending on system configuration.
4. Which communication protocols are supported?
It supports Modbus RTU, Modbus TCP/IP, Ethernet/IP, and OPC.
5. Can it be used in distributed control systems?
Yes, it integrates seamlessly into distributed architectures with remote I/O racks.
6. What is the typical scan time?
Approximately 25 milliseconds for standard control tasks.
7. Is hot swapping supported?
Yes, redundant configurations allow maintenance without stopping the system.
8. What industries benefit most from this module?
Process industries such as oil & gas, chemicals, and power generation.
9. What software is used for configuration?
Honeywell HC Designer software is typically used for programming and configuration.
10. Can the system operate if one CPU fails?
Yes, the standby CPU takes over instantly without interrupting operations.
