Honeywell 900H32-0302 32 Channel Digital Output Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Honeywell 900H32-0302 32 Channel Digital Output Module

Name: Honeywell 900H32-0302 32 Channel Digital Output Module
Brand: Honeywell DCS
SKU: 7094
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Honeywell DCS
Item No.:900H32-0302
Product Origin:USA
Product Dimensions:137 mm × 35.6 mm × 66 mm
Product Weight:0.18kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Introduction & Functional Overview

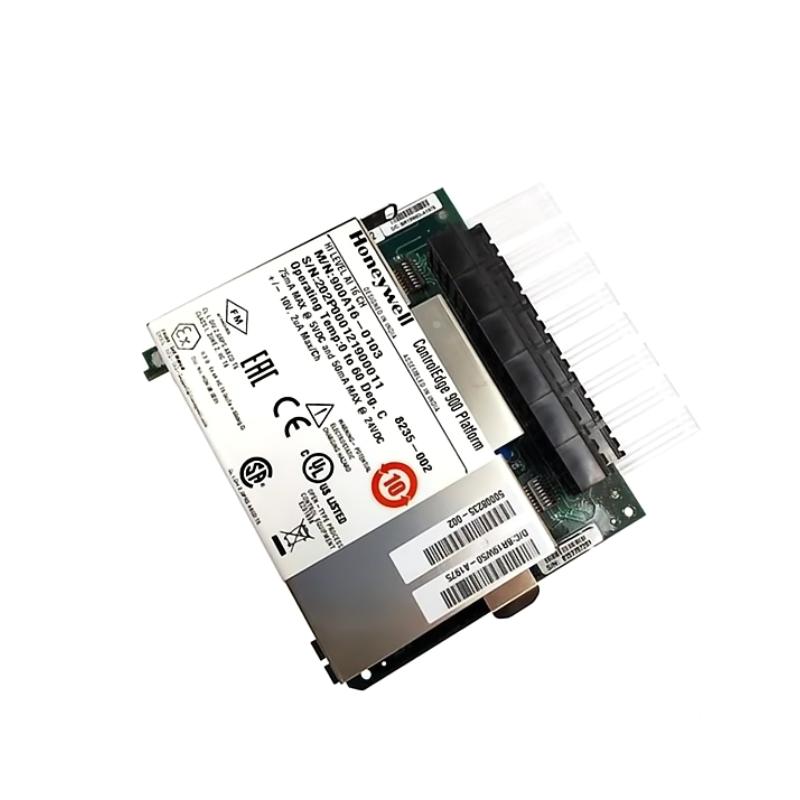

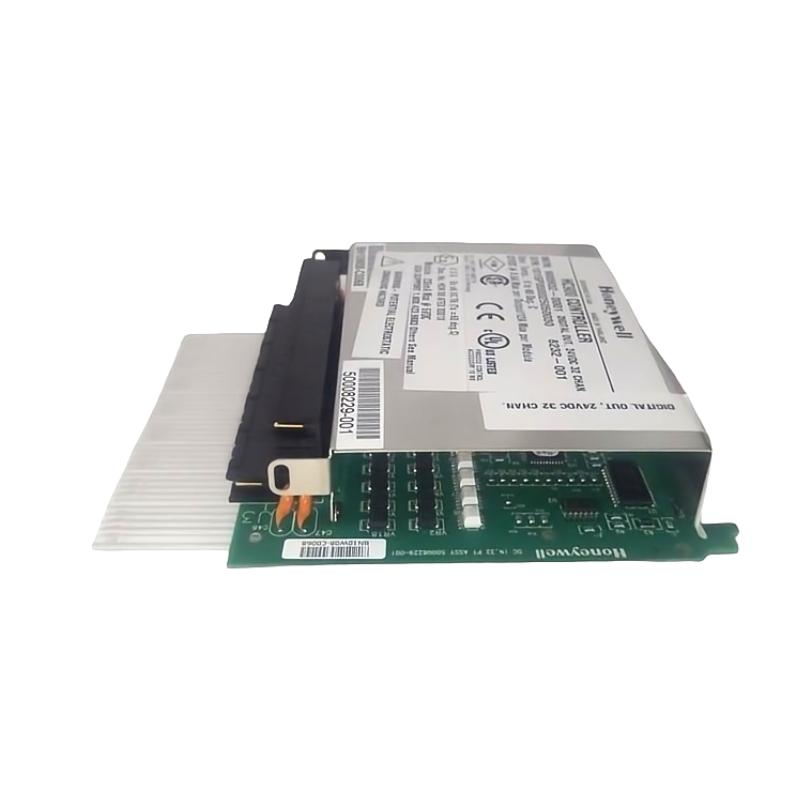

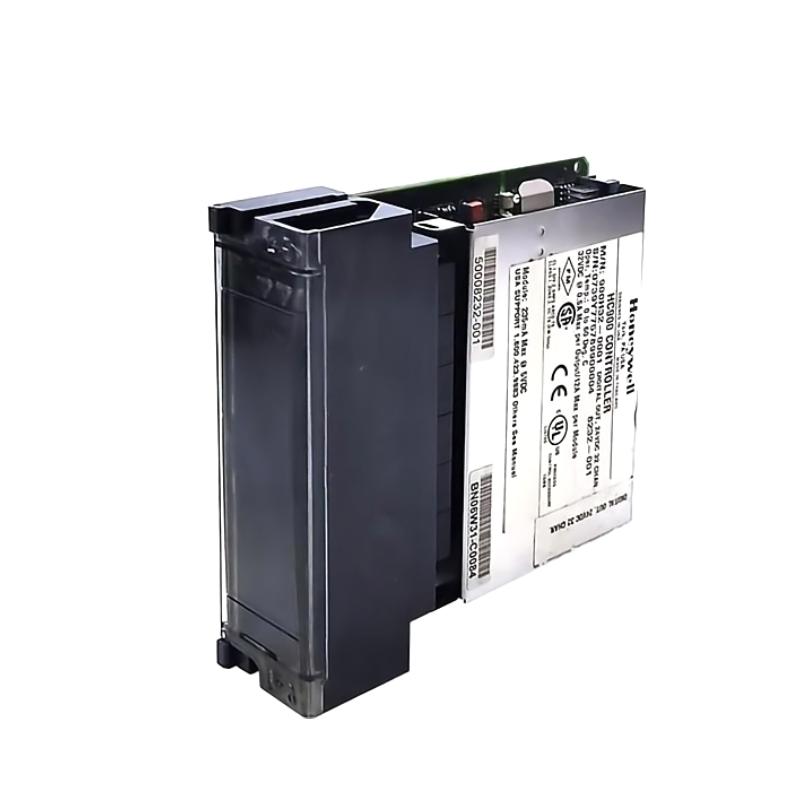

The Honeywell 900H32‑0302 32‑Channel Digital Output Module is a high‑density DC discrete output interface engineered for industrial automation systems, particularly for use with the Honeywell ControlEdge HC900 platform. It provides 32 individually addressable, high‑side current‑sourcing outputs for driving DC field devices with precision and reliability. This module balances robust electrical performance and compact design to support complex control logic in manufacturing, process automation, and utility systems.

Technical Specifications

Specification	Details
Model	900H32‑0302
Module Type	32‑Channel Digital Output Module
Output Configuration	32 high‑side, current‑sourcing outputs
Output Group Isolation	2 groups of 16 outputs
Operating Voltage Range	10.5 – 32 V DC
Peak Voltage	32 V DC
Maximum Load Current	0.5 A per point; 6 A per group; 12 A module total (resistive)
ON Voltage Drop	~0.15 V @ 0.5 A load
Response Time (ON/OFF)	~6 ms
Overload Protection	Active current limiting, grouped fault isolation
Maximum Leakage Current	~0.15 mA @ 32 V DC
Maximum Inrush Current	~2 A for 10 ms
LEDs	Channel ON indicator; module status LED
Mounting	DIN‑rail / internal rack
Operating Temperature	−40 °C to +70 °C
Storage Temperature	−40 °C to +85 °C
Approx. Weight	~0.18 kg
Dimensions	~137 mm × 35.6 mm × 66 mm

Key Applications

The 900H32‑0302 output module is ideal in industrial automation environments where many DC outputs must be controlled without enlarging cabinet size:

High‑density output expansion for Honeywell ControlEdge HC900 controllers
Actuation of DC‑powered loads such as solenoids, relays, valves, and indicators
Machine automation, batch control systems, and material handling applications
Process control in energy, utilities, and manufacturing sectors
Modular control panel designs with scalable I/O capacity

Its high‑side current sourcing and robust protection logic ensure reliability across demanding system loads.

Benefits & Performance Highlights

High‑Density Outputs: 32 current‑sourcing channels support extensive device control without multiple modules.
Galvanic Isolation: Two isolated groups improve noise immunity and protect logic circuits.
Robust Protection: Active current limiting and group‑based fault isolation allow operation to continue with minimal disruption.
Fast Switching: ~6 ms response time ensures responsive control over dynamic processes.
Clear Diagnostics: Visual LEDs provide per‑channel status and module operational feedback.
Wide Temperature Tolerance: Rated for −40 °C to +70 °C for industrial environments.

Technical FAQs

What driving voltage is required for this module?
It operates with 10.5 – 32 V DC, typical for 24 V industrial systems.
How many discrete outputs does it provide?
32 high‑side current‑sourcing outputs grouped into two isolated banks of 16.
Can this module handle high current loads?
Yes — each channel supports up to 0.5 A; total module current up to ~12 A under resistive loads.
How does overload protection work?
Outputs are electronically limited in subgroups of 8; faults isolate only the affected subgroup without full module shutdown.
Does the module provide status feedback?
Yes — LEDs indicate channel ON states and module diagnostic conditions.
Is this module hot‑swappable?
In many ControlEdge configurations, modules can be removed/inserted under power with appropriate chassis designs, enhancing maintainability.
What are typical response times?
OFF to ON and ON to OFF transitions occur in approximately 6 ms.
Can it be used in harsh environments?
Yes — with wide operating temperature and storage ranges.
Does it work with other Honeywell systems?
While optimized for ControlEdge HC900, it may integrate into compatible Honeywell I/O architectures.
How is the module mounted?
Typically on DIN rail or within an I/O rack cabinet.
