Product Introduction & Functional Role

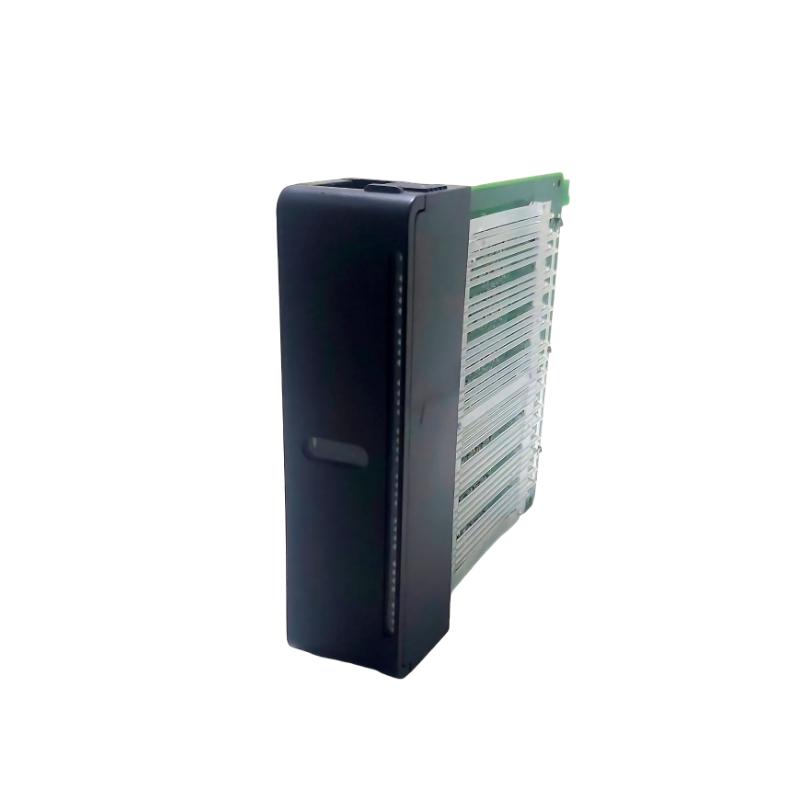

The Honeywell 900H32‑0102 32‑Point Digital Output Module is a high‑density DC output interface designed for industrial automation systems — especially those built around Honeywell’s ControlEdge HC900 controllers. It provides 32 individually controlled digital outputs with high‑side current sourcing, enabling precise switching of field devices such as actuators, solenoids, valves, and other DC‑powered loads. Its robust electrical protection and galvanic isolation make it ideal for demanding process and machine control environments.

Technical Specifications

Technical FAQs

1. What is the operating voltage range?
   It operates over 10.5–32 V DC with a peak of 32 V DC.
2. How many output channels does it provide?
   It features 32 high‑side current sourcing outputs.
3. What is the maximum current per output?
   Each output can handle up to 0.5 A.
4. Is there overload protection?
   Yes — active current limiting is integrated and resets without power cycling.
5. Are outputs grouped or isolated?
   Outputs are organized into two galvanically isolated groups of 16.
6. What type of loads can it switch?
   It can switch DC solenoids, actuators, relays, indicators, and similar loads.
7. Does it support inductive lamp loads?
   Yes — up to 0.25 A per channel for lamp/inductive loads.
8. How is output status indicated?
   On‑module LEDs signal when discrete outputs are active.
9. Can all 32 outputs be used for advanced output types (TPO/PPO)?
   Outputs 17–32 may not support certain advanced output types such as TPO or PPO.
10. What form factor does this module use?
    It is a compact DIN‑rail or rack‑mountable module for control panels.
