Product Introduction & System Role

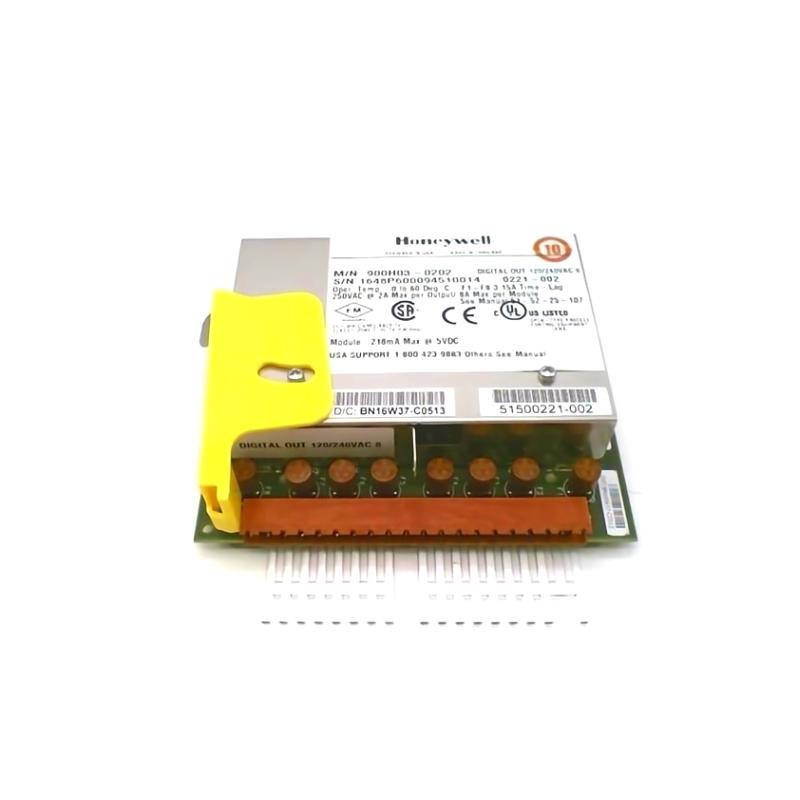

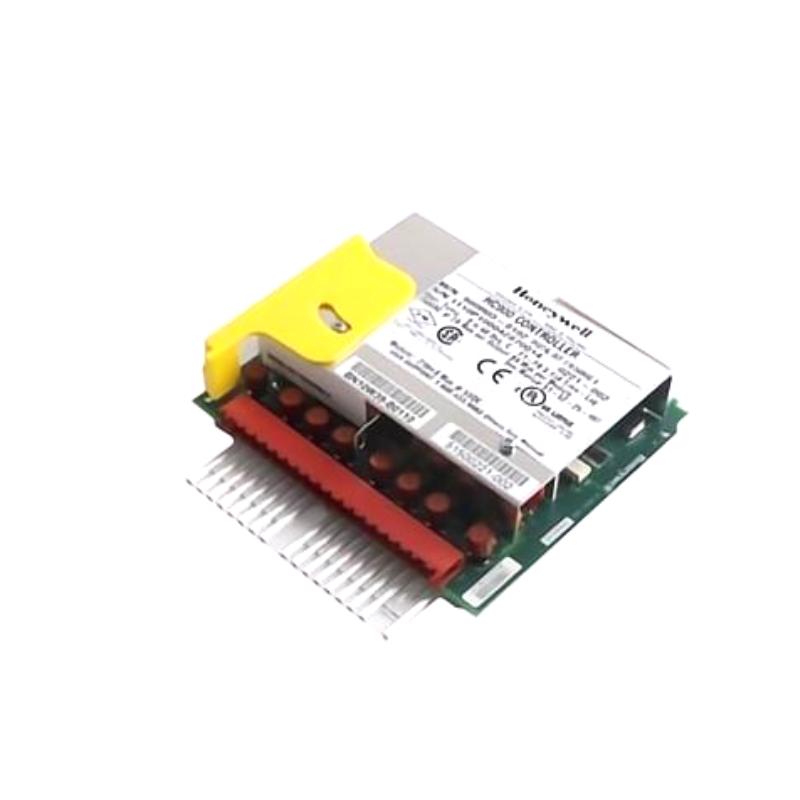

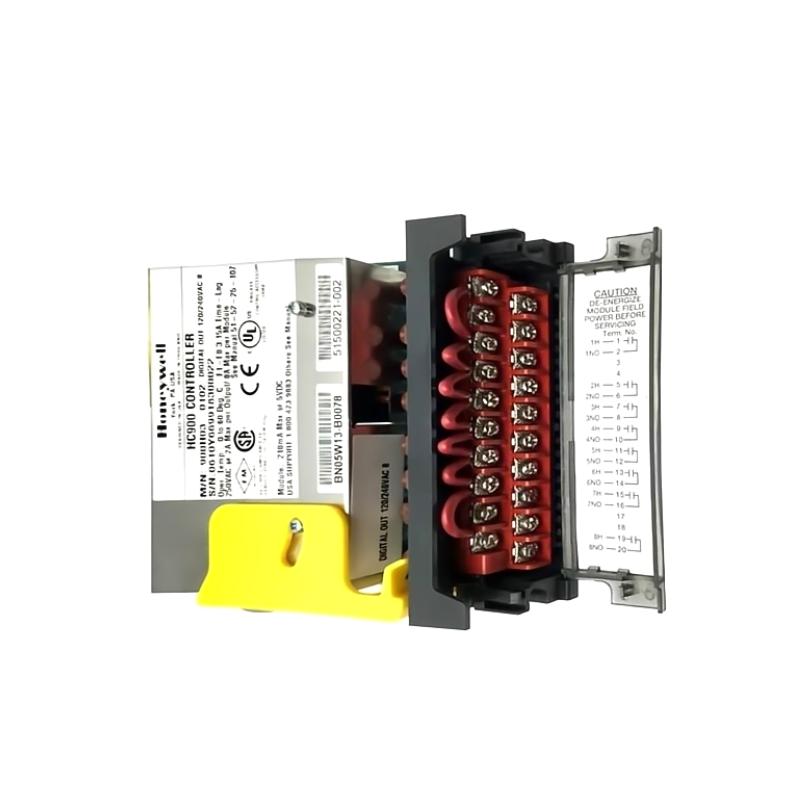

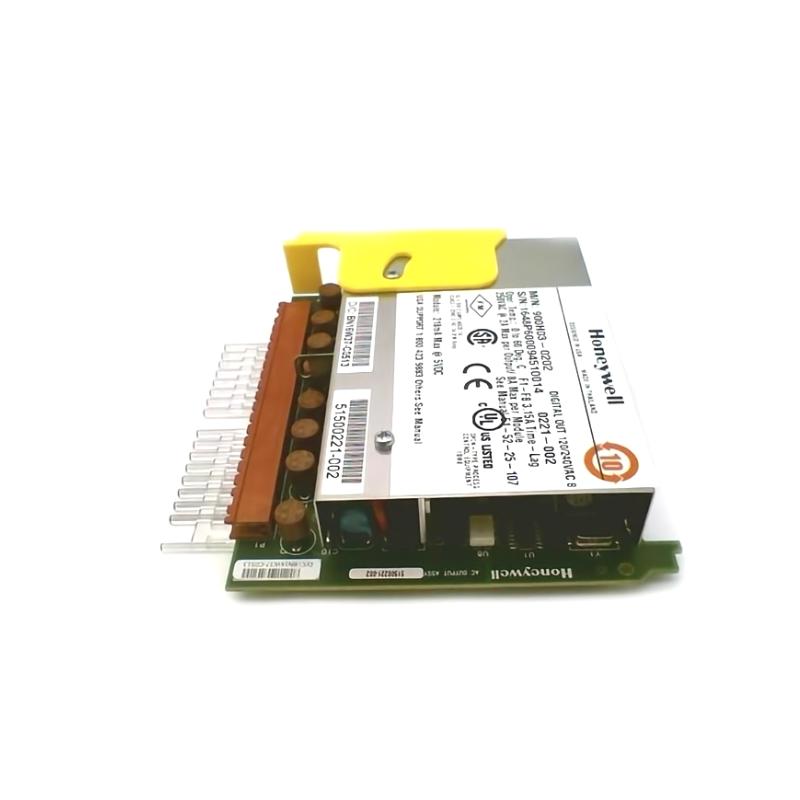

The Honeywell 900H03‑0202 Digital Output Module is a dependable discrete output interface designed for use with Honeywell industrial controllers, especially the ControlEdge HC900 series. This module provides reliable AC output switching for plant automation and process control applications, enabling the controller to energize field devices such as relays, contactors, solenoids, and indicators. Engineered for industrial environments, it delivers robust performance and clear status diagnostics to support automated operations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 900H03‑0202 |
| Module Type | Digital Output Module |
| Platform Compatibility | Honeywell ControlEdge HC900 |
| Output Channels | 8 AC discrete outputs |
| Output Type | Triac/SSR drive (AC switching) |
| Operating Voltage Range | 85 – 240 VAC |
| Max Load Current | ~5 A per channel (varies by system/connection) |
| Surge Current Capability | ~10 A for short duration |
| Min. Load Requirement | ~10 mA |
| Output Status Indication | Per‑channel LEDs |
| Protection Features | Galvanic isolation, overload protection |
| Mounting | DIN rail / HC900 chassis |
| Operating Temperature Range | ~0 °C to +60 °C |
| Storage Temperature Range | ~‑40 °C to +85 °C |
| Relative Humidity | 5 %–95 % non‑condensing |
| Power Consumption | Low (module logic only) |
| Approx. Weight | ~0.25–0.4 kg |
