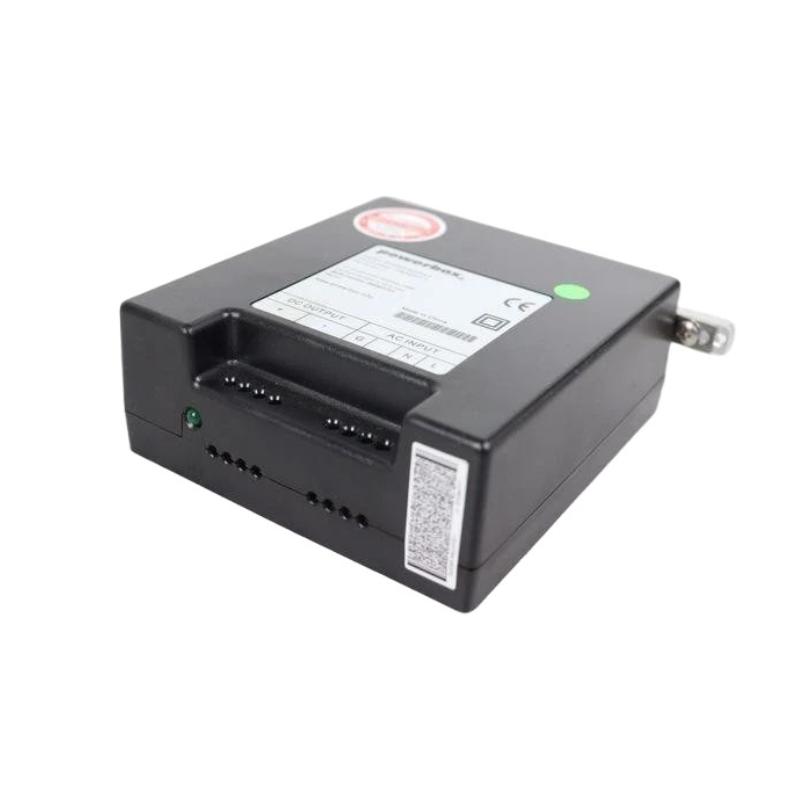

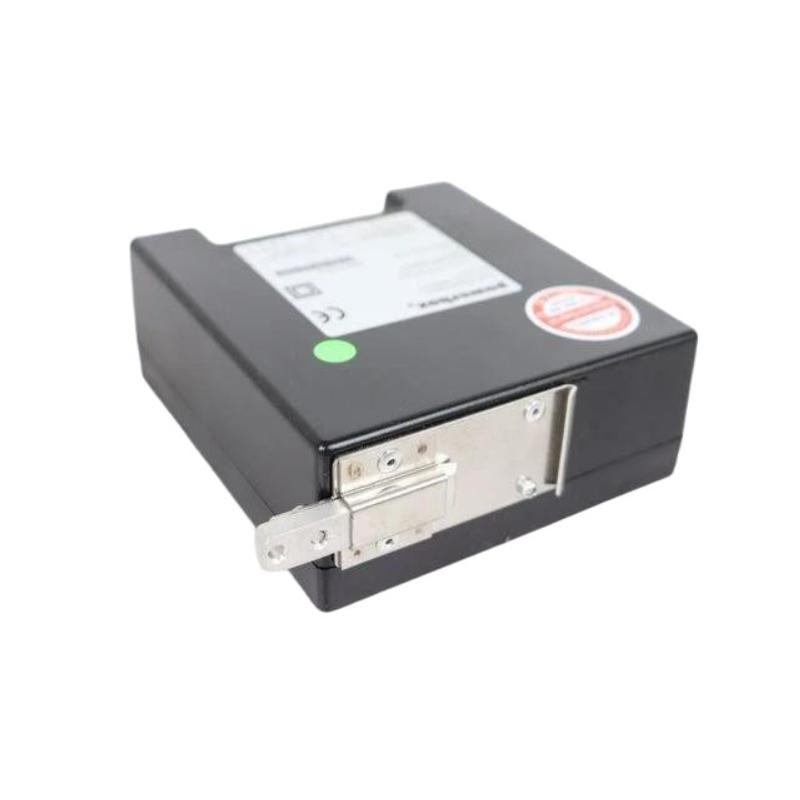

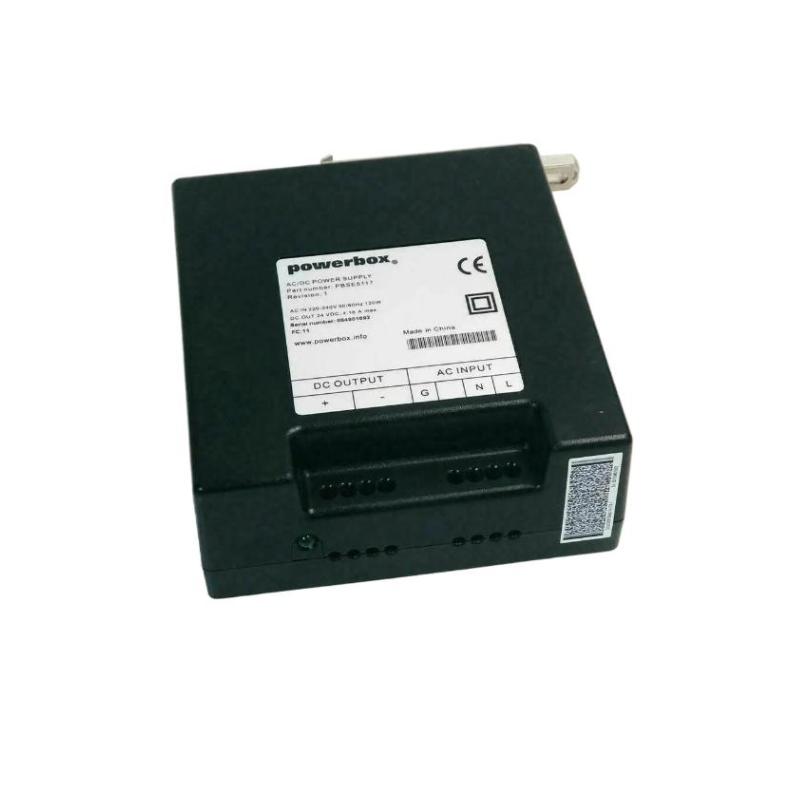

ABB DSQC609 3HAC14178-1 Robot Power Supply

Brand:ABB PLC
Item No.:DSQC609 3HAC14178-1
Product Origin:Sweden (SE)
Product Dimensions:125 × 115 × 47 mm
Product Weight:0.46kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

DSQC 609 3HAC14178-1 4DSQC 609 3HAC14178-1 1DSQC 609 3HAC14178-1 3DSQC 609 3HAC14178-1 2

Product Introduction & Industrial Role

The ABB DSQC609 3HAC14178‑1 Robot Power Supply is a dedicated power module engineered to deliver reliable and regulated DC power to ABB robotic control systems — especially within controller families like IRC5 and S4C. Designed for continuous industrial operation, this power supply provides essential energy conversion and stability for robot controllers, servo drives, and peripheral logic boards, ensuring consistent performance even in demanding automation environments.

Technical Specifications

ParameterSpecification
ModelDSQC609 (3HAC14178‑1, PBSE5117)
Module TypePower Supply Module
Application PlatformABB Robot Controllers (e.g., IRC5 / S4C)
Input VoltageAC 100–240 V (wide range)
Output Voltage24 V DC (regulated)
Output Power / CurrentApprox. 200 W / ~8 A (typical)
Output Frequency50/60 Hz
Protection ClassIP20
Operating Temperature-20 °C to +50 °C
Storage Temperature-40 °C to +70 °C
EfficiencyHigh (≈ 94 %)
MountingDIN‑rail / cabinet installation
Dimensions (Approx.)125 × 115 × 47 mm
Weight~0.46 kg


Typical Industrial Applications

The DSQC609 power supply is purpose‑built for:

  • Providing reliable 24 V DC power to ABB robot controller logic and I/O modules
  • Feeding servo and control circuits in IRC5 and legacy robot systems
  • Supporting continuous operation in automated production lines
  • Industrial robotics in automotive, electronics, packaging, and material handling
  • OEM and service replacement in ABB automation control cabinets

Its stable output supports precise motion control and prevents power fluctuations from impacting robot responsiveness.


Key Benefits & Engineering Highlights

  • Stable Power Delivery: Regulated 24 V DC output ensures consistent operation of controllers and drives.
  • Wide Input Range: Accepts 100–240 V AC to support global installations.
  • Compact, Modular Design: Space‑efficient form factor integrates cleanly into robot control cabinets.
  • High Efficiency: Low energy loss reduces heat and improves system reliability.
  • Industrial Durability: Built to withstand normal factory environmental ranges.


Technical FAQs

  1. What is the main purpose of the DSQC609 module?
    It converts AC supply to stable 24 V DC for ABB robot controllers and modules.
  2. Which robot platforms is it compatible with?
    Designed for use in ABB IRC5 and similar industrial robot controller families.
  3. What is the typical output power rating?
    Around 200 W with up to approximately 8 A of DC output current.
  4. What input voltages are supported?
    Universal AC input from about 100–240 V.
  5. Is it suitable for continuous industrial use?
    Yes — it’s engineered for 24/7 operation within industrial temperature ranges.
  6. Does it include protection features?
    Yes — standard industrial power protections such as overload and short‑circuit protection are typical.
  7. How is it mounted?
    Usually installed on a DIN rail or within a control cabinet.
  8. Is the output voltage regulated?
    Yes — regulated 24 V DC output prevents voltage variation impacts.
  9. What is the module’s physical size?
    Approximately 125 × 115 × 47 mm.
  10. Can it be replaced easily if faulty?
    Yes — it’s designed as a modular replacement part in ABB systems.
