System Role & Functional Introduction

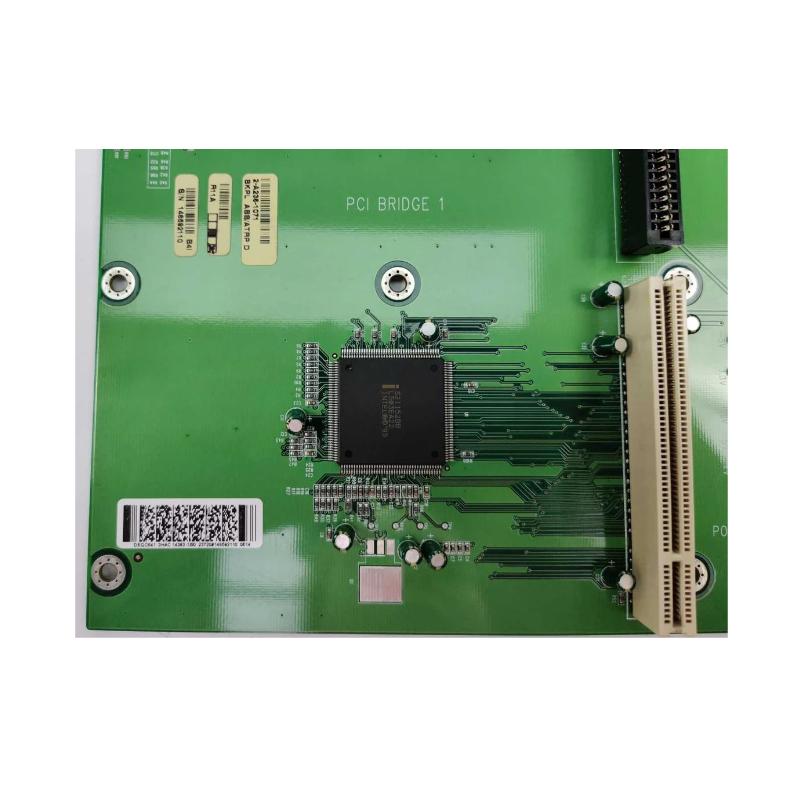

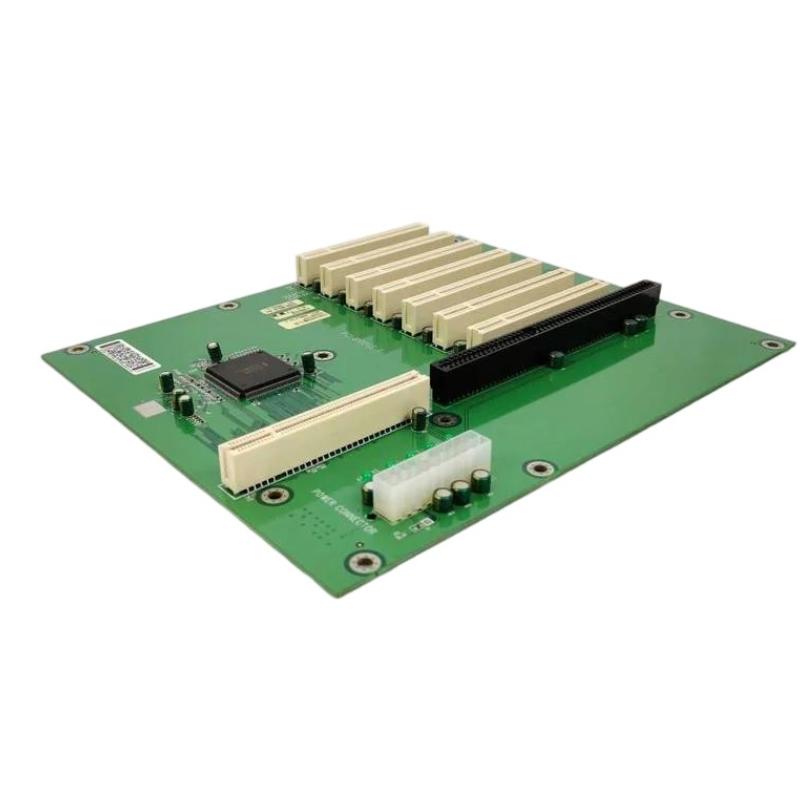

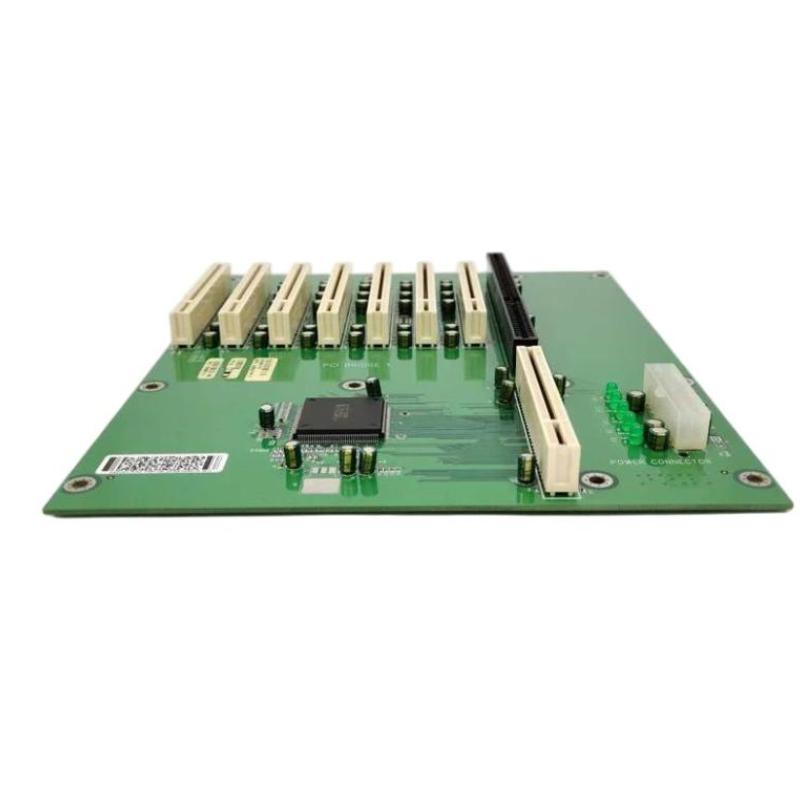

The ABB DSQC 541 3HAC14363‑1 Backplane is a core structural and electrical backbone board used within ABB controller and robotics systems. Often referred to as the “backplane,” this module provides the physical and electronic platform over which other control boards, I/O, communication and power modules plug in. It ensures reliable data transfer and power distribution across the controller rack — acting as a stable interface between the system’s key electronics.

In industrial automation architectures, backplane modules like this are essential for organized wiring, expansion flexibility, and long‑term signal integrity, making them critical for uptime and modular maintenance.

Technical Specifications

Technical FAQs

1. What is the DSQC 541 used for?
   It acts as the backplane that provides connectors and pathways for other controller boards within ABB systems.
2. Is this the original part number?
   Yes, 3HAC14363‑1 is the current designation; it replaces old part number 3HAC3617‑1.
3. Where is this module installed?
   Inside the controller rack or chassis as a fixed base for all plug‑in boards.
4. What systems is it compatible with?
   ABB controller and robot automation systems that use the DSQC 541 architecture.
5. How much does it weigh?
   Approximately 0.36 kg.
6. Does it supply power?
   It routes power from the main supply to module slots — acting as a distribution path.
7. Can it be repaired?
   Yes — backplanes can often be inspected and repaired at board level by specialists.
8. Is installation difficult?
   No — it typically slides into the controller rack and secures with standard fasteners.
9. Is this module still in use?
   Yes, it remains an essential spare part for legacy and maintained ABB systems.
10. Does it support expansion modules?
    Yes — additional I/O and communication boards plug directly into its connector framework.
