System Integration Overview

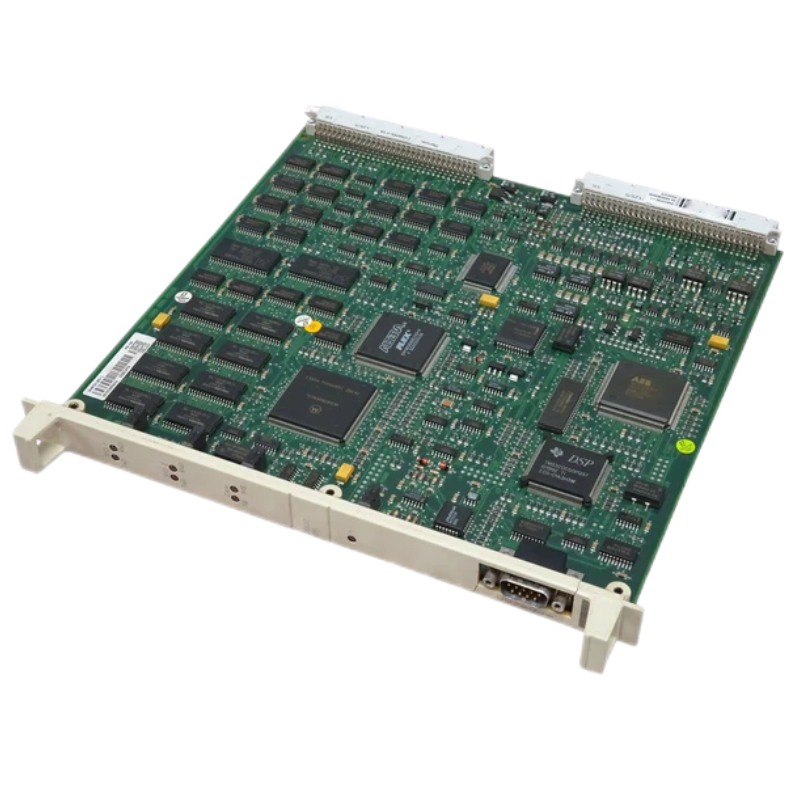

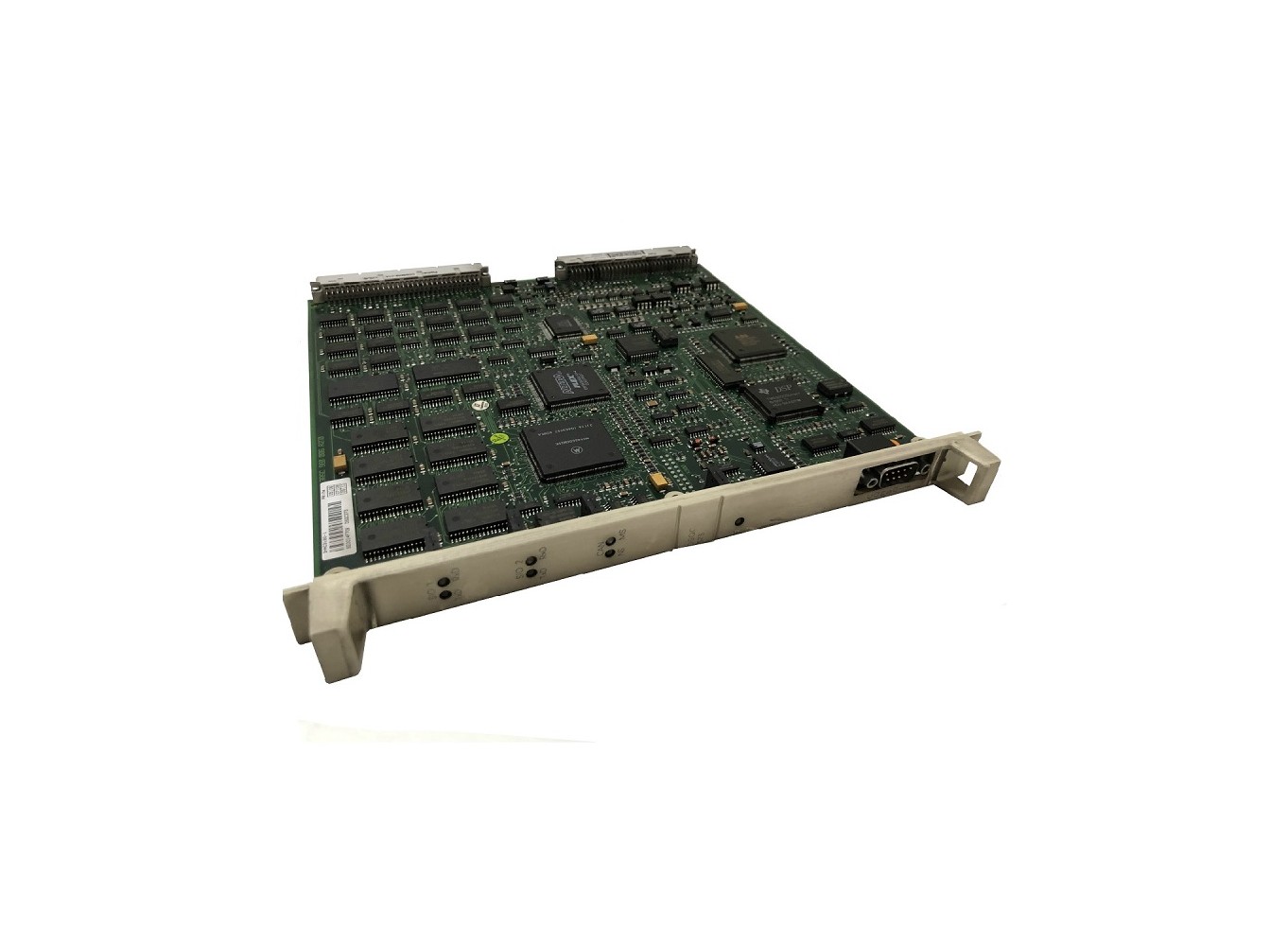

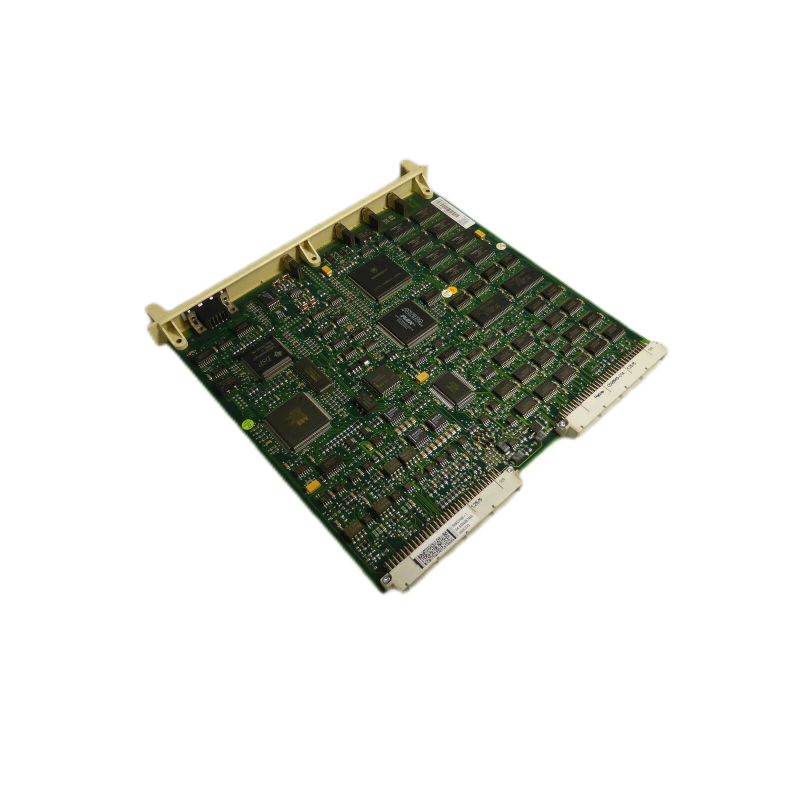

The ABB DSQC 373 3HAC3180‑1 is a dedicated robot controller / PLC‑style circuit board developed for ABB industrial robotics platforms — notably the S4C and similar legacy robot controllers. It functions as the central processing board within the robot controller cabinet, executing logic, motion sequencing, and communication tasks that coordinate robot axes and peripheral interfaces.
This board is often referred to as a robot CPU board or robot computer board and plays a vital role in real‑time robotic control and automation tasks where deterministic logic and timing are essential for precision robotics performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC 373 (3HAC3180‑1) |
| Module Type | Robot Control / PLC‑style Circuit Board |
| Primary Function | Central controller board for robot systems |
| Typical Power Input | 18 V – 30 V DC |
| Current Consumption | ~2 A |
| Operating Temperature | -20 °C to +60 °C (typical industrial range) |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 20 % – 85 % (operational, non‑condensing) |
| Cooling Method | Air‑cooled |
| Mounting | Internal controller rack |
| Dimensions (Approx.) | 250 × 170 × 170 mm (varies by supplier) |
| Weight | ~0.3 kg |
