Functional Overview & System Role

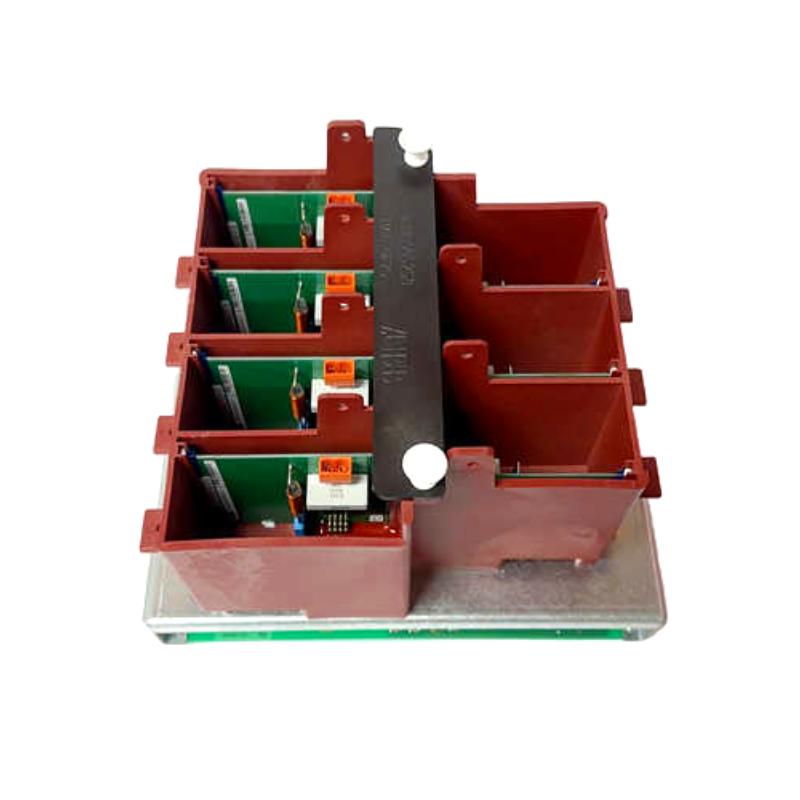

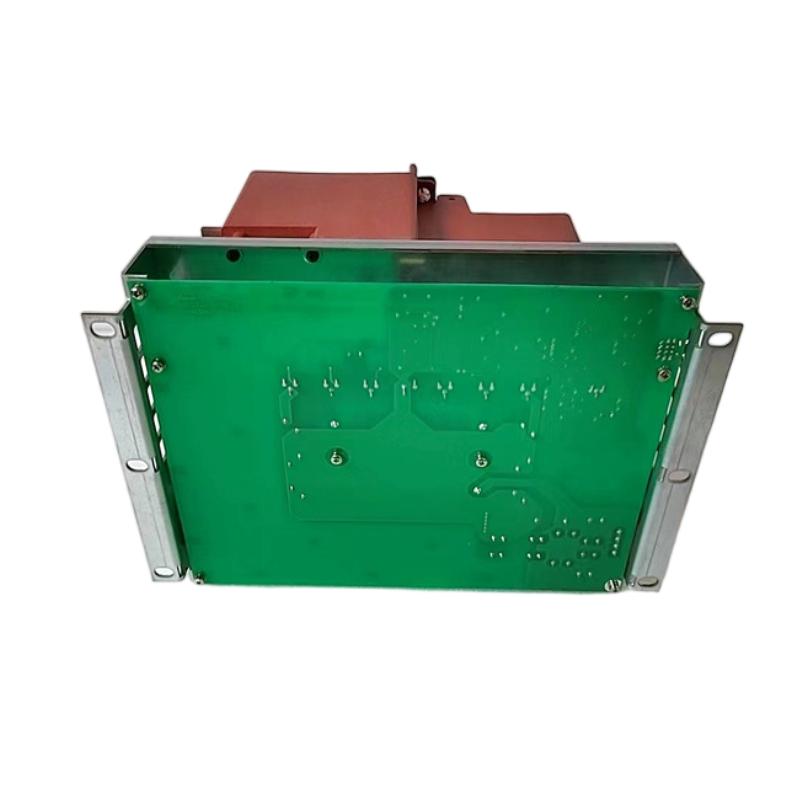

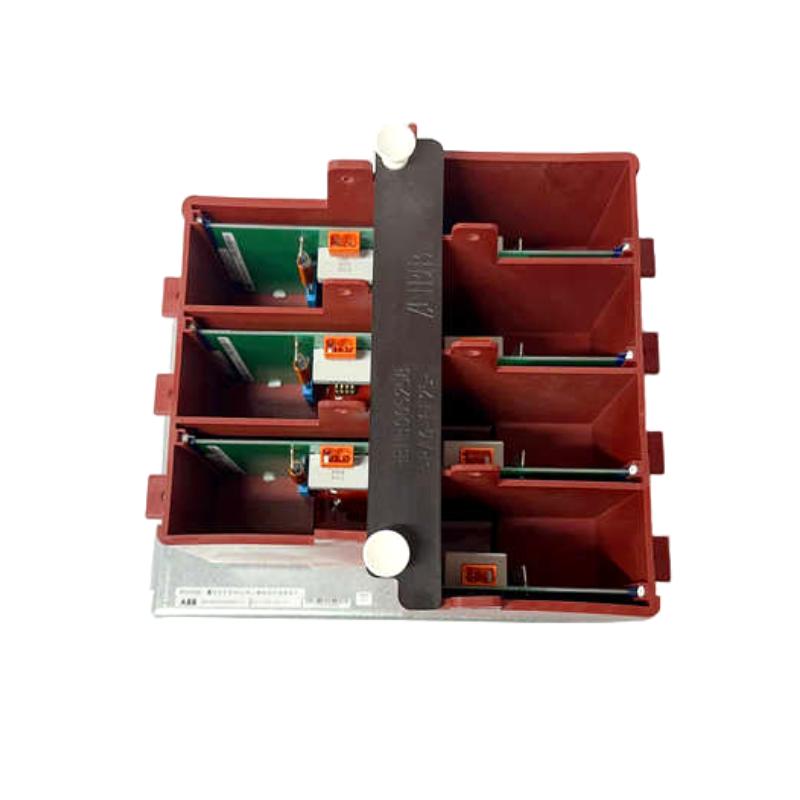

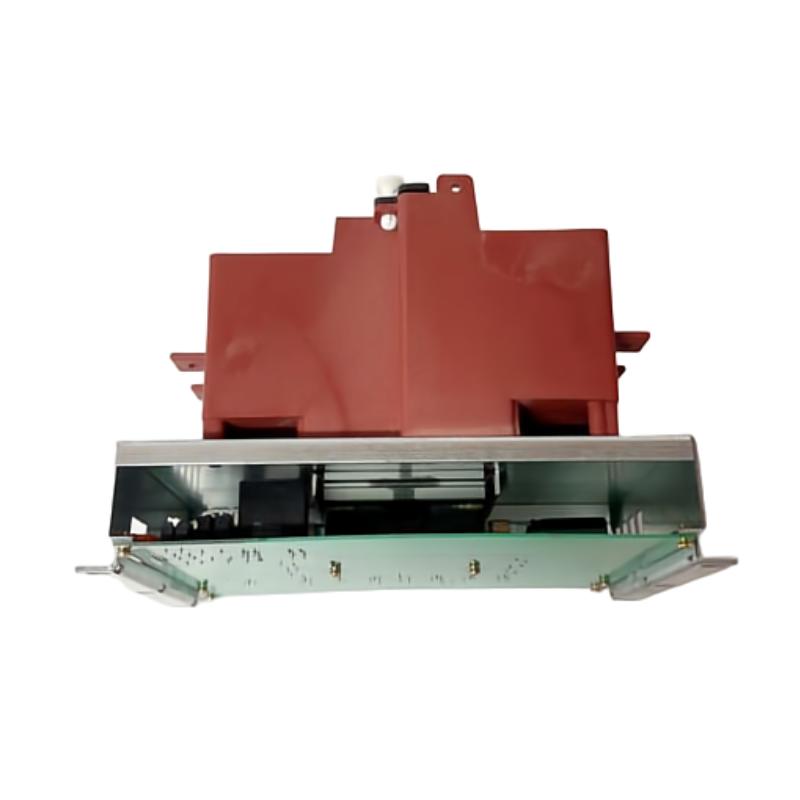

The ABB KU C755 AE117 3BHB005243R0117 Gate Unit Power Module is a critical component within ABB medium-voltage drive systems, specifically engineered to supply and manage power for gate unit control circuits. As part of the ACS6000 drive architecture, this module plays a central role in controlling high-power semiconductor switching, ensuring precise operation of IGCT/thyristor-based power stages.
Its design combines power supply functionality with gate signal management, enabling accurate and stable switching behavior in high-voltage applications where timing, efficiency, and reliability are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KU C755 AE117 (3BHB005243R0117) |
| Module Type | Gate Unit Power Module |
| Application Platform | ABB ACS6000 Medium Voltage Drives |
| Control Supply Voltage | 24 V DC |
| Rated Voltage | Up to 600 V (system-dependent) |
| Power Consumption | Approx. 120 W |
| Switching Frequency | Up to 4 kHz |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5%–95% (non-condensing) |
| Dimensions (H×W×D) | Approx. 150 × 75 × 200 mm |
| Weight | Approx. 1.2–3.99 kg (depending on configuration) |
