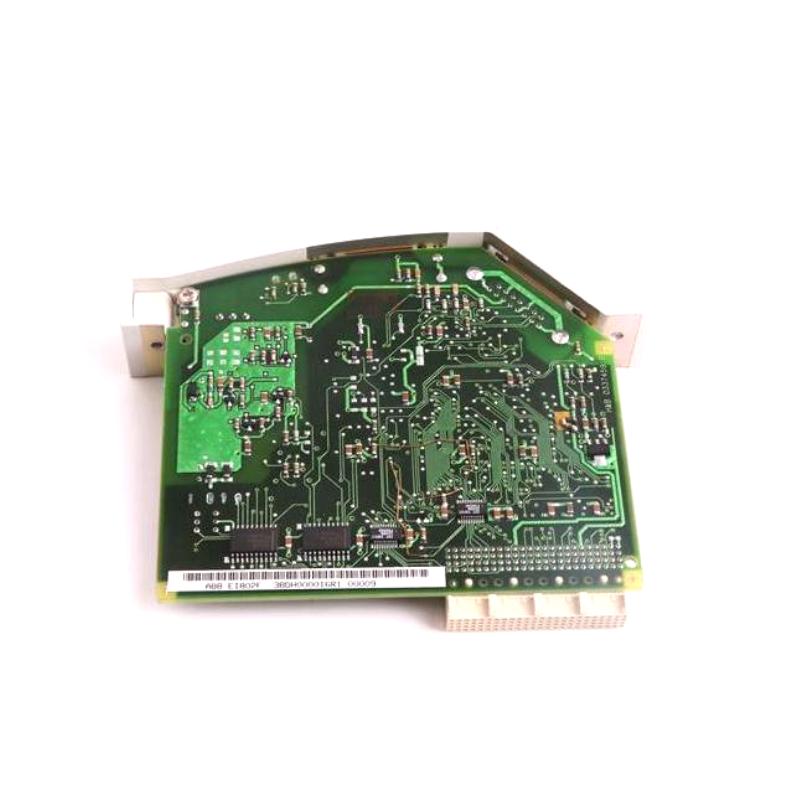

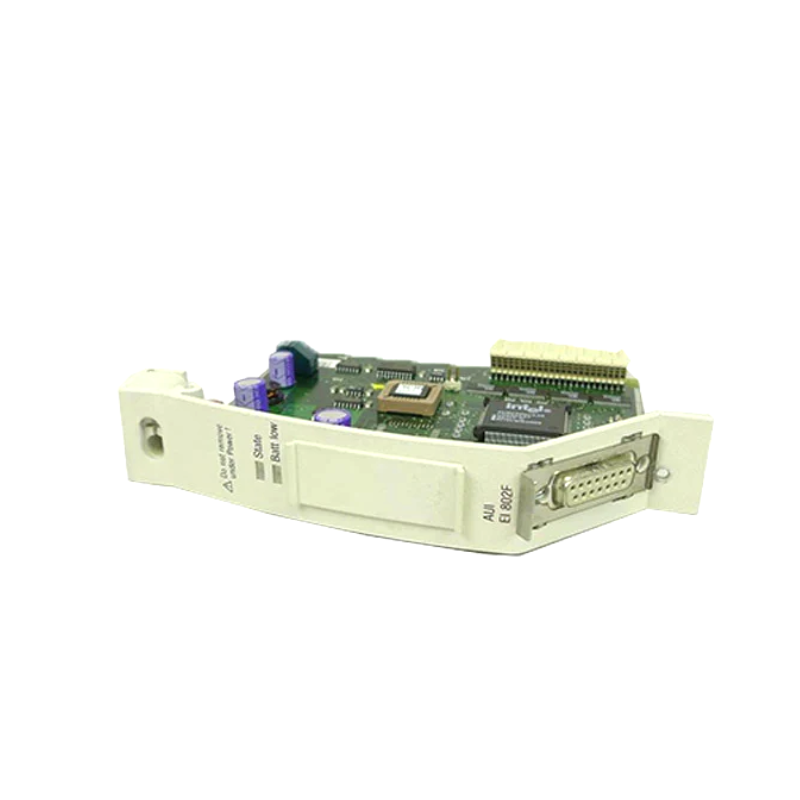

ABB EI802F 3BDH000016R1 Ethernet module

Name: ABB EI802F 3BDH000016R1 Ethernet module
Brand: ABB PLC
SKU: 7045
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:EI802F 3BDH000016R1
Product Origin:Sweden (SE)
Product Dimensions:130 × ~80 × ~28 mm
Product Weight:0.15kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Insight & Industrial Connectivity

The ABB EI802F 3BDH000016R1 Ethernet module is a communication‑centric automation component designed to enable reliable network connectivity within ABB distributed control architectures, such as the Advant® 800xA DCS family. As a dedicated Ethernet interface, it supports standard IEEE 802.3 network communication and provides robust data exchange between control systems and plant networks. Engineered for industrial environments, this module ensures consistent performance under demanding operational conditions and facilitates seamless integration across a broad range of automation hardware.

Technical Specifications

Parameter	Specification
Model	EI802F 3BDH000016R1
Module Type	Ethernet Communication Module
Ethernet Standard	IEEE 802.3
Interface	AUI (Attachment Unit Interface)
Data Rate	10 Mbit/s
Backplane Bus	32‑bit data bus
CPU Overhead (Typical)	< 4 % (DMA support)
Optional Features	Redundant battery backup
Power Consumption	Max. 6.2 W (with transceiver)
Power Supply	From CPU board (3.3 V/5 V)
Operating Temperature	Standard industrial range
Mounting	Rack/Panel integration
Dimensions	~130 × ~80 × ~28 mm (approx.)
Weight	~0.15 kg (without optional battery)

Ideal System Integration Scenarios

This Ethernet module excels in environments where dependable network communication and distributed control are essential:

Integration within ABB Advant® 800xA distributed control systems
Ethernet‑based communication between controllers and supervisory networks
Large manufacturing and process automation networks
Power generation and utility automation platforms
Industrial process monitoring and management systems

Its support for standard Ethernet connectivity ensures interoperability with existing plant network infrastructure and simplifies network expansions.

Core Benefits & Engineering Highlights

Standardized Ethernet Connectivity: Adheres to IEEE 802.3, ensuring broad compatibility with industrial networks and third‑party devices.
Efficient Data Handling: Direct memory access (DMA) minimizes CPU load while maintaining fast communication throughput.
Industrial‑Grade Design: Purpose‑built for continuous operation in demanding environments with reliable physical and electrical design.
Compact & Modular: Space‑efficient form factor makes system integration straightforward in tightly populated control cabinets.
Flexible Network Integration: Designed to work seamlessly across plant Ethernet architectures, bridging controllers and field network segments.

Technical FAQs

What network standard does this module use?
The EI802F operates using the IEEE 802.3 Ethernet standard for industrial communication.
Can it integrate into existing Ethernet networks?
Yes, it supports standard Ethernet connectivity for seamless integration.
What interface does the module provide?
It utilizes an AUI (Attachment Unit Interface) for physical network connection.
Is it compatible with ABB distributed control systems?
Yes, it is typically used with ABB’s DCS platforms, such as Advant® 800xA.
What data rate does it support?
The module supports up to 10 Mbit/s Ethernet communication.
Does it reduce CPU load during network operation?
Yes, direct memory access (DMA) helps keep CPU overhead low.
Is backup battery support available?
An optional battery can provide redundant memory backup.
What is the typical module weight?
Around 0.15 kg without optional battery.
Can it be retrofitted into existing control racks?
Yes, the module’s form factor is compatible with standard rack installations.
Does it use modern Ethernet speeds like 100 Mbit/s or 1 Gbit/s?
This specific module supports 10 Mbit/s Ethernet via AUI.
