Product Overview (Introduction)

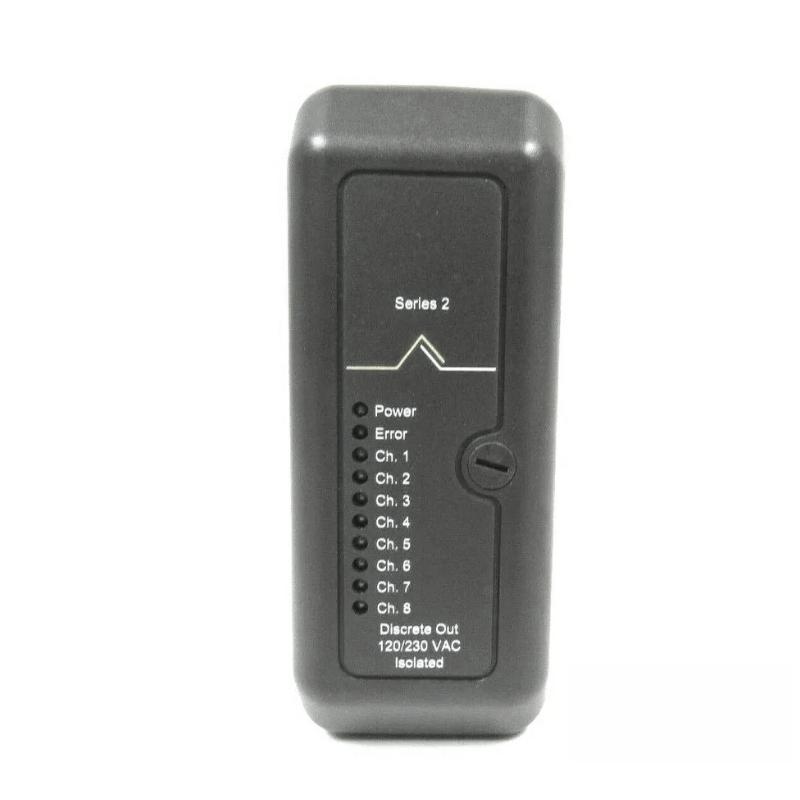

The Emerson KJ3209X1-BA1 12P3905X012 VE4002S2T1B1 DeltaV Discrete Output Card is a high-reliability component designed for digital output control in DeltaV systems. It converts controller commands into actionable signals that drive field devices, ensuring accurate and timely process execution.
Engineered for industrial environments, the module provides consistent performance under challenging conditions such as electrical interference and temperature fluctuations. Its integration within the DeltaV ecosystem allows seamless communication and coordinated system behavior.
This module plays a critical role in maintaining operational safety, improving system responsiveness, and ensuring process consistency across complex automation systems.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Emerson |
| Model Number | KJ3209X1-BA1 12P3905X012 VE4002S2T1B1 |
| Module Type | DeltaV Discrete Output Card |
| Function | Digital output control for field devices |
| Output Type | Discrete ON/OFF signals |
| System Compatibility | Emerson DeltaV Distributed Control System |
| Installation | DeltaV I/O Carrier Mount |
| Diagnostics | Channel status and module health monitoring |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H × W × D) | 107 mm × 41 mm × 105 mm |
| Weight | 0.25 kg (0.55 lb) |
Applications in DeltaV Control Architectures (Applications)
The Emerson KJ3209X1-BA1 12P3905X012 VE4002S2T1B1 DeltaV Discrete Output Card is designed to provide reliable digital output control within DeltaV distributed control systems. It enables precise execution of control commands by interfacing directly with field devices such as solenoids, relays, and actuators.
Typical deployment scenarios include:
-
Oil & gas facilities for emergency shutdown and valve control systems
-
Chemical plants requiring interlock and discrete control sequences
-
Power generation facilities for alarm handling and relay-based operations
-
Water and wastewater treatment systems managing pumps and valve states
-
Pharmaceutical production lines with automated batch control
-
Industrial plants using DeltaV systems for centralized process management
By ensuring consistent and deterministic output behavior, the module supports safe and coordinated plant operations.
System-Level Advantages (Advantages)
Deterministic Output Execution
Ensures that control commands are executed precisely and without delay, critical for safety and process control.
Native DeltaV Integration
Fully aligned with DeltaV system architecture, enabling simplified configuration and commissioning.
Reliable Industrial Performance
Designed to operate consistently under electrical noise, temperature variation, and continuous duty cycles.
Optimized for Critical Applications
Suitable for safety interlocks, shutdown systems, and time-sensitive control actions.
Efficient Maintenance and Diagnostics
Supports module and channel-level diagnostics, improving troubleshooting efficiency and reducing downtime.
Technical FAQs (Technical FAQs)
-
What is the main function of this module?
It provides discrete digital outputs to control field devices within a DeltaV system.
-
Which control systems is it designed for?
It is specifically designed for Emerson DeltaV distributed control systems.
-
What types of devices can it control?
It controls relays, solenoids, actuators, and other ON/OFF field devices.
-
Is it suitable for safety-critical applications?
Yes, it is commonly used in interlock and emergency shutdown systems.
-
Does it support real-time control execution?
Yes, it ensures deterministic response to controller commands.
-
Does the module include diagnostics?
Yes, it provides output status monitoring and module health diagnostics.
-
How is the module installed?
It is mounted on a DeltaV I/O carrier and connects through the system backplane.
-
Can it operate continuously in industrial environments?
Yes, it is designed for 24/7 operation in demanding conditions.
-
What industries commonly use this module?
Oil & gas, chemical processing, power generation, water treatment, and pharmaceuticals.
-
What is the key benefit of using this module?
It ensures reliable and precise execution of discrete control signals in critical automation systems.
