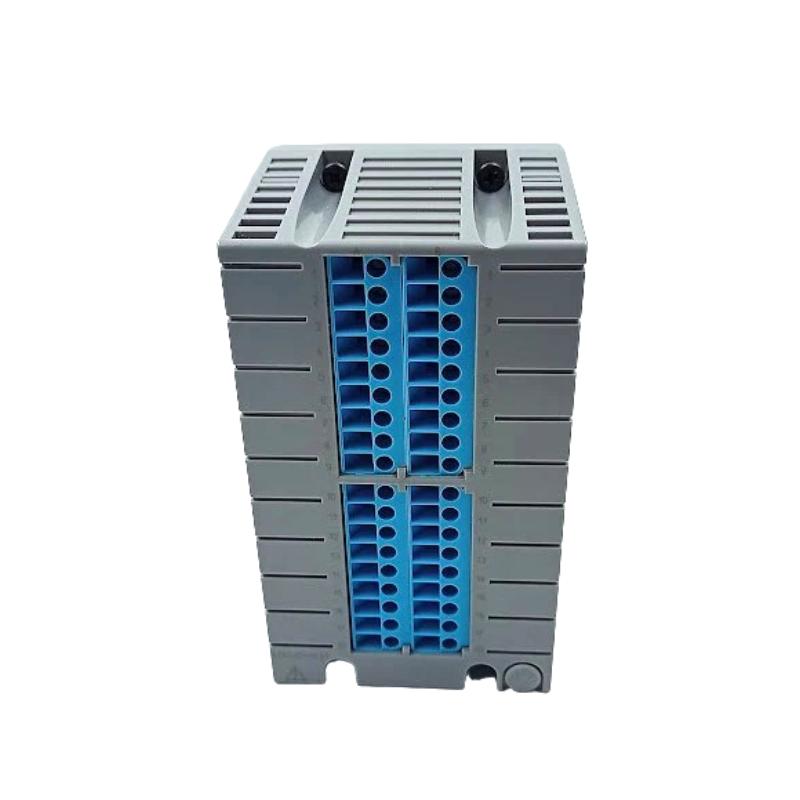

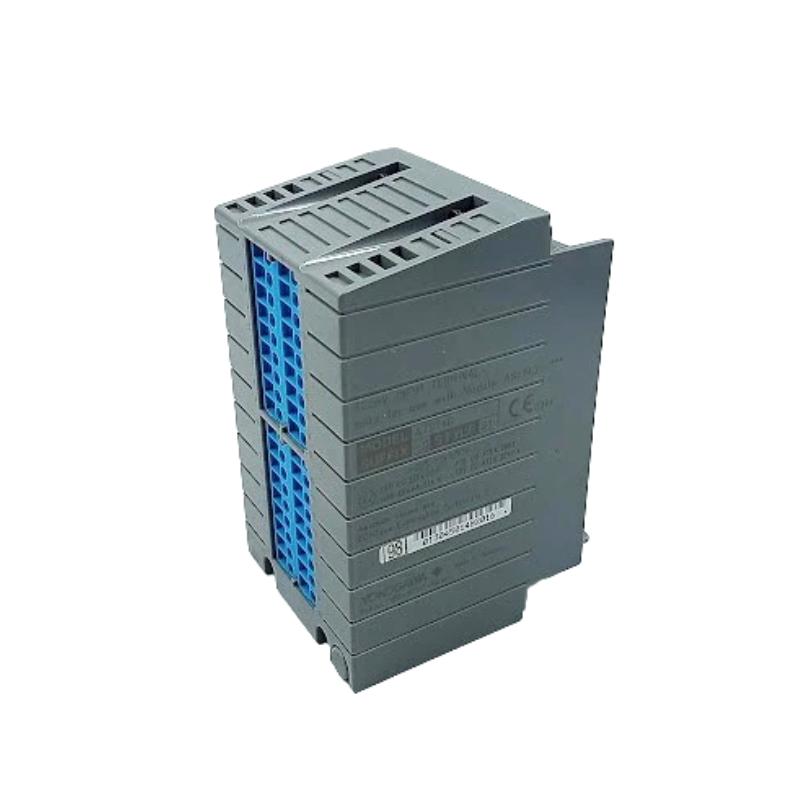

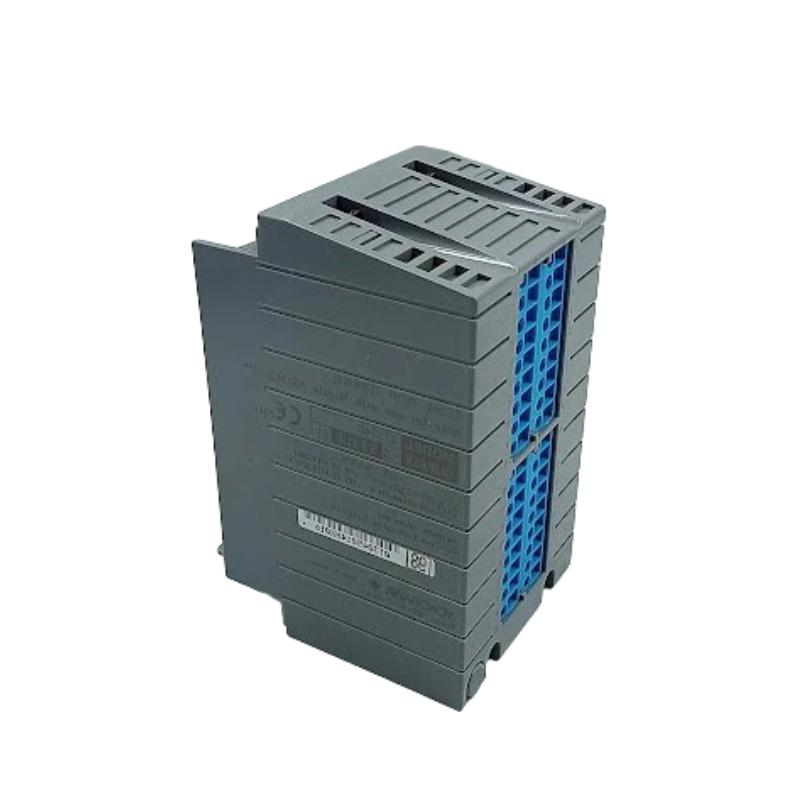

Yokogawa ATSR3D Dual Redundant Pressure Clamp Terminal Block

Brand:Yokogawa Electric
Item No.:ATSR3D
Product Origin:Japan
Product Dimensions:114 x 65.6 x 72 mm
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

ATSR3D-4ATSR3D-3ATSR3D-2ATSR3D-1

High‑Reliability Field Terminal for Redundant RTD/POT Signals

The Yokogawa ATSR3D Dual‑Redundant Pressure Clamp Terminal Block is a rugged, industrial‑grade wiring interface engineered to support dual redundant connection paths for RTD and potentiometer (POT) analog signals in Distributed Control System (DCS) environments. Designed to pair with Yokogawa I/O modules such as the RTD/POT input families, this terminal block ensures continuous signal integrity — even if one connection path experiences a fault — making it ideal for mission‑critical process automation systems where uptime and measurement fidelity are paramount.

Technical Specifications

ParameterDetails
ManufacturerYokogawa Electric Corporation
ModelATSR3D Dual‑Redundant Pressure Clamp Terminal Block
Product TypeDual‑Redundant Pressure Clamp Terminal Block
ApplicationRTD/POT analog field signal termination
Number of Channels8 analog input channels
RedundancyDual‑redundant configuration for increased availability
Connection MethodPressure clamp, tool‑free wiring
Compatible SystemsYokogawa CENTUM VP, CS 3000 with matching I/O modules
MountingDIN‑rail or panel mount
Operating Temperature–20 °C to +70 °C
Environmental StandardISA S71.04 Class G3 (industrial grade)
Insulation Resistance≥ 100 MΩ at 500 V DC
HousingIndustrial‑grade flame‑retardant material
Typical Weight~0.30 kg
WarrantyStandard 12 months from authorized supplier


Industrial Application Scenarios

This dual‑redundant terminal block is engineered for demanding analog signal acquisition environments requiring high availability and measurement continuity:

  • Critical temperature and resistance transmitter wiring in chemical, petrochemical, and energy processes
  • Redundant RTD signal termination for power generation and utility infrastructure
  • Field device wiring in water/wastewater and continuous process automation
  • Integration with CENTUM VP/CS 3000 analog I/O modules for distributed control applications
  • Panel wiring solutions where redundancy reduces single‑point failures and increases uptime

Its dual‑redundant design helps maintain continuous data acquisition even if one connection path is interrupted, which is especially valuable in safety‑critical systems.


Advantages You Can Rely On

  • Dual‑Redundant Signal Paths: Ensures measurement continuity and system resilience during component or wiring failures.
  • Pressure Clamp Reliability: Provides secure, vibration‑resistant connections that eliminate periodic retightening.
  • Seamless Integration: Designed specifically to pair with Yokogawa RTD/POT input modules in CENTUM VP or CS 3000 systems.
  • Compact Modular Design: DIN‑rail or panel mounting supports efficient space use in control cabinets.
  • Industrial‑Grade Build: Meets ISA S71.04 Class G3 performance for harsh operating environments.


Technical FAQs

1. What does “dual‑redundant” mean for this terminal block?
It provides two independent signal paths for RTD/POT wiring, enabling continued operation if one path becomes faulty.

2. How many channels does the ATSR3D support?
It supports eight analog channels tailored for RTD and potentiometer inputs.

3. Which Yokogawa systems is it compatible with?
It integrates with Yokogawa CENTUM VP and CS 3000 systems using matching RTD/POT input modules.

4. Does it require tools for wiring?
No — its pressure clamp design supports tool‑free connections for field wiring.

5. What temperature range can it operate within?
Designed for typical industrial conditions from approximately –20 °C to +70 °C.

6. Is external surge protection included?
Generally not; the “‑0” suffix indicates fixed configuration without integrated surge absorbers.

7. How does it improve redundancy in control systems?
By offering separate parallel signal paths, it reduces risk of data loss and supports continuous monitoring.

8. What mounting options does it support?
It is compatible with DIN‑rail or panel‑mount installations in control enclosures.

9. What is its environmental reliability rating?
It meets ISA S71.04 Class G3 environmental standards for industrial use.

10. What field signals is it used with?
RTD temperature sensors (e.g., Pt100, Pt500) and potentiometer transmitters for process control.
