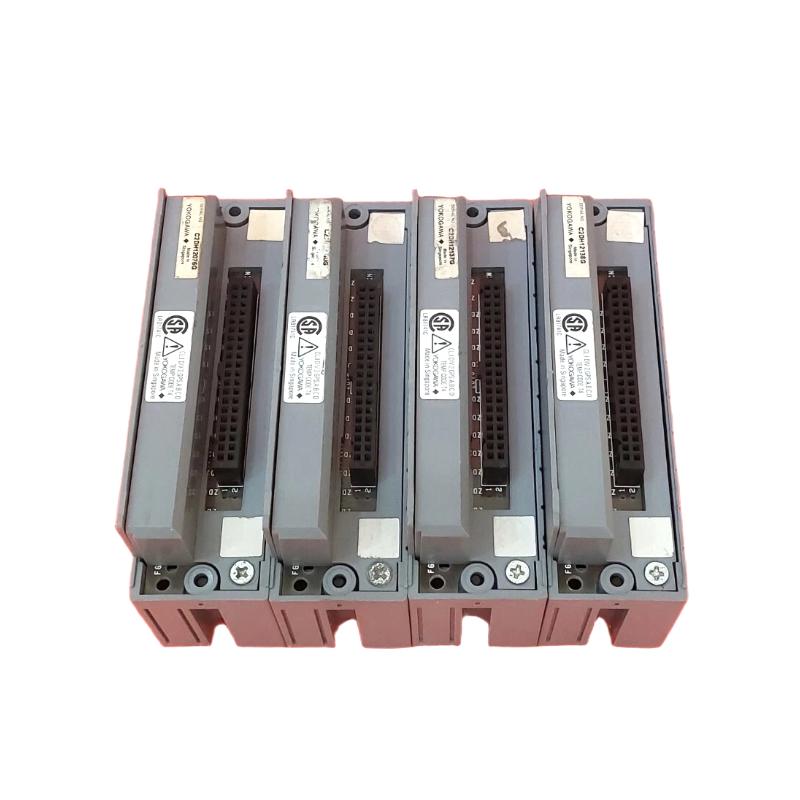

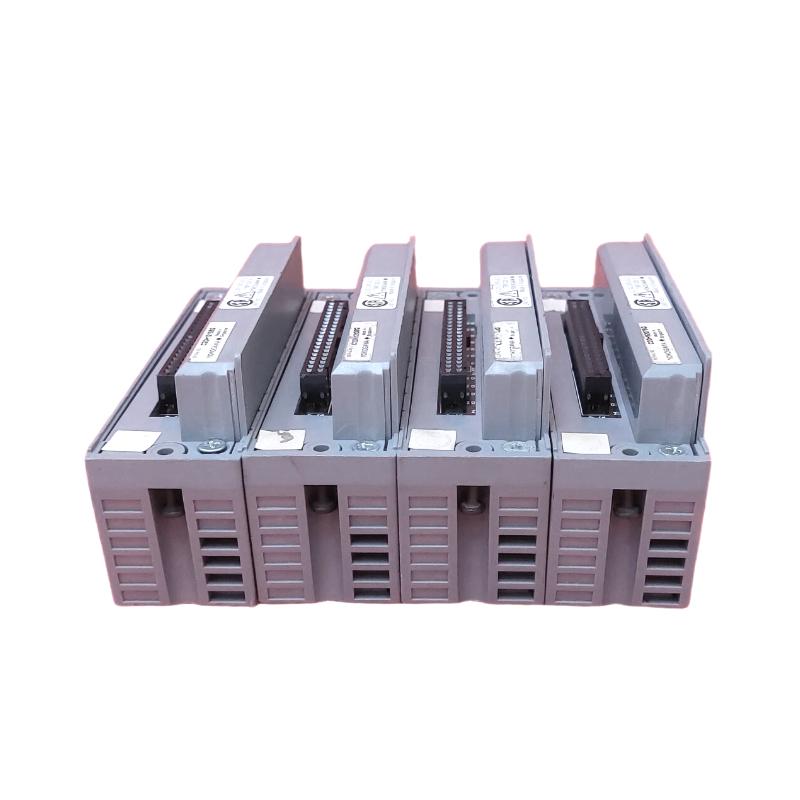

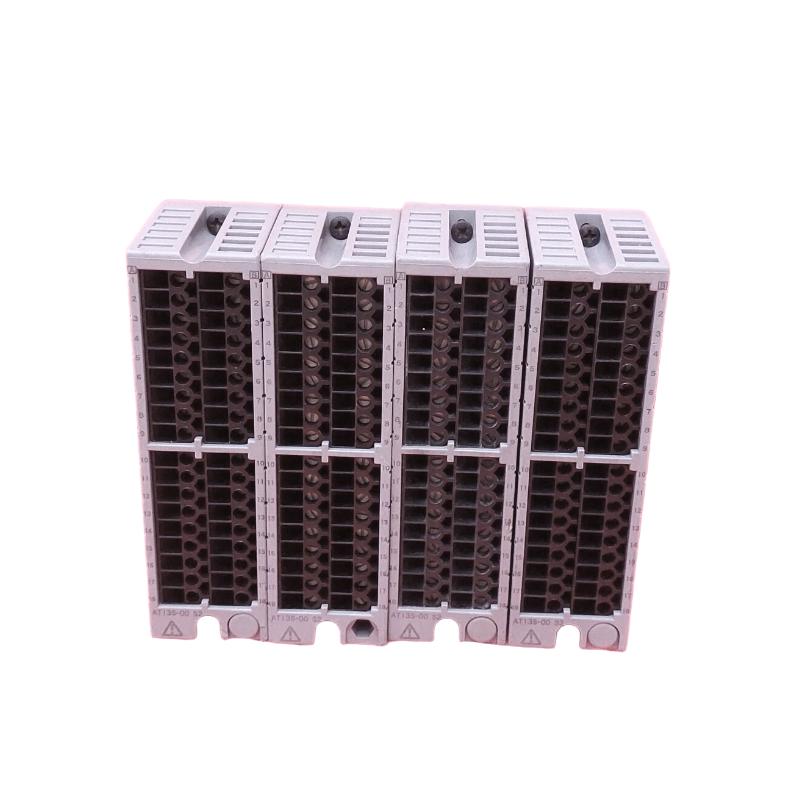

Yokogawa ATI3S-001 Pressure Clamp Terminal Block

Brand:Yokogawa Electric
Item No.:ATI3S-001
Product Origin:Japan
Product Dimensions:114 × 32.6 × 60.5 mm
Product Weight:0.2kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

ATI3S-001-3ATI3S-001-4ATI3S-001-1ATI3S-001-2

Reliable Field Wiring Interface for Industrial Control Systems

The Yokogawa ATI3S‑001 Pressure Clamp Terminal Block is a robust terminal interface designed to bridge field wiring with Yokogawa isolated analog I/O modules. It provides secure and vibration‑resistant pressure clamp connections, ensuring stable signal transmission in industrial environments. Ideal for distributed control systems (DCS), RTU cabinets, and panel wiring applications, this terminal block simplifies installation while maintaining long‑term electrical reliability.

Technical Specifications

ParameterDetails
ManufacturerYokogawa
Model NumberATI3S‑001
Product TypePressure Clamp Terminal Block
OriginJapan
Connection TypeSpring pressure clamp
Compatible Channels8 connection points (isolated analog modules)
Rated VoltageUp to 250 V AC/DC
Rated CurrentUp to 10 A per channel
Wire Size Range0.5 mm² – 2.5 mm² (AWG 20 – 14)
Insulation WithstandUp to 2.5 kV
Body MaterialHigh‑quality flame‑retardant polymer
Contact MaterialCorrosion‑resistant copper alloy
MountingDIN rail or panel mount
Operating Temperature Range−20 °C to +70 °C
Dimensions (H × W × D)~114 × 32.6 × 60.5 mm
Weight~0.2 kg
WarrantyStandard 12 months


Typical Industrial Applications

This pressure clamp terminal block is widely used wherever robust field wiring interfaces are needed with Yokogawa I/O modules:

  • Distributed Control System (DCS) cabinet wiring
  • Power generation control panels
  • Oil & gas and petrochemical automation racks
  • Water/wastewater and utilities control systems
  • Industrial process and manufacturing automation panels

Its compact form factor and DIN‑rail compatibility make it a practical choice for space‑constrained installations.


Key Benefits

  • Secure Pressure Clamp Connections: Designed to resist vibration and maintain tight electrical contact.
  • Wide Voltage and Current Ratings: Supports up to 250 V AC/DC and 10 A per channel for versatile deployment.
  • Standard Industrial Materials: Flame‑retardant housing and corrosion‑resistant contacts improve safety and durability.
  • Flexible Mounting Options: Can be mounted on DIN rail or directly to panel backplates.
  • Simplified Field Wiring: Eight independent connection points facilitate organized I/O cabling.


Technical FAQs

1. What is the main purpose of this terminal block?
It provides secure wiring connections between control system I/O modules and field devices using a pressure clamp mechanism.

2. How many channels does the ATI3S‑001 support?
It supports eight connection points, typically for isolated analog I/O modules.

3. What wire sizes are supported?
0.5 mm² to 2.5 mm² (AWG 20–14) compatible terminals.

4. Can it handle AC and DC signals?
Yes — up to 250 V AC/DC.

5. What is the current rating per channel?
Up to 10 A per channel.

6. Is this module isolated?
The block itself provides wiring interface; isolation depends on the connected I/O modules.

7. How is it mounted?
Via DIN rail or panel mount hardware.

8. What temperature range can it operate within?
From −20 °C to +70 °C.

9. Are surge absorbers included?
Standard versions do not include surge components; specialized variants may.

10. What industries use it most often?
Process industries, utilities, power, oil & gas, water treatment, and industrial automation.
