Advanced Modular Control for Industrial Automation

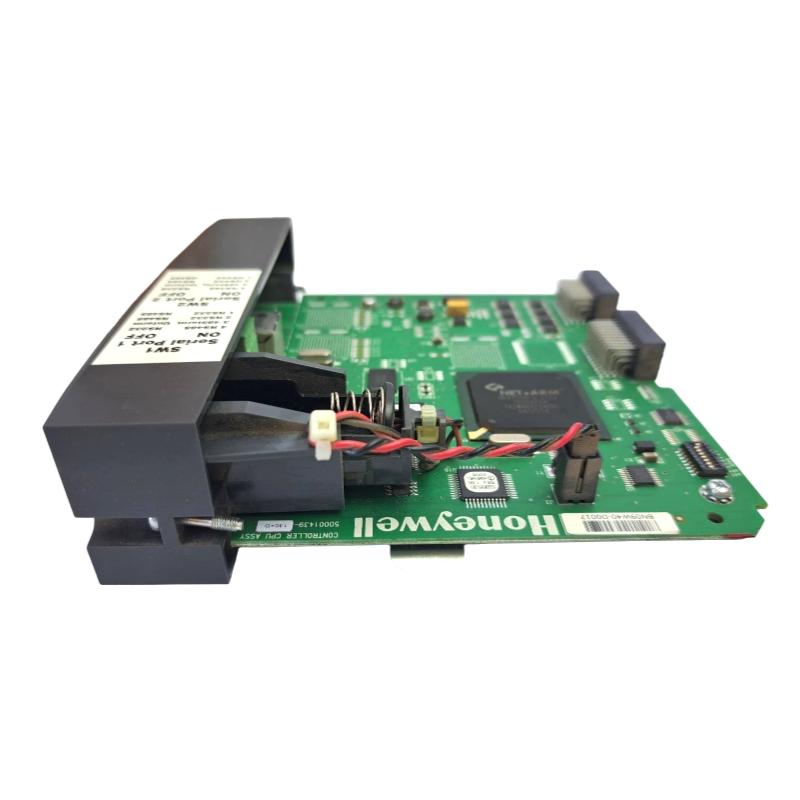

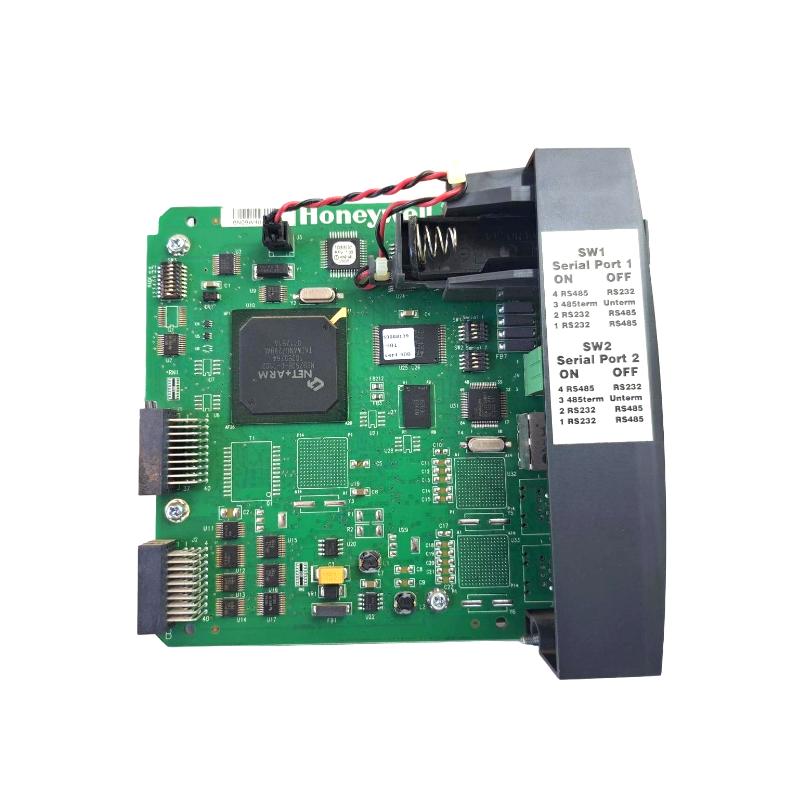

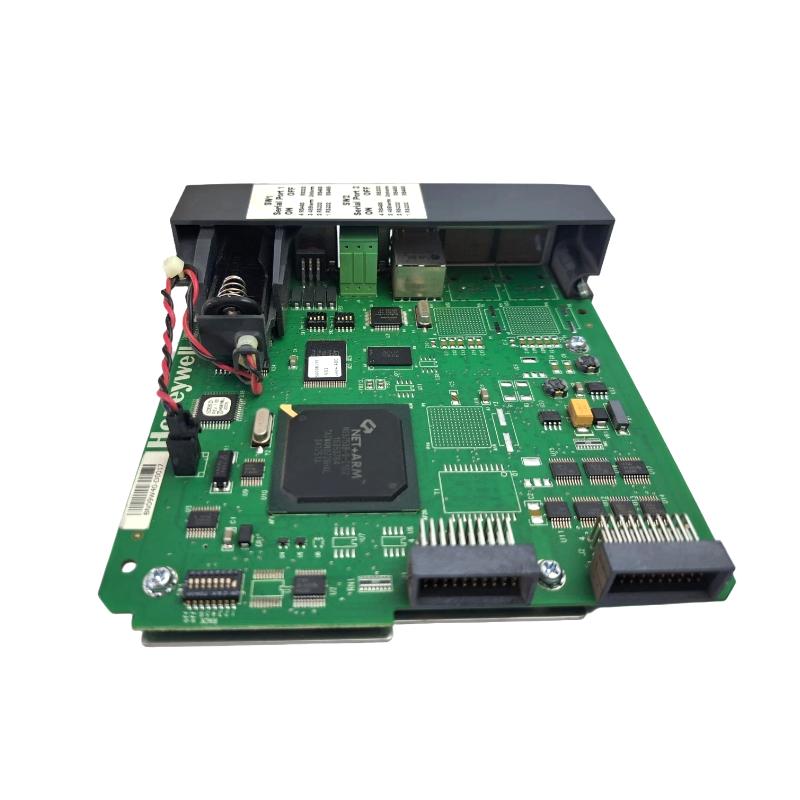

The Honeywell 900C50‑0460 C50 Controller CPU is a high‑performance central processing unit designed for the Honeywell ControlEdge HC900 modular automation family. Positioned between entry‑level and high‑end CPU models, it delivers a powerful blend of logic execution, loop control, sequencing, and network connectivity — making it ideal for medium‑to‑large industrial control applications. Its robust architecture supports extensive I/O expansion and flexible communication, helping plants achieve responsive control, enhanced throughput, and reliable uptime.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Honeywell |
| Model | 900C50‑0460 C50 Controller CPU |
| Product Type | HC900 Modular Controller CPU |
| System Compatibility | Honeywell ControlEdge HC900 |
| Processor | High‑speed 32‑bit RISC CPU |
| Memory | ~10 MB Flash; ~4 MB RAM |
| Maximum I/O Points Supported | Up to ~2048 points (local + remote) |
| Ethernet Ports | 2 × 10/100 Mbps (Modbus/TCP, peer‑to‑peer) |
| Serial Port | RS‑485 / RS‑232 (Modbus RTU) |
| Protocols Supported | Modbus RTU, Modbus TCP/IP, peer‑to‑peer, OPC |
| Redundancy | CPU, power & communication redundancy supported |
| Operating Temperature | 0 °C – 60 °C |
| Storage Temperature | ‑40 °C – 85 °C |
| Mounting | DIN rail or panel mount |
| Dimensions (H × W × D) | ~137 × 38.1 × 137 mm |
| Weight | ~0.36 kg |
| Certifications | CE, UL, CSA, RoHS, SIL2 capable (varies) |
| Warranty | Typically 12 months |
Industrial Applications
The 900C50‑0460 excels in environments where flexible, real‑time control and extensive I/O integration are critical:
-
Process plants with batch and continuous control needs
-
Water and wastewater treatment systems
-
Chemical and pharmaceutical manufacturing automation
-
Thermal processing and energy systems
-
SCADA integration with peer‑to‑peer and Ethernet protocols
-
Hybrid control tasks requiring both logic and PID capabilities
Its scalability makes it ideal for facilities needing deterministic control over complex processes.
Performance Advantages
This CPU module offers both breadth and depth of capability for serious automation tasks:
-
High I/O Capacity: Supports up to thousands of input/output points across multiple racks.
-
Flexible Scalability: Expands system capacity without redesigning existing architecture.
-
Redundancy Support: Enhances uptime and resilience in mission‑critical operations.
-
Advanced Networking: Dual Ethernet supports Modbus TCP and peer‑to‑peer communications.
-
Robust Control: Handles logic, sequence, PID, and batch operations efficiently.
-
Reliable Performance: Compact industrial design with broad temperature tolerance.
Technical FAQs
1. What system does this CPU belong to?
It is a controller CPU module for the Honeywell ControlEdge HC900 series.
2. How many I/O points can the 900C50‑0460 support?
It supports up to ~2048 I/O points across local and remote racks.
3. Which communications does it support?
Dual Ethernet (Modbus TCP/IP and peer‑to‑peer) and serial Modbus RTU via RS‑485/RS‑232.
4. Can this controller be used in redundant configurations?
Yes — it supports CPU, power, and communication redundancy.
5. Is there built‑in support for remote monitoring?
Yes — Ethernet connectivity facilitates integration with SCADA or web‑based monitoring.
6. What type of control logic can it execute?
It processes standard logic, PID loops, sequencing, and batch control tasks.
7. What are the operating temperature limits?
0 °C to 60 °C, suitable for industrial environments.
8. How is the module mounted?
It can be mounted on DIN rail or panel mount configurations.
9. Does it include data logging capability?
Its flash memory supports configuration and basic data storage for logging.
10. Is this CPU certified for industrial safety standards?
Certifications like CE, UL, CSA, and SIL2 (application dependent) are typical.
