Versatile I/O Control for Legacy Automation Platforms

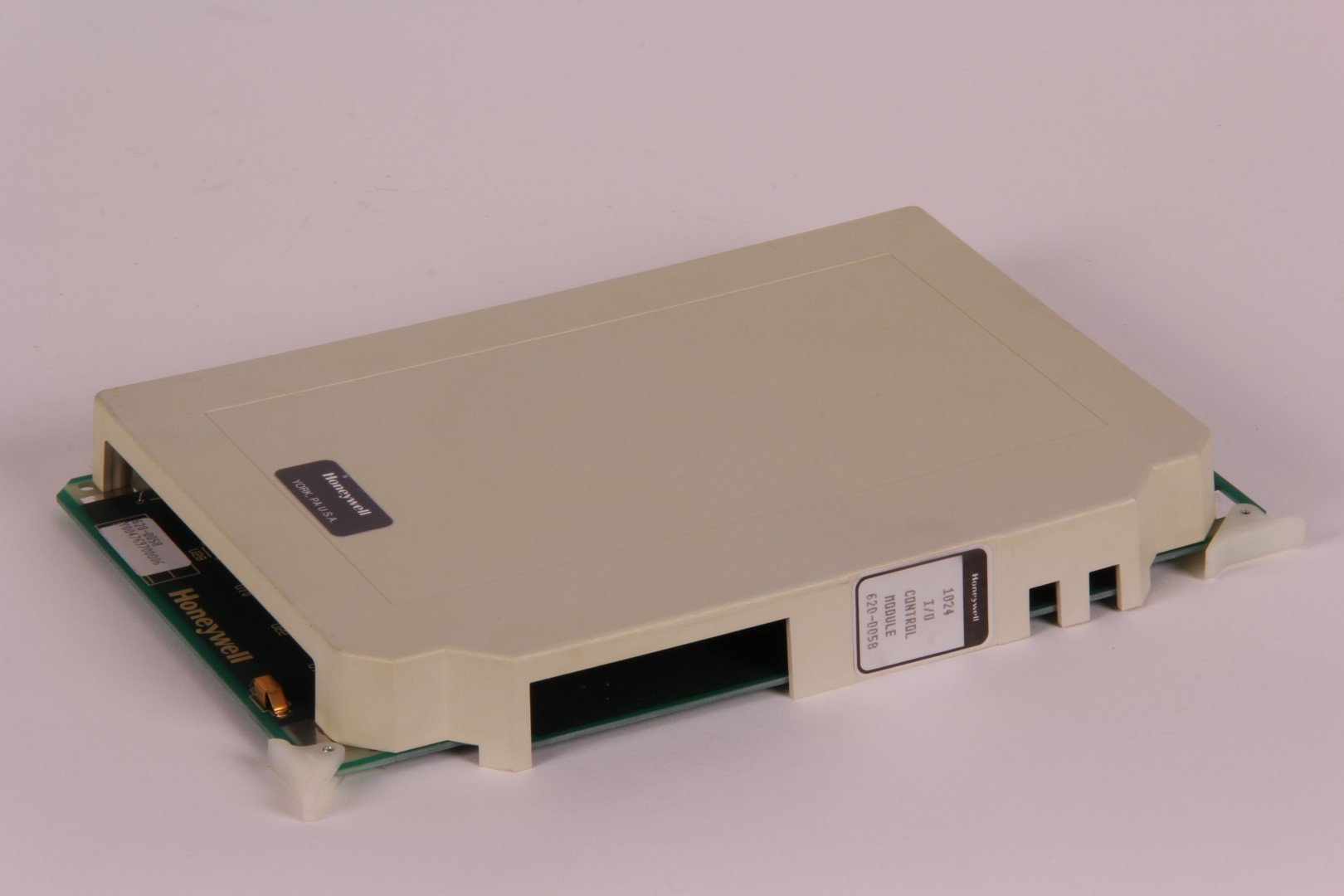

The Honeywell 620‑0058 I/O Control Module is a high‑capacity input/output interface designed to manage extensive field signal integration within Honeywell automation systems, particularly the ISSC 600 and UCN/IPC 620 families. With support for up to 1024 I/O points, this module enables comprehensive monitoring and control of industrial processes, delivering stable performance in diverse applications where legacy hardware remains in service.
Despite being discontinued by the original manufacturer, the 620‑0058 continues to be widely used and supported through refurbished and surplus supply channels, helping engineers maintain system continuity without costly platform changes.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Honeywell |
| Model | 620‑0058 I/O Control Module |
| Product Type | High‑Capacity I/O Control Interface |
| System Compatibility | Honeywell ISSC 600 / UCN / IPC 620 Systems |
| I/O Points Capacity | 1024 Points |
| I/O Interface Types | Local, Parallel, Serial I/O |
| Function | Field I/O coordination and data handling |
| Mounting | Rack / Chassis installation |
| Operating Environment | Industrial‑rated |
| Dimensions (L × W × H) | ~2.8 × 23.9 × 16 cm |
| Weight | ~0.3 kg |
| Note | Discontinued by OEM, available as surplus |
Industrial Application Scenarios
The 620‑0058 module’s high I/O point capacity and stable performance make it suited to complex control environments, especially in industrial facilities that rely on legacy automation systems:
-
Process control loops in chemical, oil & gas, and utility sectors
-
Machine automation with broad sensor and actuator networks
-
Facility monitoring including temperature, pressure, and flow control
-
Large‑scale manufacturing process logic integration
-
Retrofitting and maintaining established field installations
It’s particularly valuable in applications where maximizing I/O integration within a compact form factor helps reduce hardware count and system complexity.
Key Advantages for Control Engineers
While not a modern controller, the 620‑0058 remains useful where legacy system continuity and reliability are prioritized:
-
High I/O Density: Supports up to 1024 field points for extensive signal coverage.
-
Flexible I/O Interfaces: Handles local, parallel, and serial I/O modes for broad compatibility.
-
Compact Industrial Design: Fits standard Honeywell rack architectures without redesign.
-
Proven Reliability: Rugged construction suited to demanding industrial environments.
-
Legacy Support: Availability through refurbished and surplus markets extends system service life.
Technical FAQs
1. What is the key function of the 620‑0058 module?
It provides high‑capacity input/output control, coordinating signals between field devices and the control system.
2. How many I/O points can it manage?
Up to approximately 1024 I/O points.
3. Which automation systems is it compatible with?
It’s designed for use in Honeywell ISSC 600, UCN, and IPC 620 legacy platforms.
4. What interface types does it support?
It supports local, parallel, and serial I/O interfaces.
5. Is this module still manufactured by Honeywell?
No — it is discontinued by the manufacturer, but available through aftermarket supply.
6. What environments are best suited for this module?
Industrial environments where legacy control systems and broad I/O coverage are needed.
7. How is it mounted?
It installs into control system racks or chassis alongside other system modules.
8. Can it be used for modern PLC systems?
Not directly; it’s tailored for Honeywell legacy environments, though external conversion or gateway solutions could bridge interfaces.
9. Does it require external power?
Power is typically provided through the host system backplane.
10. What happens if an I/O point fails?
System diagnostics and peripherals in the control architecture can isolate faults for maintenance. General industrial practice.
