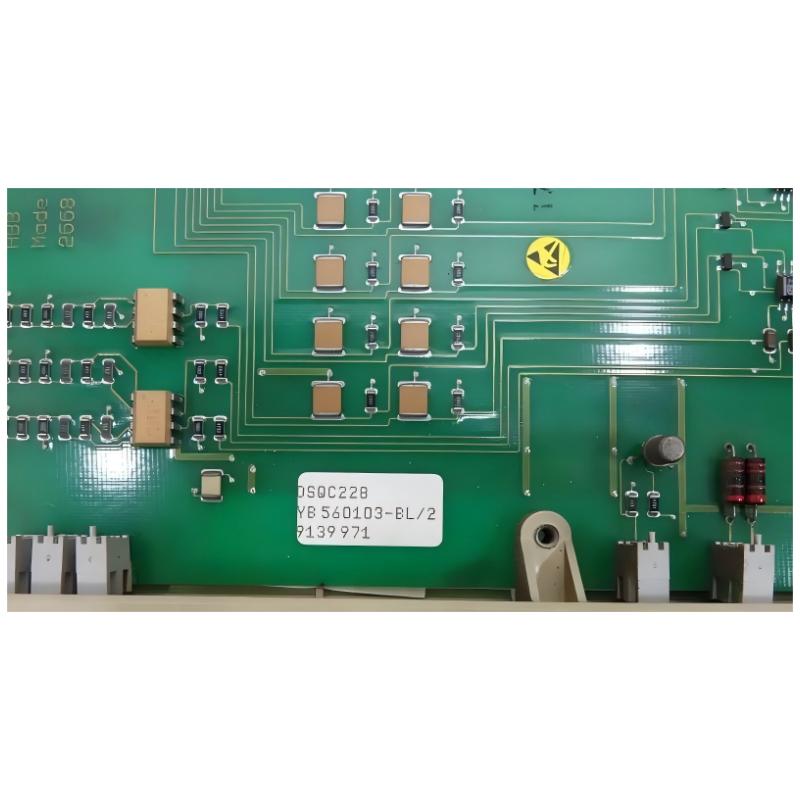

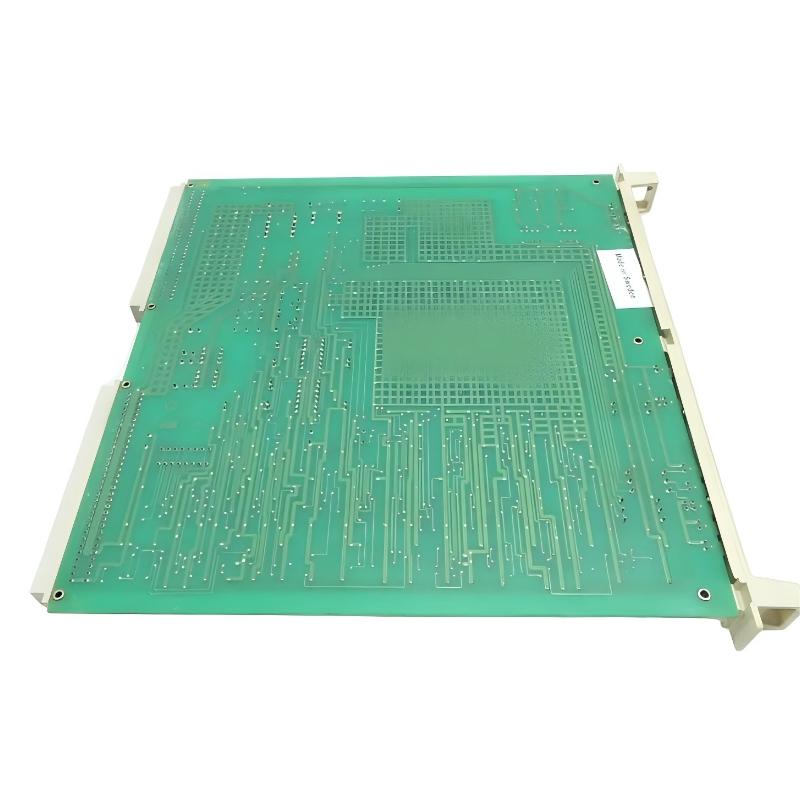

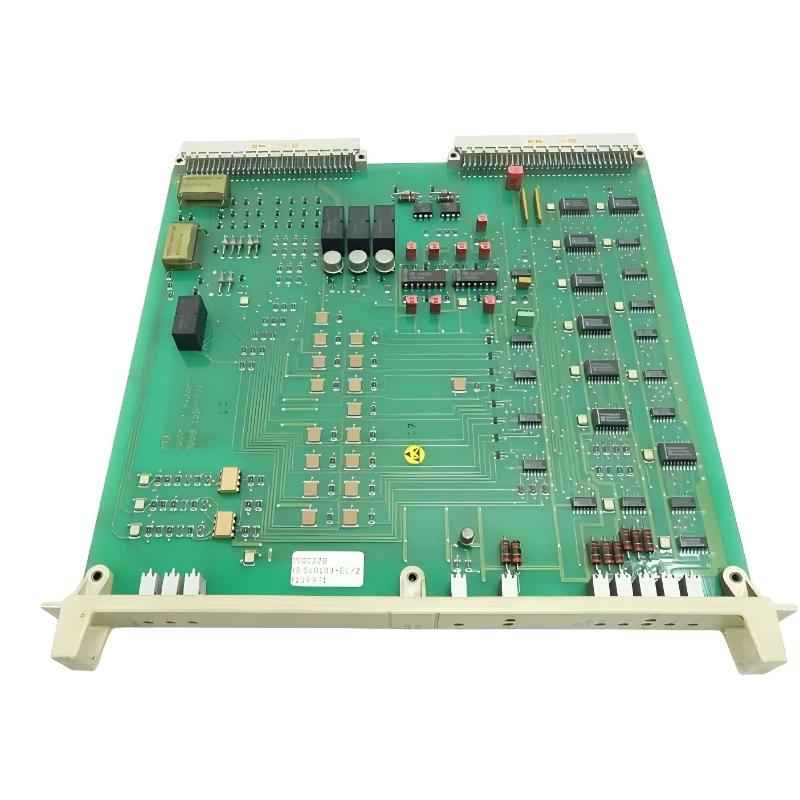

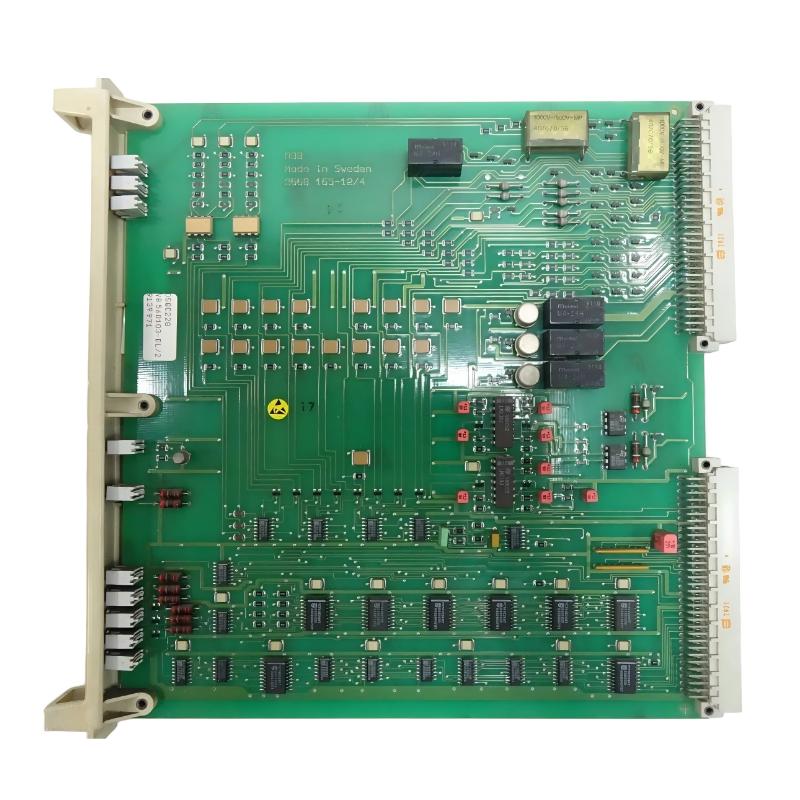

ABB DSQC 228 YB560103-BL/2 Rotary Transformer Filter Board

Name: ABB DSQC 228 YB560103-BL/2 Rotary Transformer Filter Board
Brand: ABB PLC
SKU: 6967
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DSQC 228
Product Origin:Sweden (SE)
Product Dimensions:130 × 19 × 191 mm
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The ABB DSQC 228 YB560103-BL/2 Rotary Transformer Filter Board is a specialized module that enhances the accuracy and reliability of resolver-based feedback systems in ABB robotic controllers. By filtering and stabilizing signals from rotary transformers, it ensures precise motion control and consistent system performance.

Its compact design allows easy integration into control systems, while its robust construction ensures dependable operation in demanding industrial environments. The DSQC 228 is essential for applications where accurate motion feedback is critical to system performance.

Technical Specifications

Parameter	Details
Manufacturer	ABB
Model Number	DSQC 228 / YB560103-BL/2
Module Type	Rotary Transformer Filter Board
Primary Function	Resolver Signal Filtering & Conditioning
System Compatibility	ABB DSQC Controllers & Servo Systems
Mounting Method	Rack / Module Integration
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Dimensions (L×W×H)	130 mm × 19 mm × 191 mm
Weight	0.3 kg

Application Context

The ABB DSQC 228 Rotary Transformer Filter Board is designed to condition and stabilize signals associated with rotary transformer (resolver) systems in ABB robotic applications. It plays a key role in ensuring accurate feedback from rotating components, which is essential for precise motion control and position tracking.

Typical deployment scenarios include:

Industrial robots requiring resolver-based position feedback
Servo motor systems with rotary transformer signal conditioning
Multi-axis robotic arms in automotive manufacturing
High-precision motion systems in electronics assembly
CNC and robotic hybrid systems with feedback loop optimization
Automation environments where signal integrity is critical for motion accuracy

By filtering and stabilizing resolver signals, the module enhances motion precision and ensures reliable feedback for control systems.

Key Advantages

Enhanced Signal Conditioning
Filters noise and stabilizes rotary transformer signals for accurate feedback.
Improved Motion Accuracy
Ensures precise position and speed control in robotic systems.
Seamless ABB Integration
Fully compatible with DSQC controllers and servo systems.
Compact and Lightweight Design
Ideal for installation in dense control cabinets and robotic controllers.
Reliable Industrial Performance
Maintains signal integrity in environments with electrical interference and vibration.

Technical FAQs

What is the main function of the DSQC 228?
It filters and conditions signals from rotary transformers (resolvers) used in motion feedback systems.
What devices does it interface with?
It interfaces with rotary transformers and ABB servo drive/control systems.
Why is signal filtering important in resolver systems?
It eliminates noise and distortion, ensuring accurate position and speed feedback.
Is it used in real-time control loops?
Yes, it supports real-time feedback processing for motion control systems.
Can it improve robot positioning accuracy?
Yes, by ensuring clean and stable feedback signals.
Does it require configuration?
Typically minimal configuration; operates as a signal conditioning interface within the system.
Is it suitable for harsh industrial environments?
Yes, designed to withstand vibration, temperature variation, and electrical noise.
How is it installed?
Mounted within a controller rack or integrated into the robotic control system.
Does it support diagnostics?
Indirectly, by maintaining signal quality and enabling accurate feedback monitoring.
Which industries most commonly use this module?
Automotive, electronics manufacturing, robotics, CNC machining, and industrial automation.
