Industrial‑Grade ASCII Communication for Legacy Control Networks

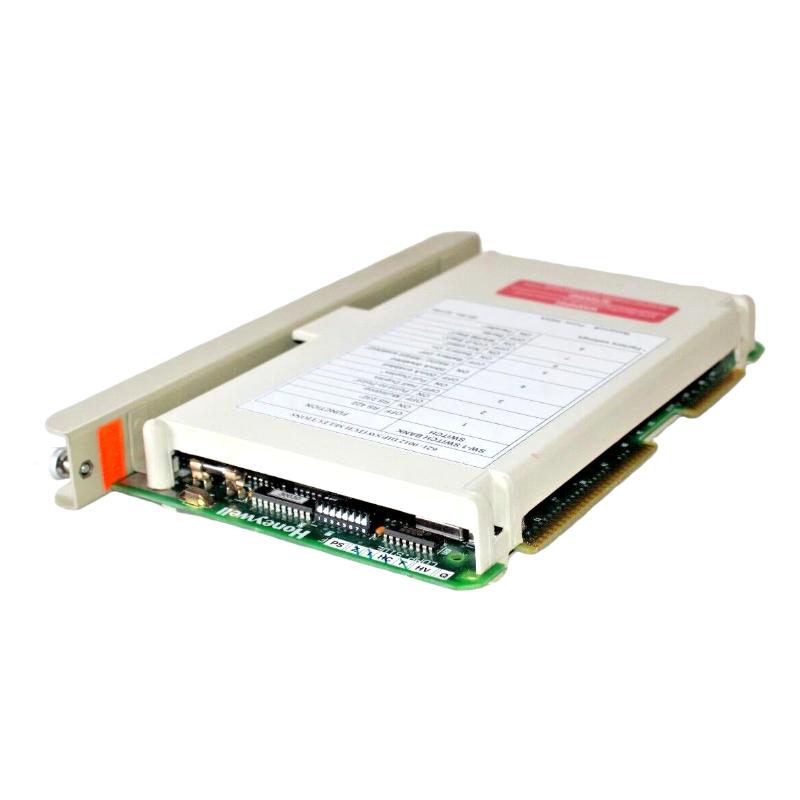

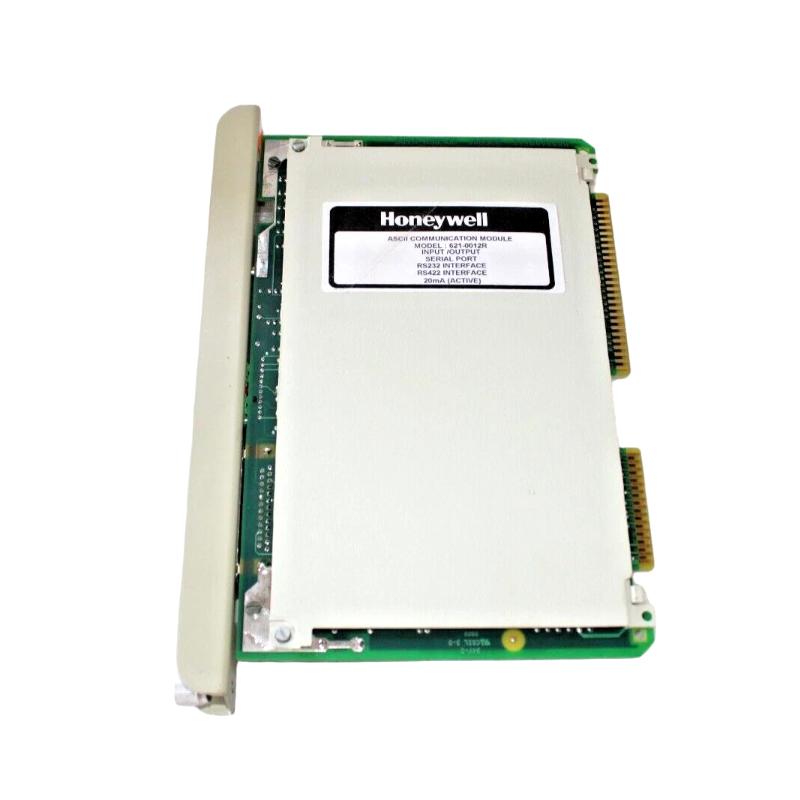

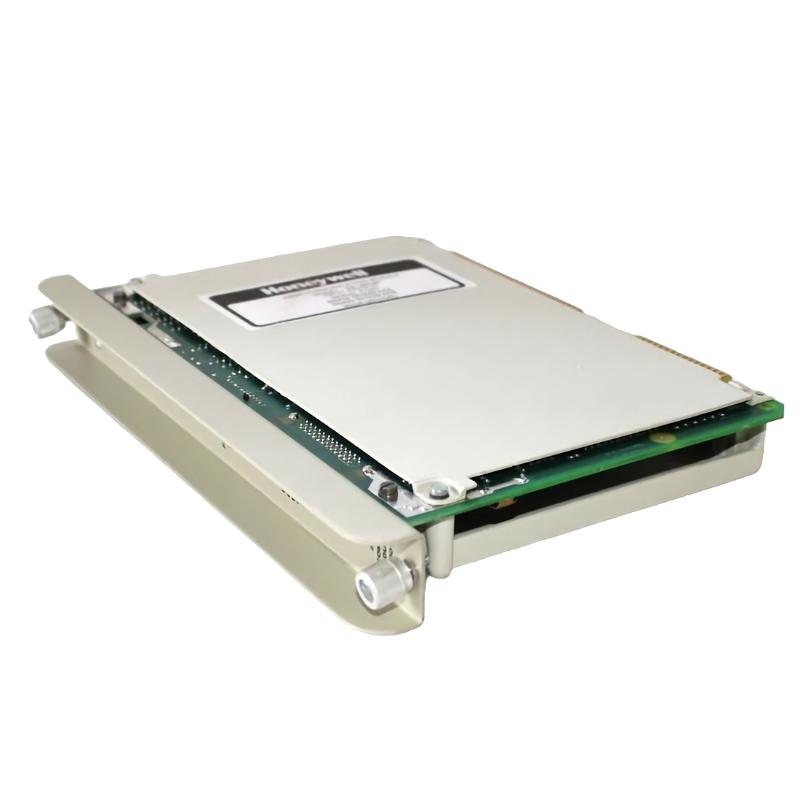

The Honeywell 621‑0012 ASCII Communication Module is a robust serial interface designed to enable character‑based data exchange between Honeywell automation systems (such as UCN/ISSC or IPC‑series controllers) and external devices that rely on ASCII‑protocol communication. By converting system data into standard ASCII messages and vice‑versa, this module empowers legacy control environments with reliable, flexible connectivity for human‑machine interfaces, barcode readers, terminal devices, or third‑party equipment.
Built for durability and seamless integration, the 621‑0012 module supports configurable serial parameters and communication options, making it a pragmatic choice for enhancing system interoperability without extensive redesigns.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Honeywell |
| Model | 621‑0012 ASCII Communication Module |
| Product Type | Communication Module |
| System Compatibility | Honeywell UCN/ISSC/Legacy PLC Platforms |
| Communication Protocol | ASCII (Character‑based Serial) |
| Serial Interfaces Supported | RS‑232 / RS‑422 / Current Loop (via DIP) |
| Configuration Options | Baud Rate, Parity, Stop Bits |
| Mounting | Control Rack Slot |
| Power Supply | Host System Supply (typically rack derived) |
| Operating Temperature | Industrial‑rated |
| Dimensions (L × W × H) | Approx. 26.7 × 3.0 × 17.8 cm |
| Weight | Approx. 0.5 kg |
Applications Across Legacy Automation
This ASCII Communication Module unlocks character‑based serial links between a Honeywell control system and connected devices, making it indispensable where traditional binary protocols aren’t available or practical.
Common application scenarios include:
-
Connecting operator terminals, text displays, or ASCII‑based consoles
-
Integrating external devices such as barcode scanners or custom sensors
-
Data logging and serial printing operations
-
Remote diagnostics and status monitoring via character protocols
-
Linking to third‑party control systems over serial lines
By enabling ASCII communication, the 621‑0012 helps extend the relevance of legacy systems while maintaining stable data exchange paths.
Core Advantages in Reliable Operations
Even though it’s rooted in legacy hardware platforms, this module delivers practical performance benefits that matter in real‑world industrial contexts:
-
Facilitates standard ASCII communication for broad interoperability
-
Configurable serial settings allow fine‑tuned control over data exchange
-
Supports multiple interface types (RS‑232/RS‑422/current loop) via hardware configuration
-
Compact form factor fits existing Honeywell rack architectures
-
Known rugged Honeywell design suitable for harsh industrial environments
Technical FAQs
1. What communication protocol does the 621‑0012 module use?
It supports ASCII character‑based serial communication.
2. Which serial interfaces are supported?

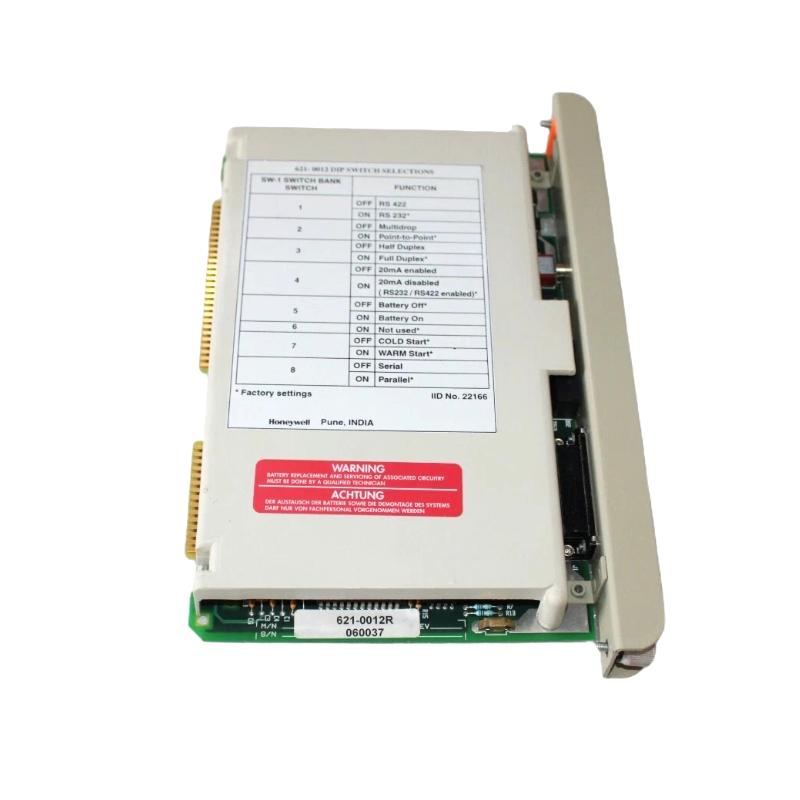

Typically RS‑232, RS‑422, and current‑loop interfaces depending on DIP switch hardware settings.
3. Is this module compatible with modern PLCs?
It’s designed for legacy Honeywell platforms; integration with modern systems may require gateway hardware or protocol converters.
4. What types of external devices can it connect to?
Devices that communicate over ASCII‑protocol serial links, such as text terminals, printers, scanners, or custom sensors.
5. What configuration options are available?
Parameters like baud rate, parity, and stop bits can be configured based on application needs.
6. How is the module mounted?
It installs in the system rack slot alongside other I/O and communication modules.
7. Does it require external power?
No dedicated power input; it draws power from the host control system rack.
8. Can it operate with wireless serial converters?
Yes — provided the converter uses standard ASCII serial framing compatible with the module’s settings.
9. What happens if communication errors occur?
Status LEDs and host diagnostics can help identify framing or connection issues.
10. Is this module still manufactured by Honeywell?
It is a legacy model; new units are rare, though refurbished and surplus stock are commonly available
