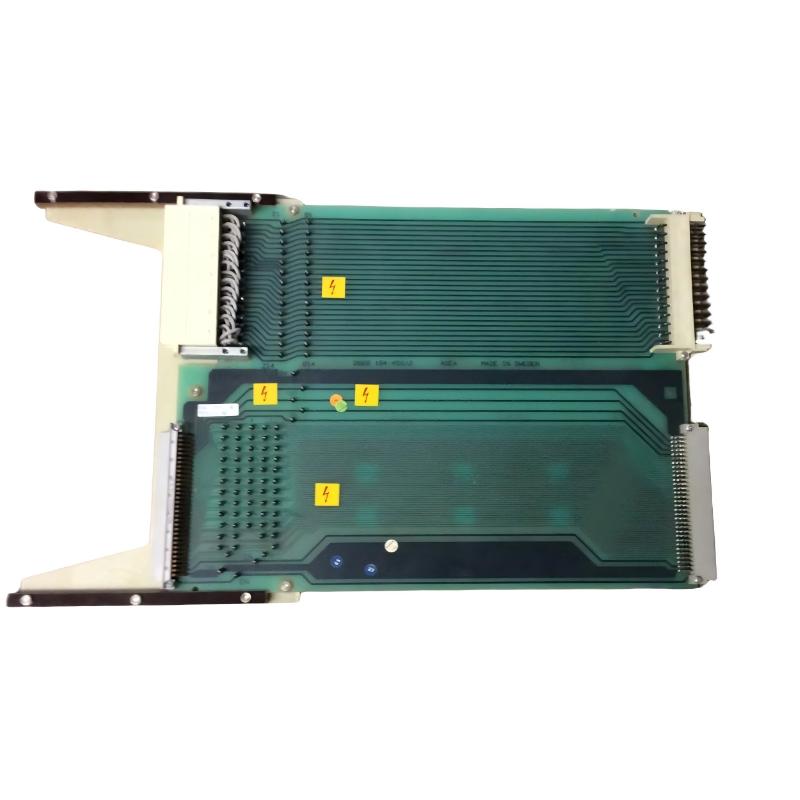

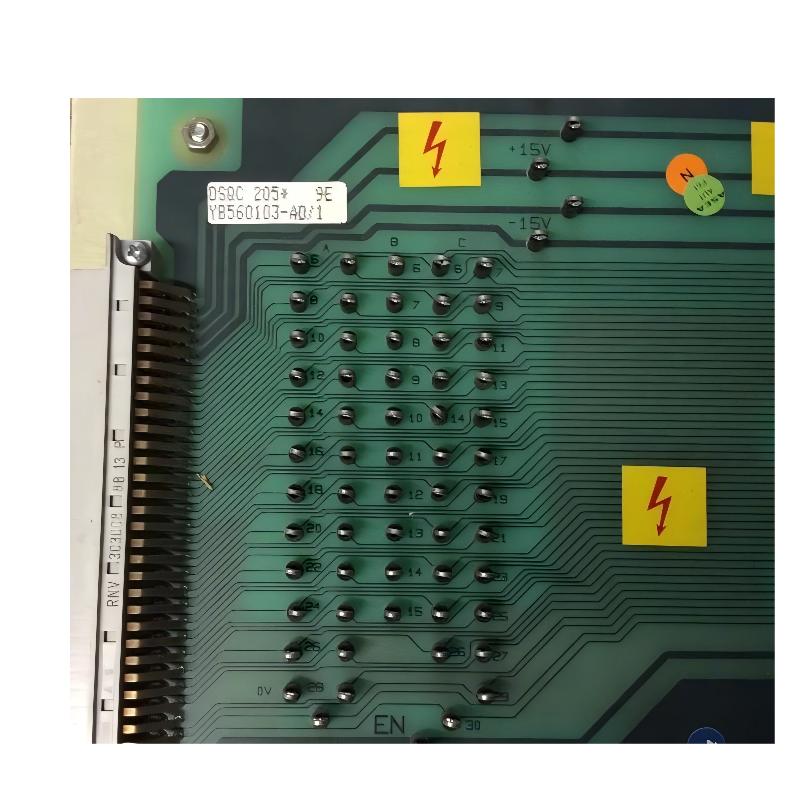

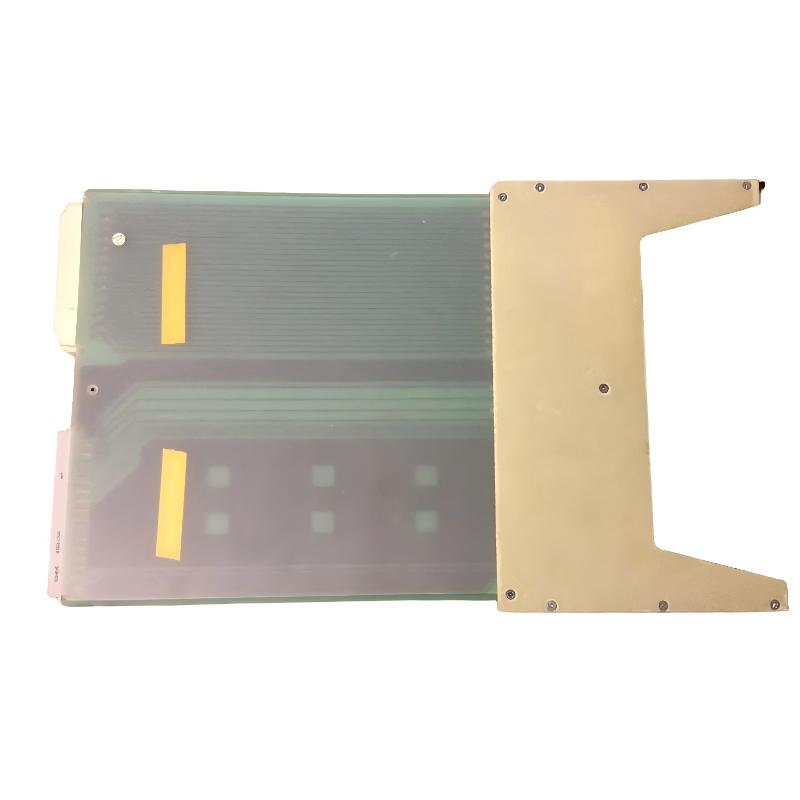

ABB DSQC 205 YB560103-AD/1 Expansion Board

Brand:ABB PLC
Item No.:DSQC 205
Product Origin:ABB
Product Dimensions:150 x 65 x 40 mm
Product Weight:0.7 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact


Product Overview

The ABB DSQC 205 YB560103-AD/1 Expansion Board is a compact, high-reliability module that extends the functionality of ABB robotic controllers. By adding extra I/O channels and interface options, it enables system scalability, integration of additional peripherals, and support for complex automation tasks.

Its robust design ensures reliable operation in harsh industrial environments, while its compact dimensions allow for efficient use of control cabinet space. The DSQC 205 is an essential component for enhancing controller capability without replacing existing infrastructure, supporting both new installations and system upgrades.

Technical Specifications

ParameterDetails
ManufacturerABB
Model NumberDSQC 205 / YB560103-AD/1
Module TypeExpansion Board
Primary FunctionI/O Expansion & Signal Interface
System CompatibilityABB DSQC Series Controllers
Mounting MethodController Rack / Expansion Slot
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 70°C
Dimensions (L×W×H)150 mm × 65 mm × 40 mm
Weight0.7 kg


Application Context

The ABB DSQC 205 Expansion Board is designed to extend the functionality of ABB robotic controllers and drive systems. It provides additional I/O capabilities, interface options, and signal processing support, allowing more complex automation tasks and enhanced connectivity for peripheral devices.

Typical use cases include:

  • Expanding I/O capacity for ABB industrial robots in assembly lines
  • Integrating additional sensors and actuators in material handling systems
  • Robotics applications requiring custom peripheral interface expansion
  • Automotive and electronics manufacturing cells with high I/O demand
  • Upgrading existing ABB control systems without replacing the main controller
  • Supporting advanced motion sequences requiring additional control signals

By enabling modular expansion, the DSQC 205 ensures controllers can scale with evolving automation requirements while maintaining real-time performance.


Key Advantages

  • Seamless System Integration
    Designed for full compatibility with ABB DSQC controllers and drive units.
  • Compact Form Factor
    Small footprint allows installation in confined control cabinets and robot controllers.
  • Enhanced I/O Capacity
    Provides additional input/output channels for sensors, actuators, and peripheral devices.
  • Robust Industrial Performance
    Maintains reliable operation in electrically noisy and vibration-prone environments.
  • Flexible Expansion Option
    Supports scalable system upgrades without major infrastructure changes.


Technical FAQs

  1. What is the primary function of the DSQC 205?
    It acts as an expansion board to increase I/O and interface capabilities of ABB controllers.
  2. Which systems is it compatible with?
    Designed for use with ABB DSQC series robotic controllers.
  3. Can it handle both digital and analog signals?
    Yes, depending on configuration, it supports a range of signal types.
  4. Is it suitable for real-time control applications?
    Yes, it supports deterministic I/O operations in robotics systems.
  5. Does it require additional configuration or programming?
    Configuration is typically required through ABB engineering software to map I/O channels.
  6. How is it installed?
    Mounted directly on the controller rack or via the designated expansion slot.
  7. Does it support system redundancy?
    It can be integrated into redundant controller setups depending on system architecture.
  8. Can multiple expansion boards be used together?
    Yes, multiple DSQC 205 boards can be stacked to increase I/O capacity.
  9. Is it reliable under industrial conditions?
    Yes, designed to tolerate vibration, electrical interference, and temperature variations.
  10. Which industries most commonly use this board?
    Automotive, electronics manufacturing, material handling, and industrial robotics sectors.
