Overview

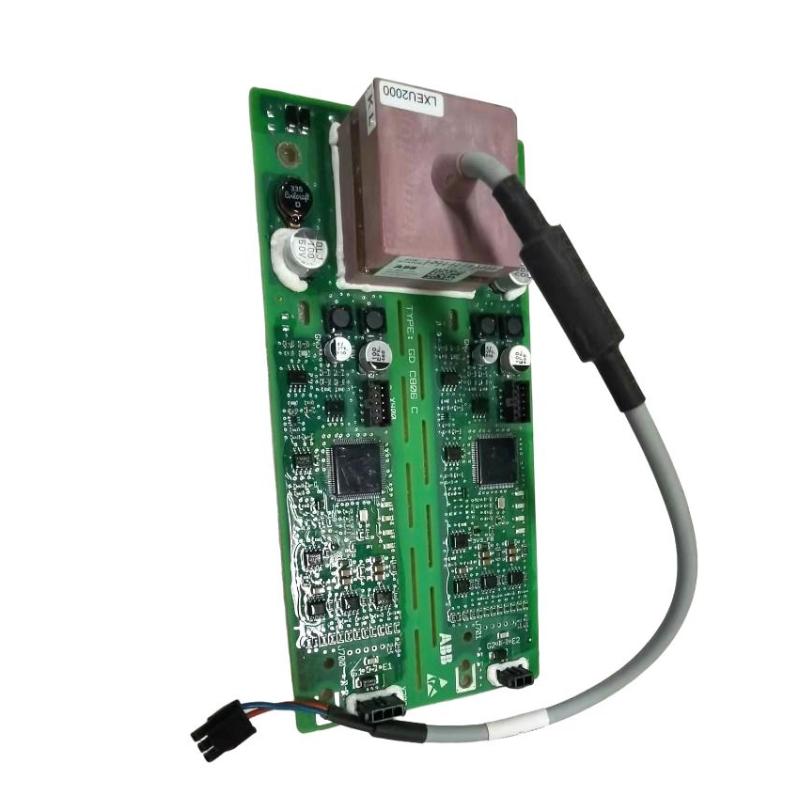

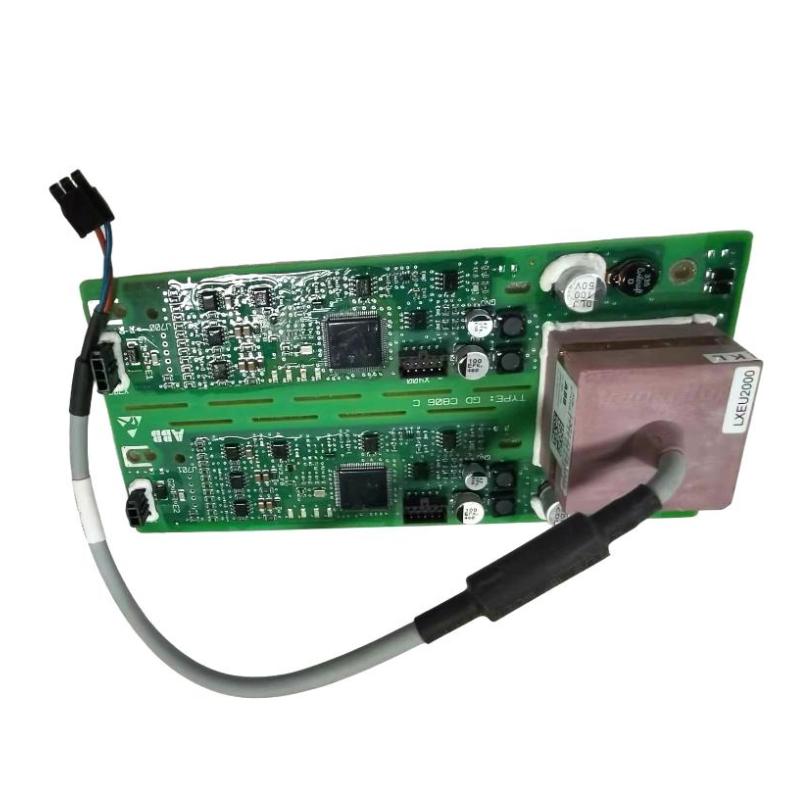

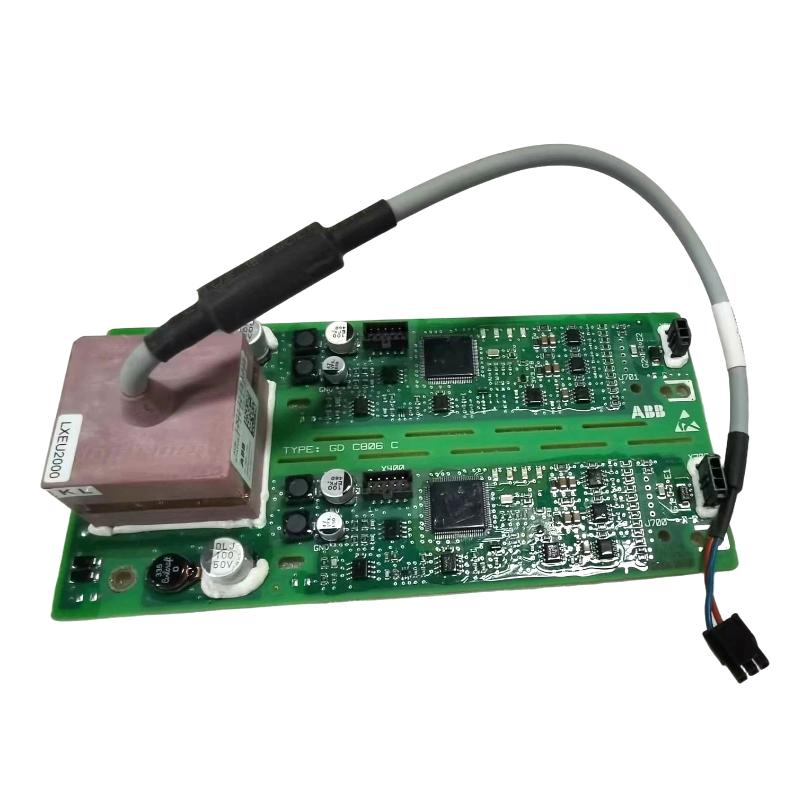

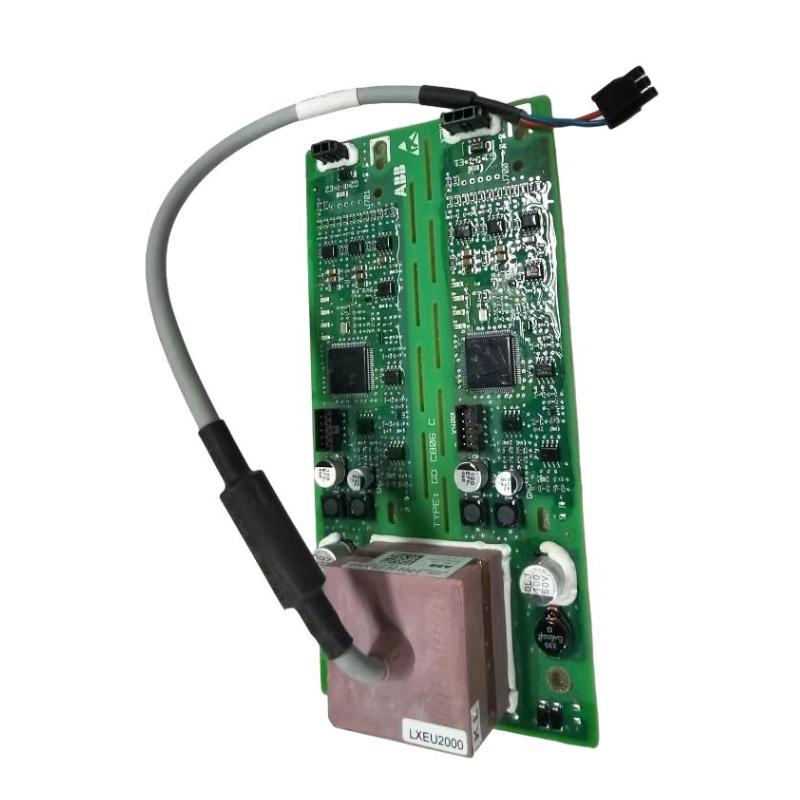

The ABB GD C806 C103 3BHE041294R0103 Control Board Module is a precision‑engineered control electronics board designed for power drive and automation systems. As a core control component, it interprets and processes input signals, coordinates logic functions, and manages communication between system subcomponents. Built to withstand industrial conditions, this module balances robust performance with flexibility, making it suitable for both high‑duty automation tasks and legacy system support.
Technical Specifications
| Specification | Details |
|---|
| Model Number | GD C806 C103 / 3BHE041294R0103 |
| Manufacturer | ABB |
| Module Type | Control Board Module |
| System Compatibility | ABB industrial drives and automation equipment |
| Function | Logic control and signal processing |
| Input Voltage | 24 VDC (typical) |
| Operating Voltage | Up to 230 VAC/DC (system dependent) |
| Communication | Industrial protocols (e.g., CANopen, drive bus) |
| LED Indicators | Status and diagnostic indication |
| Mounting | DIN‑rail or panel mount interface |
| Operating Temperature | -20°C to +70°C |
| Dimensions (H × W × D) | Approx. 110 mm × 75 mm × 30 mm |
| Weight | Approx. 0.24 kg |
| Protection | Industrial‑grade PCB housing |
Industrial Applications
This control board module is commonly deployed in environments where stable logic control and system coordination are essential:
-
Variable Frequency Drives (VFD) and motor control systems
-
Automation equipment in manufacturing and process plants
-
Power conversion and industrial drives
-
Robotics and motion control interfaces
-
Heavy industry applications requiring robust signal coordination
Its ability to manage both digital logic and communication interfaces makes it versatile across a wide range of automation platforms.
Key Advantages
-
Stable Control Performance: Designed for precise logic operations and reliable communication management
-
Industrial Durability: Built to handle temperature fluctuations, vibration, and electrical noise
-
Seamless Integration: Compatible with ABB systems across drive and control families
-
Compact Footprint: Space‑efficient design allows tighter panel integration
-
Diagnostic Visibility: Integrated LED indicators support service and maintenance
This board adds dependable system intelligence to applications where real‑time reliability and accuracy are critical.
Technical FAQs
1. What is the main function of this module?
It serves as a control and logic interface, managing signals and coordinating communication within industrial drive systems.
2. Which ABB systems use this board?
This module is typically used in ABB industrial drives and automation platforms.
3. What input power is required?
The module uses 24 VDC for logic circuits; overall system power depends on the host equipment.
4. Can it communicate with external networks?
Yes, it supports industrial communication protocols like CANopen and drive‑specific buses.
5. Does it provide diagnostic feedback?
Yes, status LEDs offer insight into module operation and errors.
6. Is the board suitable for harsh environments?
Yes, it operates across a wide industrial temperature range and withstands noise and vibration.
7. How is it mounted?
It is designed for slot, DIN‑rail, or panel integration within a drive or control cabinet.
8. What industries commonly use it?
Manufacturing, energy, material handling, and industrial automation sectors.
9. Can it be swapped in the field?
Yes, with proper system shutdown and safety procedures.
10. Is this module still manufactured?
It may be available as a new part or through industrial supply channels based on system needs.
