Overview

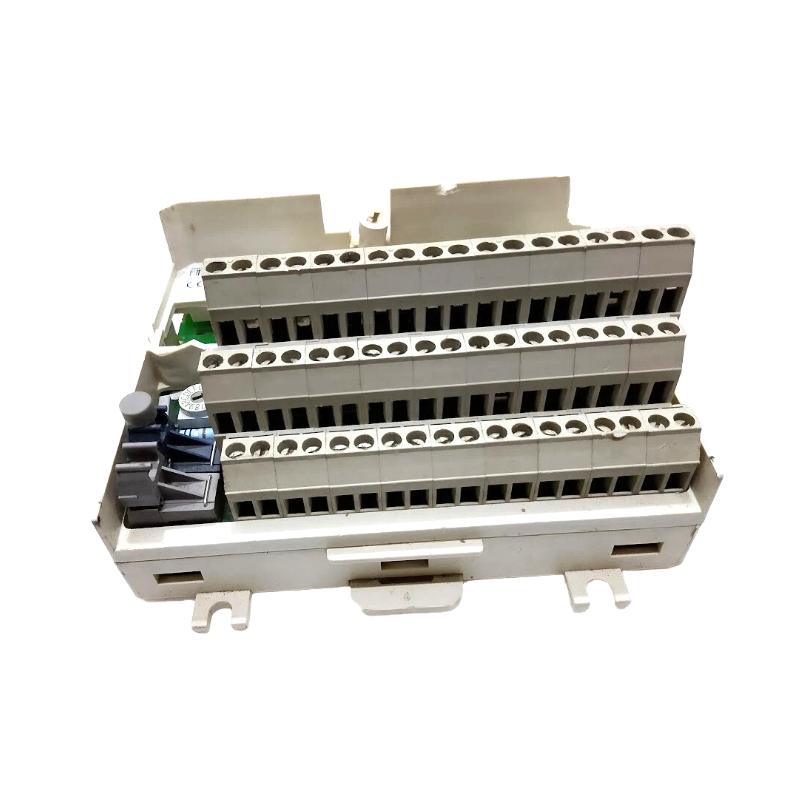

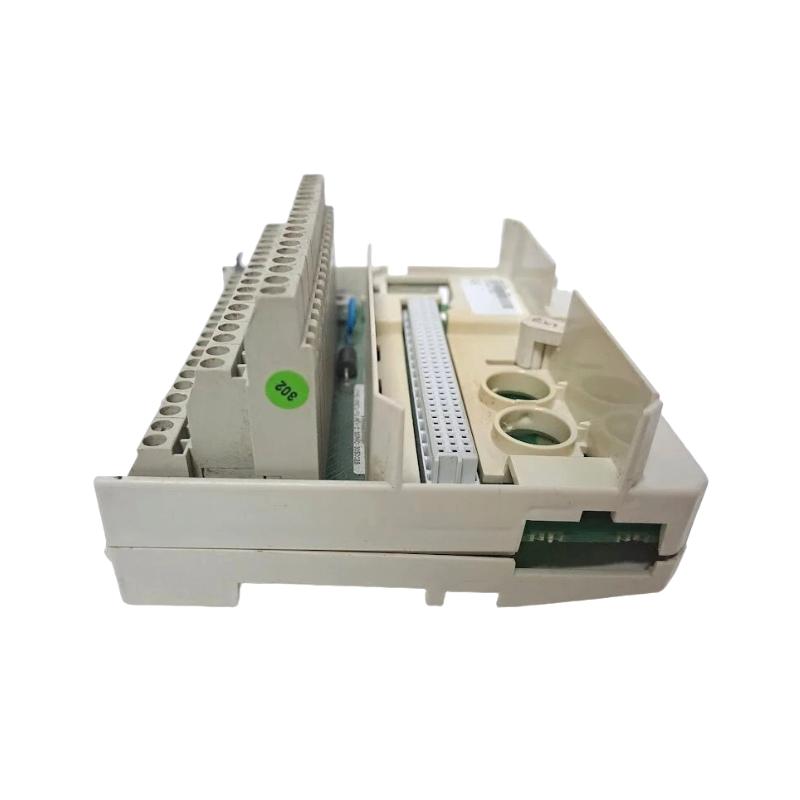

The ABB GRBTU‑01 3BSE013175R1 Module Terminal Unit is an industrial‑grade interface module designed to provide secure and organized signal connectivity between field wiring and control system modules. As a Terminal Unit (TU), it consolidates multiple input/output terminations into a structured, service‑friendly interface, simplifying installation, maintenance, and diagnostics in complex automation systems.
Built to meet ABB’s rigorous quality standards, this module enhances system reliability by ensuring clean signal paths, reduced wiring errors, and greater control panel accessibility—making it a preferred choice in large‑scale industrial environments.
Technical Specifications
| Specification | Detail |
|---|
| Model Number | GRBTU‑01 / 3BSE013175R1 |
| Manufacturer | ABB |
| Module Type | Module Terminal Unit |
| System Compatibility | ABB DCS and PLC systems |
| Channels | Multiple field termination points |
| Connector Type | Screw/plug‑in terminal interface |
| Mounting | Panel or DIN‑rail mountable |
| Operating Temperature | ‑20°C to +70°C |
| Storage Temperature | ‑40°C to +85°C |
| Humidity | 5–95% RH (non‑condensing) |
| Dimensions (H × W × D) | Approx. 150 mm × 100 mm × 40 mm |
| Weight | Approx. 0.45 kg |
| Protective Features | Insulation barriers, labeling zones |
Application Scenarios
The GRBTU‑01 terminal unit is widely used wherever structured field wiring interfaces are needed for industrial control systems:
-
Central control cabinets in manufacturing plants
-
Distributed Control Systems (DCS) installations
-
PLC panel wiring interface boards
-
Process industries such as oil & gas, chemical, and power generation
-
Remote I/O and field instrument junction points
By organizing signal terminations, this module helps reduce wiring errors and supports faster system commissioning.
Key Advantages
-
Improved System Organization: Consolidates complex field wiring into manageable terminal blocks
-
Enhanced Maintenance Efficiency: Clear labeling and structure simplify troubleshooting and service tasks
-
Robust Industrial Design: Withstands typical factory environments including temperature fluctuations and vibration
-
Flexible Mounting: Compatible with DIN rails or panel installations
-
Reliable Connectivity: Secure screw or plug‑in terminals ensure minimal signal loss and reduced connection failures
This unit is especially valuable for system integrators and maintenance professionals who require orderly wiring and easy access to signal points.
Technical FAQs
1. What does a Module Terminal Unit do?
It provides a structured termination interface between field wiring and control system modules.
2. Which systems is it compatible with?
It integrates with ABB DCS, PLC, and field I/O assemblies that use standardized terminal interfaces.
3. How many connections does it support?
It serves multiple termination points, with channel counts varying by configuration.
4. What type of terminals does it use?
It typically uses screw or plug‑in style terminals rated for industrial signal wiring.
5. Is it rack‑mountable?
Yes, it can be mounted on DIN rails or within instrument panels.
6. What environments can it operate in?
Designed for industrial environments with operating temperatures from ‑20°C to +70°C.
7. Does it include identification labels?
Yes, clear labeling zones assist in wiring identification and maintenance.
8. Is it suited for field junctions?
Absolutely – it organizes field instrument and device junction wiring effectively.
9. Can it be used in hazardous locations?
Use depends on system and location ratings; consult safety documentation.
10. Is terminal wiring protection provided?
It includes insulation barriers to protect against accidental shorts and signal interference.
