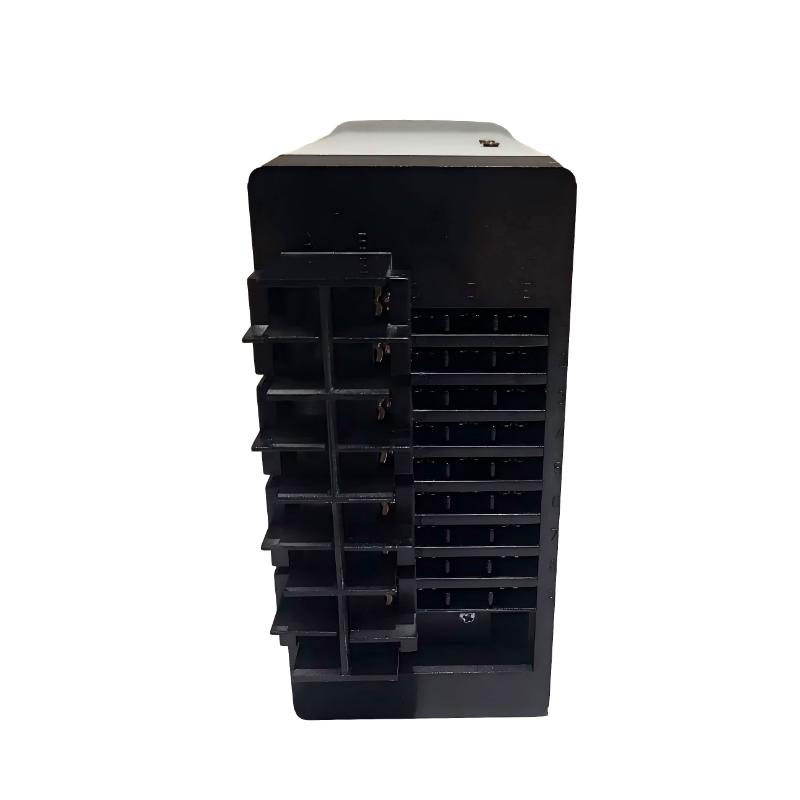

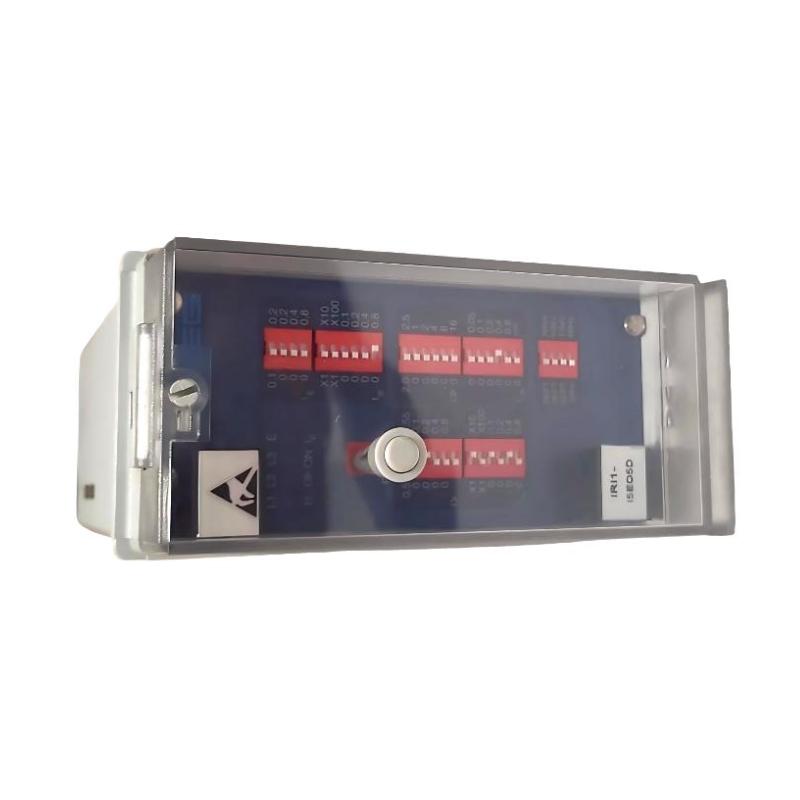

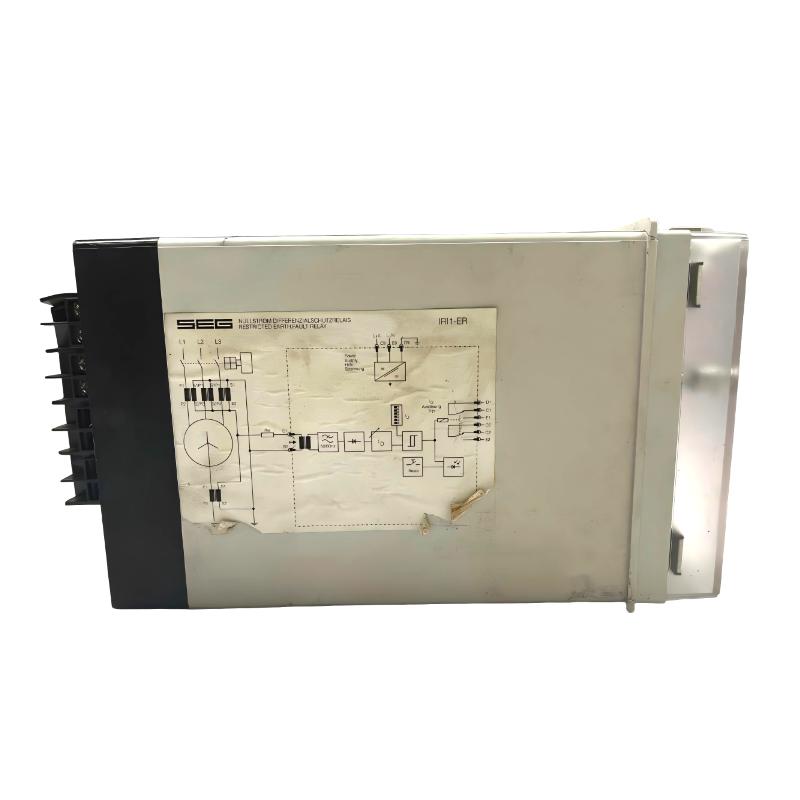

Woodward IRI1-I5E05D Ground Fault Relay

Brand:Woodward
Item No.:IRI1-I5E05D
Product Origin:Woodward
Product Dimensions:260 × 72 × 138 mm
Product Weight:1.5 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact


Introduction

The Woodward IRI1-I5E05D Ground Fault Relay is a robust device engineered for reliable detection and protection against ground faults in electrical distribution systems. It continuously monitors current imbalances and provides rapid fault response to prevent equipment damage and operational downtime. Compact and industrially rated, the relay integrates seamlessly into control panels and monitoring systems, providing both safety and system reliability. Its diagnostic capabilities and compatibility with supervisory systems make it an essential component for industrial, commercial, and marine electrical protection schemes.

Technical Specifications

SpecificationDetails
ManufacturerWoodward
Model NumberIRI1-I5E05D
Module TypeGround Fault Relay
FunctionDetection and protection against ground faults
System CompatibilityLow- and medium-voltage industrial and commercial systems
InstallationPanel or DIN rail mount
Signal TypeCurrent imbalance detection, fault alarm outputs
Operating Temperature-20°C to 60°C
Storage Temperature-40°C to 85°C
Dimensions260 mm × 72 mm × 138 mm
Weight1.5 kg


Applications

The IRI1-I5E05D ground fault relay is designed for precise detection and protection against ground faults in electrical distribution systems. Typical applications include:

  • Industrial Power Systems: Protects motors, transformers, and distribution panels from ground fault damage.
  • Power Generation Plants: Monitors generator circuits for leakage currents and fault conditions.
  • Commercial Facilities: Safeguards critical building systems, elevators, and HVAC equipment.
  • Renewable Energy Installations: Ensures ground fault detection in solar inverters and wind turbines.
  • Marine and Offshore Platforms: Protects electrical systems in harsh marine environments.
  • Data Centers: Prevents fault propagation that could impact sensitive IT infrastructure.

By continuously monitoring current imbalances and detecting faults early, this relay reduces equipment damage and increases system reliability.


Advantages

  1. Accurate Ground Fault Detection: Quickly identifies leakage currents before damage occurs.
  2. Real-Time Protection: Monitors systems continuously to prevent prolonged fault exposure.
  3. Industrial-Grade Reliability: Designed for vibration, temperature fluctuations, and electrical noise.
  4. Compact Form Factor: Facilitates integration into control panels without consuming excessive space.
  5. Flexible Mounting: Can be installed in various orientations and panel layouts.
  6. Diagnostic Capabilities: Provides clear status indicators and fault logging for maintenance.
  7. Enhanced Safety: Reduces risk of equipment damage and personnel hazards.
  8. Wide Voltage and Current Compatibility: Supports a broad range of industrial electrical systems.
  9. Integration with Control Systems: Interfaces easily with SCADA or monitoring equipment.
  10. Reduced Downtime: Early fault detection allows prompt corrective action, minimizing production interruptions.


Technical FAQs

  1. What is the primary function of the IRI1-I5E05D?
    • It detects and protects against ground faults in electrical distribution systems.
  2. How quickly does it respond to a fault?
    • The relay is designed for rapid detection, typically in milliseconds, to prevent equipment damage.
  3. Is it suitable for high-voltage applications?
    • Yes, it supports a wide voltage range compatible with industrial distribution systems.
  4. Can it monitor multiple circuits?
    • Yes, it can be configured to monitor multiple feeders depending on the system design.
  5. Does it provide diagnostic information?
    • Yes, fault events and status indicators allow easy troubleshooting and maintenance.
  6. Is it reliable in harsh environments?
    • Yes, engineered for temperature extremes, vibration, and electrical noise resilience.
  7. Can it interface with SCADA systems?
    • Yes, it provides outputs compatible with SCADA and other supervisory monitoring platforms.
  8. Does it require calibration?
    • Factory calibration is provided, but adjustments are possible for specific system sensitivity needs.
  9. What types of electrical systems is it suitable for?
    • Low- and medium-voltage industrial and commercial power systems, including AC generators.
  10. How does it improve operational safety?
  • By detecting ground faults early, it prevents equipment damage, reduces fire risk, and protects personnel.
