Advanced Monitoring Solution for Critical Rotating Machinery

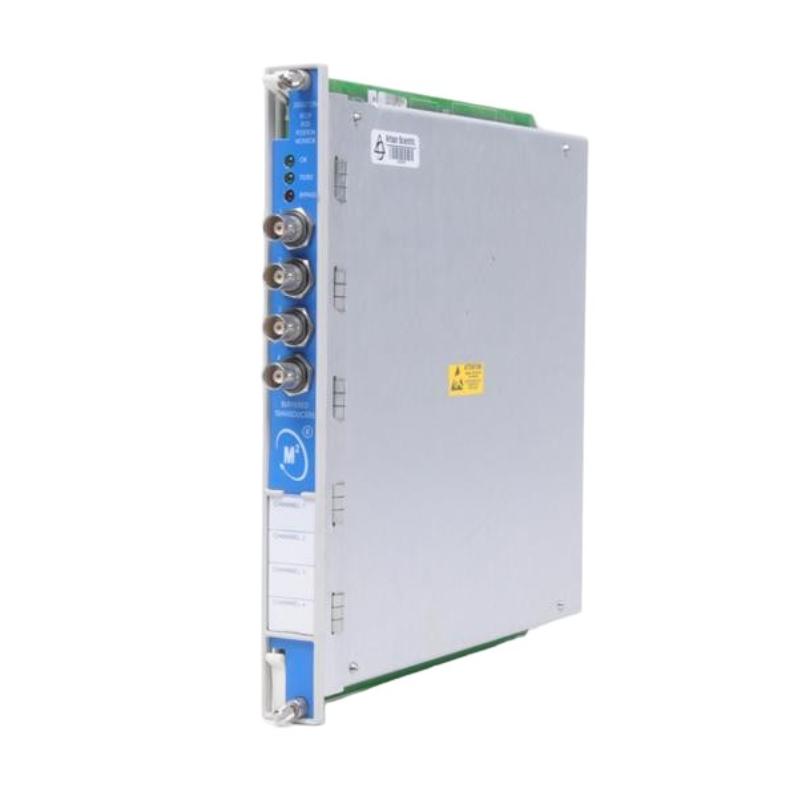

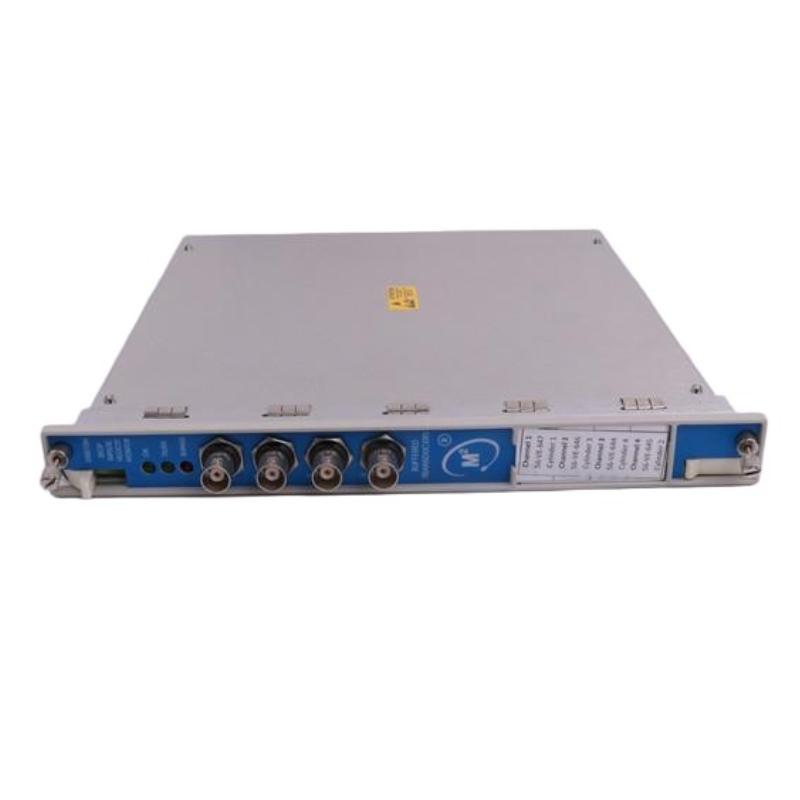

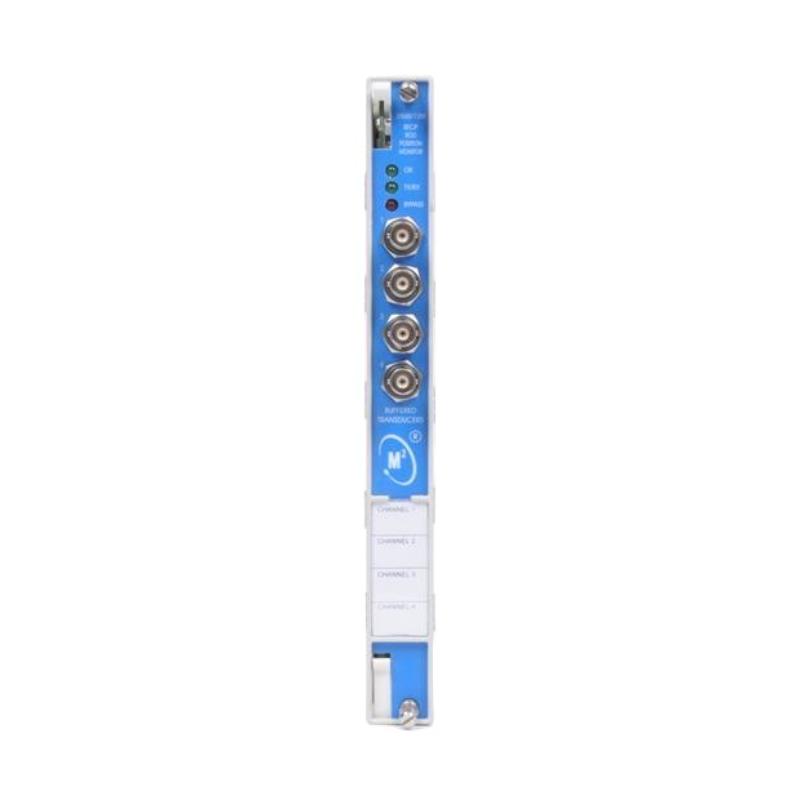

The Bently Nevada 3500/40-01-02 3500/40M Proximitor Monitor is an intelligent four-channel monitoring module designed to deliver continuous protection for high-value rotating equipment. As an integral component of the 3500 Machinery Protection System, it processes signals from Bently Nevada proximity transducers to provide precise vibration and shaft position measurements while continuously evaluating operating conditions against configurable alarm thresholds.
Engineered for demanding industrial environments, the 3500/40M combines reliable performance, flexible configuration, and high-speed signal processing to support predictive maintenance strategies and maximize equipment availability. Whether installed in power plants, refineries, or manufacturing facilities, this monitor helps reduce unexpected downtime and extend the service life of critical assets.
Product Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Model | 3500/40-01-02 |
| Series | 3500 Machinery Protection System |
| Module Type | 3500/40M Proximitor Monitor |
| Monitoring Channels | 4 Independent Channels |
| Input Type | Proximity Transducer Signals |
| Measurement Functions | Radial Vibration, Thrust Position, Differential Expansion, Eccentricity, REBAM |
| I/O Configuration | External Termination I/O (Option 02) |
| Typical Power Consumption | 7.7 W |
| Transducer Supply | -24 VDC |
| Input Impedance | 10 kΩ |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95% Non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50 × 0.96 × 9.52 in) |
| Weight | Approximately 0.91 kg (2.0 lb) |
Designed for Demanding Industrial Applications
The 3500/40-01-02 monitor is suitable for a wide range of machinery protection and condition monitoring applications where continuous vibration analysis is essential.
Typical installations include:
-
Steam turbine monitoring systems
-
Gas turbine protection
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Process compressors
-
Gearboxes
-
Blowers and ventilation systems
-
Oil & gas production facilities
-
Petrochemical plants
-
Power generation stations
-
Heavy manufacturing industries
Key Performance Advantages
Built for long-term reliability, the 3500/40M offers a combination of advanced monitoring capabilities and operational flexibility.
Highlights include:
-
Four-channel architecture for simultaneous machinery monitoring
-
Continuous real-time vibration and shaft position analysis
-
Supports multiple monitoring modes within a single module
-
User-configurable Alert and Danger alarm setpoints
-
High-speed signal conditioning for accurate diagnostics
-
Compatible with Bently Nevada proximity transducer systems
-
Seamless integration with the 3500 Rack Configuration Software
-
Front-panel buffered outputs simplify maintenance and troubleshooting
-
Industrial-grade design for continuous 24/7 operation
-
Helps improve equipment reliability while reducing maintenance costs and unplanned shutdowns.
Technical FAQs
1. What is the primary function of the 3500/40-01-02 module?
It continuously monitors proximity transducer signals to provide machinery protection through vibration and shaft position measurements.
2. How many channels does this monitor support?
The module provides four monitoring channels that are configured in channel pairs.
3. What measurements can the monitor perform?
It supports radial vibration, thrust position, differential expansion, eccentricity, and REBAM measurements.
4. What does the "-02" ordering option indicate?
The "-02" configuration specifies the External Termination I/O option, allowing field wiring through external termination blocks.
5. Which transducers are compatible with this monitor?
It is designed for use with compatible Bently Nevada proximity transducer systems, including 3300 XL series sensors.
6. Does the module support programmable alarms?
Yes. Alert and Danger alarm thresholds can be individually configured using the 3500 Rack Configuration Software.
7. Can the monitor operate continuously in industrial environments?
Yes. It is engineered for continuous machinery protection in mission-critical industrial applications.
8. What are the physical dimensions and weight?
The module measures 241.3 × 24.4 × 241.8 mm and weighs approximately 0.91 kg (2.0 lb).
9. Which industries commonly deploy the 3500/40M?
It is widely used in power generation, petrochemical processing, oil & gas, mining, marine, pulp and paper, and other heavy industries.
10. Why is the 3500/40M a preferred machinery protection module?
Its dependable performance, flexible configuration, advanced diagnostics, and seamless integration within the 3500 platform make it an industry-proven solution for protecting critical rotating equipment.
