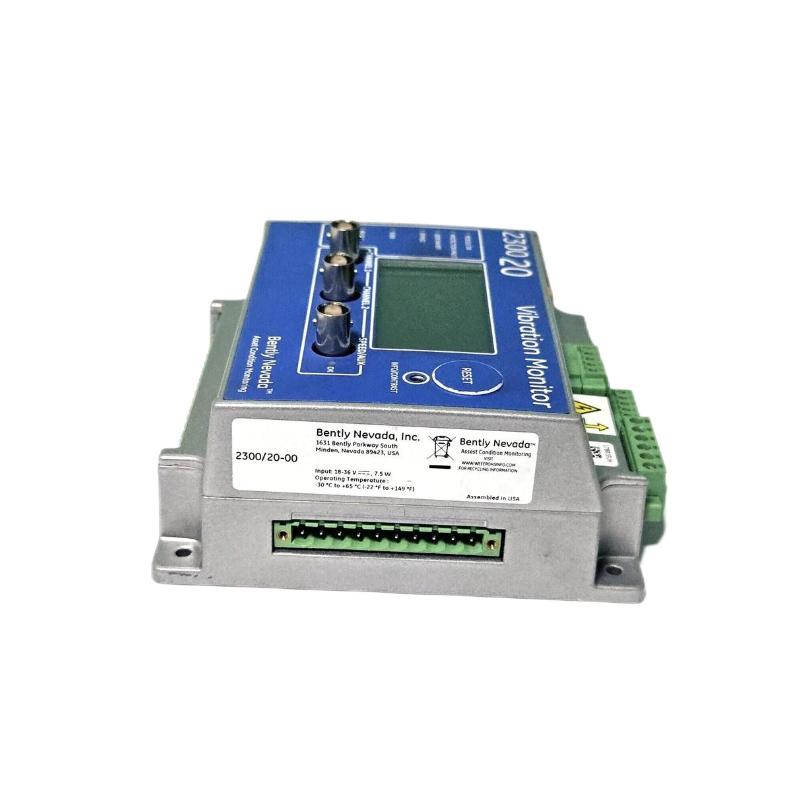

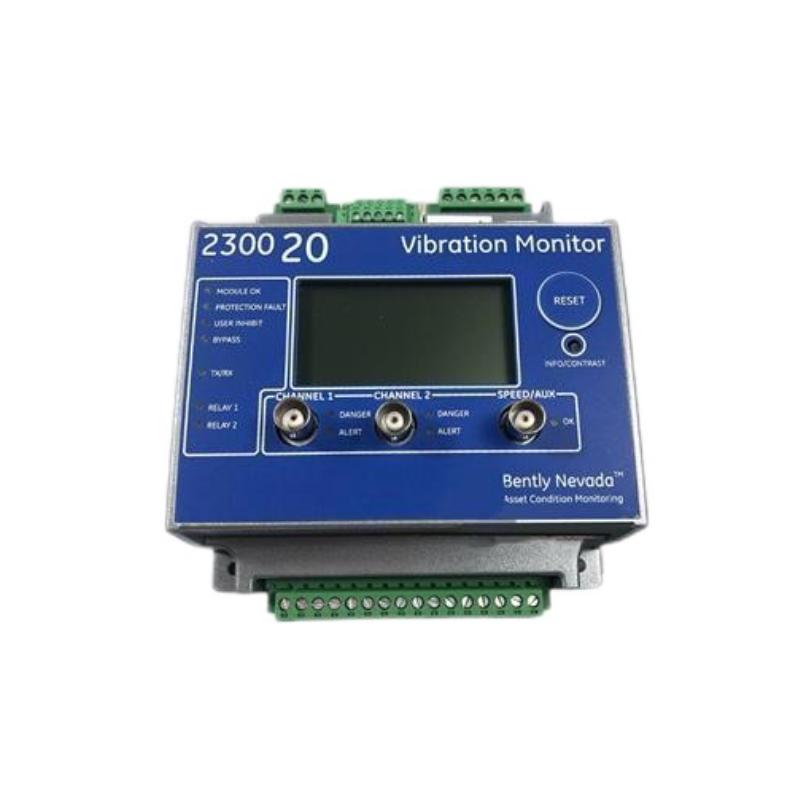

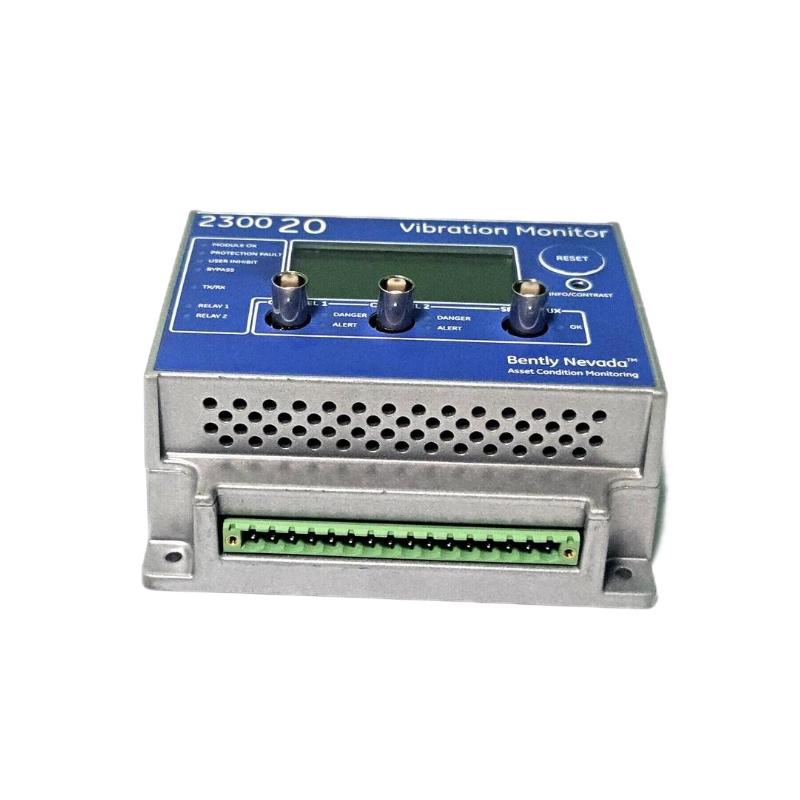

Smart Vibration Protection for Essential Rotating Equipment
The Bently Nevada 2300/20-20 Vibration Monitor is a compact, standalone machinery protection device designed to provide continuous vibration monitoring for medium- and low-criticality rotating equipment. As part of the trusted 2300 Series, this monitor combines advanced signal processing, flexible configuration, and real-time alarm capabilities to help operators detect developing machine faults before they result in costly downtime.
The 2300/20 supports two dynamic vibration input channels and one dedicated speed input, allowing simultaneous monitoring of acceleration, velocity, or proximity measurements. Its integrated 4–20 mA analog outputs, relay contacts, buffered outputs, and Ethernet communication make it an ideal solution for industrial facilities seeking reliable machinery protection without the complexity of a rack-based monitoring system.
Product Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Model | 2300/20-20 |
| Product Series | 2300 Series |
| Product Type | Vibration Monitor |
| Monitoring Channels | 2 Dynamic Inputs + 1 Speed Input |
| Sensor Compatibility | Accelerometers, Velomitors, Proximitors |
| Analog Outputs | Two Configurable 4–20 mA Outputs |
| Buffered Outputs | Three BNC Buffered Outputs |
| Relay Outputs | Two Programmable Alarm Relays |
| Communication | Ethernet, Modbus/TCP |
| Configuration Software | 2300 Configuration Software |
| Mounting Method | DIN Rail Mount |
| Supply Voltage | 24 VDC Nominal |
| Operating Temperature | -30°C to +65°C |
| Protection Functions | Continuous Vibration Monitoring and Alarm Protection |
| Dimensions (H × W × D) | Approximately 170 × 126 × 85 mm (6.7 × 5.0 × 3.3 in) |
| Weight | Approximately 1.2 kg (2.6 lb) |
Typical Applications
The 2300/20-20 Vibration Monitor is ideal for protecting essential rotating machinery where dependable condition monitoring and cost-effective protection are required.
Common applications include:
-
Electric motors
-
Centrifugal pumps
-
Industrial fans and blowers
-
Cooling tower drives
-
Gearboxes
-
Compressors
-
Water treatment equipment
-
Pulp and paper machinery
-
Mining equipment
-
Cement production systems
-
Oil & gas auxiliary equipment
-
Power generation balance-of-plant machinery
Key Features and Benefits
The 2300/20-20 delivers an excellent combination of performance, flexibility, and ease of installation for modern industrial monitoring systems.
Major advantages include:
-
Continuous online vibration monitoring with fast response times
-
Supports acceleration, velocity, and proximity transducer inputs
-
Dedicated speed channel for time-synchronous measurements
-
Two configurable 4–20 mA outputs for DCS and PLC integration
-
Built-in Ethernet and Modbus/TCP communication
-
Programmable relay outputs for alarm and machine protection
-
Compact DIN rail design simplifies installation
-
Buffered outputs for convenient diagnostics and testing
-
Reliable operation in demanding industrial environments
-
Helps reduce maintenance costs through predictive maintenance and early fault detection.
Technical FAQs
1. What is the primary purpose of the 2300/20-20 Vibration Monitor?
It continuously monitors machine vibration and speed to provide early warning of abnormal operating conditions and protect rotating equipment.
2. How many monitoring channels does the unit provide?
The monitor includes two dynamic vibration input channels and one dedicated speed input channel.
3. Which sensor types are supported?
It supports accelerometers, Velomitor velocity sensors, and Proximitor proximity probe systems.
4. Does the monitor provide analog outputs?
Yes. It features two configurable 4–20 mA outputs for integration with PLC, DCS, or SCADA systems.
5. Can the monitor communicate over Ethernet?
Yes. Ethernet connectivity with Modbus/TCP allows convenient communication with plant control and monitoring systems.
6. Does it include relay outputs?
Yes. Two programmable relay outputs are available for alarm annunciation or protective shutdown functions.
7. Is the monitor suitable for continuous industrial operation?
Yes. It is designed for 24/7 continuous machinery monitoring in demanding industrial environments.
8. What are the physical dimensions and weight?
The monitor measures approximately 170 × 126 × 85 mm and weighs about 1.2 kg, allowing convenient DIN rail installation.
9. Which industries commonly use the 2300/20 Series?
It is widely used in power generation, oil & gas, mining, water treatment, manufacturing, cement, pulp and paper, and general industrial facilities.
10. Why choose the Bently Nevada 2300/20-20?
Its compact design, flexible sensor compatibility, advanced signal processing, integrated communications, and dependable machinery protection make it an excellent solution for protecting essential rotating equipment while reducing maintenance costs and unplanned downtime.
