Compact Machinery Protection with Advanced Monitoring Capabilities

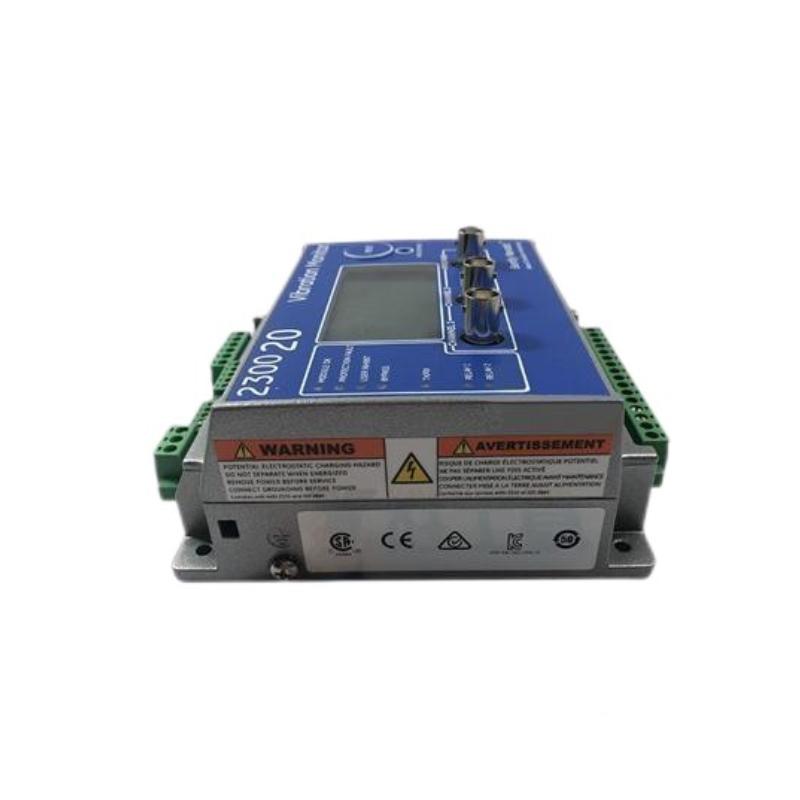

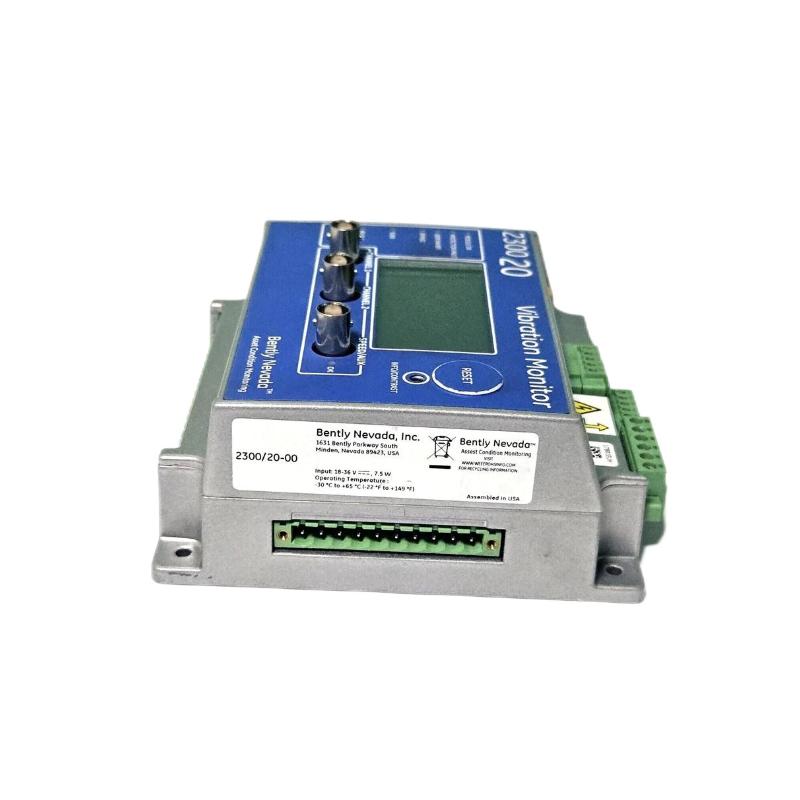

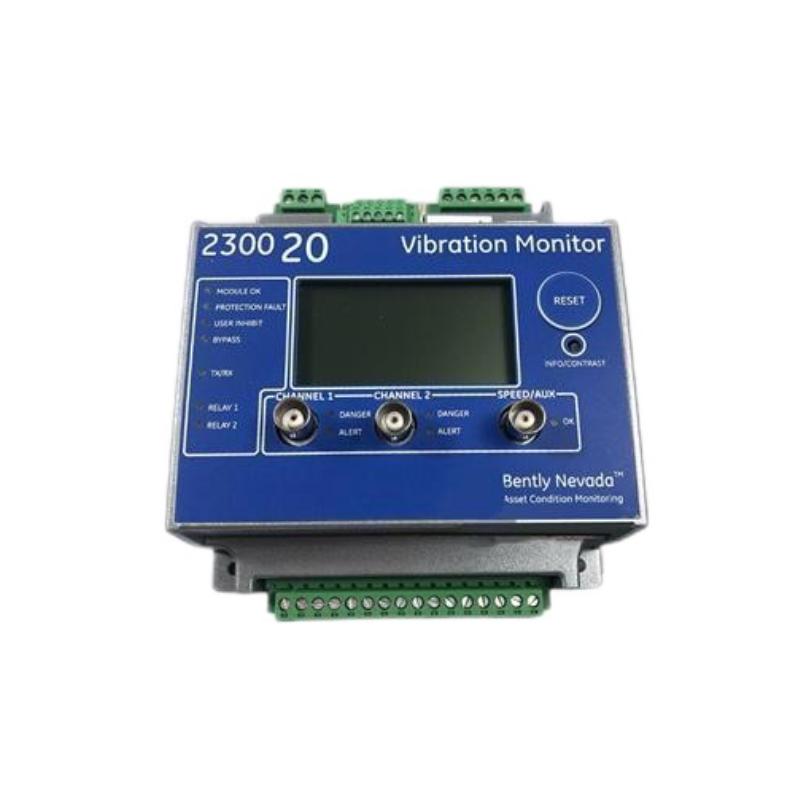

The Bently Nevada 2300/20-00 Vibration Monitor is a compact, DIN rail-mounted machinery protection device designed to provide continuous vibration monitoring for essential rotating equipment. As a member of the proven 2300 Series, it delivers cost-effective condition monitoring for medium- and low-criticality assets while offering advanced signal processing, configurable alarms, and seamless integration with plant control systems.
Designed to support predictive maintenance programs, the 2300/20-00 continuously monitors machine vibration and speed, helping maintenance teams identify abnormal operating conditions before they develop into costly equipment failures. Its flexible sensor compatibility and industrial-grade reliability make it an excellent choice for a wide range of industrial applications.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Model | 2300/20-00 |
| Product Series | 2300 Series |
| Product Type | Vibration Monitor |
| Approval Option | 00 – None |
| Monitoring Channels | 2 Dynamic Inputs + 1 Speed Input |
| Supported Sensors | Accelerometers, Velomitor Sensors, Proximitor Systems |
| Analog Outputs | Two Configurable 4–20 mA Outputs |
| Buffered Outputs | Three Buffered Signal Outputs |
| Relay Outputs | Two Programmable Alarm Relays |
| Communication | Ethernet, Modbus/TCP |
| Configuration Software | 2300 Configuration Software |
| Mounting Method | DIN Rail |
| Power Supply | 24 VDC Nominal |
| Operating Temperature | -30°C to +65°C |
| Dimensions (H × W × D) | Approximately 170 × 126 × 85 mm (6.7 × 5.0 × 3.3 in) |
| Weight | Approximately 1.03 kg |
Recommended Applications
The 2300/20-00 is designed for continuous monitoring of essential machinery where dependable protection and vibration analysis are required.
Typical applications include:
-
Electric motors
-
Centrifugal pumps
-
Industrial compressors
-
Fans and blowers
-
Cooling tower drives
-
Gearboxes
-
Water treatment equipment
-
Pulp and paper machinery
-
Mining equipment
-
Cement production systems
-
Power generation balance-of-plant equipment
-
Oil and gas auxiliary machinery
Product Advantages
The 2300/20-00 combines advanced monitoring functions with a compact footprint, making it a practical solution for modern industrial facilities.
Key benefits include:
-
Continuous online vibration monitoring for improved equipment reliability
-
Supports acceleration, velocity, and proximity transducer inputs
-
Dedicated speed input enables time-synchronous measurements
-
Two configurable 4–20 mA outputs for PLC and DCS integration
-
Ethernet and Modbus/TCP communication for simplified connectivity
-
Two programmable alarm relays for machine protection
-
Compact DIN rail installation reduces panel space requirements
-
Buffered outputs facilitate diagnostics and maintenance
-
Rugged industrial construction for long service life
-
Helps reduce maintenance costs through early fault detection and predictive maintenance.
Technical FAQs
1. What is the primary purpose of the 2300/20-00 Vibration Monitor?
It continuously monitors machine vibration and speed, providing early warning of abnormal operating conditions and helping protect rotating equipment.
2. How many input channels are available?
The monitor provides two dynamic vibration input channels and one dedicated speed input channel.
3. Which sensor types are supported?
It supports accelerometers, Velomitor velocity sensors, and Proximitor proximity transducer systems.
4. Does the monitor provide analog outputs?
Yes. It includes two configurable 4–20 mA outputs for integration with PLC, DCS, and SCADA systems.
5. Does the unit support Ethernet communication?
Yes. Ethernet with Modbus/TCP enables communication with plant monitoring and automation systems.
6. Are programmable alarm relays included?
Yes. Two programmable relay outputs are available for alarms or protective shutdown functions.
7. Is the 2300/20-00 suitable for continuous industrial operation?
Yes. It is designed for continuous 24/7 monitoring of essential machinery in demanding industrial environments.
8. What are the dimensions and weight?
The monitor measures approximately 170 × 126 × 85 mm and weighs approximately 1.03 kg, making it easy to install in standard control panels.
9. Which industries commonly use this monitor?
It is widely used in oil and gas, power generation, manufacturing, mining, water treatment, cement, and pulp and paper industries.
10. Why choose the Bently Nevada 2300/20-00?
The 2300/20-00 combines compact installation, flexible sensor compatibility, advanced vibration monitoring, and dependable industrial performance, making it an efficient solution for protecting essential rotating machinery while reducing unexpected downtime.
