Flexible Vibration Monitoring for Reliable Machine Protection

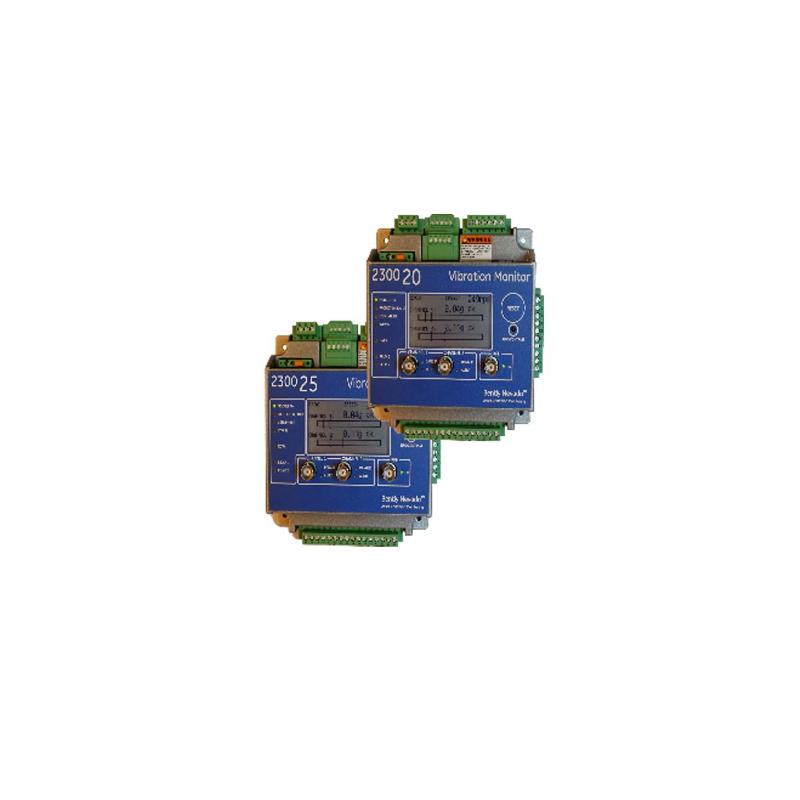

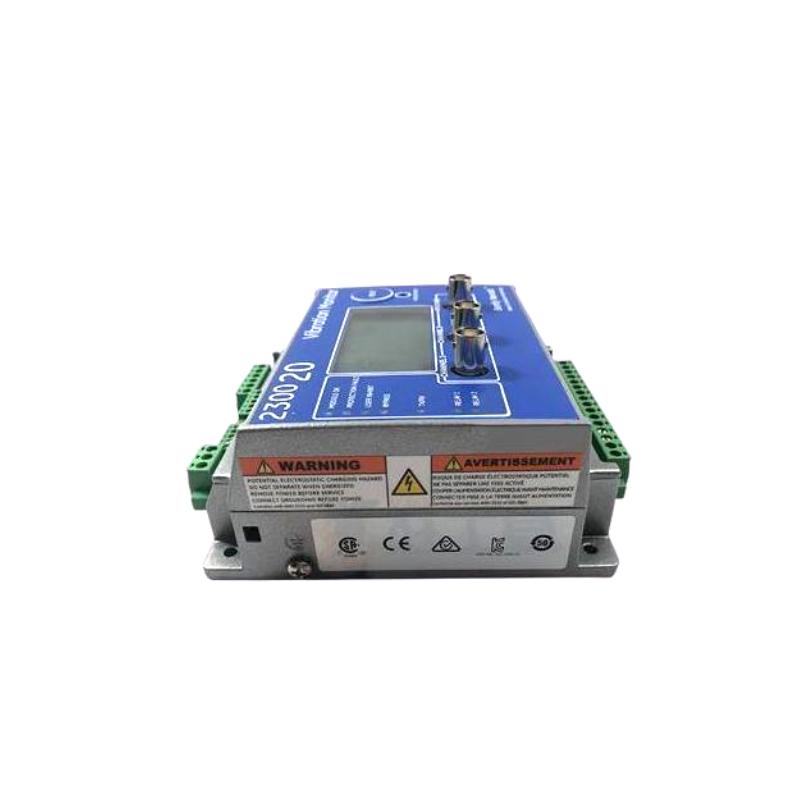

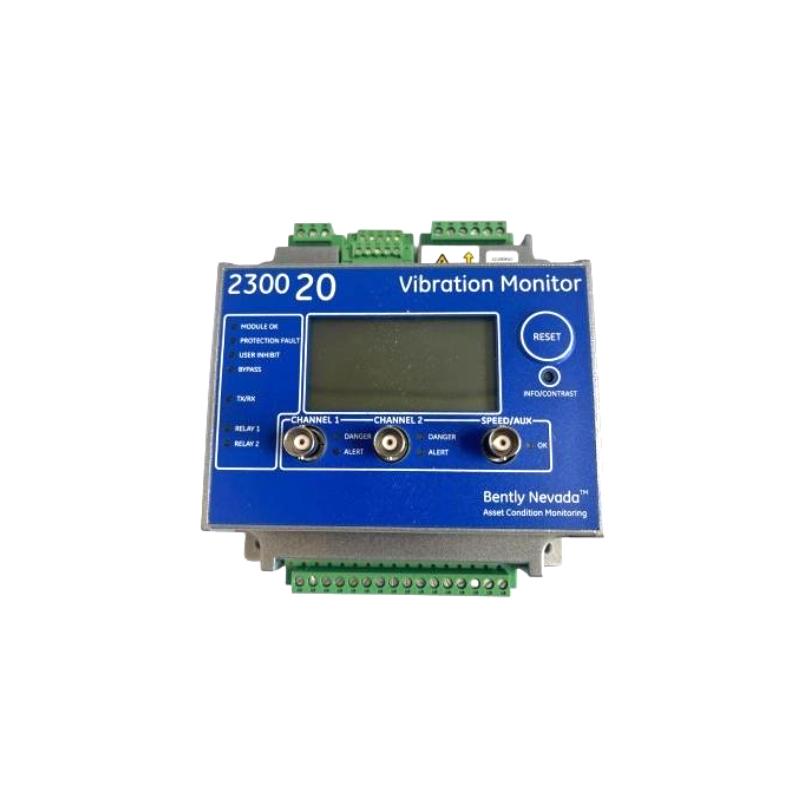

The Bently Nevada 2300/20-RU Vibration Monitor is a compact, standalone machinery monitoring device designed to provide continuous vibration protection for essential rotating equipment. As a member of the proven 2300 Series, it combines advanced signal processing, configurable alarm functions, and flexible communication capabilities to help maintenance teams detect developing machine faults before they result in unexpected downtime.
The 2300/20-RU configuration is commonly supplied as a rack unit (RU) version for panel or enclosure integration while maintaining the same monitoring capabilities as the standard 2300/20 platform. It supports multiple vibration sensor technologies and provides reliable machine condition monitoring for industrial applications where space-saving installation and dependable performance are required.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Model | 2300/20-RU |
| Product Type | Vibration Monitor |
| Product Family | 2300 Series |
| Monitoring Channels | 2 Dynamic Inputs + 1 Speed Input |
| Supported Sensors | Accelerometers, Velomitor Sensors, Proximitor Systems |
| Measurement Types | Acceleration, Velocity, Shaft Vibration, Speed |
| Analog Outputs | Two Configurable 4–20 mA Outputs |
| Buffered Outputs | Three Buffered Signal Outputs |
| Relay Outputs | Two Programmable Protection Relays |
| Communication | Ethernet, Modbus/TCP |
| Configuration Software | Bently Nevada Monitor Configuration (BNMC) |
| Power Supply | 24 VDC Nominal |
| Mounting | Rack Unit / Panel Integration |
| Operating Temperature | -30°C to +65°C |
| Dimensions (H × W × D) | Approximately 127 × 127 × 76 mm (5 × 5 × 3 in) |
| Weight | Approximately 1.03 kg (2.27 lb) |
Industrial Applications
The 2300/20-RU is engineered to provide continuous condition monitoring for a wide variety of rotating assets operating in demanding industrial environments.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Electric motors
-
Industrial pumps
-
Fans and blowers
-
Gearboxes
-
Cooling tower drive systems
-
Water treatment equipment
-
Oil & gas processing facilities
-
Mining operations
-
Power generation plants
-
General manufacturing machinery
Key Advantages
The 2300/20-RU offers a balance of advanced monitoring functionality and simple installation, making it an ideal solution for distributed machinery protection.
Major benefits include:
-
Continuous online vibration monitoring with high measurement accuracy
-
Supports acceleration, velocity, and proximity transducer inputs
-
Dedicated speed channel for synchronized vibration analysis
-
Two programmable 4–20 mA outputs for PLC and DCS integration
-
Ethernet and Modbus/TCP communication for seamless connectivity
-
Configurable alarm relays for equipment protection
-
Compact design minimizes installation space
-
Buffered outputs simplify diagnostics and maintenance
-
Rugged industrial construction for long service life
-
Supports predictive maintenance strategies that improve equipment availability and reduce maintenance costs.
Technical FAQs
1. What is the primary function of the 2300/20-RU?
It continuously monitors vibration and speed signals to detect abnormal machine conditions and protect rotating equipment.
2. How many monitoring channels are included?
The monitor provides two dynamic vibration input channels and one dedicated speed input channel.
3. Which sensor types are supported?
It supports accelerometers, Velomitor velocity sensors, and Proximitor proximity probe systems.
4. Does the monitor provide analog outputs?
Yes. Two configurable 4–20 mA outputs are available for integration with PLC, DCS, and SCADA systems.
5. Is Ethernet communication available?
Yes. The monitor supports Ethernet with Modbus/TCP, allowing convenient communication with plant automation systems.
6. Are relay outputs included?
Yes. Two programmable relay outputs are provided for alarm indication or protective shutdown functions.
7. Can the unit operate continuously?
Yes. It is designed for 24/7 continuous operation in demanding industrial environments.
8. What are the physical dimensions and weight?
The monitor measures approximately 127 × 127 × 76 mm and weighs about 1.03 kg, making it suitable for compact control cabinet installations.
9. Which industries commonly use the 2300/20-RU?
It is widely deployed in oil & gas, power generation, mining, water treatment, manufacturing, pulp & paper, and cement industries.
10. Why choose the 2300/20-RU?
Its compact design, advanced diagnostics, flexible communication interfaces, and dependable vibration monitoring capabilities make it an excellent choice for protecting essential rotating machinery while supporting predictive maintenance initiatives.
