Compact and Reliable Machinery Protection for Essential Assets

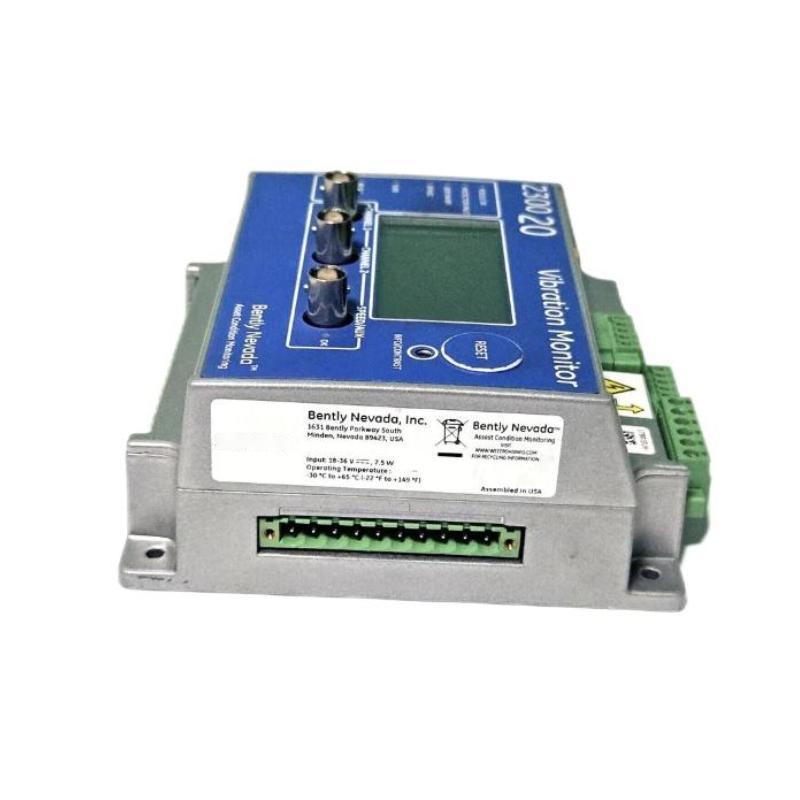

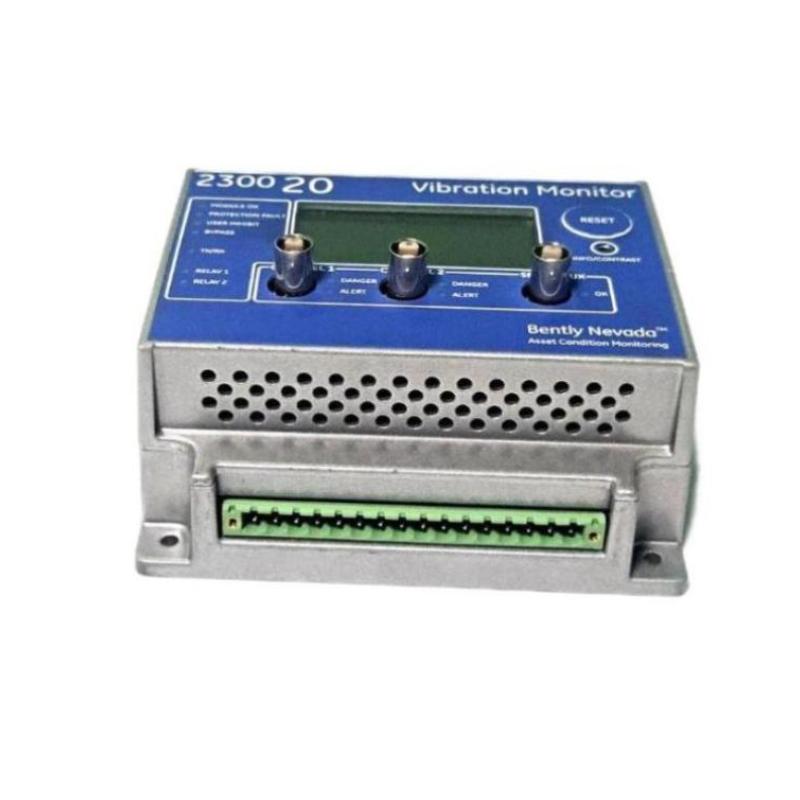

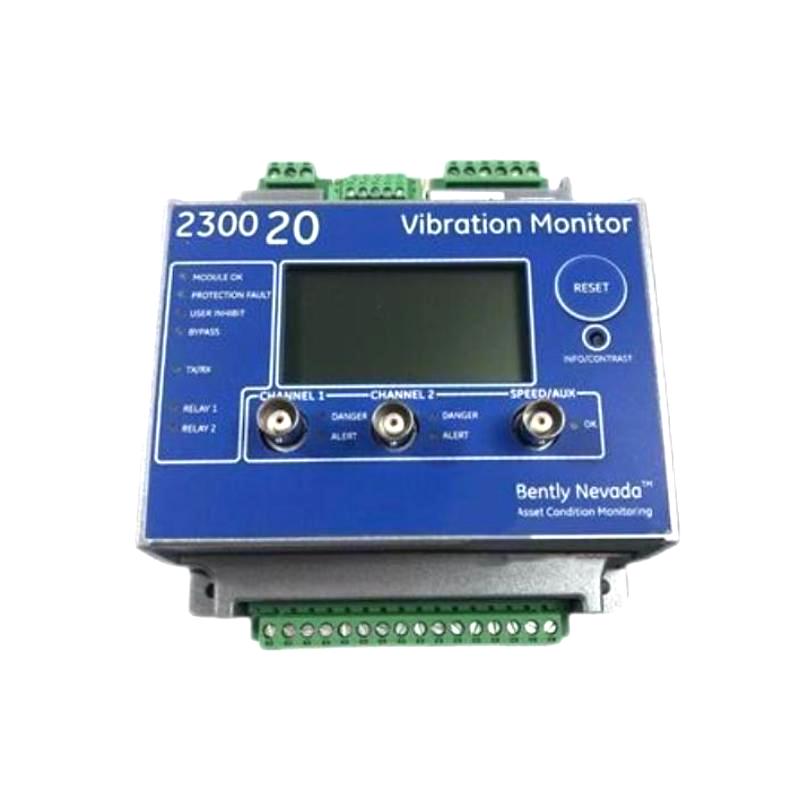

The Bently Nevada 2300/20-00-00 Vibration Monitor is a compact, DIN rail-mounted machinery monitoring solution engineered to provide continuous vibration protection for medium- and low-criticality rotating equipment. As part of the proven 2300 Series, this monitor delivers accurate vibration analysis, configurable alarms, and real-time machine condition monitoring while maintaining a simple and cost-effective installation.
Designed for predictive maintenance applications, the 2300/20-00-00 supports multiple vibration sensor technologies and provides continuous protection for pumps, motors, fans, compressors, and other rotating machinery. Its combination of flexible configuration, Ethernet communication, and industrial-grade reliability makes it an excellent choice for modern automation and condition monitoring systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Model | 2300/20-00-00 |
| Product Series | 2300 Series |
| Product Type | Vibration Monitor |
| Approval Option | 00 – None |
| Monitoring Channels | 2 Dynamic Inputs + 1 Speed Input |
| Supported Sensors | Accelerometers, Velomitor Sensors, Proximitor Systems |
| Dynamic Measurement | Acceleration, Velocity, Proximity |
| Analog Outputs | Two Configurable 4–20 mA Outputs |
| Buffered Outputs | Three Buffered Signal Outputs |
| Relay Outputs | Two Programmable Alarm Relays |
| Communication | Ethernet, Modbus/TCP |
| Configuration Software | 2300 Configuration Software |
| Mounting Method | DIN Rail Mount |
| Power Supply | 24 VDC Nominal |
| Operating Temperature | -30°C to +65°C |
| Dimensions (W × D × H) | 127 × 127 × 76.2 mm (5.0 × 5.0 × 3.0 in) |
| Weight | Approximately 1.03 kg (2.27 lb) |
Typical Applications
The 2300/20-00-00 is designed to protect essential machinery operating in continuous industrial environments where reliable vibration monitoring is critical.
Typical applications include:
-
Electric motors
-
Centrifugal pumps
-
Industrial compressors
-
Fans and blowers
-
Cooling tower drive systems
-
Gearboxes
-
Water treatment facilities
-
Power generation auxiliary equipment
-
Mining and mineral processing plants
-
Cement manufacturing
-
Pulp and paper production
-
Oil and gas processing facilities
Product Advantages
The 2300/20-00-00 combines advanced monitoring technology with a compact footprint, making it a practical solution for a wide variety of industrial installations.
Key benefits include:
-
Continuous online vibration monitoring with fast response
-
Supports acceleration, velocity, and proximity transducers
-
Dedicated speed input for time-synchronous measurements
-
Two configurable 4–20 mA outputs for PLC and DCS integration
-
Ethernet and Modbus/TCP communication simplify system connectivity
-
Two programmable relay outputs for alarms and machine protection
-
Buffered outputs enable convenient diagnostics and signal verification
-
Compact DIN rail mounting saves valuable cabinet space
-
Rugged industrial construction for dependable long-term operation
-
Supports predictive maintenance programs that reduce downtime and maintenance costs.
Technical FAQs
1. What is the primary function of the 2300/20-00-00?
It continuously monitors machine vibration and speed to detect abnormal operating conditions and protect rotating equipment.
2. How many input channels are available?
The monitor provides two dynamic vibration input channels and one dedicated speed input channel.
3. Which sensor types are compatible?
It supports accelerometers, Velomitor velocity sensors, and Proximitor proximity transducer systems.
4. Does the monitor provide analog outputs?
Yes. It includes two configurable 4–20 mA outputs for integration with PLC, DCS, and SCADA systems.
5. Is Ethernet communication supported?
Yes. The unit supports Ethernet with Modbus/TCP, allowing seamless communication with plant automation and monitoring systems.
6. Does the monitor include relay outputs?
Yes. Two programmable relay outputs are available for alarm annunciation and protective shutdown applications.
7. Can it operate continuously in industrial environments?
Yes. The monitor is designed for continuous 24/7 operation in demanding industrial machinery protection applications.
8. What are the dimensions and weight?
The unit measures 127 × 127 × 76.2 mm and weighs approximately 1.03 kg, allowing convenient DIN rail installation inside standard control cabinets.
9. Which industries commonly use the 2300 Series?
The 2300 Series is widely used in oil & gas, power generation, water treatment, manufacturing, mining, cement, and pulp & paper industries.
10. Why choose the Bently Nevada 2300/20-00-00?
Its compact design, flexible sensor compatibility, advanced diagnostics, and dependable industrial performance make it an ideal solution for protecting essential rotating machinery while improving equipment availability and reducing unplanned maintenance.
