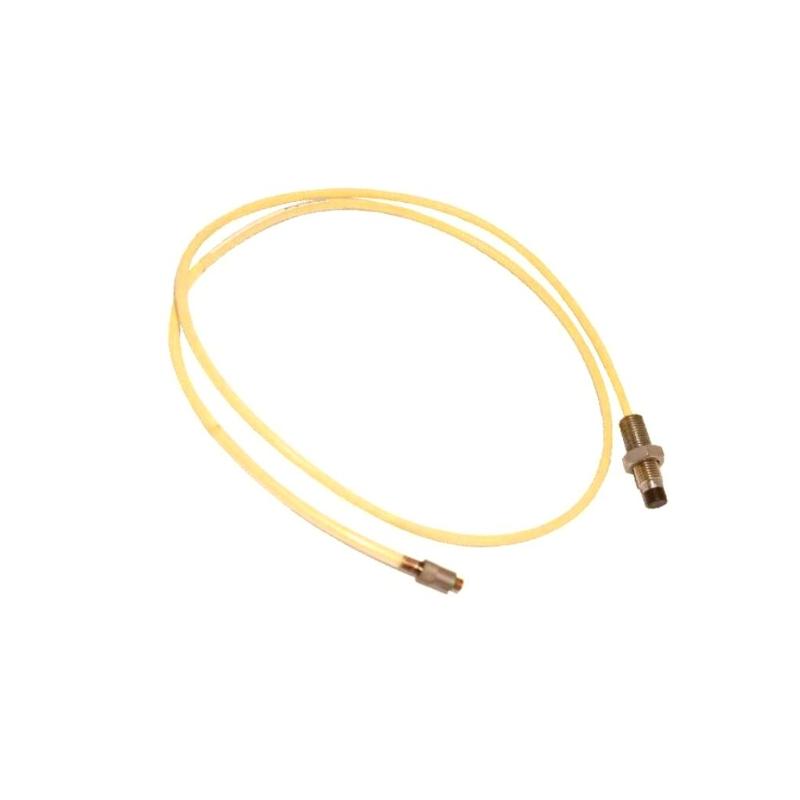

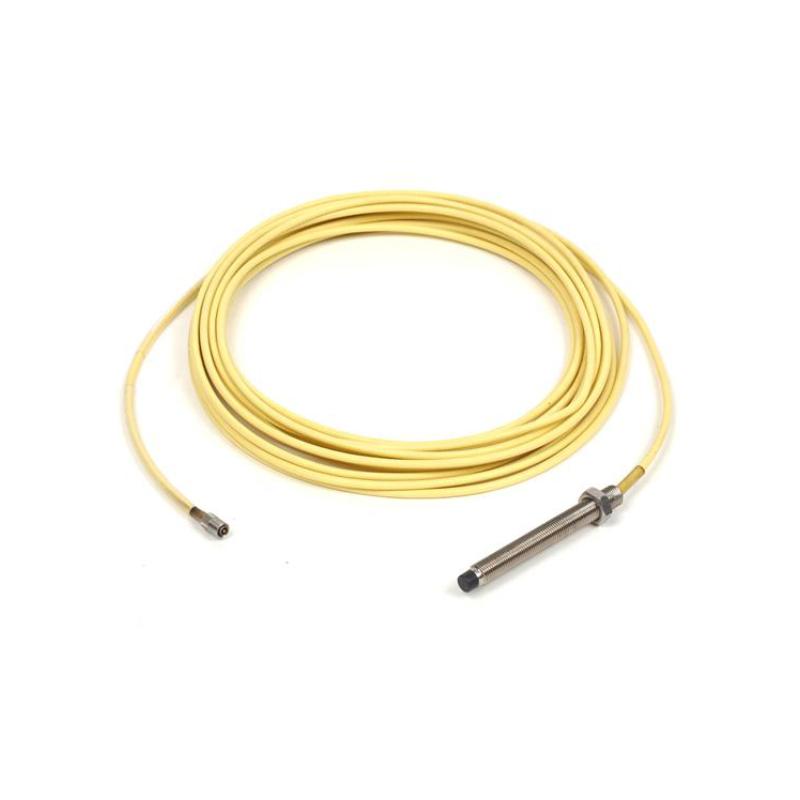

Bently Nevada 21504-000-012-05-02 7200 8mm Standard Mount Probe

Name: Bently Nevada 21504-000-012-05-02 7200 8mm Standard Mount Probe
Brand: Bently Nevada PLC
SKU: 9556
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:21504-000-012-05-02
Product Origin:USA
Product Dimensions:Ø8 mm Probe Tip × 30.5 mm Case Length
Product Weight:0.1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Bently Nevada 21504-000-012-05-02 7200 8 mm Standard Mount Probe is a high-precision non-contact proximity probe developed for the 7200 Series Proximity Transducer System. Designed for accurate shaft displacement and vibration measurement, this probe provides dependable signal stability, excellent repeatability, and long service life in rotating machinery applications.

This configuration features an 8 mm probe diameter, 0.0 in. unthreaded length, 1.2 in. (30.5 mm) overall case length, a 0.5 m (20 in.) integrated cable, and a miniature male coaxial connector. It is designed to operate with compatible 7200 Series extension cables and Proximitor sensors, forming a complete transducer system with a 2.0 mm (80 mil) linear measurement range.

Technical Specifications

Specification	Details
Manufacturer	Bently Nevada
Model Number	21504-000-012-05-02
Product Type	7200 8 mm Standard Mount Probe
Series	7200 Proximity Transducer System
Probe Diameter	8 mm
Mounting Style	Standard Mount
Measurement Principle	Eddy Current, Non-contact
Unthreaded Length	0.0 in.
Overall Case Length	1.2 in. (30.5 mm)
Integrated Cable Length	0.5 m (20 in.)
Connector Type	Miniature Male Coaxial Connector
Thread Size	3/8-24 UNF
Linear Measurement Range	2.0 mm (80 mils)
Frequency Response	0 Hz to 10 kHz
Operating Temperature	-35°C to +177°C (-31°F to +351°F)
Minimum Cable Bend Radius	25.4 mm (1.0 in.)
Approximate Dimensions	Ø8 mm Probe Tip × 30.5 mm Case Length
Approximate Product Weight	0.10 kg
Country of Origin	USA

Typical Applications

The 21504-000-012-05-02 is designed for continuous non-contact measurement of shaft vibration and shaft position in rotating equipment where reliable long-term performance is required.

Typical applications include:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Generators
Gearboxes
Fans
Blowers
Process machinery

Its 1.2-inch case length provides additional installation flexibility while maintaining accurate and stable measurement performance.

Product Advantages

Genuine Bently Nevada 7200 Series probe.
Precision 8 mm sensing element.
Standard 3/8-24 UNF threaded mounting.
Factory-installed 0.5 m integrated cable.
Stable non-contact eddy-current measurement.
Wide frequency response up to 10 kHz.
Excellent long-term signal stability.
Compact, corrosion-resistant construction.
Compatible with 7200 Series extension cables and Proximitor sensors.
Designed for continuous equipment condition monitoring.

Technical FAQs

1. What type of probe is the 21504-000-012-05-02?
It is a 7200 Series 8 mm Standard Mount Proximity Probe designed for non-contact shaft displacement and vibration measurement.

2. What is the probe diameter?
The sensing tip diameter is 8 mm.

3. What is the overall case length?
The probe has a 1.2 in. (30.5 mm) overall case length.

4. What cable length is included?
This model is supplied with a 0.5 m (20 in.) integrated cable.

5. Which connector is fitted?
It includes a miniature male coaxial connector.

6. What mounting thread does the probe use?
The probe uses a 3/8-24 UNF standard threaded body.

7. What is the measurement range?
The complete transducer system provides a 2.0 mm (80 mil) linear measurement range.

8. What operating temperature is supported?
The probe operates within a temperature range of -35°C to +177°C (-31°F to +351°F).

9. Which components are compatible with this probe?
It is intended for use with compatible 7200 Series extension cables and 7200 Proximitor sensors.

10. Is this probe suitable for continuous machinery monitoring?
Yes. It is designed for permanent installation and continuous monitoring of rotating equipment.
