Bently Nevada 21504-000-008-10-02 7200 8 mm Standard Mount Probe

Name: Bently Nevada 21504-000-008-10-02 7200 8 mm Standard Mount Probe
Brand: Bently Nevada PLC
SKU: 9555
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:21504-000-008-10-02
Product Origin:USA
Product Dimensions:Ø8 mm Probe Tip × 20.3 mm Case Length
Product Weight:0.2kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

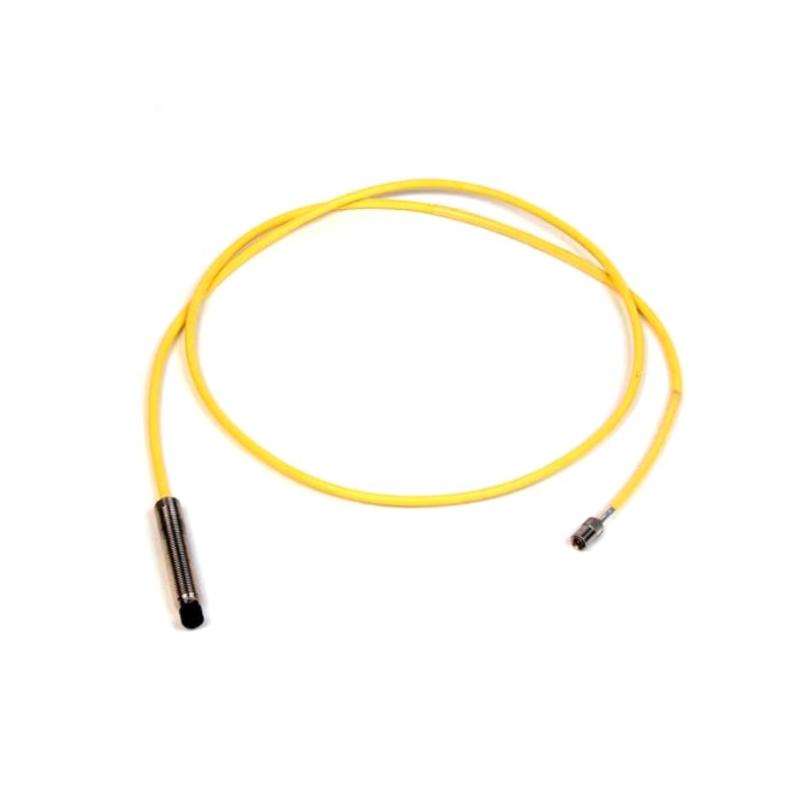

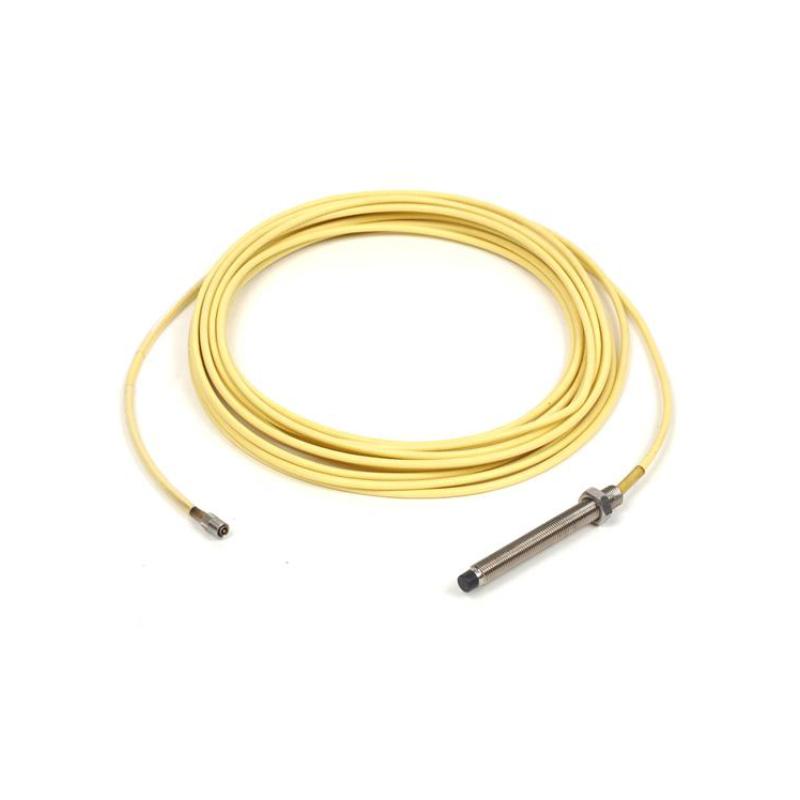

The Bently Nevada 21504-000-008-10-02 7200 8 mm Standard Mount Probe is a precision non-contact proximity probe engineered for use with the 7200 Series Proximity Transducer System. Designed to provide accurate shaft displacement and vibration measurement, this probe delivers consistent performance, excellent linearity, and dependable long-term reliability for rotating machinery.

This model features an 8 mm probe tip, 0.0 in. unthreaded length, 0.8 in. overall case length, a 1.0 m (39 in.) integrated cable, and a miniature male coaxial connector. It is intended to operate with compatible 7200 Series extension cables and Proximitor sensors to form a complete measurement system.

Technical Specifications

Specification	Details
Manufacturer	Bently Nevada
Model Number	21504-000-008-10-02
Product Type	7200 8 mm Standard Mount Probe
Series	7200 Proximity Transducer System
Probe Diameter	8 mm
Mounting Style	Standard Mount
Measurement Principle	Eddy Current, Non-contact
Unthreaded Length	0.0 in.
Overall Case Length	0.8 in. (20.3 mm)
Integrated Cable Length	1.0 m (39 in.)
Connector Type	Miniature Male Coaxial Connector
Thread Size	3/8-24 UNF
Linear Measurement Range	2.0 mm (80 mils)
Frequency Response	0 Hz to 10 kHz
Operating Temperature	-35°C to +177°C (-31°F to +351°F)
Minimum Cable Bend Radius	25.4 mm (1.0 in.)
Approximate Product Dimensions	Ø8 mm Probe Tip × 20.3 mm Case Length
Approximate Product Weight	0.12 kg
Approximate Shipping Weight	0.68 kg
Country of Origin	USA

Typical Applications

The 21504-000-008-10-02 is designed for continuous non-contact measurement of shaft displacement and vibration in rotating equipment.

Typical applications include:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Generators
Fans
Gearboxes
Blowers
Compressors

Its 1.0-meter integrated cable provides installation flexibility while maintaining reliable signal quality throughout the transducer system.

Product Advantages

Genuine Bently Nevada 7200 Series probe.
Precision 8 mm sensing technology.
Standard threaded mounting design.
Factory-installed 1.0 m integrated cable.
Stable eddy-current measurement performance.
Excellent repeatability and long-term reliability.
Corrosion-resistant construction.
Compatible with 7200 Series extension cables and Proximitor sensors.
Compact design for convenient installation.
Designed for continuous machinery condition monitoring.

Technical FAQs

1. What type of probe is the 21504-000-008-10-02?
It is a 7200 Series 8 mm Standard Mount Proximity Probe for non-contact shaft displacement and vibration measurement.

2. What is the probe diameter?
The probe uses an 8 mm sensing tip.

3. How long is the integrated cable?
This model includes a 1.0 m (39 in.) integrated cable.

4. What connector is fitted to the probe?

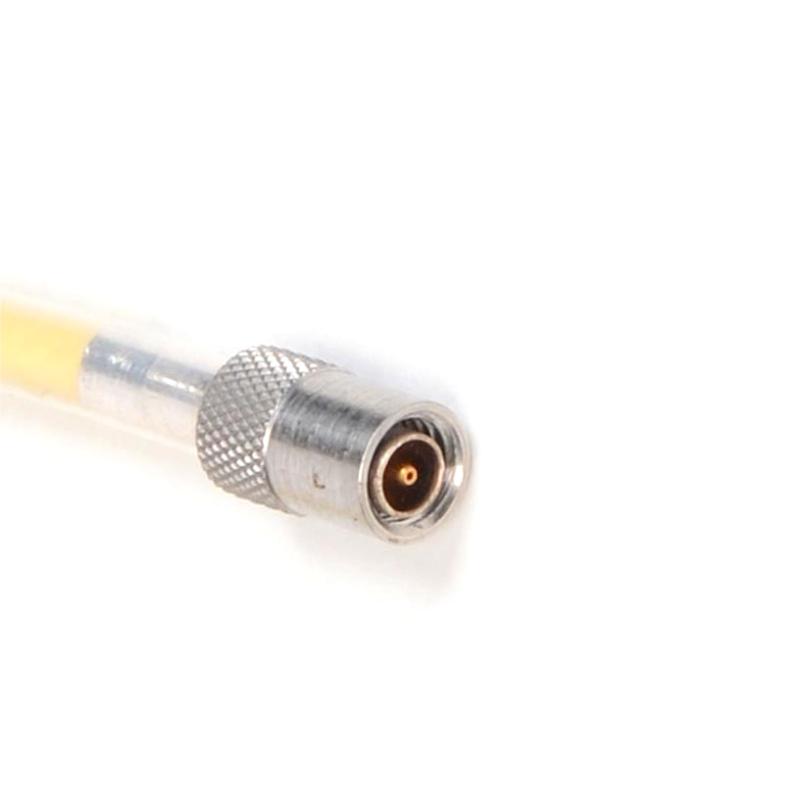

It is equipped with a miniature male coaxial connector.

5. What mounting thread does the probe use?
The probe features a 3/8-24 UNF threaded body.

6. What is the overall case length?
The overall case length is 0.8 in. (20.3 mm).

7. What is the measurement principle?
The probe operates using eddy-current non-contact sensing technology.

8. What operating temperature range is supported?
The probe is designed to operate from -35°C to +177°C (-31°F to +351°F).

9. Which components are compatible with this probe?
It is intended for use with compatible 7200 Series extension cables and 7200 Proximitor sensors to create a complete transducer system.

10. Is this probe suitable for continuous equipment monitoring?
Yes. It is designed for permanent installation and continuous monitoring of rotating machinery.
