Introduction

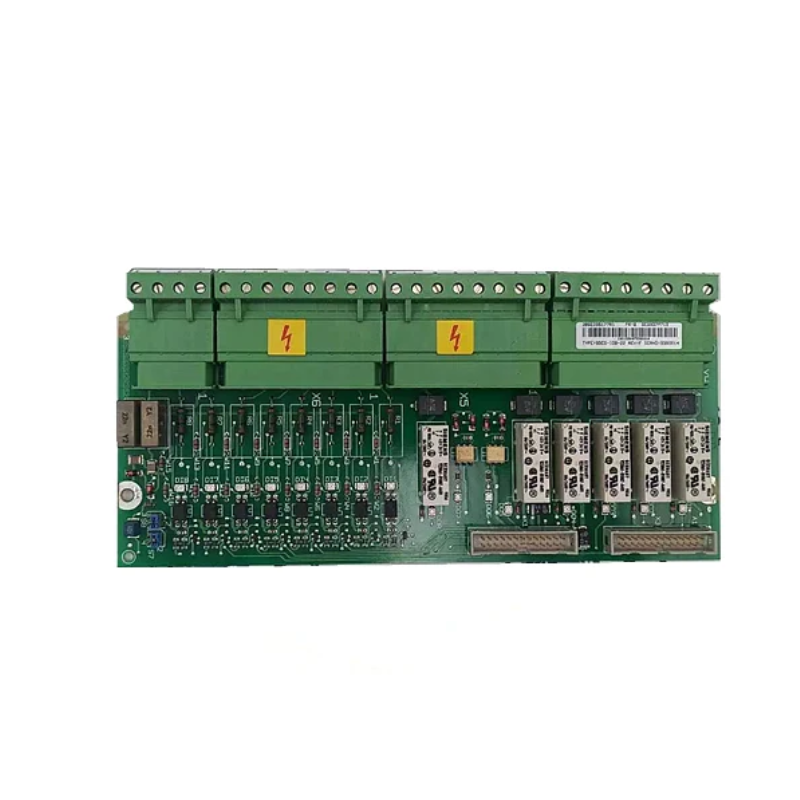

The ABB SDCS-IOB-22 3BSE005177R1 Digital Connection Board is a compact yet powerful interface module designed for ABB DC drive and industrial automation systems. It acts as a reliable digital signal gateway, enabling seamless communication between control units and field devices such as sensors, relays, and actuators.
Built with industrial-grade isolation and stable signal handling architecture, this module is widely used in ABB DCS and drive platforms where precise digital I/O coordination is essential for system performance and operational safety.
Technical Specifications
| Parameter | Specification |
|---|
| Model | SDCS-IOB-22 |
| Part Number | 3BSE005177R1 |
| Module Type | Digital Connection / I-O Interface Board |
| System Compatibility | ABB DCS500 / DCS600 / SDCS platforms |
| Digital Channels | 16 Inputs / 16 Outputs (typical configuration) |
| Input Voltage | 24 V DC / industrial control range |
| Output Rating | Up to 1 A per channel |
| Communication | System backplane / internal drive bus |
| Protocol Support | Modbus RTU, DeviceNet (system dependent) |
| Electrical Isolation | Channel and system-level isolation |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Approx. 100 × 50 × 25 mm |
| Weight | Approx. 0.1 – 0.35 kg |
Applications
The SDCS-IOB-22 is designed for industrial environments where fast and reliable digital signal exchange is critical. Typical applications include:
-
DC drive control systems in manufacturing plants
-
Steel and metal processing automation lines
-
Paper and pulp production machinery
-
Conveyor and logistics control systems
-
Energy and process automation systems
Its stable signal architecture ensures accurate control execution even in electrically noisy industrial environments.
Key Advantages
This digital connection board offers a strong combination of reliability, compact design, and system flexibility, making it a widely trusted ABB automation component.
-
High-density digital I/O capacity for flexible system design
-
Strong electrical isolation for improved signal integrity and safety
-
Compact form factor for space-efficient cabinet integration
-
Stable operation under harsh industrial conditions
-
Seamless integration with ABB SDCS and DCS drive systems
-
Fast response time for real-time control applications
Its engineering focus is centered on maintaining consistent communication between control logic and field-level devices.
Technical FAQs
1. What is the main function of the SDCS-IOB-22 module?
It manages digital input and output signals in ABB drive control systems.
2. Which systems is it compatible with?
It is commonly used in ABB DCS500, DCS600, and SDCS platforms.
3. How many I/O channels does it support?
Typically supports 16 digital inputs and 16 digital outputs depending on configuration.
4. What is its operating voltage?
It generally operates on 24 V DC industrial control signals.
5. Does it support industrial communication protocols?
Yes, depending on system configuration, it can support protocols like Modbus RTU.
6. Is the module electrically isolated?
Yes, it features strong channel and system-level isolation for protection and stability.
7. What is the typical response time?
It provides fast signal response suitable for real-time automation tasks.
8. Can it operate in harsh environments?
Yes, it is designed for industrial temperature ranges and high electrical noise resistance.
9. Is it easy to install?
Yes, its compact design allows straightforward integration into ABB drive cabinets.
10. What is its role in a drive system?
It acts as the digital communication bridge between controller logic and field devices.
