Product Overview

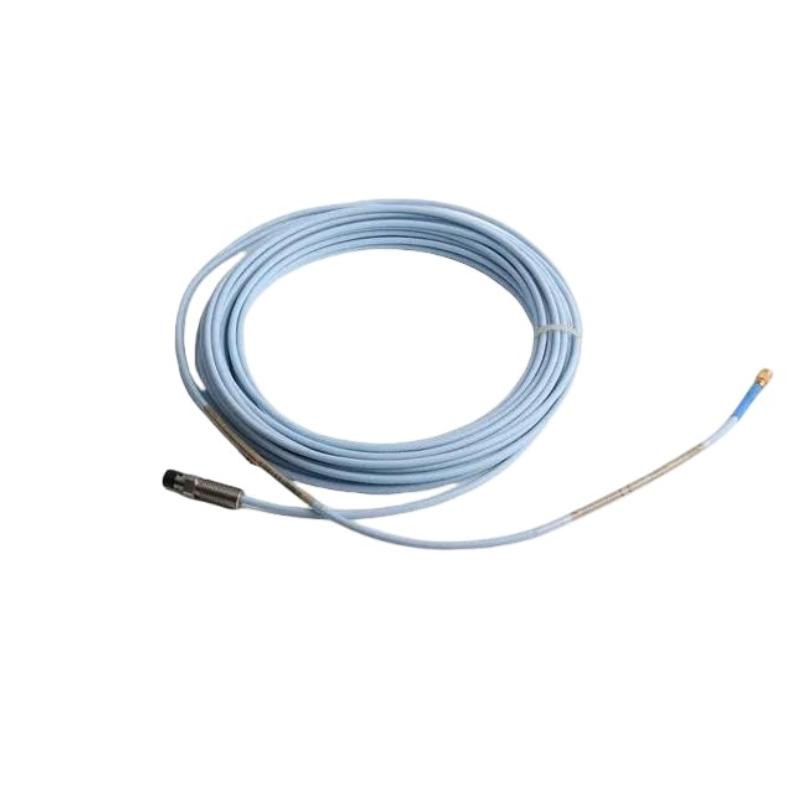

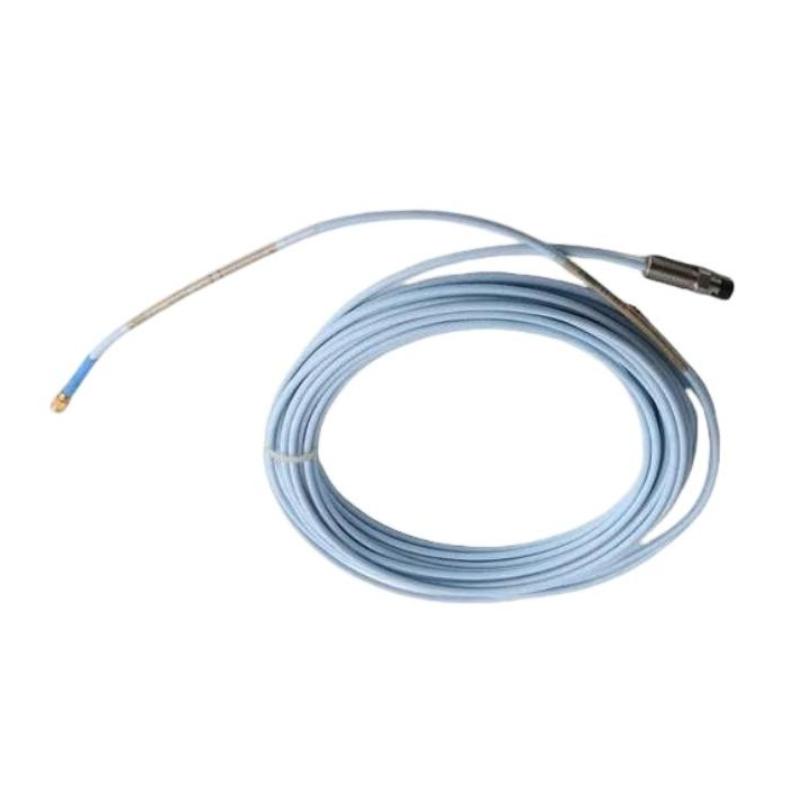

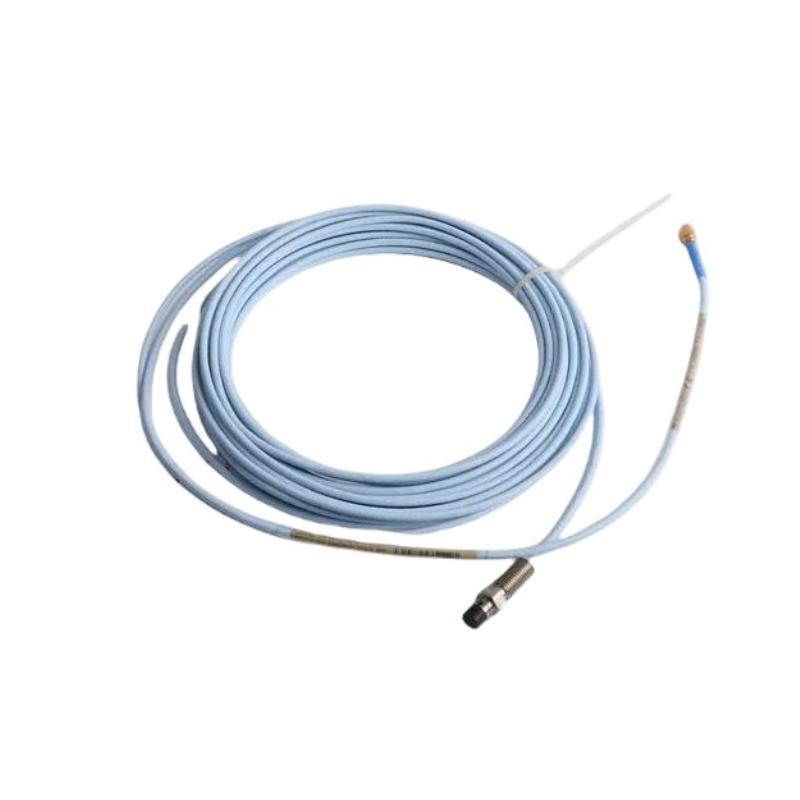

The Bently Nevada 330930-085-01-05 3300 NSv Extension Cable is a high-quality extension cable assembly designed for the 3300 NSv Proximity Transducer System. This cable is part of the Bently Nevada 3300 NSv series and is engineered to provide reliable connectivity between compatible proximity probes and Proximitor sensors.
Configured with an 8.5 m (27.9 ft) cable length, stainless-steel armor with FEP jacket, and Multiple Approvals option, this model is designed for installations that require extended cable distance, durable construction, and consistent electrical characteristics. The carefully defined factory configuration makes it a dependable choice for equipment maintenance, replacement applications, and spare parts planning.
Technical Specifications
| Specification | Description |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330930-085-01-05 |
| Product Type | 3300 NSv Extension Cable |
| Product Family | 3300 NSv |
| Cable Length | 8.5 m (27.9 ft) |
| Connector & Cable Option | 01 – Stainless-steel armor with FEP jacket |
| Agency Approval Option | 05 – Multiple Approvals |
| Cable Type | 75 Ω coaxial extension cable |
| Cable Insulation | FEP (Fluoroethylene Propylene) insulated |
| Armor Material | Stainless-steel armor |
| Connector Type | Miniature coaxial ClickLoc connector |
| Center Conductor Resistance | 0.220 Ω/m (0.067 Ω/ft) |
| Shield Resistance | 0.066 Ω/m (0.020 Ω/ft) |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Operating Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Dimensions | Cable length: 8.5 m (27.9 ft) |
| Product Weight | Approx. 0.38 kg |
| Shipping Weight | Approx. 1.5 kg |
| Condition | New |
Application Areas
The 330930-085-01-05 extension cable is suitable for professional equipment applications where additional cable length and mechanical durability are required.
Common applications include:
-
Rotating equipment monitoring installations
-
Turbine and compressor equipment
-
Power generation facilities
-
Process industry machinery
-
Manufacturing equipment monitoring
-
Equipment refurbishment projects
-
Spare component replacement programs
-
Long-distance sensor installation layouts
The extended 8.5-meter configuration offers additional installation flexibility while maintaining the established performance characteristics of the 3300 NSv product family.
Technical FAQs
1. What is the Bently Nevada 330930-085-01-05?
The 330930-085-01-05 is a 3300 NSv Extension Cable designed for use with compatible Bently Nevada 3300 NSv proximity system components.
2. What is the cable length of this model?
This model features an 8.5 meter (27.9 feet) extension cable length.
3. What does the "085" option represent?
The "085" code identifies the cable length configuration of 8.5 meters.
4. What does the "01" cable option specify?
The "01" option indicates a cable configuration with stainless-steel armor and FEP jacket.
5. What does the final "05" indicate?
The final "05" represents the Multiple Approvals option.
6. What type of cable construction is used?
The cable uses a 75 Ω coaxial design with FEP insulation for stable signal characteristics.
7. What is the typical cable capacitance?
The typical cable capacitance is 69.9 pF/m (21.3 pF/ft).
8. What are the benefits of stainless-steel armor?
The stainless-steel armor helps improve mechanical protection and provides additional durability in demanding equipment environments.
9. What is the approximate weight of the cable?
The product weight is approximately 0.38 kg, while packaged shipping weight may vary depending on packaging requirements.
10. Is this cable compatible with 3300 NSv proximity components?
Yes. The 330930-085-01-05 belongs to the Bently Nevada 3300 NSv extension cable family and is designed for compatible system configurations.
