Product Overview

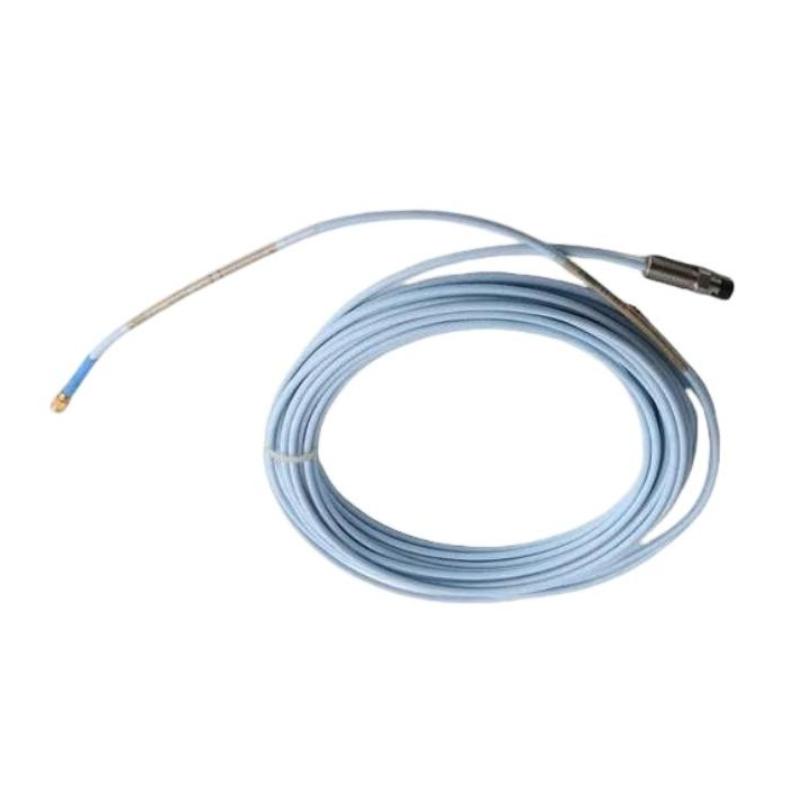

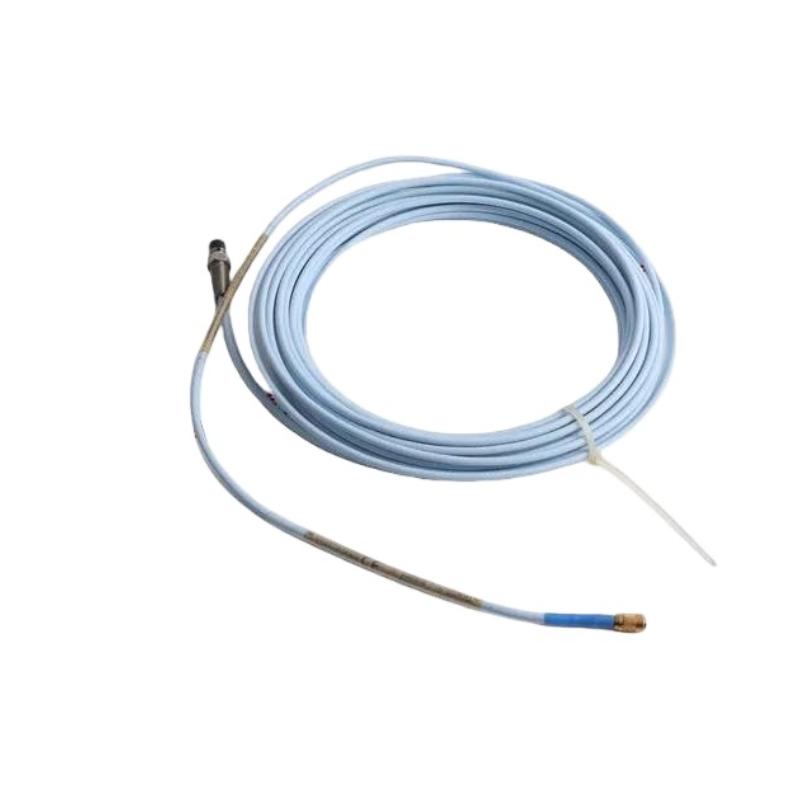

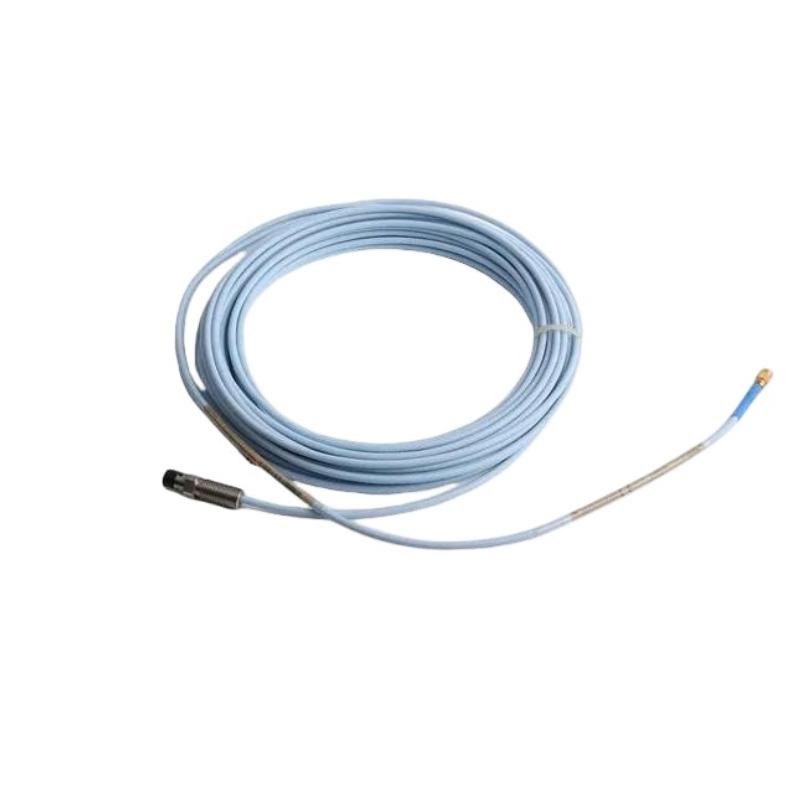

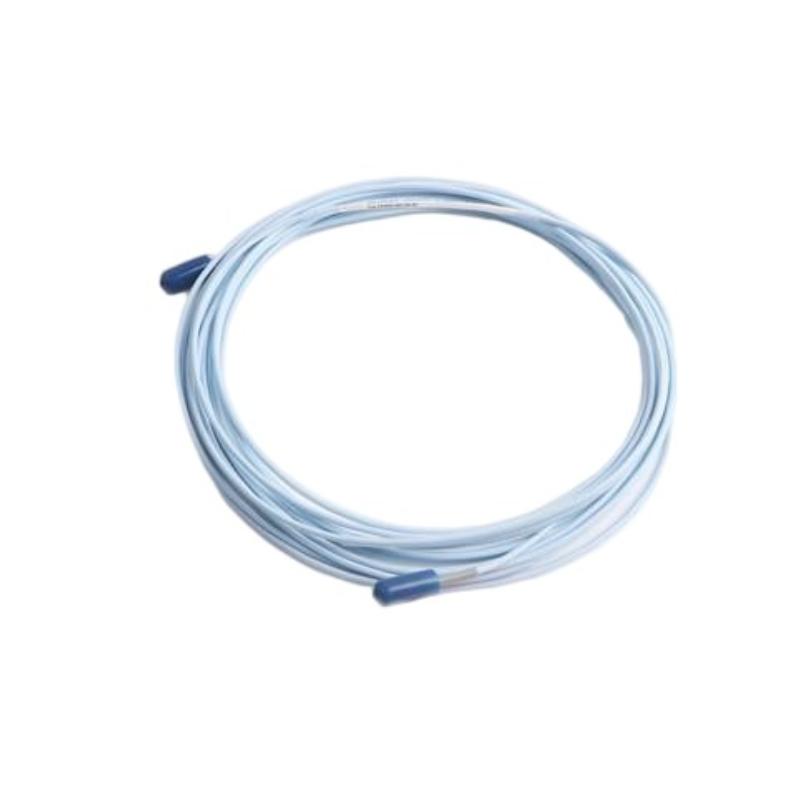

The Bently Nevada 330930-060-01-CN 3300 NSv Extension Cable is a high-performance extension cable assembly designed for the 3300 NSv Proximity Transducer System. This model is part of the trusted 3300 NSv cable family and is manufactured according to the original configuration specification for customers requiring dependable replacement components and long-term spare support.
Configured with a 6.0 m (19.7 ft) cable length, stainless-steel armor with FEP jacket, and CN country-specific approval option, this extension cable provides a durable connection solution for demanding equipment environments. The reinforced construction and factory-defined design make it suitable for projects where reliability, compatibility, and consistent performance are important considerations.
Technical Specifications
| Specification | Description |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330930-060-01-CN |
| Product Type | 3300 NSv Extension Cable |
| Product Family | 3300 NSv |
| Cable Length | 6.0 m (19.7 ft) |
| Connector & Cable Option | 01 – Stainless-steel armor with FEP jacket |
| Approval Option | CN – Country-specific approvals |
| Cable Type | 75 Ω coaxial extension cable |
| Cable Insulation | FEP (Fluoroethylene Propylene) |
| Armor Material | Stainless-steel armor |
| Characteristic Impedance | 75 Ω nominal |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Center Conductor Resistance | 0.220 Ω/m (0.067 Ω/ft) |
| Shield Resistance | 0.066 Ω/m (0.020 Ω/ft) |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Dimensions | Cable Length: 6.0 m (19.7 ft) |
| Product Weight | Approx. 0.27 kg |
| Shipping Weight | Approx. 1.5 kg |
| Condition | New |
Application Areas
The 330930-060-01-CN Extension Cable is commonly selected for professional equipment applications requiring reliable cable extension within the 3300 NSv system family.
Typical application areas include:
-
Power generation facilities
-
Process equipment installations
-
Manufacturing plants
-
Rotating equipment monitoring projects
-
Compressor and turbine equipment support
-
Equipment replacement programs
-
Spare parts inventory management
-
Engineering maintenance projects
Its 6-meter cable configuration provides additional installation flexibility while maintaining compatibility with 3300 NSv proximity system components.
Technical FAQs
1. What is the Bently Nevada 330930-060-01-CN?
It is a 3300 NSv Extension Cable designed for use with compatible Bently Nevada 3300 NSv system components.
2. What is the complete model number?
The complete part number is 330930-060-01-CN.
3. What does the "060" option represent?
The "060" option identifies the cable length of 6.0 meters (19.7 feet).
4. What does the "01" cable option specify?
The "01" configuration specifies a cable with stainless-steel armor and FEP jacket.
5. What does the "CN" suffix indicate?
The "CN" suffix identifies the country-specific approval option.
6. What type of cable construction is used?
This model uses a 75 Ω coaxial cable with FEP insulation.
7. What is the cable length in feet?
The cable length is approximately 19.7 feet.
8. What is the weight of this extension cable?
The product weight is approximately 0.27 kg, while packaged shipping weight may vary.
9. What temperature range is supported by this cable family?
The specified temperature range is approximately -51°C to +177°C (-60°F to +351°F).
10. Is this cable compatible with the 3300 NSv system family?
Yes. This model is designed as a compatible extension cable within the Bently Nevada 3300 NSv product family.
