Product Introduction

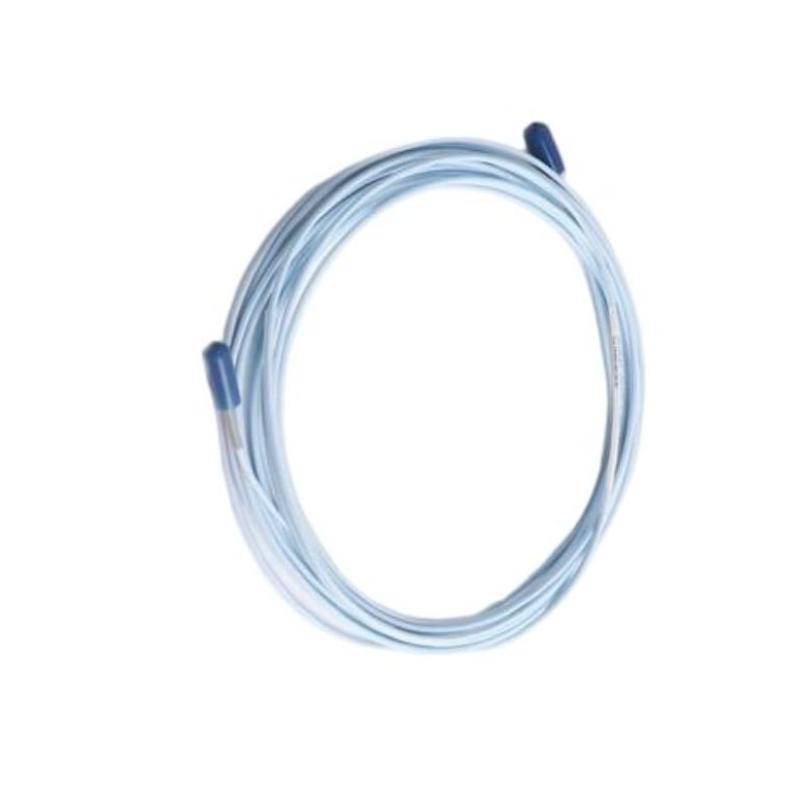

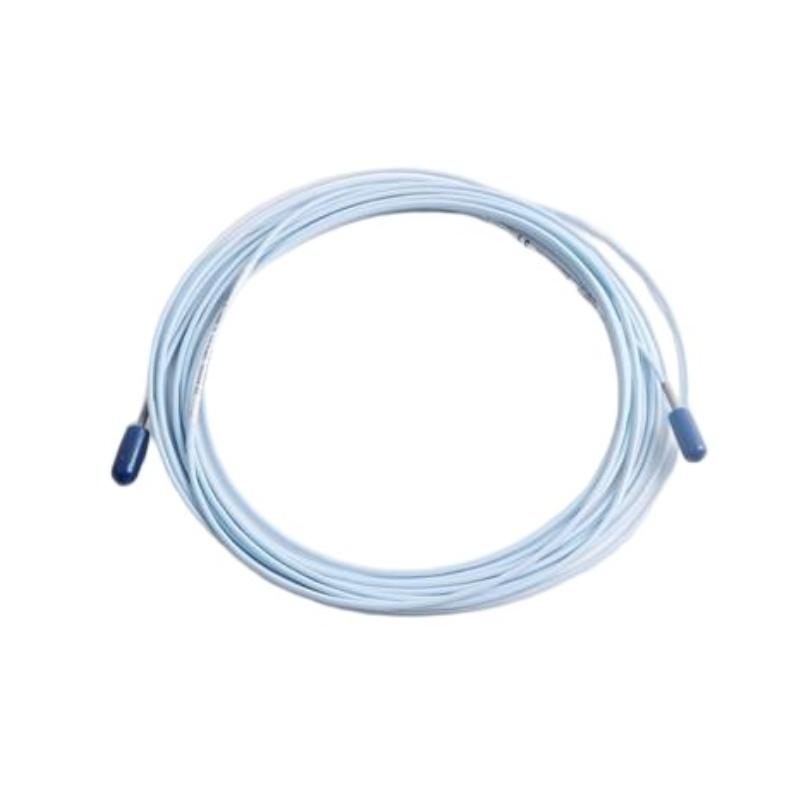

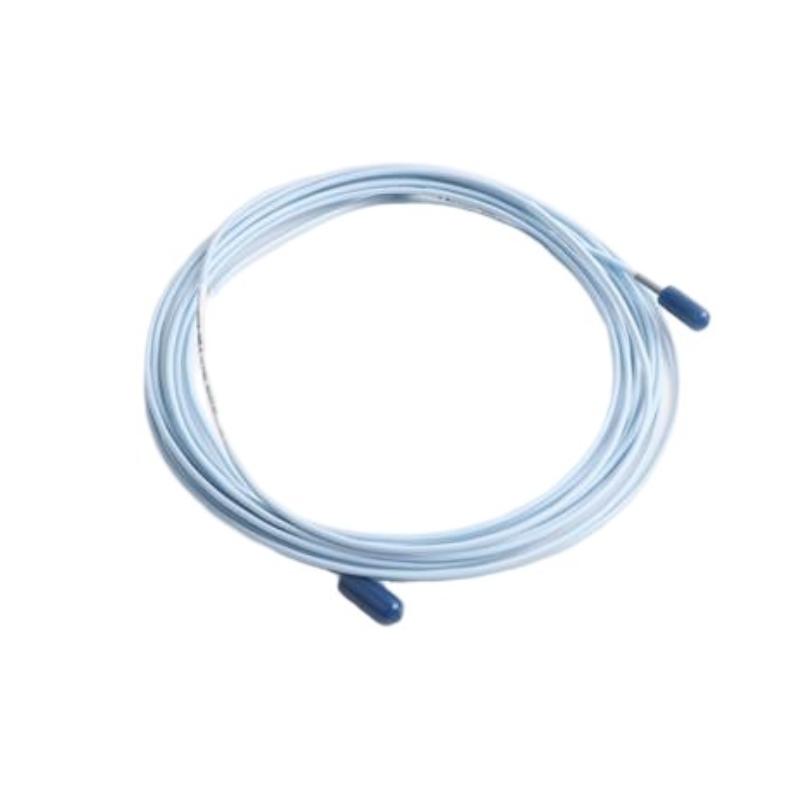

The Bently Nevada 330930-065-05-05 3300 NSv Extension Cable is a rugged and reliable extension cable assembly designed for the 3300 NSv Proximity Transducer System. As part of the Bently Nevada 3300 NSv product family, this cable is engineered to provide a dependable connection between compatible proximity probes and Proximitor sensors, making it a valuable component for replacement, maintenance, and spare parts planning.
Featuring a 6.5 m (21.3 ft) cable length, stainless-steel armor without FEP jacket, connector protectors, and the Multiple Approvals (05) option, this configuration is designed for applications requiring enhanced mechanical protection and broader installation flexibility. The factory-defined construction ensures consistent product selection for existing 3300 NSv installations.
Technical Specifications
| Specification | Description |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330930-065-05-05 |
| Product Type | 3300 NSv Extension Cable |
| Product Family | 3300 NSv |
| Cable Length | 6.5 m (21.3 ft) |
| Connector & Cable Option | 05 – Stainless-steel armor, without FEP jacket, with connector protectors |
| Agency Approval Option | 05 – Multiple Approvals |
| Cable Type | 75 Ω coaxial extension cable |
| Cable Material | FEP insulated coaxial cable |
| Armor Material | Stainless-steel armor |
| Connector Protection | Included |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Center Conductor Resistance | 0.220 Ω/m (0.067 Ω/ft) |
| Shield Resistance | 0.066 Ω/m (0.020 Ω/ft) |
| Operating Temperature Range | Approximately -52°C to +100°C (-62°F to +212°F) |
| Storage Temperature Range | Approximately -52°C to +105°C (-62°F to +221°F) |
| Dimensions | Cable Length: 6.5 m (21.3 ft) |
| Product Weight | Approx. 0.55 kg |
| Shipping Weight | Approx. 1.5–2 kg |
| Condition | New |
Application Areas
The 330930-065-05-05 extension cable is commonly selected for professional equipment installations where stable connection performance and durable cable construction are required.
Typical application areas include:
-
Rotating equipment monitoring projects
-
Power generation facilities
-
Compressor and turbine equipment support
-
Process industry applications
-
Manufacturing equipment maintenance
-
Machinery condition monitoring systems
-
Equipment replacement programs
-
Spare parts inventory management
The 6.5-meter configuration provides additional installation flexibility while maintaining compatibility with the 3300 NSv proximity monitoring system architecture.
Technical FAQs
1. What is the Bently Nevada 330930-065-05-05?
The 330930-065-05-05 is a 3300 NSv Extension Cable designed for compatible Bently Nevada 3300 NSv proximity monitoring components.
2. What is the cable length of this model?
This model features a 6.5 meter (21.3 feet) cable length.
3. What does the "065" code represent?
The "065" option identifies the 6.5 m cable length configuration.
4. What does the "05" connector and cable option indicate?
The "05" configuration specifies stainless-steel armor, without FEP jacket, with connector protectors.
5. What does the final "05" approval option mean?
The final "05" indicates the Multiple Approvals configuration.
6. What type of cable construction is used?
This model uses a 75 Ω coaxial cable with FEP insulation as part of the 3300 NSv extension cable design.
7. What is the typical cable capacitance value?
The typical cable capacitance is 69.9 pF/m (21.3 pF/ft).
8. What is the approximate weight of this cable?
The listed product weight is approximately 0.55 kg.
9. Why is stainless-steel armor used in this configuration?
The stainless-steel armor provides additional mechanical protection and improves cable durability in equipment environments where physical protection is important.
10. Is this model suitable as a replacement extension cable?
Yes. The 330930-065-05-05 is commonly selected as a replacement or spare extension cable for compatible 3300 NSv system configurations.
