Product Introduction

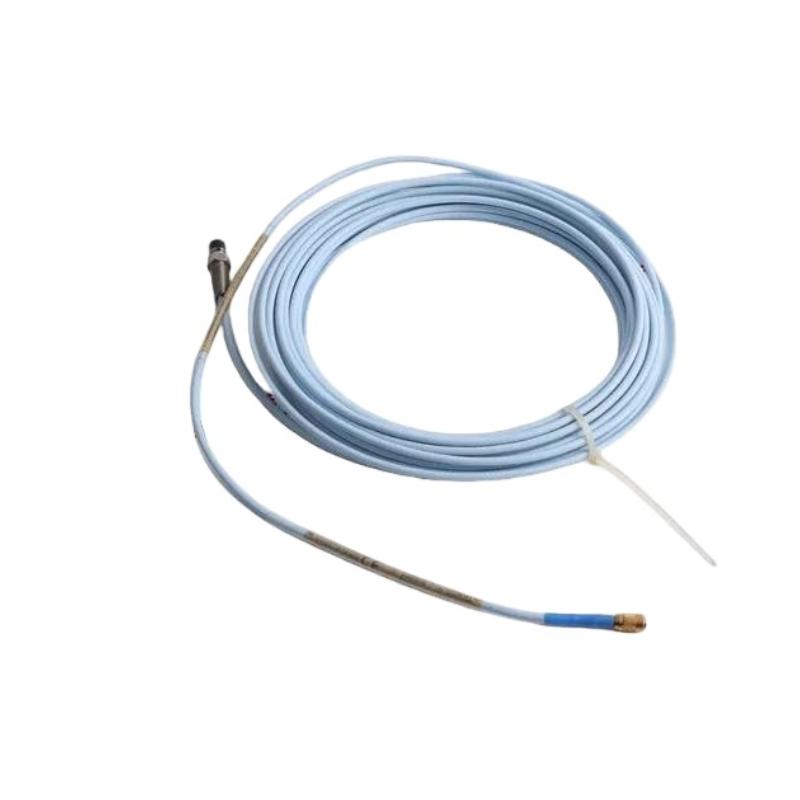

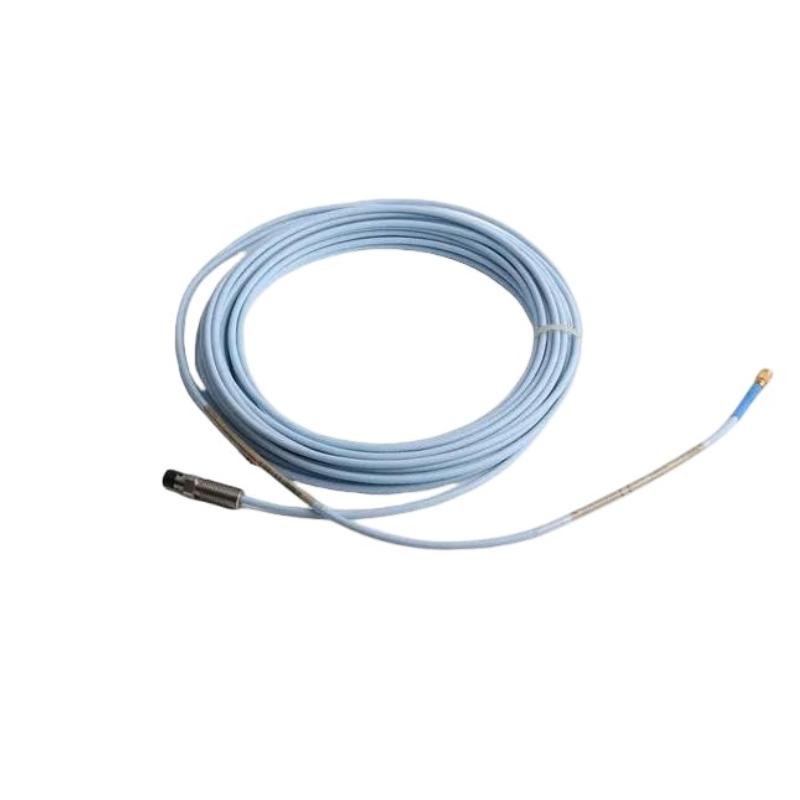

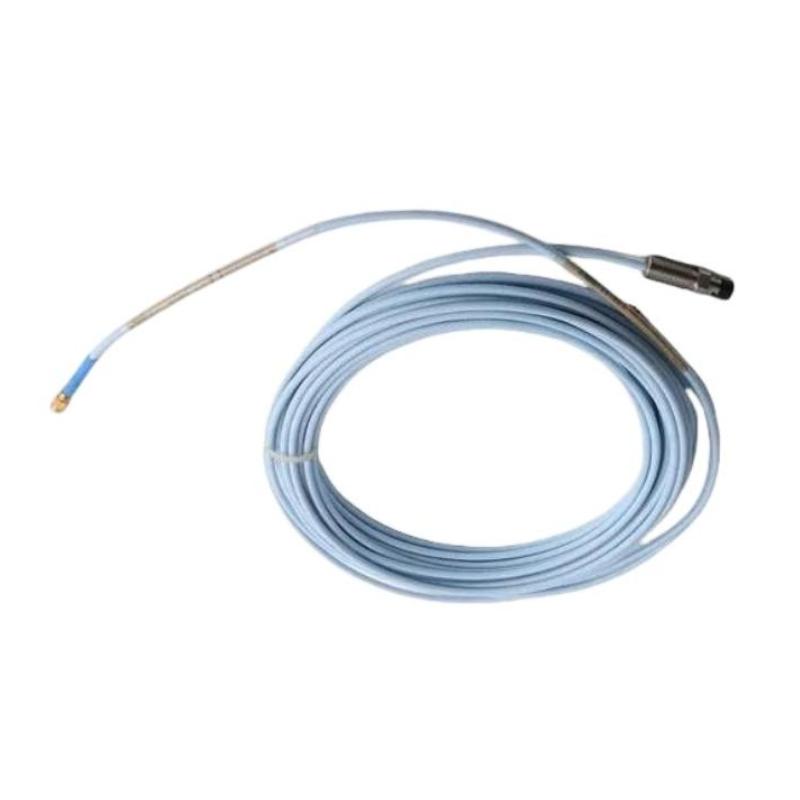

The Bently Nevada 330930-060-03-05 3300 NSv Extension Cable is a precision extension cable assembly developed for the 3300 NSv Proximity Transducer System. Designed as part of the proven 3300 NSv product family, this cable provides a dependable connection between compatible proximity probes and Proximitor sensors.
This configuration includes a 6.0 m (19.7 ft) cable length, without stainless-steel armor with connector protector, and the Multiple Approvals (05) option. Its compact construction, standardized specifications, and reliable materials make it a practical choice for replacement requirements, spare inventory, and equipment support projects.
Technical Specifications
| Specification | Description |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330930-060-03-05 |
| Product Type | 3300 NSv Extension Cable |
| Product Family | 3300 NSv |
| Cable Length | 6.0 m (19.7 ft) |
| Connector & Cable Option | 03 – Without stainless-steel armor, with connector protector |
| Agency Approval Option | 05 – Multiple Approvals |
| Cable Type | 75 Ω coaxial extension cable |
| Cable Insulation | FEP (Fluoroethylene Propylene) |
| Characteristic Impedance | 75 Ω nominal |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Center Conductor Resistance | 0.220 Ω/m (0.067 Ω/ft) |
| Shield Resistance | 0.066 Ω/m (0.020 Ω/ft) |
| Operating Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Dimensions | Cable Length: 6.0 m (19.7 ft) |
| Weight | Approx. 0.27 kg |
| Shipping Weight | Approx. 1.5 kg |
| Condition | New |
Application Areas
The 330930-060-03-05 extension cable is commonly selected for professional equipment applications requiring reliable cable extension within the 3300 NSv system family.
Typical application areas include:
-
Power generation equipment
-
Process industry installations
-
Compressor and rotating equipment monitoring
-
Manufacturing facilities
-
Equipment refurbishment projects
-
Spare component inventory programs
-
Engineering replacement applications
With a 6-meter configuration, this cable provides additional installation flexibility while maintaining compatibility with the 3300 NSv proximity monitoring system components.
Technical FAQs
1. What is the Bently Nevada 330930-060-03-05?
It is a 3300 NSv Extension Cable designed for use with compatible Bently Nevada 3300 NSv proximity monitoring components.
2. What is the complete model number?
The complete part number is 330930-060-03-05.
3. What does the "060" option represent?
The "060" code identifies the cable length of 6.0 meters (19.7 feet).
4. What does the "03" cable option specify?
The "03" configuration indicates a cable without stainless-steel armor and with connector protector.
5. What does the final "05" option mean?
The final "05" identifies the Multiple Approvals option.
6. What type of cable material is used?
The 3300 NSv extension cable family uses a 75 Ω coaxial cable with FEP insulation.
7. What is the cable length in feet?
The cable length is approximately 19.7 feet.
8. What is the approximate weight of this cable?
The product weight is approximately 0.27 kg, while shipping weight may vary depending on packaging.
9. Is this model compatible with 3300 NSv systems?
Yes. It is part of the Bently Nevada 3300 NSv Extension Cable product family and is designed for compatible system configurations.
10. Why choose this extension cable configuration?
This model provides a factory-defined cable length, connector protection, and standardized construction suitable for replacement and spare component requirements.
