Product Introduction

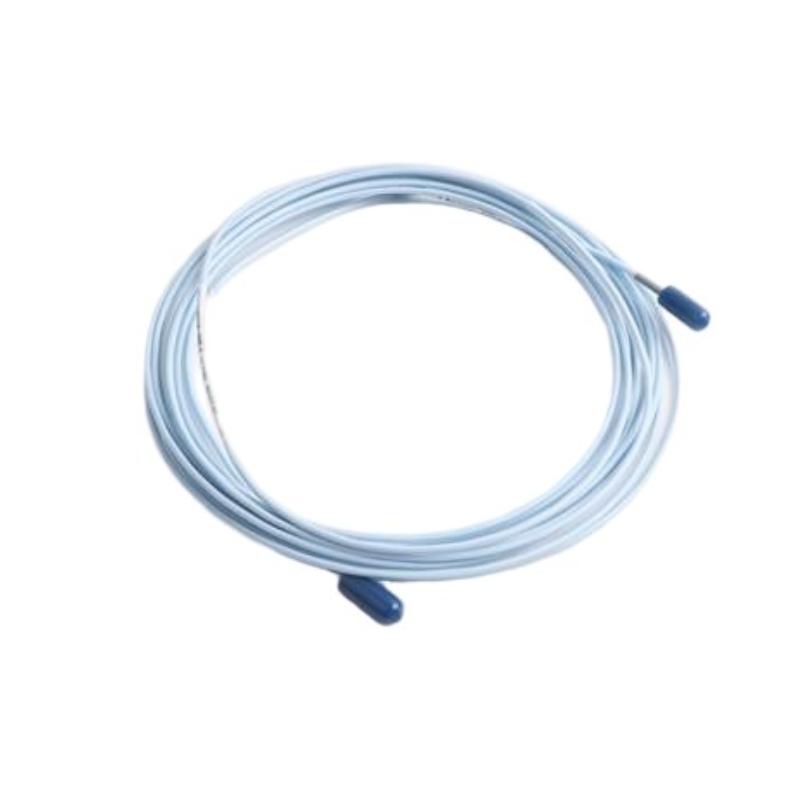

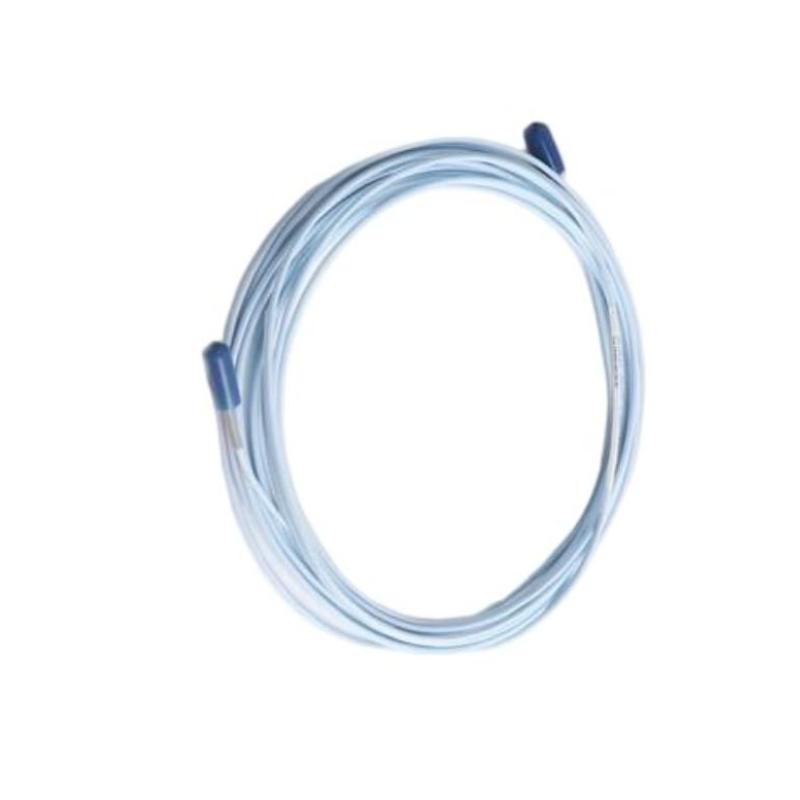

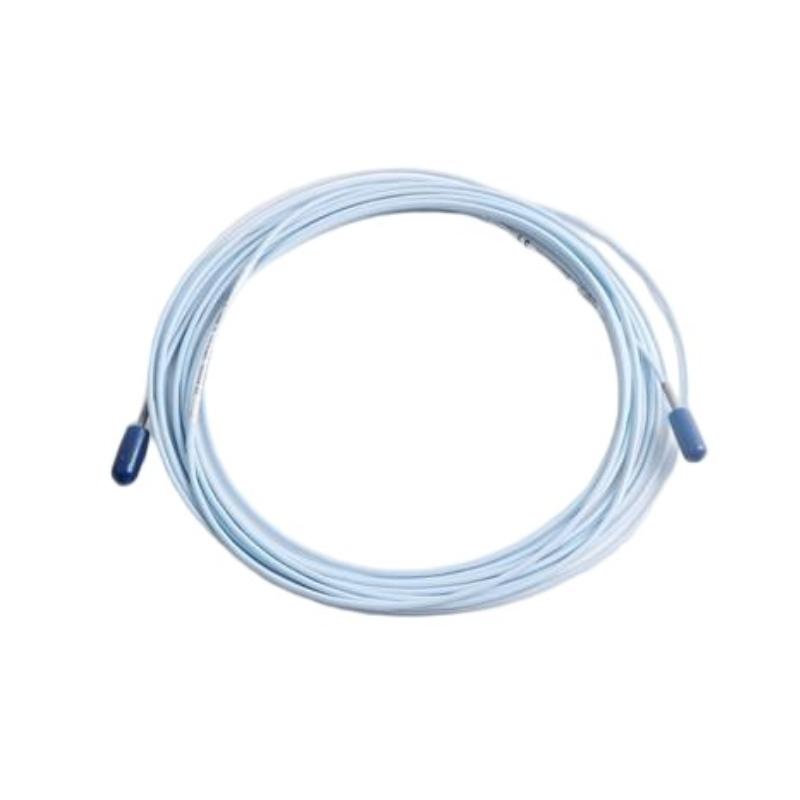

The Bently Nevada 330930-065-05-00 3300 NSv Extension Cable is a rugged extension cable assembly designed for the 3300 NSv Proximity Transducer System. As part of the Bently Nevada 3300 NSv product family, this cable provides a reliable connection between compatible proximity probes and Proximitor sensors, supporting consistent signal transmission and dependable long-term service.
With a 6.5 m (21.3 ft) cable length, stainless-steel armor, without FEP jacket, and connector protector included, this configuration is designed for installations where additional mechanical protection and stable cable performance are required. The factory-defined design makes it a practical choice for replacement programs, spare inventory management, and equipment maintenance projects.
Technical Specifications
| Specification | Description |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330930-065-05-00 |
| Product Type | 3300 NSv Extension Cable |
| Product Family | 3300 NSv |
| Cable Length | 6.5 m (21.3 ft) |
| Connector & Cable Option | 05 – Stainless-steel armor, without FEP jacket, with connector protector |
| Agency Approval Option | 00 – Not Required |
| Cable Type | 75 Ω coaxial extension cable |
| Armor Material | Stainless-steel armor |
| Jacket Type | Without FEP jacket |
| Connector Protection | Included |
| Center Conductor Resistance | 0.220 Ω/m (0.067 Ω/ft) |
| Shield Resistance | 0.066 Ω/m (0.020 Ω/ft) |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Operating Temperature Range | Approximately -51°C to +177°C (-60°F to +351°F) |
| Dimensions | Cable Length: 6.5 m (21.3 ft) |
| Product Weight | Approx. 0.3 kg |
| Shipping Weight | Approx. 1.5–2 kg |
| Condition | New |
Application Areas
The 330930-065-05-00 extension cable is widely used in professional equipment environments where dependable connection performance and mechanical durability are essential.
Typical applications include:
-
Rotating equipment monitoring projects
-
Turbine and compressor equipment installations
-
Power generation facilities
-
Process industry equipment
-
Manufacturing production environments
-
Equipment replacement programs
-
Spare parts inventory management
-
Machinery condition monitoring applications
Its extended 6.5-meter length provides additional installation flexibility while maintaining compatibility with the 3300 NSv product family.
Technical FAQs
1. What is the Bently Nevada 330930-065-05-00?
The 330930-065-05-00 is a 3300 NSv Extension Cable designed for compatible Bently Nevada proximity monitoring systems.
2. What is the cable length of this model?
The cable length is 6.5 meters (21.3 feet).
3. What does the "065" option represent?
The "065" code identifies the 6.5 m cable length configuration.
4. What does the "05" cable option specify?
The "05" configuration indicates stainless-steel armor, without FEP jacket, with connector protector.
5. What does the final "00" option mean?
The final "00" indicates that no additional agency approval option is selected.
6. What type of cable construction is used?
This model uses a 75 Ω coaxial cable designed for the 3300 NSv system family.
7. What is the typical cable capacitance?
The typical cable capacitance is 69.9 pF/m (21.3 pF/ft).
8. What are the benefits of stainless-steel armor?
The stainless-steel armor provides additional mechanical protection and improves cable durability in challenging installation environments.
9. What is the approximate weight of this extension cable?
The cable weight is approximately 0.3 kg, while packaged shipping weight may vary depending on packaging method.
10. Is this model suitable as a replacement component?
Yes. The 330930-065-05-00 is commonly selected as a replacement or spare extension cable for compatible 3300 NSv system configurations.
