Product Introduction

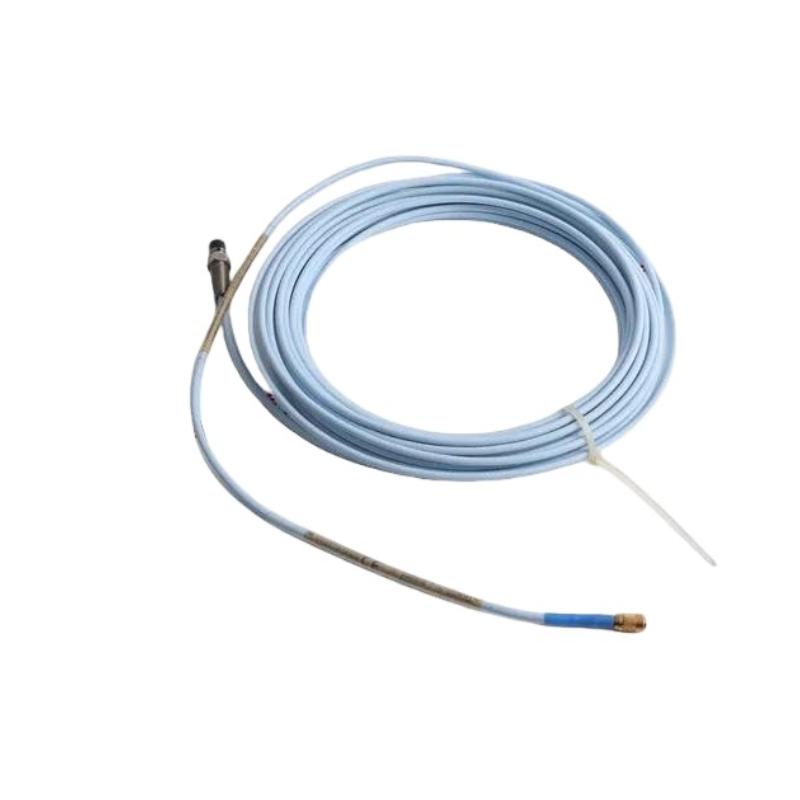

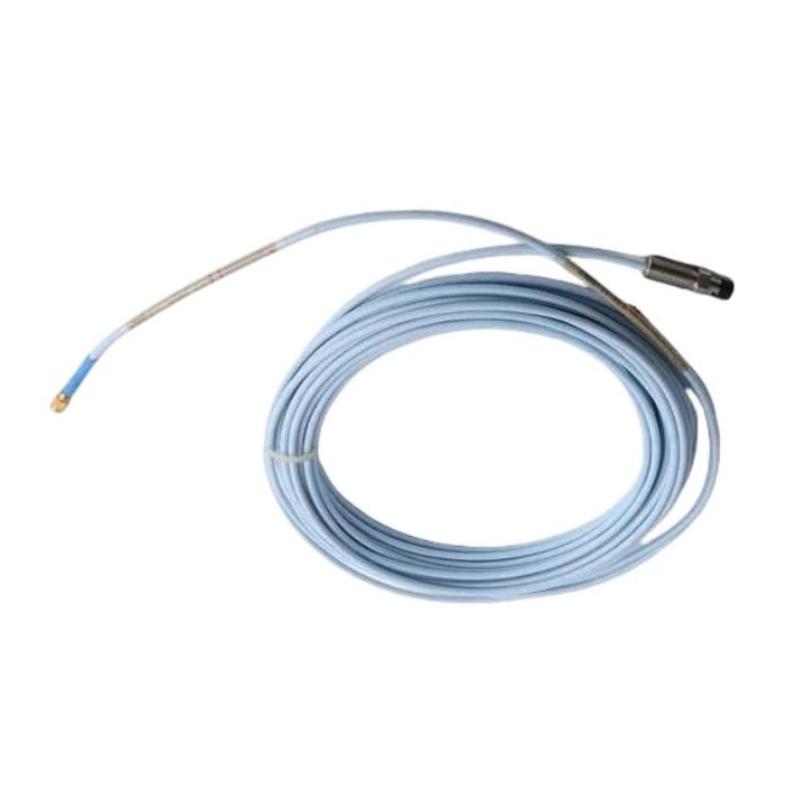

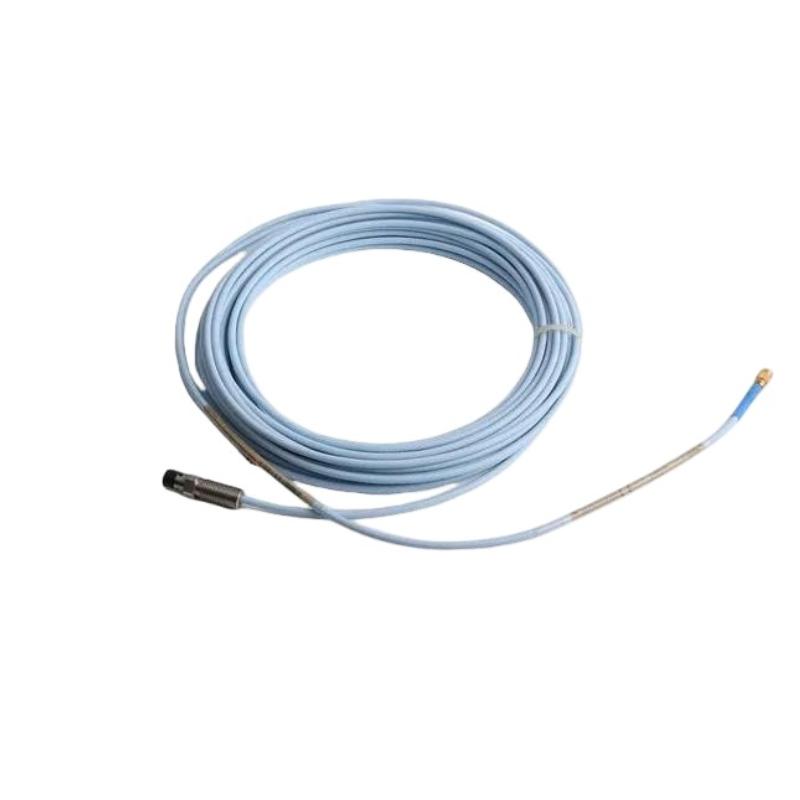

The Bently Nevada 330930-065-02-05 3300 NSv Extension Cable is a precision extension cable assembly developed for the 3300 NSv Proximity Transducer System. Designed for applications requiring dependable connection performance and durable mechanical construction, this model is part of the established Bently Nevada 3300 NSv product family.
Featuring a 6.5 m (21.3 ft) cable length, stainless-steel armor without FEP jacket, and Multiple Approvals option, the 330930-065-02-05 configuration is suitable for customers who require a rugged cable solution with factory-defined specifications. Its compact design and reliable materials make it a preferred choice for replacement projects, spare parts management, and equipment support applications.
Technical Specifications
| Specification | Description |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330930-065-02-05 |
| Product Type | 3300 NSv Extension Cable |
| Product Family | 3300 NSv |
| Cable Length | 6.5 m (21.3 ft) |
| Connector & Cable Option | 02 – Stainless-steel armor without FEP jacket |
| Approval Option | 05 – Multiple Approvals |
| Cable Type | 75 Ω coaxial extension cable |
| Armor Material | AISI 302 stainless-steel armor |
| Cable Insulation | FEP insulated coaxial cable |
| Connector Type | Miniature coaxial ClickLoc connector |
| Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Center Conductor Resistance | 0.220 Ω/m (0.067 Ω/ft) |
| Shield Resistance | 0.066 Ω/m (0.020 Ω/ft) |
| Operating Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Dimensions | Approx. 6.5 m cable length |
| Product Weight | Approx. 0.2–0.3 kg |
| Shipping Weight | Approx. 1.0–1.5 kg |
| Condition | New |
Application Areas
The 330930-065-02-05 extension cable is designed for professional equipment applications where stable connection performance and mechanical protection are required.
Common application areas include:
-
Rotating equipment monitoring projects
-
Compressor equipment installations
-
Power generation facilities
-
Process industry equipment
-
Manufacturing plants
-
Machinery condition monitoring systems
-
Equipment replacement programs
-
Spare parts inventory planning
The 6.5-meter configuration offers additional installation flexibility while maintaining compatibility with the 3300 NSv proximity monitoring system components.
Technical FAQs
1. What is the Bently Nevada 330930-065-02-05?
It is a 3300 NSv Extension Cable designed for use with compatible Bently Nevada 3300 NSv proximity system components.
2. What is the complete model number?
The complete part number is 330930-065-02-05.
3. What does the "065" option represent?
The "065" option identifies the cable length of 6.5 meters (21.3 feet).
4. What does the "02" cable option specify?
The "02" configuration indicates a cable with stainless-steel armor without FEP jacket.
5. What does the final "05" option indicate?
The final "05" represents the Multiple Approvals configuration.
6. What type of cable construction is used?
This model uses a 75 Ω coaxial cable with FEP insulation.
7. What is the operating temperature range of this cable?
The cable is designed for approximately -52°C to +177°C (-62°F to +351°F) operation.
8. What is the typical cable capacitance?
The typical capacitance value is 69.9 pF/m (21.3 pF/ft).
9. What is the approximate weight of this model?
The product weight is approximately 0.2–0.3 kg, with packaged shipping weight depending on supplier packaging.
10. Why choose the armored version of the 3300 NSv extension cable?
The stainless-steel armor provides additional mechanical protection and improves durability in equipment environments where cable protection is important.
