Compact Precision Sensor Designed for Stable Machinery Protection in Confined Installations

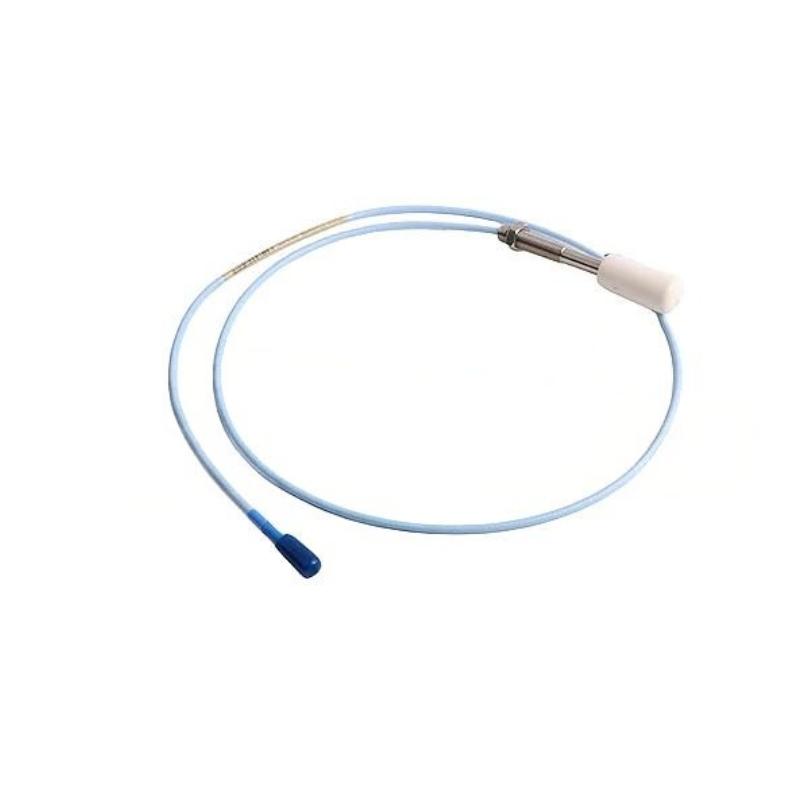

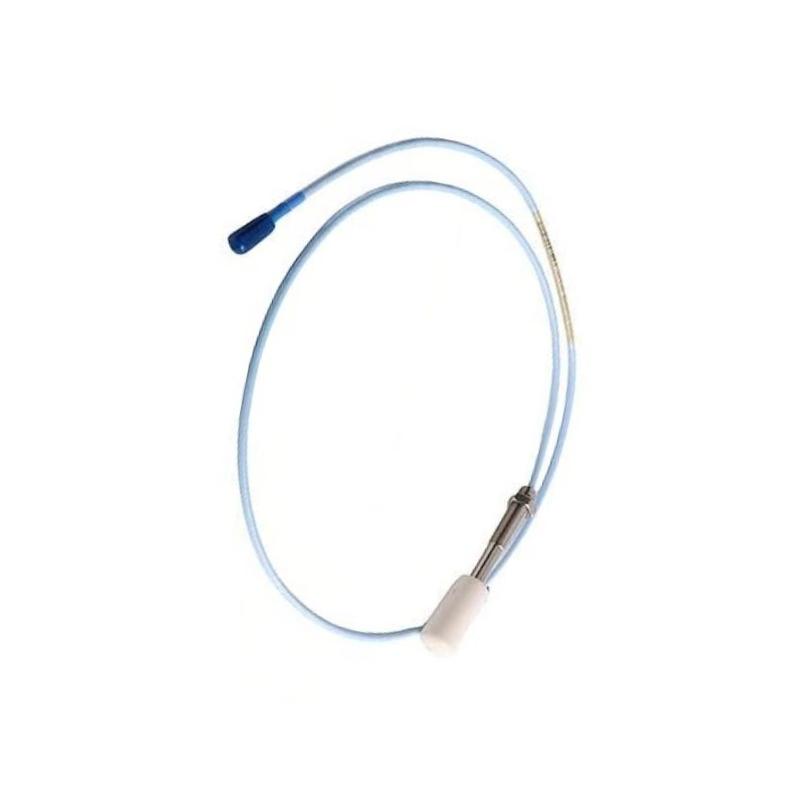

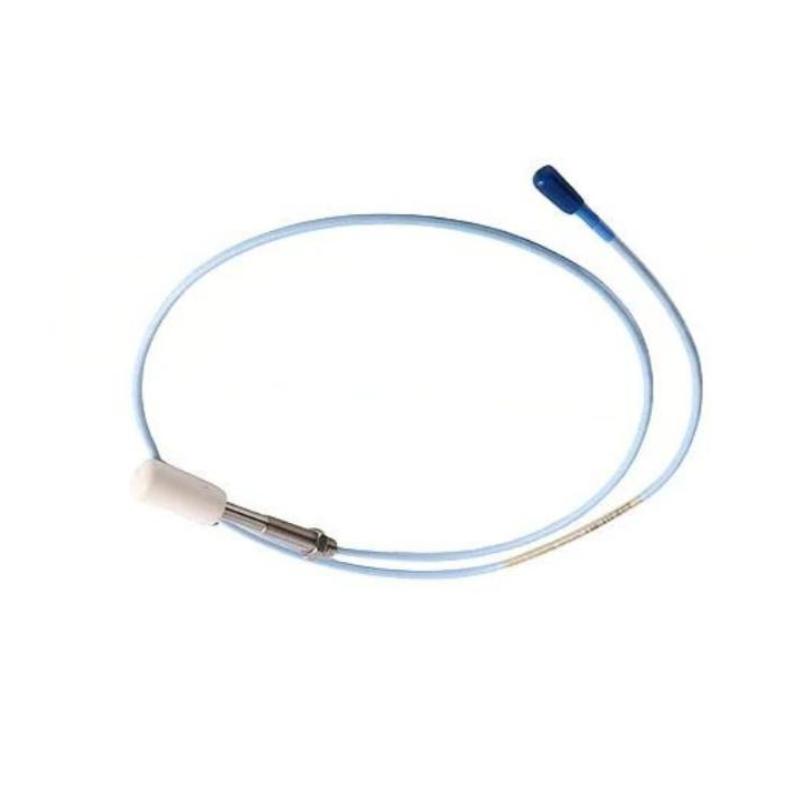

The Bently Nevada 330905-00-07-10-02-00 3300 NSv Proximity Probe is a non-contact eddy-current sensor engineered for high-accuracy shaft vibration and position monitoring in rotating machinery with limited installation space. As part of the 3300 NSv (Narrow Side View) family, it is specifically designed to maintain stable measurement performance even when surrounding metallic structures could otherwise influence signal integrity.
This configuration is widely used in industrial condition monitoring systems for compressors, turbines, pumps, and OEM rotating equipment, where compact geometry, reliability, and predictive maintenance capability are essential. The NSv design provides a robust solution for both new installations and retrofit upgrades in critical machinery protection systems.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330905-00-07-10-02-00 |
| Product Series | 3300 NSv Proximity Probe |
| Measurement Principle | Eddy-current non-contact sensing |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Case Length | 70 mm |
| Total Cable Length | 1.0 m |
| Connector Type | Miniature ClickLoc coaxial connector |
| Cable Type | 75 Ω FEP insulated coaxial cable |
| Housing Material | AISI 304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | 0–10 kHz |
| Linear Measurement Range | ~1.5 mm typical NSv system behavior |
| Approx. Weight | ~0.3–1.0 kg (configuration dependent) |
Industrial Applications
This probe is widely deployed in rotating machinery protection and condition monitoring systems such as:
-
Centrifugal compressors
-
Steam and gas turbines
-
Turbo-expanders
-
High-speed industrial pumps
-
Refrigeration and process compressors
-
Air separation units
-
Petrochemical rotating machinery
-
OEM skid-mounted equipment
-
Power generation auxiliary systems
-
Continuous predictive maintenance platforms
Its compact structure makes it especially effective in space-constrained installations and high-density machinery layouts.
Key Advantages
◆ Compact Mechanical Configuration
Designed for installations where standard probe geometry cannot be accommodated.
◆ Stable NSv Signal Architecture
Reduces measurement distortion caused by nearby metallic structures, ensuring reliable readings.
◆ High-Precision Non-Contact Measurement
Provides accurate vibration and shaft displacement data without mechanical wear.
◆ Industrial-Grade Construction
Stainless steel housing ensures durability in harsh operating environments.
◆ Stable Signal Transmission
75 Ω coaxial cable supports low-noise, long-term measurement stability.
◆ Predictive Maintenance Support
Enables early detection of imbalance, misalignment, and bearing degradation.
◆ OEM and Retrofit Flexibility
Suitable for both new machinery designs and legacy system upgrades.
Technical FAQs
Q1: What does this probe measure?
It measures shaft vibration and radial displacement without physical contact.
Q2: What does NSv mean?
NSv stands for Narrow Side View, designed to reduce interference from surrounding metallic structures.
Q3: What does the “07” indicate?
It represents a 70 mm case length configuration.
Q4: What is the cable length?
This model includes a 1.0-meter integrated coaxial cable.
Q5: What is the thread type?
It uses an M10 × 1 metric threaded mounting system.
Q6: Where is it commonly used?
It is widely used in compressors, turbines, pumps, and industrial rotating machinery.
Q7: Is it suitable for high-temperature environments?
Yes, it supports operation up to +177°C.
Q8: Can NSv components be mixed?
No. Probe, extension cable, and Proximitor sensor must be matched as a complete system.
Q9: What is the main installation requirement?
Correct alignment with the rotating shaft target and proper gap setting.
Q10: What maintenance is recommended?
Periodic inspection of cable condition, mounting stability, and signal verification.
