Precision Machinery Monitoring for Continuous Asset Protection

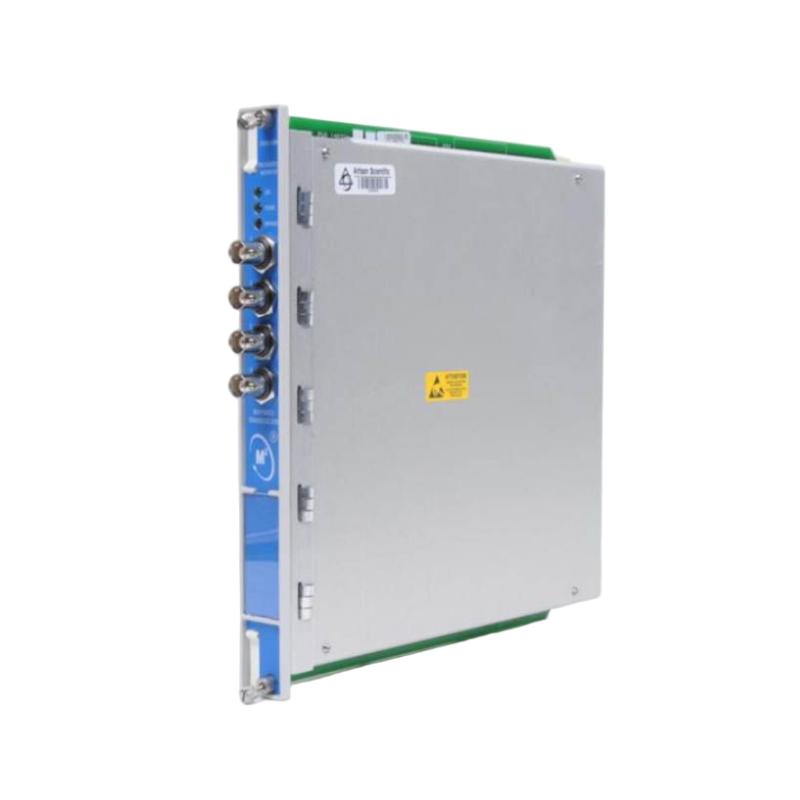

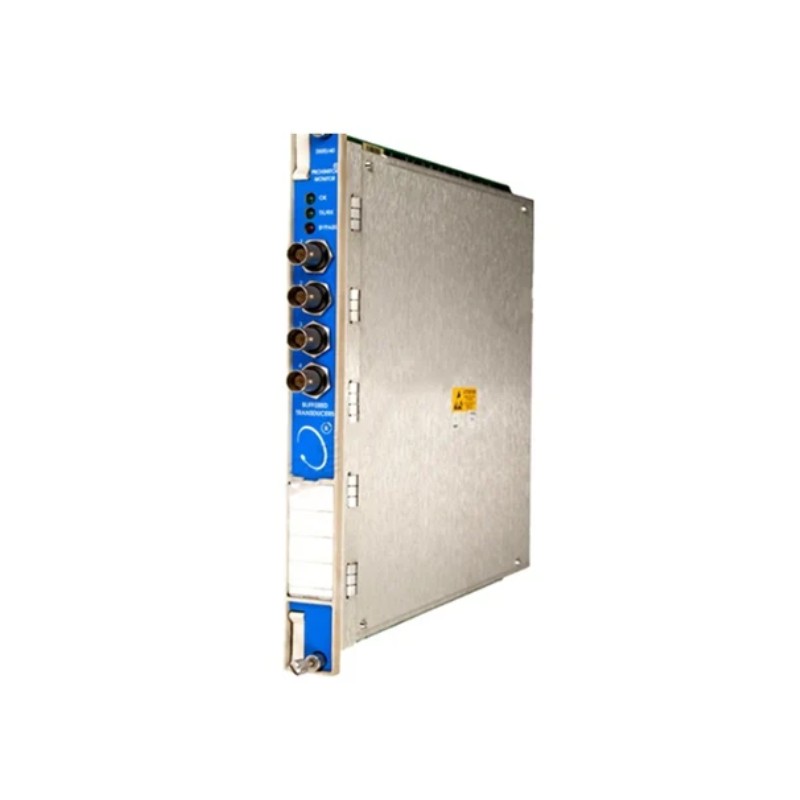

The Bently Nevada 3500/42M-01-00 Proximitor Seismic Monitor is a versatile four-channel monitoring module developed for the Bently Nevada 3500 Machinery Protection System. It continuously receives signals from proximity probes and seismic transducers, conditions those signals into meaningful vibration and position measurements, and compares the results against configurable alarm thresholds to provide dependable machinery protection and condition monitoring. Designed for mission-critical rotating equipment, the module supports predictive maintenance strategies while helping reduce unplanned downtime.
The 3500/42M-01-00 configuration is supplied with a Proximitor/Seismic I/O Module featuring Internal Terminations and no hazardous-area approval option (00). Its flexible monitoring capabilities, advanced digital signal processing, and seamless compatibility with the entire 3500 platform make it an excellent solution for turbines, compressors, generators, pumps, and other critical industrial machinery.
Product Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 3500/42M-01-00 |
| Product Type | Proximitor Seismic Monitor |
| Series | 3500 Machinery Protection System |
| Monitor Channels | 4 Independent Channels |
| I/O Module Type | 01 – Proximitor/Seismic I/O Module with Internal Terminations |
| Hazardous Area Approval | 00 – None |
| Supported Sensors | Proximity Probes, Accelerometers, Velomitor®, Seismoprobe Transducers |
| Measurement Functions | Radial Vibration, Shaft Absolute, Thrust Position, Differential Expansion, Velocity, Acceleration, Eccentricity, REBAM |
| Alarm Configuration | User-Programmable Alert & Danger Setpoints |
| Configuration Software | 3500 Rack Configuration Software |
| Typical Power Consumption | Approximately 7.7 W |
| Installation | Full-Height Module for 3500 Rack |
| Module Dimensions | 241.8 × 24.4 × 241.3 mm |
| Module Weight | Approximately 0.91 kg |
| I/O Module Dimensions | 241.3 × 24.4 × 99.1 mm |
| I/O Module Weight | Approximately 0.46 kg |
Typical Applications
The 3500/42M-01-00 is widely used in industrial facilities that require continuous vibration monitoring and dependable machinery protection.
Typical applications include:
-
Steam turbine monitoring
-
Gas turbine protection
-
Centrifugal compressor monitoring
-
Industrial generator supervision
-
Large electric motor diagnostics
-
Pump and blower condition monitoring
-
Power generation plants
-
Oil and gas production facilities
-
Petrochemical processing plants
-
Heavy manufacturing industries
Key Benefits
Built for demanding industrial environments, the 3500/42M-01-00 provides accurate monitoring and dependable protection for critical rotating assets.
Key advantages include:
-
Four independently configurable monitoring channels
-
Supports both proximity and seismic transducer technologies
-
Internal termination design simplifies rack installation
-
Monitors vibration, shaft position, velocity, acceleration, and expansion
-
User-configurable Alert and Danger alarm thresholds
-
Advanced digital signal processing for high measurement accuracy
-
Fully compatible with the complete 3500 Machinery Protection System
-
Rugged industrial design for continuous operation
-
Enables predictive maintenance and early fault detection
-
Improves equipment reliability while minimizing maintenance costs
Technical FAQs
1. What is the primary function of the 3500/42M-01-00?
The module continuously monitors vibration and position signals from rotating machinery, compares them with configured alarm limits, and provides machinery protection together with diagnostic information.
2. How many monitoring channels are available?
The monitor provides four independent input channels, allowing multiple machine parameters to be monitored simultaneously.
3. What does the "01" I/O option indicate?
The 01 option specifies a Proximitor/Seismic I/O Module with Internal Terminations, simplifying field wiring inside the 3500 rack.
4. What does the "00" approval option mean?
The 00 configuration indicates that the module is supplied without hazardous-area certification, making it suitable for standard industrial installations.
5. Which transducers are supported?
The monitor supports proximity probes, accelerometers, Velomitor® sensors, and Seismoprobe transducers, depending on the configured application.
6. Which parameters can the module monitor?
It supports radial vibration, shaft absolute vibration, thrust position, differential expansion, eccentricity, REBAM, velocity, and acceleration measurements.
7. Can alarm levels be configured independently?
Yes. Users can configure independent Alert and Danger alarm setpoints for monitored parameters using the 3500 Rack Configuration Software.
8. What are the dimensions and weight?
The monitor measures 241.8 × 24.4 × 241.3 mm and weighs approximately 0.91 kg. The internal termination I/O module measures 241.3 × 24.4 × 99.1 mm and weighs approximately 0.46 kg.
9. Is the module compatible with other 3500 modules?
Yes. The 3500/42M-01-00 integrates seamlessly with other Bently Nevada 3500 monitors, communication modules, relay modules, and power supply modules.
10. Why choose the Bently Nevada 3500/42M-01-00 Proximitor Seismic Monitor?
Its four-channel monitoring capability, broad transducer compatibility, advanced alarm processing, and proven integration with the 3500 Machinery Protection System make it an excellent solution for safeguarding mission-critical rotating equipment while improving plant reliability and operational efficiency.
