High-Capacity Temperature Monitoring for Reliable Equipment Protection

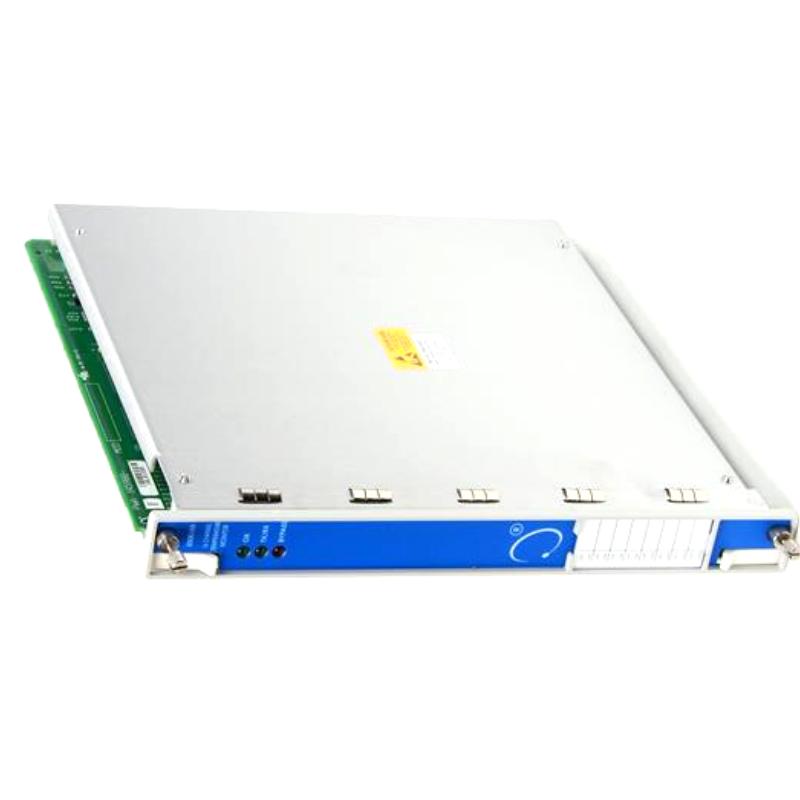

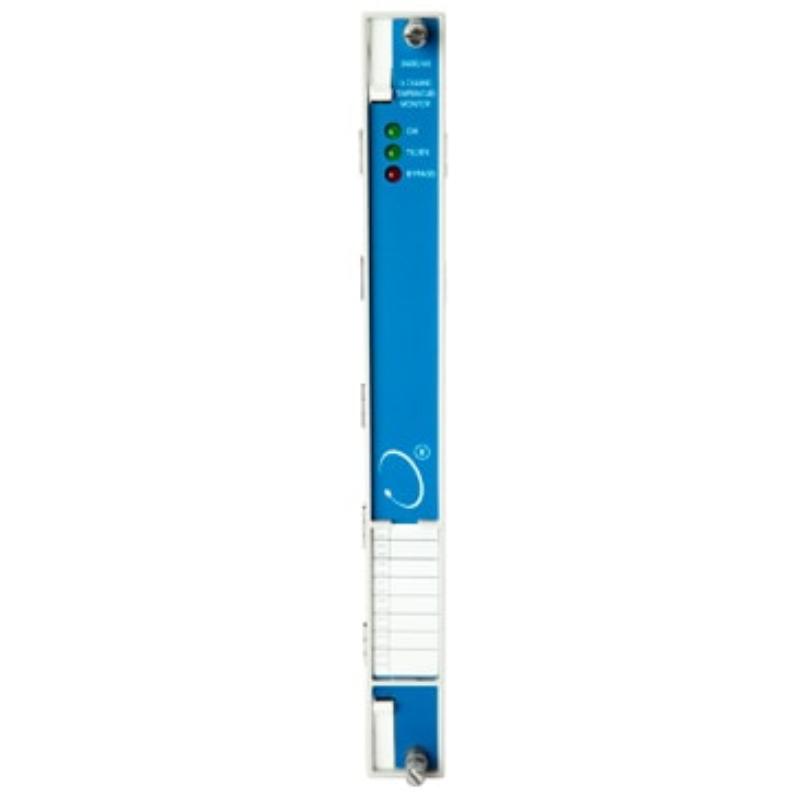

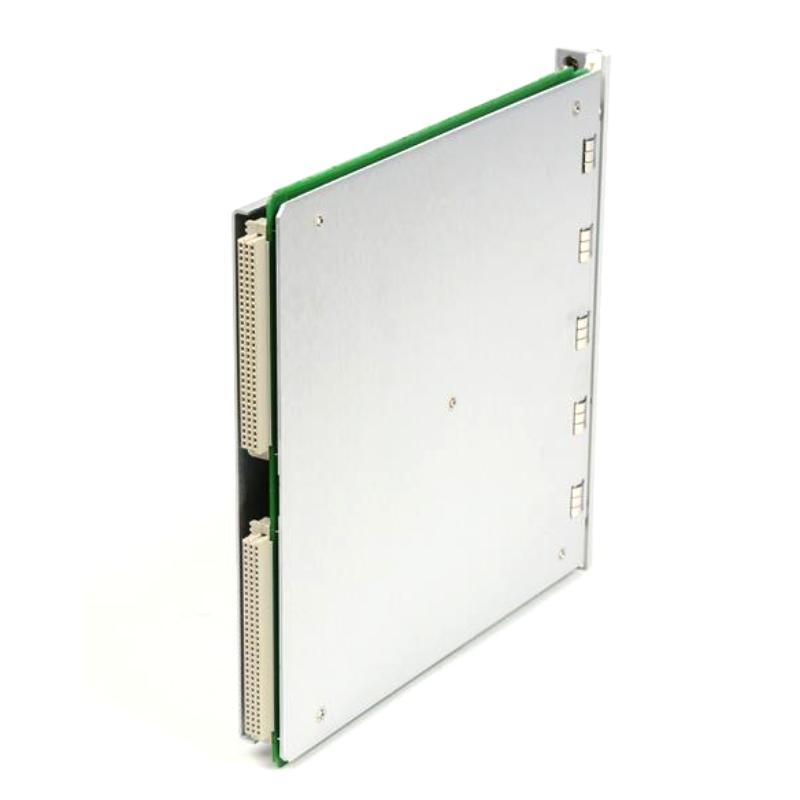

The Bently Nevada 3500/65-02-00 16-Channel Temperature Monitor is a powerful monitoring solution engineered for the Bently Nevada 3500 Machinery Protection System. Designed to provide continuous thermal monitoring of critical rotating equipment, this module accepts both resistance temperature detector (RTD) and isolated-tip thermocouple (TC) inputs across 16 independently configurable channels. By comparing real-time temperature measurements against programmable alarm thresholds, it helps operators detect abnormal thermal conditions early, improving equipment reliability and reducing the risk of unexpected shutdowns.
The 3500/65-02-00 configuration features an RTD/Isolated Tip Thermocouple I/O Module with External Terminations and no hazardous-area approval option. Its external termination design simplifies field wiring and maintenance, making it an excellent choice for industrial facilities seeking flexible installation, precise temperature measurement, and seamless integration with the complete Bently Nevada 3500 monitoring platform.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 3500/65-02-00 |
| Product Type | 16-Channel Temperature Monitor |
| Series | 3500 Machinery Protection System |
| Input Channels | 16 Independent Temperature Channels |
| I/O Module Type | 02 – RTD/Isolated Tip TC with External Terminations |
| Agency Approval | 00 – None |
| Supported Sensors | RTDs and Isolated Tip Thermocouples |
| Supported RTDs | 3-Wire and 4-Wire RTDs |
| Supported Thermocouples | Type E, J, K, T, R, S, B and N |
| Alarm Functions | Programmable Alert and Danger Setpoints |
| Configuration Software | 3500 Rack Configuration Software |
| Typical Power Consumption | 3 W Nominal |
| Installation | Full-Height Module for 3500 Rack |
| Main Module Dimensions | 241.3 × 24.4 × 241.8 mm |
| Main Module Weight | Approximately 0.91 kg |
| I/O Module Dimensions | 241.3 × 24.4 × 99.1 mm |
| I/O Module Weight | Approximately 0.45 kg |
Typical Applications
The 3500/65-02-00 is designed for industrial processes where accurate temperature measurement is essential for machinery protection and operational efficiency.
Typical applications include:
-
Steam turbine bearing temperature monitoring
-
Gas turbine exhaust temperature supervision
-
Compressor bearing protection
-
Generator winding temperature monitoring
-
Electric motor stator temperature measurement
-
Pump bearing condition monitoring
-
Boiler and heat exchanger monitoring
-
Oil & gas production facilities
-
Petrochemical processing plants
-
Power generation stations
Key Benefits
The 3500/65-02-00 delivers dependable temperature monitoring with flexible sensor compatibility and simplified field installation.
Key advantages include:
-
Sixteen independently configurable temperature channels
-
Supports both RTDs and isolated-tip thermocouples
-
External termination design for easier wiring and maintenance
-
High-accuracy signal conditioning and measurement
-
User-configurable Alert and Danger alarm thresholds
-
Continuous real-time thermal monitoring
-
Seamless integration with the Bently Nevada 3500 System
-
Rugged industrial construction for long service life
-
Helps minimize unplanned downtime
-
Optimizes predictive maintenance strategies and equipment availability
Technical FAQs
1. What is the primary function of the 3500/65-02-00?
The module continuously monitors temperatures from RTDs and thermocouples, compares readings with programmable alarm limits, and provides reliable machinery protection and condition monitoring.
2. How many temperature inputs does the monitor support?
The module supports 16 independent temperature input channels, allowing simultaneous monitoring of multiple machine components.
3. What does the "02" I/O option indicate?
The 02 configuration specifies an RTD/Isolated Tip Thermocouple I/O Module with External Terminations, enabling convenient field wiring outside the rack.
4. What does the "00" approval option mean?
The 00 option indicates that the module is supplied without hazardous-area certification, making it suitable for standard industrial installations.
5. Which sensor types are supported?
The monitor accepts 3-wire and 4-wire RTDs as well as isolated-tip thermocouples, including Types E, J, K, T, R, S, B, and N.
6. Can each channel be configured independently?
Yes. Each of the 16 channels can be individually configured for sensor type, measurement range, alarm settings, and monitoring functions using the 3500 Rack Configuration Software.
7. What alarm functions are available?
Each measurement channel supports programmable Alert and Danger alarm setpoints, allowing rapid detection of abnormal temperature conditions.
8. What are the module dimensions and weight?
The main monitor measures 241.3 × 24.4 × 241.8 mm and weighs approximately 0.91 kg. The external termination I/O module measures 241.3 × 24.4 × 99.1 mm and weighs approximately 0.45 kg.
9. Is the module compatible with other 3500 System modules?
Yes. The 3500/65-02-00 integrates seamlessly with other Bently Nevada 3500 monitors, communication modules, relay modules, and power supplies.
10. Why choose the Bently Nevada 3500/65-02-00?
Its high-density 16-channel architecture, external termination design, broad RTD and thermocouple compatibility, and proven reliability make it an excellent solution for accurate temperature monitoring in demanding industrial environments.
