Precision Non-Contact Measurement for Reliable Machinery Monitoring

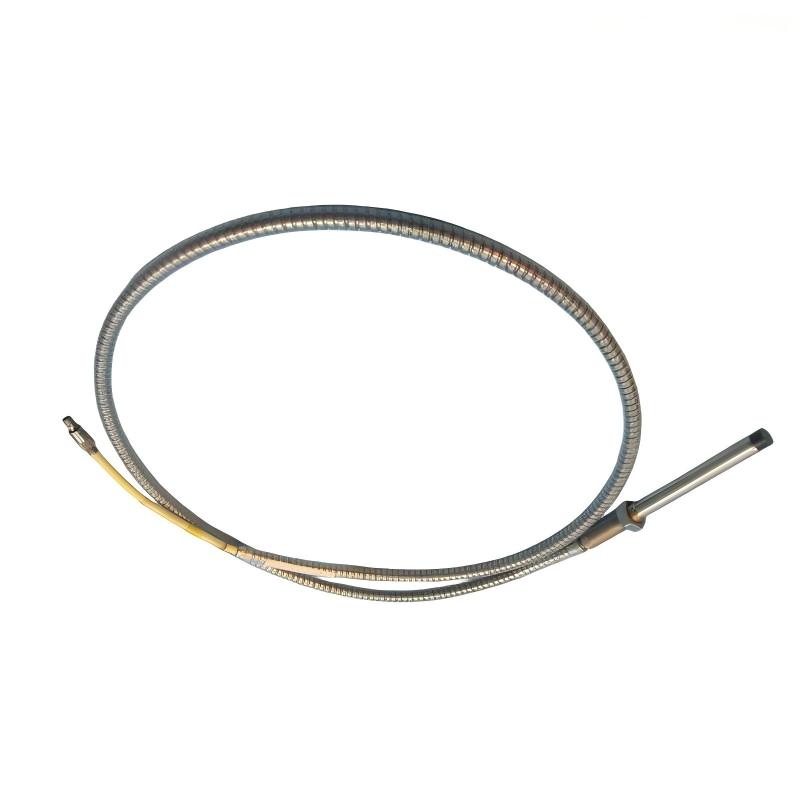

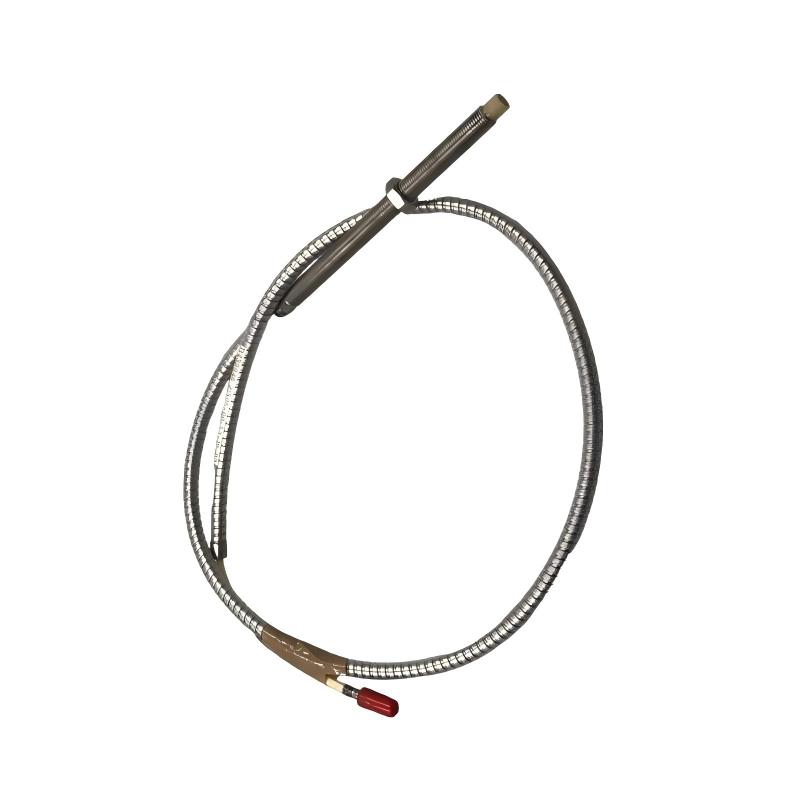

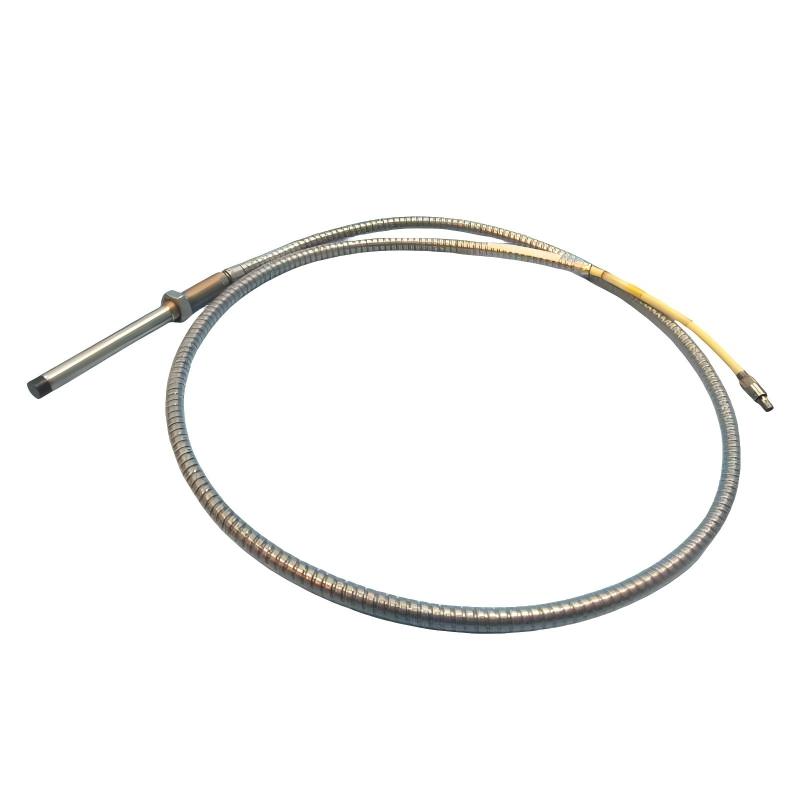

The Bently Nevada 21505-00-59-10-02 7200 8 mm Standard Mount Armored Probe is a rugged proximity probe designed for the Bently Nevada 7200 Series Proximity Transducer System. Engineered for accurate non-contact shaft vibration and displacement measurements, this 8 mm probe provides dependable monitoring of rotating machinery operating in demanding industrial environments. Its stainless-steel armored cable enhances mechanical protection, making it ideal for installations exposed to vibration, abrasion, and harsh operating conditions. The probe delivers stable, high-resolution signals for machinery protection, predictive maintenance, and condition monitoring.

Designed for seamless compatibility with 7200 Series Proximitor® sensors and extension cables, the 21505-00-59-10-02 supports continuous monitoring of shaft position, radial vibration, and dynamic displacement. Its robust construction, reliable electrical performance, and long service life make it an excellent choice for turbines, compressors, motors, and other critical rotating assets.

Technical Specifications

Technical FAQs

1. What is the primary function of the 21505-00-59-10-02 probe?

The probe performs non-contact measurement of shaft vibration, position, and displacement in rotating machinery using eddy current sensing technology.

2. Which series is this probe designed for?

It is designed for use with the Bently Nevada 7200 Series Proximity Transducer System.

3. What is the probe diameter?

The probe features a standard 8 mm sensing tip, suitable for a wide range of machinery monitoring applications.

4. Why is the cable armored?

The stainless-steel armor protects the cable against abrasion, vibration, and mechanical damage, extending service life in harsh industrial environments.

5. What measurements can this probe perform?

It is commonly used to measure shaft vibration, shaft position, dynamic displacement, and other non-contact displacement parameters.

6. What is the operating frequency range?

The probe supports a frequency response from 0 Hz to 10 kHz, making it suitable for both static and dynamic measurements.

7. What connector does the probe use?

The probe is equipped with a miniature male coaxial connector, ensuring secure and reliable electrical connections.

8. What are the dimensions and weight?

The probe measures approximately 102.2 × 12.4 × 12.6 cm and weighs about 0.20 kg, making it lightweight and easy to install.

9. Which industries commonly use this probe?

It is widely used in power generation, oil and gas, petrochemical, mining, marine, and heavy industrial manufacturing, where accurate rotating equipment monitoring is essential.

10. Why choose the Bently Nevada 21505-00-59-10-02?

Its rugged armored construction, high measurement accuracy, wide frequency response, and proven compatibility with the 7200 Series make it an excellent solution for reliable machinery condition monitoring and long-term equipment protection.
