Advanced Vibration and Position Monitoring for Critical Rotating Equipment

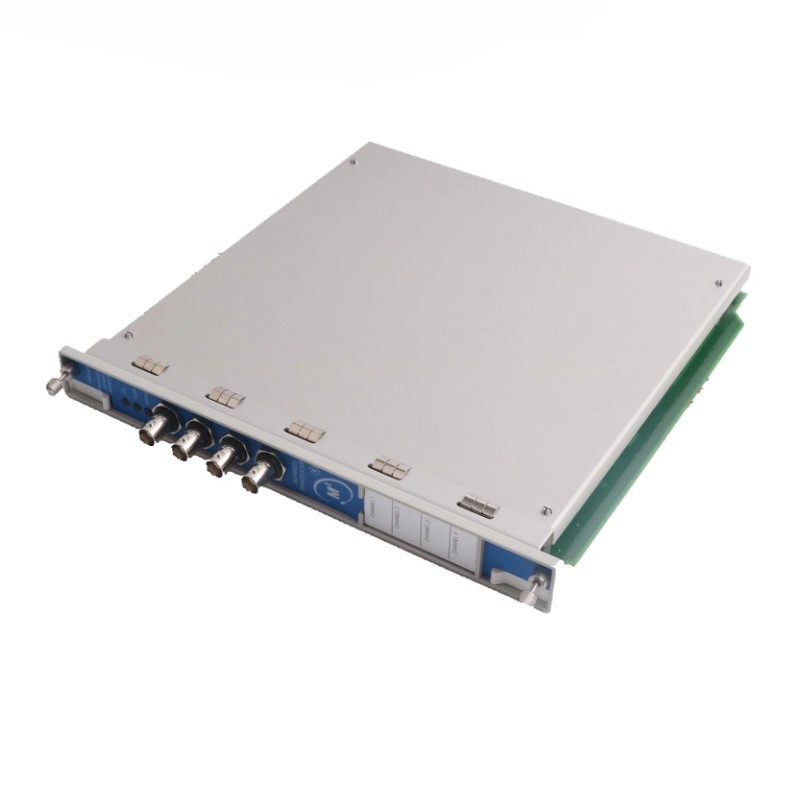

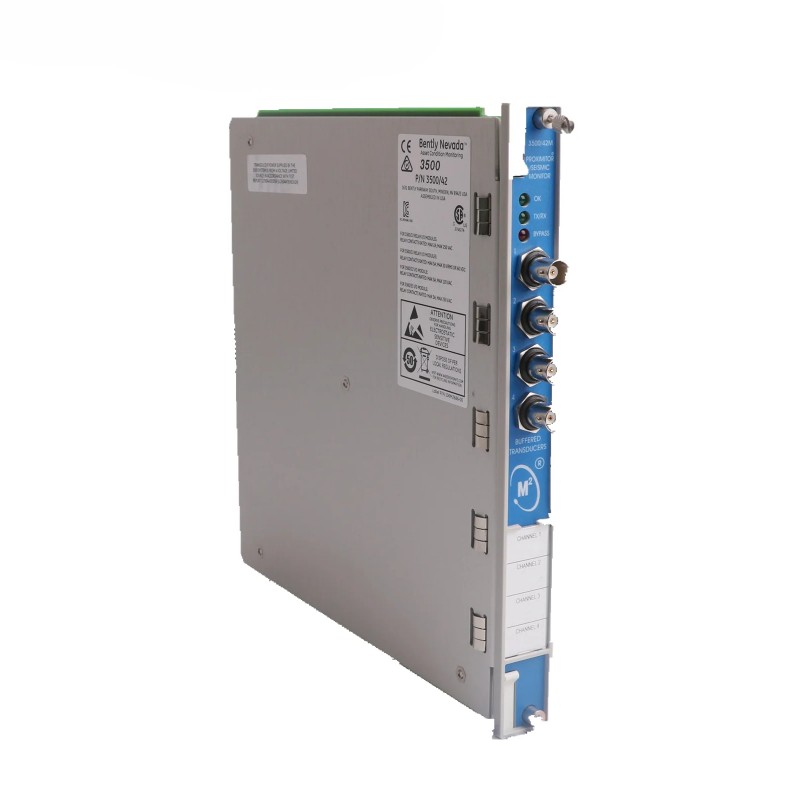

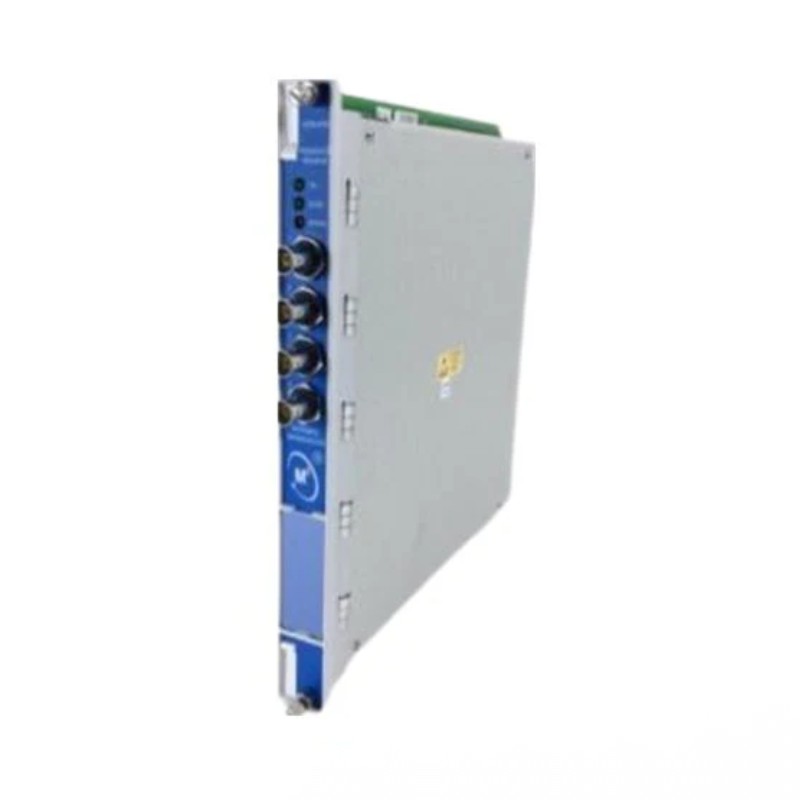

The Bently Nevada 3500/42-01-CN Proximitor Seismic Monitor is a high-performance monitoring module designed for the Bently Nevada 3500 Machinery Protection System. Featuring four independent input channels, the monitor accepts signals from proximity probes and seismic transducers, conditions the input signals, and continuously compares measured values against user-defined alarm setpoints. This enables reliable protection of critical rotating machinery while providing essential diagnostic data for predictive maintenance and operational decision-making.
The 3500/42-01-CN configuration includes a Proximitor/Seismic I/O Module with Internal Terminations and the CN country-specific hazardous-area approval option, including applicable ATEX, IECEx, and Chinese NEPSI certifications. It is an excellent choice for industrial applications that demand dependable machinery protection together with regional compliance requirements.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 3500/42-01-CN |
| Product Type | Proximitor Seismic Monitor |
| Series | 3500 Machinery Protection System |
| Monitor Channels | 4 Independent Channels |
| I/O Module Type | 01 – Proximitor/Seismic I/O Module with Internal Terminations |
| Supported Transducers | Proximity Probes, Accelerometers, Velomitors®, Seismoprobes |
| Measured Parameters | Radial Vibration, Shaft Position, Differential Expansion, Velocity, Acceleration, Eccentricity, REBAM, Shaft Absolute |
| Configuration Software | 3500 Rack Configuration Software |
| Typical Power Consumption | Approximately 7.7 W |
| Agency Approval | CN – Country-Specific Approval (ATEX / IECEx / NEPSI where applicable) |
| Installation | Full-Height Module for 3500 Rack |
| Module Dimensions | 241.8 × 24.4 × 241.3 mm |
| Module Weight | Approximately 0.91 kg |
Typical Applications
The 3500/42-01-CN is widely deployed in industries where continuous vibration and position monitoring are essential for protecting valuable rotating machinery.
Typical applications include:
-
Steam turbine monitoring
-
Gas turbine protection
-
Centrifugal compressor monitoring
-
Industrial generators
-
Pumps and blowers
-
Large electric motors
-
Power generation facilities
-
Oil and gas production platforms
-
Petrochemical processing plants
-
Mining and heavy industrial equipment
Key Advantages
Designed to deliver reliable machinery protection, the 3500/42-01-CN combines flexible monitoring capabilities with industry-proven performance.
Key benefits include:
-
Four configurable monitoring channels
-
Supports multiple proximity and seismic transducer types
-
Measures vibration, position, velocity, acceleration, and expansion
-
User-programmable Alert and Danger alarm setpoints
-
Internal termination design simplifies installation
-
High-speed signal processing for accurate diagnostics
-
Full compatibility with the Bently Nevada 3500 platform
-
CN hazardous-area approval for regional compliance
-
Rugged industrial construction for long-term reliability
-
Helps maximize equipment uptime and reduce maintenance costs
Technical FAQs
1. What is the primary function of the 3500/42-01-CN?
The module continuously monitors vibration and position signals from rotating machinery, compares them with configured alarm limits, and provides machinery protection and diagnostic information.
2. How many monitoring channels are available?
The monitor provides four independent input channels, allowing simultaneous monitoring of multiple vibration and position measurements.
3. What does the "01" I/O option indicate?
The 01 option specifies a Proximitor/Seismic I/O Module with Internal Terminations, simplifying wiring inside the 3500 rack.
4. What does the "CN" approval option mean?
The CN option identifies the country-specific hazardous-area approval package, including applicable ATEX, IECEx, and Chinese NEPSI certifications for qualified installations.
5. Which transducers are supported?
The monitor supports proximity probes, accelerometers, Velomitor® sensors, and Seismoprobe transducers, depending on the selected configuration.
6. Which measurements can the module perform?
It can monitor radial vibration, shaft position, differential expansion, shaft absolute vibration, eccentricity, REBAM, velocity, and acceleration.
7. Can alarm levels be customized?
Yes. Users can configure Alert and Danger alarm setpoints for monitored parameters using the 3500 Rack Configuration Software.
8. What are the module dimensions and weight?
The module measures 241.8 × 24.4 × 241.3 mm and weighs approximately 0.91 kg, making it suitable for installation in a standard full-height 3500 rack slot.
9. Is the module compatible with other 3500 system components?
Yes. The 3500/42-01-CN integrates seamlessly with other Bently Nevada 3500 monitors, communication modules, relay modules, and power supplies.
10. Why choose the Bently Nevada 3500/42-01-CN Proximitor Seismic Monitor?
Its versatile four-channel monitoring capability, broad transducer compatibility, advanced alarm processing, and country-specific hazardous-area approvals make it an excellent solution for protecting mission-critical rotating equipment in demanding industrial environments.
